Rosen Aviation 1060-001 Technical Manual

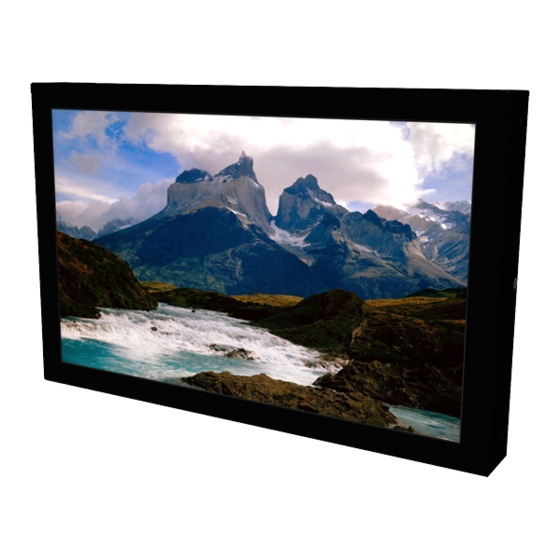

10.6" widescreen bulkhead display
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
ELECTRONIC REVISION
CONTROLLED
Document Number 106282
Rev D

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1060-001 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Rosen Aviation 1060-001

Summary of Contents for Rosen Aviation 1060-001

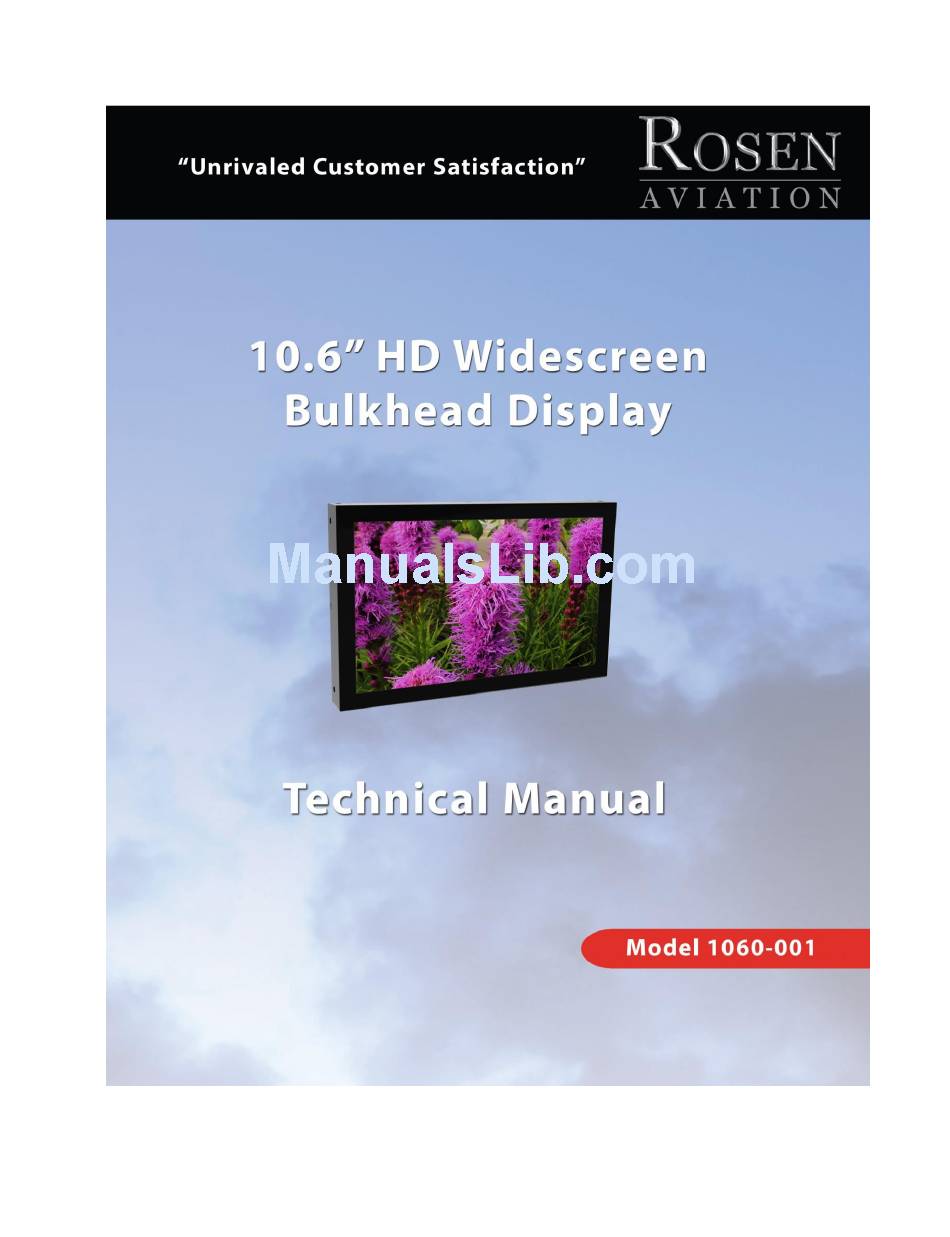

  • Page 1 ELECTRONIC REVISION CONTROLLED Document Number 106282 Rev D...
  • Page 2 The information contained in this document is subject to change without notice. Because we are continuously improving and adding features to our products, Rosen Aviation, LLC reserves the right to change specifications without prior notice. Rosen Aviation, LLC shall not be liable for technical or editorial errors or omissions contained herein.

  • Page 3: Table Of Contents

    10.6” HD Widescreen Bulkhead Display Rosen Aviation Contents 1. INTRODUCTION .........................5 1.1. System Overview ......................5 1.1.1. Control Options ......................... 6 1.1.2. Display Connections ......................6 2. INSTALLATION GUIDELINES ...................6 2.1. Mounting Configurations ....................6 2.2. Cooling and Ventilation ....................7 2.3. Electrical Requirements ....................7 2.4.
  • Page 4 10.6” HD Widescreen Bulkhead Display Rosen Aviation 6.6. Source Mode Submenu ....................22 6.6.1. Momentary Mode ......................23 6.6.2. Constant Mode ....................... 24 7. TECHNICAL REFERENCES AND SUPPORT ..............24 7.1. Troubleshooting ......................25 7.2. Cleaning the Display ....................25 7.3.

  • Page 5: Introduction

    Note: Only trained and qualified personnel should perform installation and service. The Outline & Installation drawing and the Technical Manual are available on the Rosen Aviation website at www.rosenaviation.com.

  • Page 6: Control Options

    RS-485 and/or RS-232. For a copy of the RS-232 External Controller Message Formats (P/N 9002934) or RS485 Network Message Definitions document (P/N 9002933), please contact Rosen Aviation Technical Support at 541.342.3802. Note: For directions on operating the optional universal remote control, refer to the user’s guide enclosed with the remote.

  • Page 7: Cooling And Ventilation

    Nominal voltage 28VDC / .66 A  Max Power Consumption: 20 W 2.4. Video Connections The 1060-001 display uses the following connectors. Figure 2 10.6 bulkhead display connections 2.5. Pinout Connections There are several ways to connect the remote display system to an aircraft’s entertainment system.

  • Page 8: Ir Remote Control

    10.6” HD Widescreen Bulkhead Display Rosen Aviation 4. IR REMOTE CONTROL The 10.6” displays may use an optional remote control to adjust the on-screen display (OSD) settings. The instructions in this manual use the RC5 IR remote in describing how to navigate the OSD.

  • Page 9: Osd Menu Options

    10.6” HD Widescreen Bulkhead Display Rosen Aviation 5. OSD MENU OPTIONS The OSD contains screen settings and options in menus and informational readouts that display over the image, as shown below. Press MENU on the remote to open the Main Menu, as shown in Section 5.1.

  • Page 10: User Menu

    10.6” HD Widescreen Bulkhead Display Rosen Aviation 5.2. User Menu (above). Highlight User and press the ► The Main Menu opens to the screen, shown in Figure 4 button to access the User menu options. Press ▼▲ buttons to select a User option, and then press ENTER to change its value.

  • Page 11: Scheme

    10.6” HD Widescreen Bulkhead Display Rosen Aviation Pillar Box: A standard 4:3 source image will appear with vertical black bars on the left and right side of the image. If the image source is letterboxed, then there will also be horizontal bars at the top and bottom of the image as well.

  • Page 12: Auto Adjust

    10.6” HD Widescreen Bulkhead Display Rosen Aviation 5.2.5. Auto Adjust (Available only when Operation Mode is set to Standard and the RGB source is active.) Use Auto Adjust to force the display to evaluate the RGB signals and ensure that it is interpreting them correctly.

  • Page 13: Reset Scheme

    10.6” HD Widescreen Bulkhead Display Rosen Aviation 5.3.3. Reset Scheme Restores the values of the current scheme to their default settings, and it affects only the current source. Use Reset Scheme to revert to the default screen colors if the other Image Adjust options did not correct the screen quality.
  • Page 14 10.6” HD Widescreen Bulkhead Display Rosen Aviation 5.3.4.1.1. Color Levels: Red, Green, Blue Setting the Color Temperature to User will make the Red, Blue, and Green options active. Each color adjusts the low-level registers of its respective color value in the picture.
  • Page 15 10.6” HD Widescreen Bulkhead Display Rosen Aviation 5.3.4.3. Image Position Submenu (RGB only) Use the Image Position options to center an RGB picture horizontally or vertically on the screen. Note: Changing the resolution, source, or cycling power will reset any adjustments to this submenu’s settings.

  • Page 16: Info

    10.6” HD Widescreen Bulkhead Display Rosen Aviation 5.3.4.5. RGB Phase (RGB only) Use RGB Phase to adjust the default phase value used for RGB signals. Each RGB video source can have different phase values, which can result in the RGB video image appearing to jitter. RGB Phase enables you to adjust the RGB video image to eliminate jitter.

  • Page 17: Technician Menu

    10.6” HD Widescreen Bulkhead Display Rosen Aviation 6. TECHNICIAN MENU To protect the display from accidental or unintentional adjustments, the Technician Menu is accessible only with a special button combination. To avoid repeating this button sequence after each change, the menu remains active until you manually close it.

  • Page 18: Advanced Technician Submenu

    10.6” HD Widescreen Bulkhead Display Rosen Aviation 6.1. Advanced Technician Submenu This submenu provides installers and technicians more advanced controls of the image. The active video signal and the Mode MenuOperation Mode setting determine which options will appear in the Technician Advanced submenu.

  • Page 19: Comb Filter

    10.6” HD Widescreen Bulkhead Display Rosen Aviation 6.1.3. 3D Comb Filter (Composite only) When set to Enabled, the display will eliminate dot crawl and some noise on stationary portions of the picture. Highlight Advanced3D Comb Filter and press ENTER. Use the ▲▼ buttons to set the option Enabled or Disabled, and then press ENTER.

  • Page 20: Power Mode

    10.6” HD Widescreen Bulkhead Display Rosen Aviation 6.2.1. Power Mode Use Power Mode to set display’s power mode to a startup state. From the Technician Menu, press the ▼ button to select Mode MenuPower Mode and then press ENTER. Use the ▲▼ buttons to set the option and then press ENTER.

  • Page 21: Sdi Overscan

    10.6” HD Widescreen Bulkhead Display Rosen Aviation 6.2.3. SDI Overscan Use SDI Overscan to enable or disable video overscan for SDI at 480i and 576i resolutions. When enabled, the setting cuts off a small percentage (2.5% by default) around the edges of the picture and it resizes the image to fit the full screen. When set to disabled, a zero percent overscan is applied to all SDI resolutions.

  • Page 22: Network Id

    (Available only when Operation Mode is set to Standard) Use this option to turn a custom splash screen on or off. The splash screen appears for approximately eight seconds when 28V power is first applied to the display. When enabled, the Rosen Aviation splash screen appears. When disabled, the screen remains black.

  • Page 23: Momentary Mode

    10.6” HD Widescreen Bulkhead Display Rosen Aviation 6.6.1. Momentary Mode Momentary enables you to specify those sources that will be set to On or Off. This mode also contains an option to specify an Auto Detect source. If the source specified in the Auto Detect option is connected, the display will ignore all source commands.

  • Page 24: Constant Mode

    10.6” HD Widescreen Bulkhead Display Rosen Aviation 6.6.2. Constant Mode Constant enables you to specify the two sources the monitor will switch between when the constant switch goes between an open state and a ground state. Highlight TechnicianSource ModeSource Select and then press ENTER.

  • Page 25: Troubleshooting

    10.6” HD Widescreen Bulkhead Display Rosen Aviation 7.1. Troubleshooting If the display does not function properly, refer to the following troubleshooting table for symptoms and possible solutions before contacting Rosen Technical Support. Note: Always use a multimeter to verify voltages. Check actual results against the requirements described in this manual.

  • Page 26: Rtca Do-160F Qualifications For Displays

    Rosen Aviation 7.3. RTCA DO-160F Qualifications for Displays The table below shows the DO-160F compliance of the 1060-001, unless otherwise noted. Omitted categories are not applicable to these products or their expected installations. Table 4 The 10.6” display is compliant with the following DO-160F test criteria...
  • Page 27 10.6” HD Widescreen Bulkhead Display Rosen Aviation Description Section Category Comments Abnormal Operating Conditions 16.6.2 Voltage Steady State (DC) 16.6.2.1 Momentary Under Voltage (DC) 16.6.2.3 Abnormal Surge Voltage (DC) 16.6.2.4 Voltage Spike Voltage Spike 17.4 Audio Frequency Conducted Susceptibility AF Conducted Susceptibility- Power 18.3.1...

  • Page 28: Supported Video Resolutions

    10.6” HD Widescreen Bulkhead Display Rosen Aviation 7.4. Supported Video Resolutions 7.4.1. VGA Resolutions 640x480p/60 VGA 800x600p/60 SVGA 1024x768p/60, 1152x864p/60 XGA 1280x768p/60 (68.250 MHz), 1280x768p/60 (79.500 MHz), 1360x768p/60 WXGA 1440x900p/60 WSXGA 1280x1024p/60 SXGA 1400x1050p/60 (101.000 MHz), 1400x1050p/60 (121.750 MHz) SXGA+...

  • Page 29: Definitions

    10.6” HD Widescreen Bulkhead Display Rosen Aviation 8. DEFINITIONS 3G HD-SDI Newer, high-definition serial digital interface with a single 2.970 G/bit/s serial link A Amps AF Audio frequency CFR Code of Federal Regulations CS Conducted susceptibility CVBS Composite Video Blanking and Sync...

  • Page 30: Revision History

    10.6” HD Widescreen Bulkhead Display Rosen Aviation UXGA Ultra eXtended Graphics Array V Volts VDC Volts direct current VGA Video Graphics Array Vpp Volts peak-to-peak W Watts WSXGA Widescreen eXtended Graphics Array WUXGA Widescreen Ultra eXtended Graphics Array WXGA Wide eXtended Graphics Array XGA Extended Graphics Array 9.
