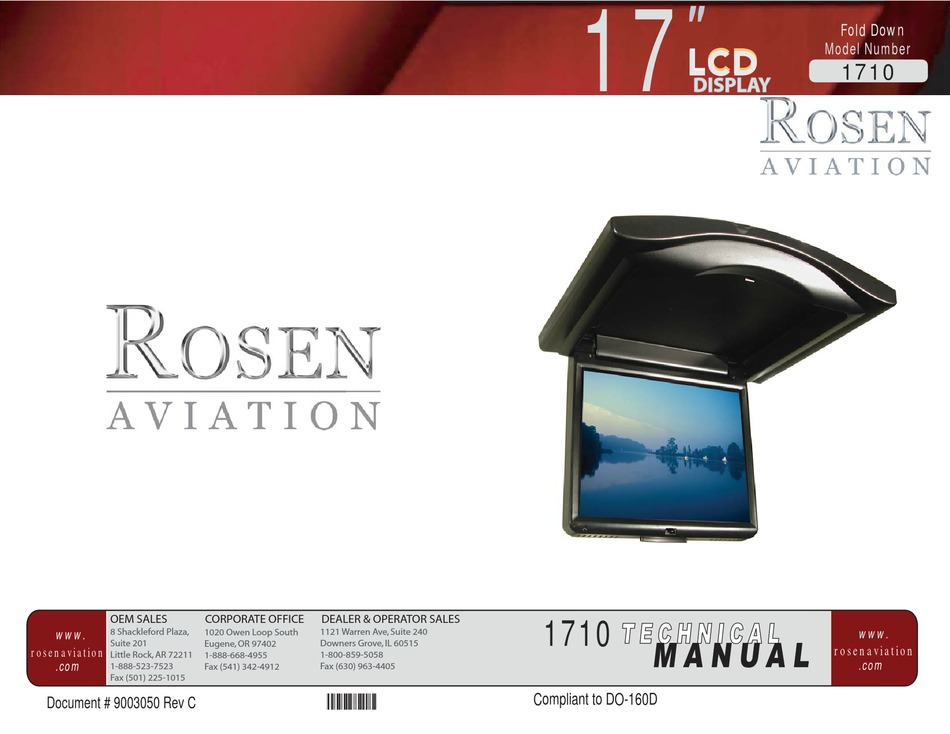

OEM SALES
CORPORATE OFFICE
www.
8 Shackleford Plaza,
1020 Owen Loop South
Suite 201
Eugene, OR 97402
rosenaviation
Little Rock, AR 72211
1-888-668-4955
.com
1-888-523-7523
Fax (541) 342-4912
Fax (501) 225-1015
Document # 9003050 Rev C
DEALER & OPERATOR SALES
1121 Warren Ave, Suite 240
Downers Grove, IL 60515
1-800-859-5058
Fax (630) 963-4405
9003050
17
DISPLAY
DISPLAY
1710
Compliant to DO-160D
Fold Down
Model Number
1710
www.
rosenaviation
.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Rosen Aviation Fold Down 1710
Summary of Contents for Rosen Aviation Fold Down 1710
- Page 1 Fold Down Model Number 1710 DISPLAY DISPLAY 1710 OEM SALES CORPORATE OFFICE DEALER & OPERATOR SALES www. www. 8 Shackleford Plaza, 1121 Warren Ave, Suite 240 1020 Owen Loop South Suite 201 Eugene, OR 97402 Downers Grove, IL 60515 rosenaviation rosenaviation Little Rock, AR 72211 1-800-859-5058...
-
Page 2: Table Of Contents
Table of Contents Introduction and Display Overview ....3 Pinouts ..............4 Main Interface Connector ..........4 Optional External Control Connector ......5 Installation Guidelines........6 Operation ............13 Main Menu ..............13 Picture Submenu ............14 On Screen Display (OSD) Submenu ......14 Utility Submenu ............ - Page 3 1020 Owen Loop South Eugene, OR 97402 541-342-3802 www.rosenaviation.com...
-
Page 4: Introduction And Display Overview
Introduction and Display Overview Introduction and Display Overview Welcome to the 1710 Technical Manual for the 17" Fold Down LCD Display. This manual provides an overview of display details including: • Pinouts • Installation • Operation • Troubleshooting • Specifications The 1710 model includes the following features: •... -
Page 5: Pinouts
The following table provides detailed pinout information for the main interface connector. Mating connector (included): Rosen Connector Kit 0300-030 MATING CONNECTOR LOADING VIEW Control Signal 28V Return +28V RGB/Video Select Switch (TTL) Status Output (TTL) HSync VSync 28V Return +28V Page 4 Rosen Aviation Displays... -
Page 6: Optional External Control Connector
Pinouts Main Interface Connector Pinouts Continued: Control Signal Computer Sync Ground A1-signal A1-shield Red Return A2-signal Green A2-shield Green Return A3-signal Blue A3-shield Blue Return A4-signal Composite Video A4-shield Composite Video Return Back Shell Chassis Ground Optional External Control Connector The optional external controller interface is a 9-pin standard density D-subminiature male connector (part number 0300- 402). -
Page 7: Installation Guidelines
Note: It is EXTREMELY IMPORTANT to set the assembly on something such that the weight rests on the frame and not on the plastic. Resting on the Frame Not the Plastic Page 6 Rosen Aviation Displays... - Page 8 Installation Guidelines Open the display to its fully-open position (about 160 degrees), and then turn it on its side (or turn it over) to press out the (2) pine tree clips where shown below. Save the clips for reassembly. clip locations Leave the display opened, set the assembly on its back, and remove the (4) 8-32 x 3/8 socket-head cap screws (4) corner locations (see below).
- Page 9 Use the following drawings to assist in mounting the 17” Fold Down assembly. Note: Ensure that the connecting harness from the aircraft will be accessible to plug into after the assembly is mounted. Page 8 Rosen Aviation Displays...
- Page 10 Installation Guidelines The following drawings are also available through Rosen’s website at www.rosenaviation.com. Listed dimensions are in inches. 17” Fold Down Page 9...
- Page 11 Installation Guidelines Page 10 Rosen Aviation Displays...
- Page 12 Installation Guidelines Once the assembly has been mounted, plug in the harness and engage the side latch. Open the display to its fully-opened position. Carefully place the shroud back onto the frame assembly by pressing it gently into place. Press only as shown in the photo below; support the shroud with one hand and press the hinge cover “doghouse”...
- Page 13 6-32 socket head cap screws, position the Fold Down to the desired rotation-stop location and retighten the 6-32 screws (torque to approximately 9 inch/lbs). Note: Use a 7/64” Hex Key to loosen and tighten the 6-32 socket head cap screws. Page 12 Rosen Aviation Displays...
-
Page 14: Operation
Operation Operation This Display turns on automatically when the Fold Down is in its opened position, and turns off automatically when the display is stowed. The display auto-detects an RGB signal when an RGB signal is connected to the monitor by detecting the presence of the Hsync signal (pin 8 of the 21WA4 connector). -
Page 15: Picture Submenu
RGB Mode. OSD Submenu Menu Option Description H Position OSD Horizontal Position V Position OSD Vertical Position OSD Time Out Time in Which OSD Turns Off if Left Alone Return Returns to Main Menu Page 14 Rosen Aviation Displays... -
Page 16: Utility Submenu
Operation Utility Submenu Menu Option Description Freeze Frame Freezes Picture Frame Reset Factory Reset to Default Settings Color Temperature Color Adjustment in RGB Mode Only Information Monitor Info Return Returns to Main Menu Auto Submenu Menu Option Description Auto Automatically Adjusts Image Size in RGB Mode Exit Submenu Menu Option... -
Page 17: Troubleshooting
• Verify that the pinout is correct. • Verify that the video source is on and has a tape or DVD installed. Color is Out of • Refer to the Utility Submenu on page 15. Adjustment Page 16 Rosen Aviation Displays... -
Page 18: Technical Support
Should an external surface be exposed to such chemicals, promptly clean the surface with a sponge and soapy water. Technical Support For technical support or to order parts, contact Rosen Aviation Displays at: 888-668-4955 or visit us at: www.rosenaviation.com 17” Fold Down Page 17... -
Page 19: Specifications
1V peak-to-peak, 75 Ohms Operating Temperature 0ºC - 50ºC Warranty DO-160 Testing This monitor is compliant with and has been tested to applicable DO-160D standards. For specific information contact a Rosen Customer Service Representative at 1.888.668.4955. Page 18 Rosen Aviation Displays... -
Page 20: Disclaimer
Disclaimer Disclaimer All information, including illustrations, is believed to be reliable. Users and/ or installers, however, should independently evaluate the suitability of each product for their application. Rosen makes no warranties as to the accuracy or completeness of the information, and disclaims any liability regarding its use or installation.
