Technical Manual
OEM SALES
CORPORATE OFFICE
www.
8 Shackleford Plaza,
1020 Owen Loop South
Suite 201
Eugene, OR 97402
rosenaviation
Little Rock, AR 72211
1-888-668-4955
.com
1-888-523-7523
Fax (541) 342-4912
Fax (501) 225-1015
Document # 9200-0102-835 Rev J
FOR REFERENCE ONLY
DEALER & OPERATOR SALES
1121 Warren Ave, Suite 240
Downers Grove, IL 60515
1-800-859-5058
Fax (630) 963-4405
9200-0102-835
10.4
1042
Compliant to DO-160D
SlimLine
Model Number
1042
DISPLAY
DISPLAY
www.
rosenaviation
.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Rosen Aviation SlimLine 1042
Summary of Contents for Rosen Aviation SlimLine 1042

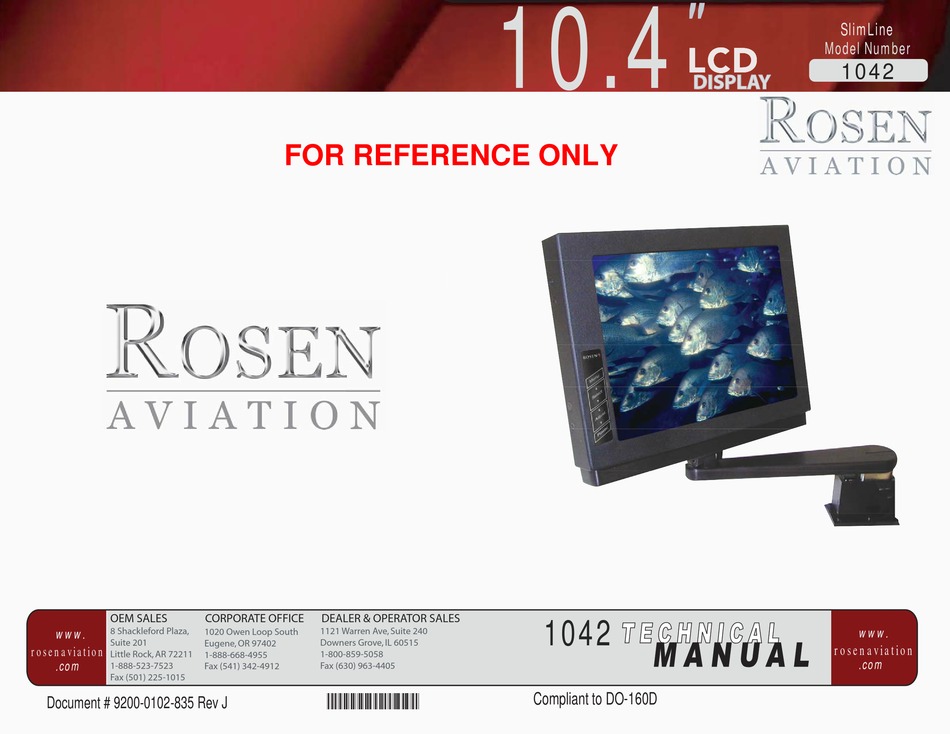

- Page 1 10.4 SlimLine Model Number 1042 DISPLAY DISPLAY FOR REFERENCE ONLY 1042 OEM SALES CORPORATE OFFICE DEALER & OPERATOR SALES www. www. 8 Shackleford Plaza, 1121 Warren Ave, Suite 240 1020 Owen Loop South Suite 201 Eugene, OR 97402 Downers Grove, IL 60515 rosenaviation rosenaviation Little Rock, AR 72211...
-
Page 2: Table Of Contents
Table of Contents Introduction and Display Overview ....3 Pinouts ..............4 Installation ............4 Operation ..............5 Specifi cations ............8 DO-160D Test MatrixDO-160D Test Matrix ....9 Troubleshooting ..........10 Disclaimer ............12 Rosen Aviation... - Page 3 1020 Owen Loop South Eugene OR 97402 541-342-3802 www.rosenaviation.com...
-
Page 4: Introduction And Display Overview

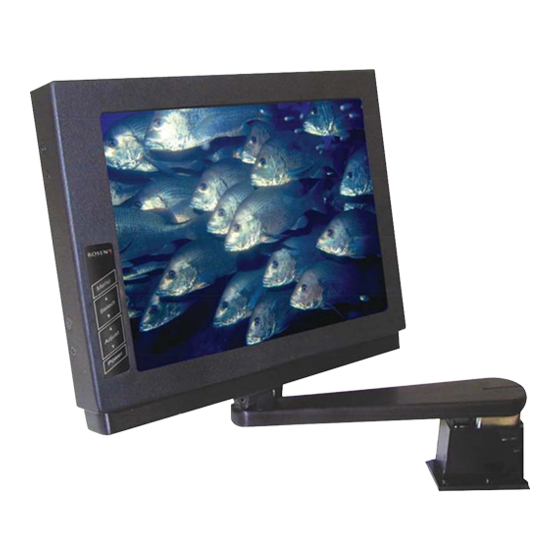

Introduction and Display Overview Introduction and Display Overview Welcome to the 1042 Technical Manual for the 10.4” LCD monitor This manual provides information for the following: • Pinouts • Installation • Operation • Troubleshooting • Specifi cations The 1042 base model includes the following features: •... -
Page 5: Pinouts
Pinouts and Installation Guidelines Pinouts and Installation Guidelines Pinouts Warning! This Display is for Entertainment Purposes Only! Connect to the Non- Critical Power Bus. To obtain pinout information, download our engineering Outline & Installation drawing from www.rosenaviation.com. Once you access the home page, click on Support & Documentation, and then click on Technical Drawings &... -
Page 6: Operation
Operation Operation Ensure that when plugging the arm into the base receptacle, the arm’s slot faces toward the release button (as shown) and the connection is not forced. Rosen Aviation... - Page 7 Operation Operation (Cont) Utilities : User Setting : User Timeout : adjust the OSD menu timeout period in a step of 5 seconds DPMS : Disable / Enable the DPMS function Auto Source Select : Off - Disable auto source select function. Low - Auto source select enable ONLY in power up.
- Page 8 The OSD settings chosen will be stored in memory. The OSD menu can be cleared from the screen by moving the selection bar to the EXIT icon pressing the + button otherwise it will automatically clear after a few seconds (time-out period) of non-use. Rosen Aviation...
-
Page 9: Specifi Cations
Specifi cations Specifi cations LCD Performance Screen Resolution (pixels) 640 w x 480 h Display Viewing Area 8.31 x 6.24 In Viewing Angle ( At contrast ratio 10:1 ) Horizontal ±70º Vertical 45º up 55º down Contrast Ratio 300:1 (typical) Backlight Lamp Life (hours) 50,000 hrs Screen Brightness 350 cd/m... -
Page 10: Do-160D Test Matrixdo-160D Test Matrix
RF Suscept (Cond&Rad) Emission of RF Energy Lightning Induced Trans Lightning Direct Effects Icing Electrostatic Discharge X= Not Tested Technical Support For fi eld support or to order parts, contact Rosen Aviation Displays at: 1-888-668-4955 or visit us at: www.rosenaviation.com Rosen Aviation... -
Page 11: Troubleshooting
Troubleshooting Troubleshooting PROBLEM POSSIBLE SOLUTION No Power •Verify that the pinout is correct •Push and hold the power switch for about one second No Video •Verify that the monitor is getting power and the pinout is correct •Verify that the video source is on and has a tape or DVD installed •Verify signal at monitor end. - Page 12 Rosen Aviation...
-
Page 13: Disclaimer
Disclaimer Disclaimer All information, including illustrations, is believed to be reliable. Users and/or installers, however, should independently evaluate the suitability of each product for their application. Rosen makes no warranties as to the accuracy or completeness of the information, and disclaims any liability regarding its use or installation.
