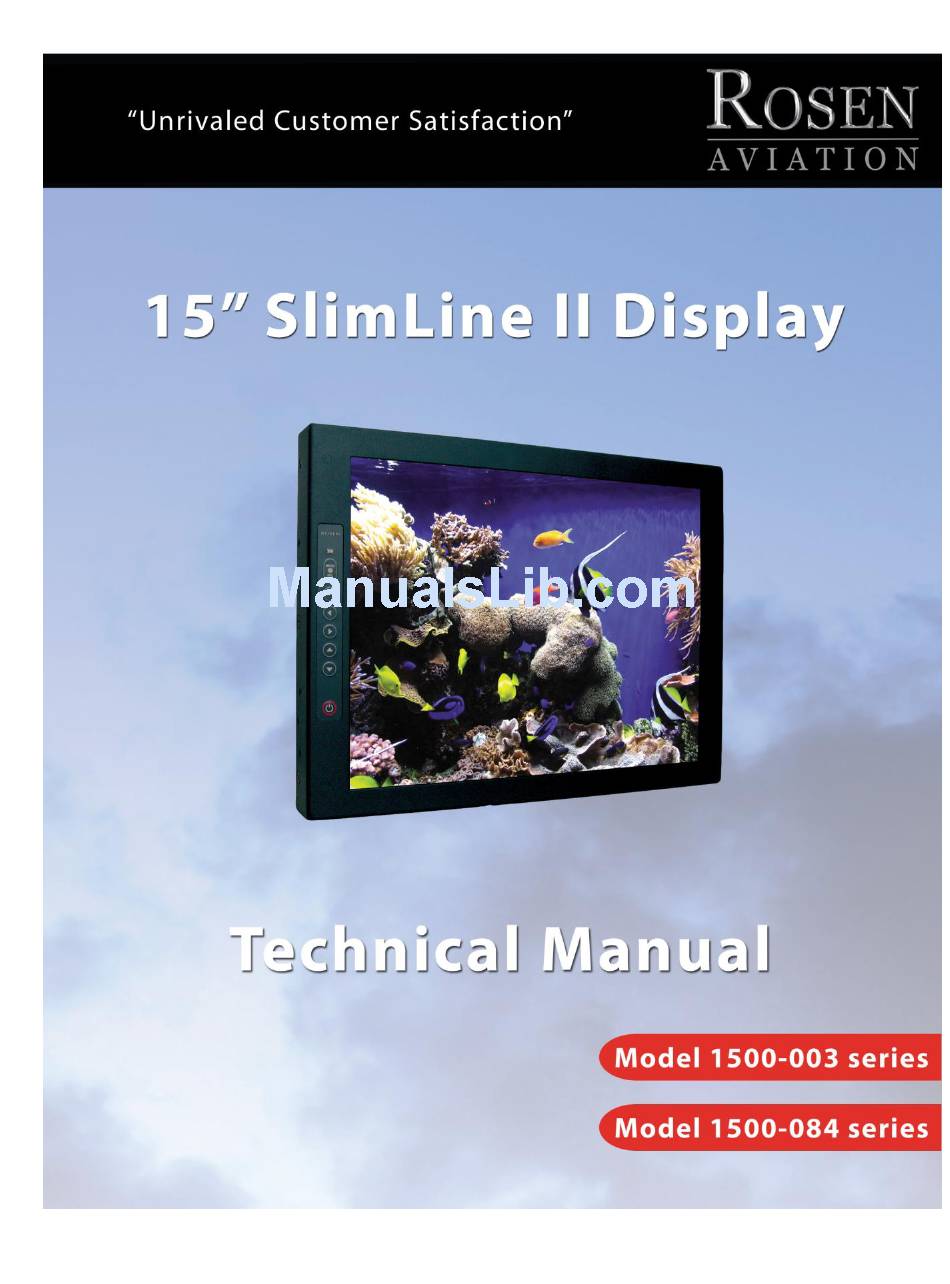

- Page 1 Document Number: 9002429 Rev D...
- Page 2 The information contained in this document is subject to change without notice. Because we are continually improving and adding features to our products, Rosen Aviation, LLC reserves the right to change specifications without prior notice. Rosen Aviation, LLC shall not be liable for technical or editorial errors or omissions contained herein.
-
Page 3: Table Of Contents
15” SlimLine II Display Rosen Aviation Contents 1. INTRODUCTION AND DISPLAY OVERVIEW ..............4 1.1. Unpacking ........................4 2. INSTALLATION GUIDELINES ..................4 2.1. Monitor Diagrams ...................... 5 2.2. Cooling and Ventilation ....................6 2.3. Bulkhead Mounting Options ..................6 3. -
Page 4: Introduction And Display Overview
Universal Color Remote (P/N 0500-015) For help with Outline & Installation drawings, please contact Rosen Aviation Customer Service at (541) 342-3802. 2. INSTALLATION GUIDELINES There are several ways to connect the 15” SlimLine II Display to an aircraft’s entertainment system. -
Page 5: Monitor Diagrams
15” SlimLine II Display Rosen Aviation 2.1. Monitor Diagrams Figure 1 1500 Bulkhead outline dimensions (inches) Figure 2 1500 Center-mount Arm outline dimensions (inches) Document Number: 9002429 Revision: Date: 01/06/09 Page 5 of 17 Template: 4.2-3-6-FM; Revision D; 13 March 2008... -
Page 6: Cooling And Ventilation
15” SlimLine II Display Rosen Aviation 2.2. Cooling and Ventilation The display is cooled by the flow of air, or natural convection. Special care must be taken with the installation to provide a proper environment for air flow. Monitor vents: The unit is designed with vent openings on the top, bottom, and rear surfaces. -
Page 7: Video Connections
15” SlimLine II Display Rosen Aviation Warning! Maximum screw penetration depth: .75 inches Bottom .75 inches Sides .75 inches Rear .75 inches Figure 4 Side view with mounting holes Figure 5 Rear view with mounting holes 3. VIDEO CONNECTIONS 3.1. Bulkhead Main Interface Connector... -
Page 8: Bulkhead Main Connector Functions
15” SlimLine II Display Rosen Aviation 3.1.1. Bulkhead Main Connector Functions Pin # Signal Input/Output Description 28V return Input Aircraft power supply Output Aircraft power supply IR +5V Output Power for optional IR receiver IR signal Input IR receiver signal input... -
Page 9: Center-Mount Arm Connector Functions
15” SlimLine II Display Rosen Aviation 3.1.2. Center-mount Arm Connector Functions Pin # Signal Input/Output Description Input Red graphics input, 1Vp-p, 75 ohm Green Input Green graphics input, 1Vp-p, 75 Blue Input Blue graphics input, 1Vp-p, 75 ohm Reserved Reserved... -
Page 10: Bulkhead External Control (0300-022)
15” SlimLine II Display Rosen Aviation 3.2. Bulkhead External Control (0300-022) The external VIP control interface is a 9-pin standard density D-subminiature male connector for the 7-button controller (P/N 0300-402). Each function can be activated by a momentary connection to ground. - Page 11 15” SlimLine II Display Rosen Aviation Constant Ground This mode uses a SPST (single pole single throw) external rocker switch connected between ground and RGB/Video Select. Bulkhead – Pin 6 of the 21WA4 combo connector Center-mount Arm – Pin 15 of the 26-pin D-Sub connector ...
-
Page 12: Operation
15” SlimLine II Display Rosen Aviation 4. OPERATION 4.1. Front Switch Panel Features To operate the 15” SlimLine II Display, use the front switch panel buttons shown below. (External controller or IR remote control options are available separately. Power Status LED... -
Page 13: On-Screen Display (Osd) Main Menu
15” SlimLine II Display Rosen Aviation 4.2. On-Screen Display (OSD) Main Menu The On-Screen Display (OSD) provides a set of menus that enable you to adjust or view the display’s features. Main Menu selections lead to submenus with additional choices. Press the Menu Select button on the front switch panel to open the Main Menu. -
Page 14: Osd Submenu
15” SlimLine II Display Rosen Aviation 4.4. OSD Submenu Menu Option How it Works H Position Adjusts OSD horizontal position V Position Adjusts OSD vertical position OSD Timeout Adjusts time in which OSD turns off if left alone Return Returns OSD to the Main Menu 4.5. -
Page 15: Technical References And Support
15” SlimLine II Display Rosen Aviation 6. TECHNICAL REFERENCES AND SUPPORT If the display does not function properly, refer to the following troubleshooting table for symptoms and possible solutions before contacting Rosen field support. Always use an oscilloscope to verify the video signal ... -
Page 16: Do-160D Qualifications
15” SlimLine II Display Rosen Aviation 7. DO-160D QUALIFICATIONS DO-160D test criteria to which we test the 1500 series displays Description DO-160D Section DO-160D Category Temperature and Altitude Temperature Variation Humidity Operational Shock & Crash Safety Vibration Explosion Proofness Waterproofness 10.0... -
Page 17: Bulkhead Specifications
15” SlimLine II Display Rosen Aviation 7.1. Bulkhead Specifications Size 12.17 x 9.18 inches [309.12 x 233.17 mm] Resolution 1024 w x 768 h (XGA) Viewing Angle (H/V) ±80/80° Brightness 200 cd/m min., 250 typical Contrast Ratio 400:1 typical Backlight Lamp Life...
