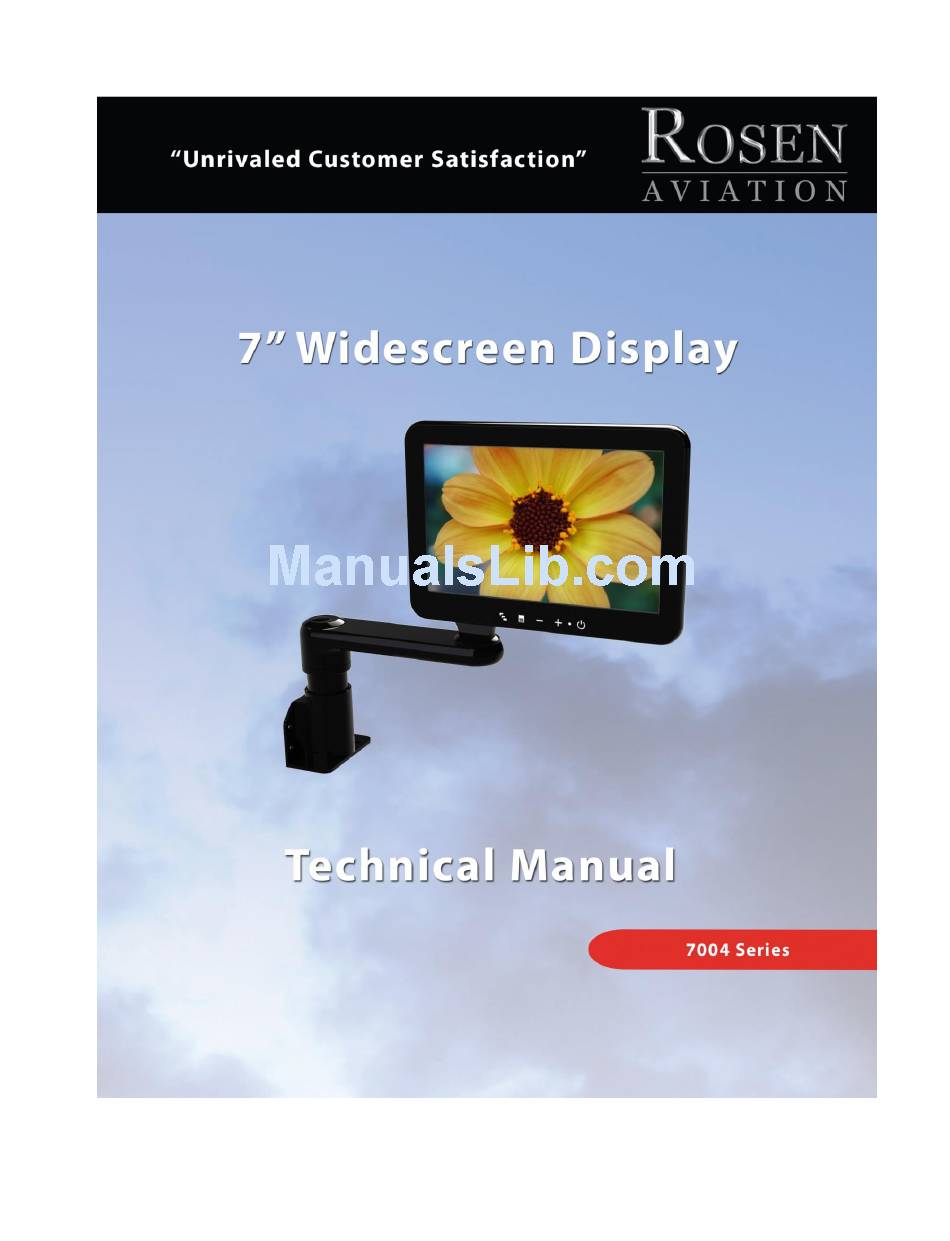

Rosen Aviation 7004 Series Technical Manual

7" widescreen display 7004 series;
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
ELECTRONIC REVISION
CONTROLLED
Document Number 106211
Rev B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 7004 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Rosen Aviation 7004 Series

Summary of Contents for Rosen Aviation 7004 Series

  • Page 1 ELECTRONIC REVISION CONTROLLED Document Number 106211 Rev B...
  • Page 2 The information contained in this document is subject to change without notice. Because we are continuously improving and adding features to our products, Rosen Aviation, LLC reserves the right to change specifications without prior notice. Rosen Aviation, LLC shall not be liable for technical or editorial errors or omissions contained herein.

  • Page 3: Table Of Contents

    7” Widescreen Display Rosen Aviation Contents 1. INTRODUCTION .........................5 1.1. Base Compatibility ......................5 2. SYSTEM OVERVIEW ......................6 2.1. High-definition Systems ....................7 3. INSTALLATION GUIDELINES ...................7 3.1. Installing/Removing SlimLine Arm Assemblies .............8 3.2. Stowing a Locking Arm Display ..................8 3.3. CVBS Pogo Connection Displays .................9 3.4.
  • Page 4 7” Widescreen Display Rosen Aviation 7.2. Technician Mode Menu....................23 7.2.1. Power Mode ........................23 7.2.2. Operation Mode ......................24 7.2.3. SDI Overscan ......................... 24 7.2.4. SDI Overscan % ......................24 7.3. OSD Timeout ......................24 7.4. Front Panel LED ......................25 7.5.

  • Page 5: Introduction

    Rosen Aviation 1. INTRODUCTION Rosen’s new 7004 series of personal displays allow for direct upgrades for high-definition and Composite units with a variety of existing bases on your aircraft. In addition to the sleek, tablet- style display, the touch-sense front panel enables source select capability directly from the front panel on select models depending on the base.

  • Page 6: System Overview

    7” Widescreen Display Rosen Aviation Table 2 SDI display and base compatibility Display Description Base Base Model & Model Type Aircraft Connections 7”, SDI, Left mount, Non-locking SlimLine 7004-362 RS-232 SDI arm 0100-344 with source 7”, SDI, Right mount, Non-locking SlimLine...

  • Page 7: High-Definition Systems

    7” Widescreen Display Rosen Aviation 2.1. High-definition Systems SDI units display either standard definition (SD) or high-definition (HD) video using serial digital video input. In this configuration, the video is sourced by a digital video distribution switch or source and de-serialized into an SDI format.

  • Page 8: Installing/Removing Slimline Arm Assemblies

    7” Widescreen Display Rosen Aviation 3.1. Installing/Removing SlimLine Arm Assemblies To install a SlimLine arm assembly, press the arm button all the way in and push straight down on the arm into the plug body until it is secure in the base.

  • Page 9: Cvbs Pogo Connection Displays

    7” Widescreen Display Rosen Aviation To stow a SlimLine SDI locking arm, rotate the arm until it locks into either stowed position. To deploy, press the arm button and rotate the arm away from the locked position. Figure 6 Arm button on SlimLine SDI locking arms Touching the LCD with excessive force may leave pressure spots that show in video display.

  • Page 10: Cvbs Micro-D Connection Displays

    7” Widescreen Display Rosen Aviation 3.4. CVBS Micro-D Connection Displays P/N 7004-013, 7" Display: Micro-D, non-locking, center P/N 7004-060, 7" Display: Micro-D, P/N 7004-061, 7" Display: Micro-D, non-locking, right non-locking, left Figure 8 Micro-D connection displays use base receptacles 0100-002, 0100-004, & 0100-005...

  • Page 11: Sdi Pogo Connection Displays

    7” Widescreen Display Rosen Aviation 3.5. SDI Pogo Connection Displays P/N 7004-315, 7" Display: non-locking, center P/N 7004-337, 7" Display: locking, center P/N 7004-362, 7" Display: non-locking, P/N 7004-363, 7" Display: non-locking, right left Figure 9 SDI Pogo-style connection displays use base receptacles 0100-344 & 0100-342...

  • Page 12: Base Installations

    7” Widescreen Display Rosen Aviation 3.6. Base Installations Consult the Outline and Installation drawing to assist with the installation process. Pay close attention to the dimensions and fastener depths required when considering installation requirements. The 7004 displays are compatible with the base designs, as shown below. Bases mount on either a vertical or a horizontal surface, typically with a minimum of four screws (two per flange).

  • Page 13: Cvbs Micro-D Base Receptacles

    For a copy of the RS-232 External Controller Message Formats (P/N 9002934), please contact Rosen Aviation Technical Support at 541.342.3802. Document Number: 106211 Revision: Date: 04/17/14 Template: 4.4.1.6FM2;...

  • Page 14: Initial Power Up

    7” Widescreen Display Rosen Aviation 4. INITIAL POWER UP Make sure to turn off the power before connecting the harnesses. Ensure low impedance ground connections on the base. Ensure that 28VDC power supply is OFF. Connect the power supply and video source to the appropriate harnesses.

  • Page 15: Osd Menu Options

    7” Widescreen Display Rosen Aviation 6. OSD MENU OPTIONS The OSD contains screen settings and options in menus and informational readouts that display over the image, as shown below. Press Menu on the front panel to open the Main Menu, as...

  • Page 16: User Menu

    7” Widescreen Display Rosen Aviation 6.2. User Menu The User Menu contains frequently used control settings. Press Menu to open the Main Menu, and press – and Menu to access the User Page options. Press + or – to select a User option, and then press Menu to change its value.

  • Page 17: Scheme

    7” Widescreen Display Rosen Aviation Pillar Box: A standard 4:3 source image will appear with vertical black bars on the left and right side of the image. If the image source is letterboxed, then there will also be horizontal bars at the top and bottom of the image as well.

  • Page 18: Picture-Quality Controls

    7” Widescreen Display Rosen Aviation 6.3.2. Picture-quality Controls The Brightness, Contrast, Saturation, Hue, and Sharpness menu options use control bars to fine-tune different aspects of the picture quality. To adjust these options, press Menu and – to select Image Adjust. Choose a menu option, and then press Menu to open a control bar and adjust the value, similar to Figure 19, shown below.
  • Page 19 7” Widescreen Display Rosen Aviation 6.3.4.1. Color Temperature Use the Color Temperature options to change the warmth of the picture in all sources. When you select Color Temperature, the screen changes, and a toggle appears to switch between User and 6500K, as shown below.

  • Page 20: Info

    7” Widescreen Display Rosen Aviation 6.3.4.2. Restore Defaults This option restores the default screen settings from the user menus for all video sources. It does not erase Technician Menu settings or change the internal time and date. A Defaults Restored message appears in the lower corner of the menu after the restore is complete.

  • Page 21: Technician Menu

    7” Widescreen Display Rosen Aviation 7. TECHNICIAN MENU To protect the display from accidental or unintentional adjustments, the Technician Menu is accessible only with a special button combination. To avoid repeating this button sequence after each change, the menu remains active until you manually close it.

  • Page 22: Technician Advanced Submenu

    7” Widescreen Display Rosen Aviation 7.1. Technician Advanced Submenu This submenu provides installers and technicians more advanced controls of the image. The input signal determines which options will appear in the Technician Advanced submenu. The only options available on SDI...

  • Page 23: Agc (Automatic Gain Control)

    7” Widescreen Display Rosen Aviation 7.1.4. AGC (Automatic Gain Control) (Composite only) This option is a signal compensation tool that will accommodate for strong and weak Composite signals. Highlight AdvancedAGC and press Menu. Use + and – to set the option On (default) or Off, and then press Menu.

  • Page 24: Operation Mode

    7” Widescreen Display Rosen Aviation 7.2.2. Operation Mode Operation Mode is not enabled, and the None Selected setting is read-only. 7.2.3. SDI Overscan (For 7004-3xx models only) Use SDI Overscan to enable or disable video overscan for SDI at 480i and 576i resolutions. When enabled, the setting cuts off a small percentage (2.5% by default) around the edges of the picture and it resizes the image to fit the full...

  • Page 25: Front Panel Led

    7” Widescreen Display Rosen Aviation 7.4. Front Panel LED The Front Panel LED option turns the power LED on or off. When the option is Disabled, the power LED will be black. Power LED Figure 28 Front panel touchpad When it is On, the power LED will have the following states: ...

  • Page 26: Maintenance: Tension Adjustments

    Rosen Aviation 8. MAINTENANCE: TENSION ADJUSTMENTS The 7004 series displays require fewer tension adjustments than the older 7002 models. The new monitor design features a lifetime friction hinge, so no tilt adjustment is ever required. There are no adjustment points on the SlimLine SDI arms; however, the Composite arm mounts have two adjustment points.

  • Page 27: Troubleshooting

    7” Widescreen Display Rosen Aviation 9.1. Troubleshooting If the display does not function properly, refer to the following troubleshooting table for symptoms and possible solutions before contacting Rosen Technical Support. Note: Always use a multimeter to verify voltages. Check actual results against the requirements described in this manual.

  • Page 28: Rtca Do-160F Qualifications For Displays

    Rosen Aviation 9.3. RTCA DO-160F Qualifications for Displays The table below shows the DO-160F compliance of the 7004 series displays and their corresponding bases. Omitted categories are not applicable to these products or their expected installations. Reference the Qualification Test Reports for specific details.
  • Page 29 7” Widescreen Display Rosen Aviation Description Section Category Comments Abnormal Operating Conditions 16.6.2 Voltage Steady State (DC) 16.6.2.1 Momentary Under Voltage (DC) 16.6.2.3 Abnormal Surge Voltage (DC) 16.6.2.4 Voltage Spike Voltage Spike 17.4 Audio Frequency Conducted Susceptibility AF Conducted Susceptibility - Power 18.3.1...

  • Page 30: Supported Video Resolutions

    7” Widescreen Display Rosen Aviation 9.4. Supported Video Resolutions 9.4.1. CVBS/Composite Resolutions NTSC (480i/29) PAL (576i/25) SECAM (576i/25) RS-170 B&W (480i/29) The software continually checks and chooses the appropriate color decoder (NTSC, PAL, or SECAM) based on the analog input signal.

  • Page 31: Revision History

    7” Widescreen Display Rosen Aviation NTSC National Television Standards Committee; an analog video standard used in the United States, Canada, Japan, Mexico, the Philippines, South Korea, Taiwan, and some other countries O&I Outline and Installation (drawing) OSD On Screen Display – the actual user/technician menu, and any informational readouts displayed on the image.
