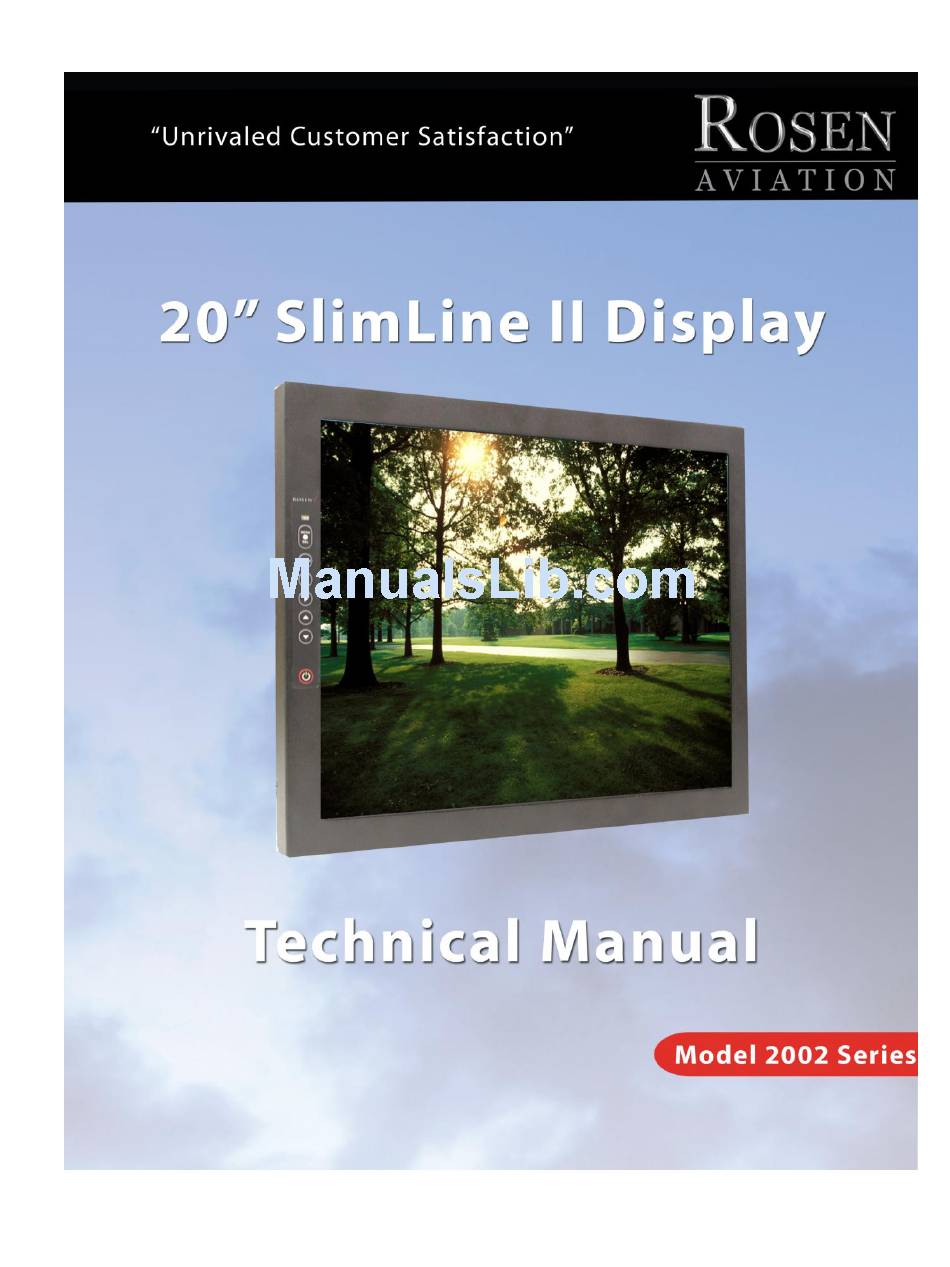

Rosen Aviation SlimLine 2002 Series Technical Manual

20" slimline ii display
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
ELECTRONIC REVISION
Document Number: 9002645 Rev K
CONTROLLED

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SlimLine 2002 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Rosen Aviation SlimLine 2002 Series

Summary of Contents for Rosen Aviation SlimLine 2002 Series

  • Page 1 ELECTRONIC REVISION Document Number: 9002645 Rev K CONTROLLED...
  • Page 2 The information contained in this document is subject to change without notice. Because we are continually improving and adding features to our products, Rosen Aviation, LLC reserves the right to change specifications without prior notice. Rosen Aviation, LLC shall not be liable for technical or editorial errors or omissions contained herein.

  • Page 3: Table Of Contents

    20‖ SlimLine II Display Rosen Aviation Contents 1. INTRODUCTION AND DISPLAY OVERVIEW ..............5 1.1. Unpacking ........................5 2. INSTALLATION GUIDELINES ..................5 2.1. Monitor Diagrams ...................... 6 2.2. Cooling and Ventilation ....................6 2.3. Mounting Options ....................... 7 3. VIDEO CONNECTIONS ....................8 3.1.
  • Page 4 20‖ SlimLine II Display Rosen Aviation 8. TECHNICAL REFERENCES AND SUPPORT ............... 32 8.1. Technical Support ....................32 9. DO-180D QUALIFICATIONS ..................33 9.1. Specifications......................34 10. REVISION HISTORY ....................34 Document Number: 9002645 Revision: Date: 9/24/09 Page 4 of 34...

  • Page 5: Introduction And Display Overview

    S-Video connector kit (P/N 0300-028) DVI connector kit (P/N 0300-029) For help with Outline & Installation drawings, please contact Rosen Aviation Customer Service at (541) 342-3802. 2. INSTALLATION GUIDELINES There are several ways to connect the 20‖ SlimLine II Display to an aircraft’s entertainment system.

  • Page 6: Monitor Diagrams

    20‖ SlimLine II Display Rosen Aviation 2.1. Monitor Diagrams Figure 1 2002 outline dimensions (inches) Figure 2 Side view dimensions (inches) 2.2. Cooling and Ventilation The display is cooled by the flow of air, or natural convection. Special care must be taken with the installation to provide a proper environment for air flow.

  • Page 7: Mounting Options

    20‖ SlimLine II Display Rosen Aviation unobstructed for a minimum of one (1) inch. The vents must also be ducted to free air. Ducting: The installation must provide for an inlet duct (at bottom or rear), and an exhaust duct at the top. Each of these ducts must have a minimum of four (4) square inches of cross-sectional area.

  • Page 8: Video Connections

    20‖ SlimLine II Display Rosen Aviation Warning! Maximum screw penetration depth: .75 inches Bottom .75 inches Sides .75 inches Rear .50 inches Figure 5 Side view with mounting holes Figure 6 Rear view with mounting holes 3. VIDEO CONNECTIONS The three interface connectors for this display are:...

  • Page 9: Main Interface Connector, 21W1 Male Combo D

    20‖ SlimLine II Display Rosen Aviation Mating connector kit included with purchase: Rosen connector kit (P/N 0300-025) Recommended additional mating connectors (optional) S-Video connector kit, 3W3 Male Coax Combo D (P/N 0300-028) DVI connector kit for analog RGB and DVI inputs (P/N 0300-029) Note: The main connector backshell is chassis ground.

  • Page 10: S-Video Connector, 3W3 Male Coax Combo D

    20‖ SlimLine II Display Rosen Aviation Pin # Signal Input/Output Description Reserved Reserved Reserved A1-signal Composite Input Composite video input, 1 Vpp, 75 ohm video Composite A1-shield Input Shield for composite video video return Shell Chassis ground 3.2. S-Video Connector, 3W3 Male Coax Combo D...
  • Page 11 20‖ SlimLine II Display Rosen Aviation Pin # Signal Input/Output Description DDC data Output Display data channel data signal Analog VSync Input Analog RGB VSync input 0-5V T.M.D.S. data1- Input Digital video serial channel 1 data T.M.D.S. data1+ Input Digital video serial channel 1 data T.M.D.S.

  • Page 12: Technical Setup - Technician On-Screen Display

    20‖ SlimLine II Display Rosen Aviation 4. TECHNICAL SETUP – TECHNICIAN ON-SCREEN DISPLAY The display receives Composite, Analog RGB, S-Video, and Digital Video Input (DVI). DVI input is shown as Digital RGB in the on-screen display when switching between video sources.

  • Page 13: Main Menu Configuration

    20‖ SlimLine II Display Rosen Aviation 4.3. Main Menu Configuration Main Menu > Monitor Info >> Diagnostics >> Advanced Settings >> Restore Defaults >> Exit OSD >> [UP] [DOWN] move cursor [MENU] select option Figure 7 Main Menu options The Main Menu has a time-out setting that automatically returns the monitor to normal operation if no keys are pressed for one (1) minute.

  • Page 14: Diagnostic Submenu

    20‖ SlimLine II Display Rosen Aviation 4.3.2. Diagnostic Submenu Diagnostic Menu Self-test >> Measure Comp Video > Measure S-video Measure RGB Red Measure RGB Green Measure RGB Blue Input Scan >> Main Menu << [UP] [DOWN] move cursor [Menu] select option Figure 9 Diagnostic submenu option 4.3.2.1.
  • Page 15 20‖ SlimLine II Display Rosen Aviation 4.3.2.2. Video Level Test There are five tests for video signal levels:  Measure Composite Video  Measure S-Video  Measure RGB Red  Measure RGB Green  Measure RGB Blue Each video level test measures the average voltage level of a particular video input signal.

  • Page 16: Advanced Menu

    20‖ SlimLine II Display Rosen Aviation 4.3.3. Advanced Menu The Advanced Menu is extensive. Use the following pages for guidance when selecting Advanced Menu options and submenus. Advanced Menu > Start-up Settings >> Clock Settings >> Source Setup >> Session Records >>...
  • Page 17 There are two splash screens available on this monitor; one is a solid blue background, and the other is a white background with the Rosen Aviation Displays logo. The splash screen appears for approximately 8 seconds when 28V power is first applied to the unit.
  • Page 18  Start-up mode = auto-on  Glitch-time = 1.0 seconds  Splash screen = Rosen Aviation Displays  Front Panel Keys = enabled 4.3.3.2. Clock Settings This monitor contains a battery-backed real-time clock. The clock is set during monitor production and should not need adjustment during the monitor’s life. If the clock setting needs adjustment for any reason, access the Clock Menu to make adjustments.
  • Page 19 20‖ SlimLine II Display Rosen Aviation 4.3.3.3. Source Setup Use the Source Setup menu selections to determine how the monitor selects video sources. There are four modes available for selecting video sources: Auto-Detect Mode Constant Switch Mode Momentary Switch Mode...
  • Page 20 20‖ SlimLine II Display Rosen Aviation Note: The menu will not allow an invalid configuration to be saved. If an invalid setup is listed in the menu, the ―save‖ option is automatically replaced by an ―Invalid Setup!‖ warning. Auto-Detect Setup...
  • Page 21 20‖ SlimLine II Display Rosen Aviation 4.3.3.3.3. Momentary Switch Mode Use the Momentary Switch mode to select video modes in a predefined sequence each time the source key is pressed, or each time an external momentary switch connected to the select switch input is pressed.
  • Page 22 20‖ SlimLine II Display Rosen Aviation Index 1 Start: Dec 15 04 08:53 Video modes: DVI, S-Video Max temp: 96 Min temp: 75 Constant mode Start up: normal start Self test flag: 00 Stop: Dec 15 04 11:24 _____________________ [MENU] to exit...
  • Page 23 20‖ SlimLine II Display Rosen Aviation 4.3.3.6.1. Programming a New IR Code: The following information details an example of programming a new IR code. In this example, a new IR code will be added for the Power key. IR Settings Menu...

  • Page 24: Clearing Codes

    20‖ SlimLine II Display Rosen Aviation IR Learn [IR Power] Exit -- save new code > Exit -- discard changes 1st code: - 807FDC2F 2nd code: - 807FDC2F 3rd code: - 807FDC2F Press new button 3 times, pausing between each press.

  • Page 25: Restore Defaults

    The front panel membrane switch will be enabled The network settings will be cleared The start-up splash screen will be set to show the Rosen Aviation Displays logo screen The power glitch time setting will be set to 1 second...
  • Page 26 20‖ SlimLine II Display Rosen Aviation Power Status LED Menu Select Source Power Figure 25 Front Switch panel Front Switch Panel Features Feature How it Works Power Status LED When the LED is green, display is on. When the LED is red, display is in Standby Mode.

  • Page 27: On-Screen Display Main Menu

    20‖ SlimLine II Display Rosen Aviation 5.2. On-Screen Display Main Menu The On-Screen Display (OSD) provides a set of menus that enable you to adjust or view the display’s features. Main Menu selections lead to submenus with additional choices. Press the Menu Select button on the switch panel to open the Main Menu.

  • Page 28: Osd Submenu

    20‖ SlimLine II Display Rosen Aviation 5.4. OSD Submenu Menu Option How it Works H Position Adjusts OSD horizontal position V Position Adjusts OSD vertical position OSD Timeout Adjusts time in which OSD turns off if left alone Return Returns OSD to the Main Menu 5.5.

  • Page 29: Rs-485 Information

    Each device should be assigned a unique address from 1 to 31. The Rosen 2002 is set to address 1 by default. Please note that Rosen Aviation equipment is not specifically designed to operate as part of a network with other manufacturers’ equipment unless the other equipment meets the requirements defined in this document.

  • Page 30: Wiring

    7.4. Wiring Rosen Aviation equipment uses a half-duplex wiring layout. Only two RS-485 wires need to be run between each individual unit. On the 20‖ SL II monitor, the two sets of RS-485 A and B wires must be externally connected together. For proper operation, connect pin 14 to pin 16 and connect pin 15 to pin 17 on the 21W1 connector.

  • Page 31: Network Setup/Ping Address

    20‖ SlimLine II Display Rosen Aviation 7.6. Network Setup/Ping Address The ping address message is used by a ―master‖ device to identify all the attached devices on a network. Byte 1: 0x88 Ping Message Header Byte 2: 0x55 Filler byte Byte 3: network id (value between 1-31) 0 is not a valid id for this command.

  • Page 32: Technical References And Support

    Verify that a signal is reaching the display by using an oscilloscope or another display. Examine the display for pinched or damaged cables. 8.1. Technical Support For field support or to order parts, contact Rosen Aviation at 888.668.4955, or visit www.rosenaviation.com. Document Number: 9002645 Revision:...

  • Page 33: Do-180D Qualifications

    20‖ SlimLine II Display Rosen Aviation 9. DO-180D QUALIFICATIONS DO-160D Test criteria to which we test the 2002 series displays Description DO-160D Section DO-160D Category Temperature and Altitude Temperature Variation Humidity Operational Shock & Crash Safety Vibration Explosion Proofness Waterproofness 10.0...

  • Page 34: Specifications

    20‖ SlimLine II Display Rosen Aviation 9.1. Specifications Size 16.17 x 12.15 inches [410.7 x 308.6 mm] Resolution 1600 w x 1200 h (UXGA) Viewing Angle (H/V) ±85/85° Brightness 300cd/m typical Contrast Ratio 600:1 typical Backlight Lamp Life 50,000 hours Weight 12.85 lbs ±...
