Summary of Contents for Rosen Aviation Widescreen 2401 Series

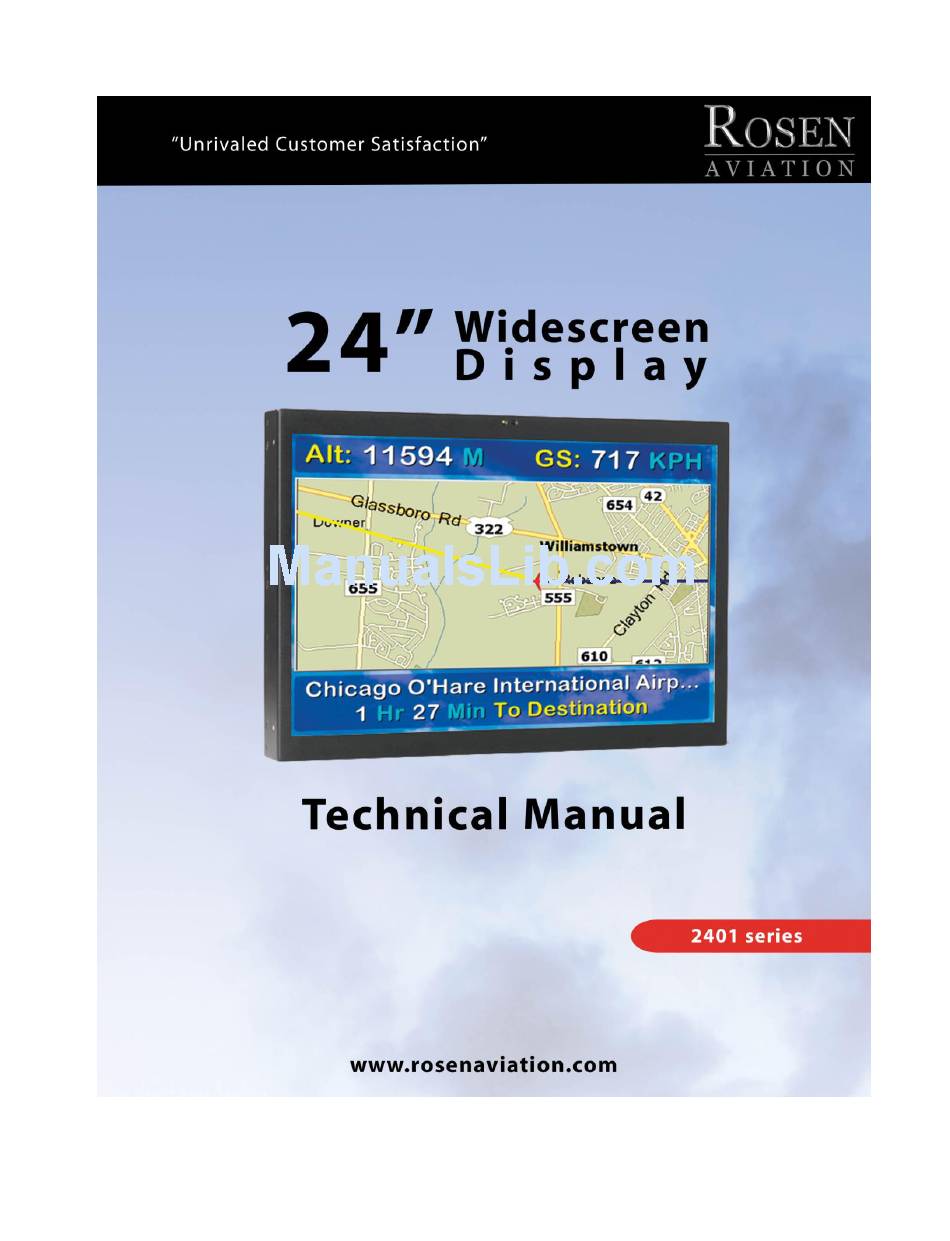

  • Page 1 ELECTRONIC REVISION CONTROLLED Document Number 103629 Rev C...
  • Page 2 The information contained in this document is subject to change without notice. Because we are continuously improving and adding features to our products, Rosen Aviation, LLC reserves the right to change specifications without prior notice. Rosen Aviation, LLC shall not be liable for technical or editorial errors or omissions contained herein.

  • Page 3: Table Of Contents

    Rosen Aviation 2401 Series Widescreen Display Contents 1. INTRODUCTION .........................5 1.1. Product Information ......................5 2. INSTALLATION GUIDELINES ...................5 2.1. Cooling and Ventilation ....................5 2.1.1. Fans ............................7 2.2. Electrical Requirements ....................8 3. VIDEO CONNECTIONS ......................8 3.1. Pinout Connections .......................8 3.1.1. P1 Connector DVI Input ......................8 3.1.2.
  • Page 4 Rosen Aviation 2401 Series Widescreen Display 6. VIDEO SETTINGS ......................29 6.1. Video Settings ......................29 6.1.1. Top Menu Bar ........................29 6.1.2. Composite Menu Settings ....................29 6.1.3. VGA Menu Settings ......................31 6.1.4. Picture-in-Picture and Picture-and-Picture Modes ............. 32 6.1.5.

  • Page 5: Introduction

    Rosen Aviation 2401 Series Widescreen Display 1. INTRODUCTION This manual describes how to install the Rosen 2401 series Widescreen Display onto your aircraft. It contains everything you need to know to wire the display and confirm that it is functioning correctly.
  • Page 6 Rosen Aviation 2401 Series Widescreen Display Note: The monitor backlight will shut down if the internal temperature reaches 156° F [69° C]. It will not come back on until the temperature drops 3 degrees below the threshold. Note: Each mounting hole includes a #10-32 screw. To install the monitor, remove only the screws that will be used to install the monitor.

  • Page 7: Fans

    Rosen Aviation 2401 Series Widescreen Display Figure 2 Dimensional requirements 2.1.1. Fans Cooling fans are located near vents in the case. The fans react to an internal temperature sensor, turning on or off as temperature dictates. Note: When the internal temperature reaches 90° F [32° C], the fans turn on and remain on until temperature drops to 87°...

  • Page 8: Electrical Requirements

    Rosen Aviation 2401 Series Widescreen Display 2.2. Electrical Requirements Voltage: 28VDC Max Power Consumption: 135W (DC) Do not plug or unplug the display connector while power is applied. 3. VIDEO CONNECTIONS 3.1. Pinout Connections The 2401 display uses connectors P1—P4, as shown below.

  • Page 9: P2 Connector Auxiliary Input

    Rosen Aviation 2401 Series Widescreen Display P1 Connector DVI Input cont. T.M.D.S. Data1 – T.M.D.S. Data1 + T.M.D.S. Data1 shield 5V power GND for 5V Hot plug detect T.M.D.S. Data0 – T.M.D.S. Data0 + T.M.D.S. Data0 shield T.M.D.S. Clock shield T.M.D.S.

  • Page 10: P3 Connector Primary Input Dc

    Rosen Aviation 2401 Series Widescreen Display 3.1.3. P3 Connector Primary Input DC Connector Type: Combo-D21WA4 male Mate: 21WA4 female Video contacts: 75 Ohm size 8 coaxial Rosen Connector Kit: 0300-034 (included) Pin # Display Signal 28V return +28VDC IR+5V Ext. IR signal input...

  • Page 11: P4 Connector Auxiliary Control

    Rosen Aviation 2401 Series Widescreen Display P3 Connector Input Primary DC Notes cont. Pin 6 Low Voltage TTL. When video switching mode is set to constant mode, Pin 6 acts as a toggle switch. In other words, when the switch is closed you get one source, when it is open you get another source (depending on what you set up in the menu).
  • Page 12 Rosen Aviation 2401 Series Widescreen Display IR Remote: The Rosen 2401 can also be controlled using Rosen Aviation’s IR Remote. The Rosen 2401 IR receiver uses NEC style 32-bit encoding. In this encoding format, there are 16 bits of actual information transmitted as part of a 32-bit frame. The 16 bits of information is divided into two parts, the first part being an 8-bit device code, and the 2 part being an 8-bit function code.

  • Page 13: Rs-485 Information

    Each device should be assigned a unique address from 1 to 31. The Rosen 2401 is set to address 31 by default. Please note that Rosen Aviation equipment is not specifically designed to operate as part of a network with other manufacturers’ equipment unless the other equipment meets the requirements defined in this document.

  • Page 14: Packet Format Description For 2401 Display Commands

    Rosen Aviation 2401 Series Widescreen Display 4.5. Packet Format Description for 2401 Display Commands 4.5.1. Power Power On Byte 1: 0x81 Power Message Header Byte 2: 0x0f Power on command Byte 3: network id 0x00 reserved for global id (all power slave units respond)

  • Page 15: Network Setup/Ping Address

    Rosen Aviation 2401 Series Widescreen Display 4.6. Network Setup/Ping Address The ping address message is used by a ―master‖ device to identify all the attached devices on a network. Byte 1: 0x88 Ping Message Header Byte 2: 0x55 Filler byte Byte 3: network id (value between 1-31) 0 is not a valid id for this command.

  • Page 16: Technical Setup - Technician On-Screen Display Configuration

    Rosen Aviation 2401 Series Widescreen Display 5. TECHNICAL SETUP – TECHNICIAN ON-SCREEN DISPLAY CONFIGURATION To access the on-screen Technician Menu for configuration of advanced settings, use the supplied IR remote and complete the following: Press Vol – (volume down button).

  • Page 17: Main Menu (Configuration)

    Rosen Aviation 2401 Series Widescreen Display 5.1. Main Menu (Configuration) Main Menu Options The Main Menu has a time-out setting that automatically returns the monitor to normal operation if no keys are pressed for one minute. The submenus do not have this time-out setting.

  • Page 18: Diagnostics Menu

    Rosen Aviation 2401 Series Widescreen Display 5.3. Diagnostics Menu Diagnostics Submenu 5.3.1. Self-test Select the Self-test submenu to initiate a test that determines and then displays the status for some of the monitor’s internal components. This test runs automatically when power is applied to the monitor, but it can be run manually from this menu selection.
  • Page 19 Rosen Aviation 2401 Series Widescreen Display 5.3.2.1. Measure CVBS 1 and CVBS 2 Video Levels Each video level test measures the average voltage level of a particular video input signal. Select the desired video signal to initiate a test. See below for examples of video level results.
  • Page 20 Rosen Aviation 2401 Series Widescreen Display Measure Component Pb Green: Measure Component Pr Blue: 5.3.2.3. Measure ARGB Colors Measure ARGB Red: Measure ARGB Green: Document Number: 103629 Revision: Date: 06/11/10 Template: 4.2.3-6-FM; Revision A; 16 May, 2005 Page 20 of 37...

  • Page 21: Input Scan

    Rosen Aviation 2401 Series Widescreen Display Measure ARGB Blue: 5.3.3. Input Scan Select the input scan menu to initiate a short test that determines if the display can detect any valid video input signals. The status of each input signal appears when the test completes.

  • Page 22: Advanced Settings

    Rosen Aviation 2401 Series Widescreen Display 5.4. Advanced Settings Advanced Settings Menu The Advanced Menu is extensive. Use the following pages for guidance when selecting Advanced Menu options and submenus. 5.4.1. Start-up Settings Start-up Settings Submenu example Note: If you disable the Status LED, you will also disable pin 5 on the P3 primary input connector.
  • Page 23 Use the Splash Screen menu option to choose the splash screen desired. There are two splash screens available: one is a solid blue background, and the other is the Rosen Aviation, LLC splash screen. The splash screen appears for approximately eight seconds when 28V power is first applied to the unit.

  • Page 24: Clock Settings

    Rosen Aviation 2401 Series Widescreen Display 5.4.2. Clock Settings This display contains a battery-backed real time clock. The clock is set during display production and should not need adjustment during the display’s life. If the clock setting needs adjustment for any reason, access the Clock Settings submenu to make adjustments.
  • Page 25 Rosen Aviation 2401 Series Widescreen Display These brackets [I] indicate the currently selected mode. The Manual mode option has no other settings options, while the other three modes have separate setup menus, indicated with >>. Use Available Mode finds the first available signal. It switches between all available signals.

  • Page 26: Session Records

    Rosen Aviation 2401 Series Widescreen Display 5.4.3.2. Constant Switch (SW) Mode Constant switch mode selects one of two video sources based on the state of a single pole switch connected between ground and the select switch input pin (pin 6 on the 21W4 main interface connector).

  • Page 27: Network Settings

    Rosen Aviation 2401 Series Widescreen Display Session Records Submenu 5.4.5. Network Settings Use Network Settings if you are using RS-485. The Search Network setting looks for other attached Rosen products. It lists either the products or states ―No other devices found.‖...

  • Page 28: Restore Defaults

    Rosen Aviation 2401 Series Widescreen Display 5.4.6. Restore Defaults The Restore Defaults Submenu restores factory default settings for the display. It does not erase maintenance data or change the internal time and date. Restore Defaults Submenu Option The following conditions will be set by selecting this option: ...

  • Page 29: Video Settings

    Rosen Aviation 2401 Series Widescreen Display 6. VIDEO SETTINGS 6.1. Video Settings 6.1.1. Top Menu Bar Figure 3 Video menu bar icons with Composite selected Press Menu on the IR remote to display the top menu bar. The active icon color is blue.
  • Page 30 Rosen Aviation 2401 Series Widescreen Display Figure 6 Composite Image screen Figure 7 Composite Position screen Figure 8 Composite Color screen PIP is currently inoperable Figure 9 Composite PIP Control screen Document Number: 103629 Revision: Date: 06/11/10 Template: 4.2.3-6-FM; Revision A; 16 May, 2005...

  • Page 31: Vga Menu Settings

    Rosen Aviation 2401 Series Widescreen Display 6.1.3. VGA Menu Settings With the monitor still in video mode, connect it to a computer source to access the VGA menu settings. Verify the settings for each VGA menu option or reset to match the values shown in the following figures.

  • Page 32: Picture-In-Picture And Picture-And-Picture Modes

    Rosen Aviation 2401 Series Widescreen Display Figure 13 VGA Color screen PIP is currently inoperable Figure 14 VGA PIP Control screen 6.1.4. Picture-in-Picture and Picture-and-Picture Modes PIP is currently inoperable. 6.1.5. OSD Position Settings Use the following video settings to access the picture’s positioning, language, and factory reset options.

  • Page 33: Language Settings

    Rosen Aviation 2401 Series Widescreen Display 6.1.6. Language Settings Figure 16 Language selection screen 6.1.7. Factory Reset Options Figure 17 Factory Reset Settings Document Number: 103629 Revision: Date: 06/11/10 Template: 4.2.3-6-FM; Revision A; 16 May, 2005 Page 33 of 37...

  • Page 34: Technical References And Support

    Rosen Aviation 2401 Series Widescreen Display 7. TECHNICAL REFERENCES AND SUPPORT Always check www.rosenaviation.com under the Products tab to ensure that you are working with the most current revision of technical documentation. Table 2 Technical References Document Title Part Number...

  • Page 35: Troubleshooting

    Rosen Aviation 2401 Series Widescreen Display RGB Red, green, blue color model (an acronym for computer graphics). Primary colors of light that are added together to reproduce a broad array of colors. SECAM (Séquentiel couleur à mémoire. French for "sequential color with memory"), an analog color video system first used in France.

  • Page 36: Specifications

    Rosen Aviation 2401 Series Widescreen Display 7.3. Specifications Table 3 2401 series LCD performance. Screen Resolution (pixels) 1920 w x 1200 h (WUXGA) Display Viewing Area 518.4 x 324 mm (20.40 x 12.75 inches) Viewing Angle: Horizontal ±89º Vertical ±89º...

  • Page 37: Do-160E Qualifications

    Rosen Aviation 2401 Series Widescreen Display 7.4. DO-160E Qualifications Table 4 DO 160E Test Criteria to which we test the 2401 series displays Description DO-160E Section DO-160E Category Temperature and Altitude Temperature Variation Humidity Operational Shocks & Crash Safety Vibration...
