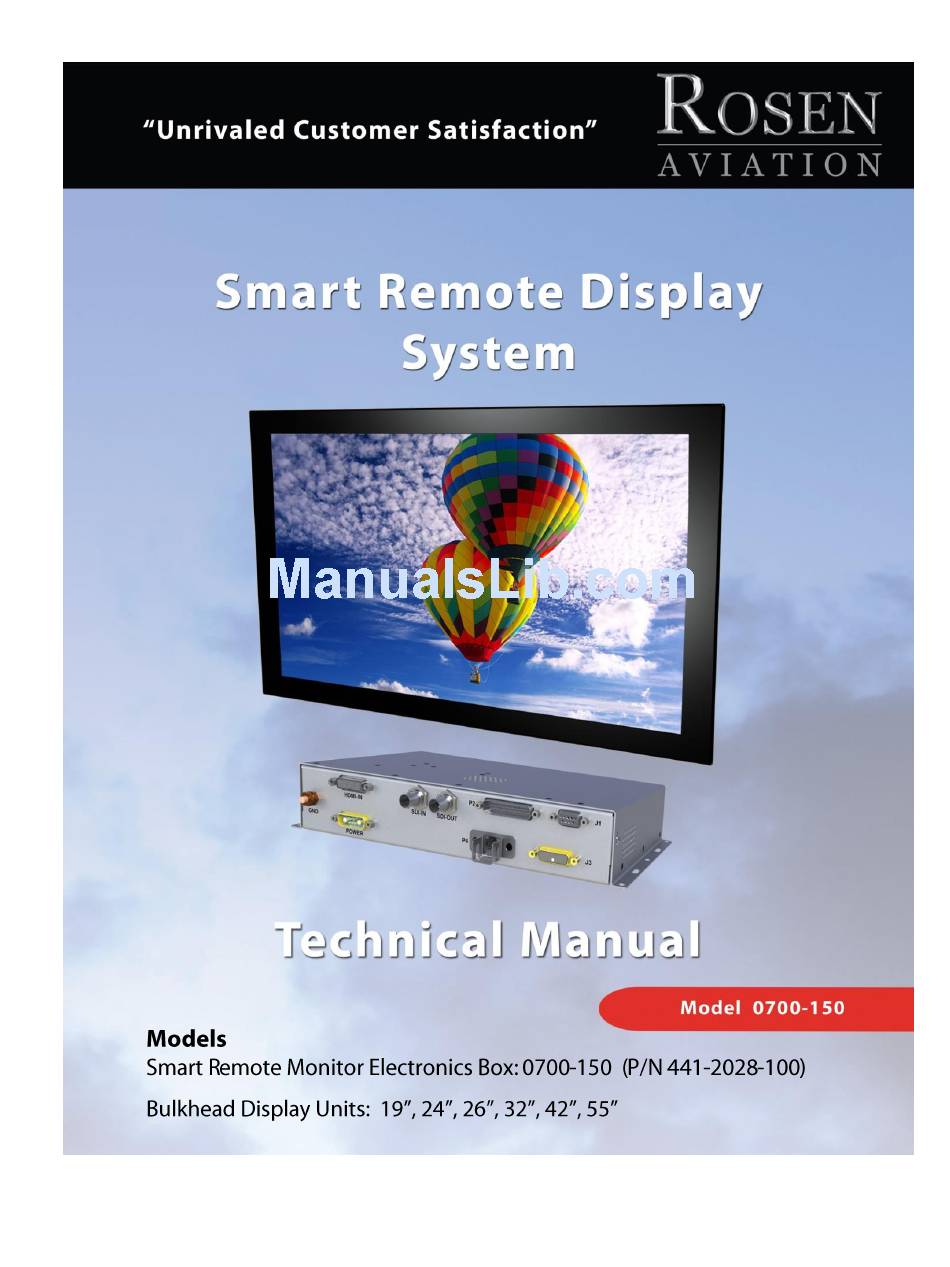

- Page 1 Document Number 106957 Rev B...
- Page 2 The information contained in this document is subject to change without notice. Because we are continuously improving and adding features to our products, Rosen Aviation, LLC reserves the right to change specifications without prior notice. Rosen Aviation, LLC shall not be liable for technical or editorial errors or omissions contained herein.
-
Page 3: Table Of Contents
Rosen Aviation Smart Remote Display System Contents 1. INTRODUCTION .........................5 1.1. System Overview ......................5 1.2. Smart Remote Display System Components ..............6 1.2.1. Technical Drawings ......................6 2. INPUTS/OUTPUTS ......................6 2.1. Smart RMEB Configurations ..................7 3. REMOTE DISPLAY MODULE INSTALLATION GUIDELINES ..........7 3.1. -
Page 4: Revision History
Rosen Aviation Smart Remote Display System 9. DEFINITIONS ........................23 10. REVISION HISTORY ...................... 24 Document Number: 106957 Revision: Date: 05/28/15 Template: 4.4.1.6FM2; Revision A; 12/06/12 Page 4 of 24... -
Page 5: Introduction
1.1. System Overview The Smart RMEB (P/N 0700-150) (P/N 441-2028-100) is designed for aircraft with a Rockwell Collins’ Venue™ Cabin Management System and Cabin Electronics System™ (CES). Although the Smart RMEB can operate a second 3G-SDI display using RS-232 control and SDI cable to route the digital video sources/signals, the Rockwell Collins’... -
Page 6: Smart Remote Display System Components
Rosen Aviation Smart Remote Display System 1.2. Smart Remote Display System Components Each Smart RMEB will operate one RDM. To complete your RDM installation, the following cosmetic components are also available: Remote Display Modules (RDM) are available in sizes: 19”, 22”, 24”, 26”, 32”, 42”, ... -
Page 7: Smart Rmeb Configurations
Rosen Aviation Smart Remote Display System 2.1. Smart RMEB Configurations The Smart RMEB has several possible operational mode configurations, depending on the specific aircraft installation. The unit has four possible media inputs (HDMI, SDI, Streaming Video over Ethernet, or USB), two possible video outputs (RDM and a peripheral SDI Display), and a single analog audio output for consistent sound quality at any volume. -
Page 8: Bulkhead Mounting Requirements
Rosen Aviation Smart Remote Display System 3.1.1. Bulkhead Mounting Requirements The Smart RMEB and RDMs do not require any external forced-air cooling. A flush mounted RDM can mount either from the back, through an interior wall, or from the front mounting tabs. Proud-mounted RDMs must attach from the front into the cosmetic back. -
Page 9: Attaching An Rdm To A Cosmetic Back
Rosen Aviation Smart Remote Display System Attach the 32” cosmetic back to the bulkhead using six #6 100 FHP screws (customer supplied). Attach the 42” cosmetic back to the bulkhead using ten #6 100 FHP screws (customer supplied). -
Page 10: Mounting A Bezel
Rosen Aviation Smart Remote Display System 4.3. Mounting a Bezel Mount the cosmetic back and monitor before attaching the bezel. To attach a bezel to a RDM, align the mounting bosses with the monitor standoffs and gently press on the retaining clips to snap the bezel into place. -
Page 11: Pinout Connections
There are several ways to connect the remote display system to an aircraft’s entertainment system. Follow the pinout descriptions on the technical drawing (P/N 0700-150-CD) to assist in completing the wiring connections. Note: This display is for entertainment purposes only; connect to a non-critical power bus. -
Page 12: Venue Mode
Rosen Aviation Smart Remote Display System 5.2.2. Venue Mode The Smart RMEB in the Venue mode has an IP Address of 10.240.11.xx with a netmask of 255.240.0.0. The last octet of the IP address (xx) is calculated on how the address bit pins 1 thru 5 are wired on the P2 Connector. - Page 13 Rosen Aviation Smart Remote Display System Up to thirty-two (32) unique IP addresses are available in Venue mode, as shown in Table 3, where 1 = GROUND and 0 = OPEN. Table 3 Valid IP addresses for the Smart RMEB in Venue mode...
-
Page 14: Initial Power Up
Smart RMEB technical drawing. Also, avoid coiling the power wire as this can cause heat to build up in the wire. If you have more questions about power requirements, contact Rosen Aviation’s Technical Support at 541.434.4512. -
Page 15: Maintenance Osd Menu
Rosen Aviation Smart Remote Display System 7. MAINTENANCE OSD MENU Note: Depending on the installation, the Maintenance OSD Menu may not be visible in the application. An interactive, on-screen display (OSD) menu for managing certain video settings on the RDM is accessible through the Maintenance Mode of the Rockwell Collins’... -
Page 16: Backlight
Rosen Aviation Smart Remote Display System 7.2. Backlight To adjust the intensity of the RDM’s backlight, select Backlight to open the control bar, as shown in Figure The adjustment range for the Backlight value is 0 to 100. Figure 12 Backlight control bar 7.3. -
Page 17: Advanced Menu
Rosen Aviation Smart Remote Display System CINEMA: Expands the source video in the vertical and horizontal dimensions to fill the display screen. Letterbox-format DVDs will have small or no bars showing in this mode, while 4:3 aspect video sources will expand beyond the screen boundaries, appearing cropped. -
Page 18: Horizontal And Vertical Adjustments
Rosen Aviation Smart Remote Display System 7.5.2. Horizontal and Vertical Adjustments The Horizontal/Vertical Scale and Position settings enable you to shift the picture’s position to fill the screen. The Scale settings enable stretching/cropping an image and the Position settings enable you to shift the image horizontally or vertically, thus minimizing or eliminating the black bars at the edge of the picture. -
Page 19: Technical References And Support
Rosen Aviation Smart Remote Display System 8. TECHNICAL REFERENCES AND SUPPORT Always check the Rosen Aviation website under the Products tab to ensure that you are working with the most current revision of technical documentation. 8.1. Troubleshooting If the display does not function properly, refer to the following troubleshooting table for symptoms and possible solutions before contacting Rosen Technical Support. -
Page 20: Cleaning The Displays
Table 5 Part numbers referenced in the manual Product Part Number Location Smart RMEB Outline & Installation 0700-150-CD Contact Rosen Technical Support Drawing 0700-150 Contact Rockwell Collins’ Customer Smart RMEB Rockwell DEU - 310 441-2028-100 Support Interconnect Cable Specification for 107175... - Page 21 Rosen Aviation Smart Remote Display System Description Section Category Comments Vibration Random Vibration – Fixed Wing Aircraft 8.5.2 S (Curve B) Magnetic Effect Magnetic Effect 15.3 Power Input Normal Operating Conditions (DC) 16.6.1 Average Value Voltage (DC) 16.6.1.1 Ripple Voltage (DC) 16.6.1.2...
-
Page 22: Other Certification Considerations For Rdms
Rosen Aviation Smart Remote Display System Description Section Category Comments Emission of Radio Frequency Energy Conducted RF Emission 21.4 Radiated RF Emission 21.5 Electrostatic Discharge (ESD) Electrostatic Discharge (ESD) 25.5 Flammability testing in Flammability accordance with 14 CFR 25.853 Appendix F 8.3.1. -
Page 23: Date: 05/28/15
Rosen Aviation Smart Remote Display System 9. DEFINITIONS 3G-SDI Newer, high-definition serial digital interface with a single 2.970 Gbit/s serial link AF Audio frequency CFR Code of Federal Regulations CS Conducted susceptibility DA15 A 15-pin D-subminiature connector with shell size A... - Page 24 Rosen Aviation Smart Remote Display System VGA Video Graphics Array Vpp Volts peak-to-peak W Watts 10. REVISION HISTORY Revision E is limited to draft or prototype documents. Revisions I, O, Q, S, X and Z are not to be used.
