- Page 1 Devilink™ FT – Floor Thermostat Installation Manual...

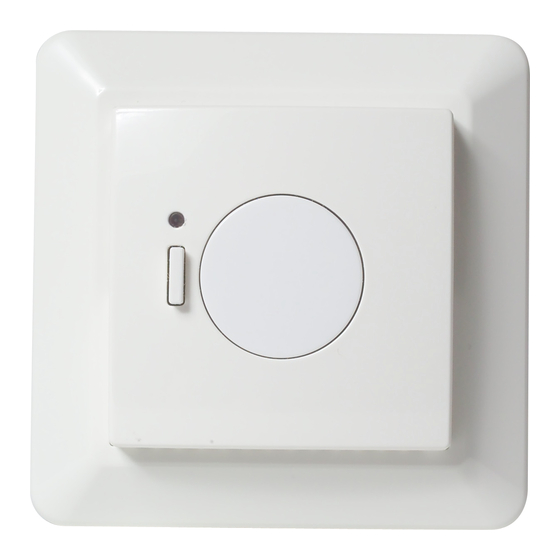

- Page 2 1. Applications and Functions Devilink™ FT The Devilink™ FT (Floor Thermostat) is a device for switching the heating element ON/OFF. In connection with a floor sensor it can also measure the temperature in the floor (FTS). Secondly you have the possibility to use the FT as a on and off switch to other equipments manually or by schedule.
- Page 3 Placement of Devilink™ FT Installation and placement must be according to local building regulations. Operation mode Devilink™ FT supports two types of operation modes. 1. Heating regulation 2. On/OFF switching When used in heating regulation mode you have to consider the following advices for controlling the heating.
- Page 4 Devilink™ FTs in a room need to havethe same sensor configuration. Devi recommends always installing a floor sensor. Do not install floor heating system without a floor sensor when the heating element is installed on or beneath...
- Page 5 3. Light indications (LED) Installation of Devilink™ FT Installation of Devilink™ FT 1. To remove the front cover, gently press the release tabs under the bottom of the thermostat with a screwdriver. Then remove the front. 2. Connect the thermostat according to the connection diagram.
-
Page 6: Troubleshooting
Trouble shooting Green LED ON Standby Red LED ON Heating Green LED fast flash Inclusion or link test Red LED short flash Inclusion not OK, goes to not included. Linktest not OK, goes to missing link RED LED slow flash Sensor failure Factory reset a Devilink™... -
Page 7: Disposal Instruction
Disposal Instruction... -
Page 8: Technical Specifications
Technical specifications Operation voltage 180-250 VAC, 50/60 Hz Standby power Max. 1 W consumption Relay: • Resistive load 230 V ~ 15 A / 3450 W • Inductive load cos ϕ = 0.3 Max. 1 A Sensing unit NTC 15 kOhm at 25°C Sensing values: •... - Page 10 Deviflex electricians. All work will be invoiced heating cables or Devimat heating in full if DEVI is required to inspect mats, Devireg thermostats, or repair faults that have arisen as a Devifast fixing strips and Devi result of any of the above.
-
Page 11: Warranty Certificate
The 2 Year DEVI Warranty Warranty Certificate The DEVI™ Warranty is granted to: Name: Address City: Country: Telephone: Attention: The Warranty Certificate must be completed correctly for the Warranty to be valid. Please read the Warranty conditions above. Type of thermostat:... - Page 12 Article No: 08095924 Version: 02.02 DEVI A/S DK • 7100 Vejle Phone +45 7488 8500 +45 7488 8501...
