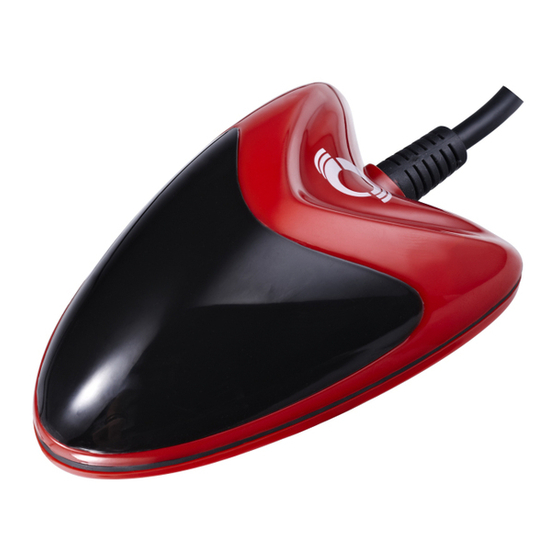

Gps vehicle tracker
Hide thumbs Also See for MVT100:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Manual

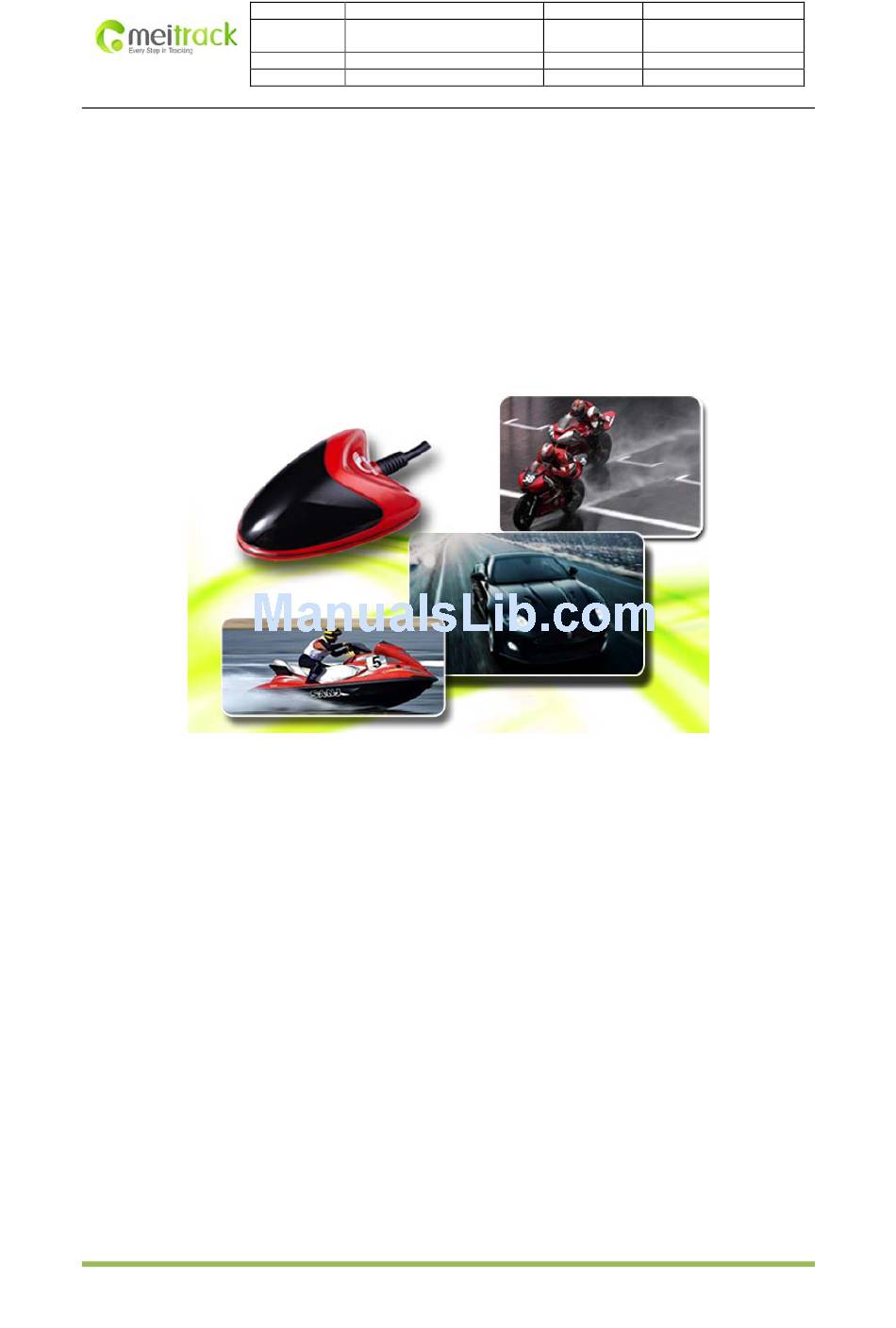

MEITRACK® GPS Vehicle Tracker
Copyright © 2012 Shenzhen Meiligao Electronics Co., Ltd. All rights reserved.
File Name:
MEITRACK MVT100 User Guide
Project:
MVT100
Sub Project:
User Guide
Revision:
V2.4
User Guide V2.4
MVT100
Creator:
Cavana Cheung
Creation Date:
Update Date:
Page:
Confidential:
External Documentation
2010-09-09
2012-07-03
- 1 - of 19
- 1 -

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MVT100 and is the answer not in the manual?

Questions and answers

Related Manuals for MeiTrack MVT100

Summary of Contents for MeiTrack MVT100

  • Page 1 File Name: MEITRACK MVT100 User Guide Creator: Cavana Cheung Project: MVT100 Creation Date: 2010-09-09 Update Date: 2012-07-03 Sub Project: User Guide Page: - 1 - of 19 Revision: V2.4 Confidential: External Documentation MEITRACK® GPS Vehicle Tracker User Guide V2.4 MVT100 Copyright ©...

  • Page 2: Table Of Contents

    Digital Input (PIN10, Positive Triggering) ................. - 18 - 8.1.4 Output (PIN6) ........................- 18 - 8.1.5 AD Input (PIN5) ....................... - 19 - 8.2 Mount the MVT100 unit ........................- 19 - Copyright © 2012 Shenzhen Meiligao Electronics Co., Ltd. All rights reserved. - 2 -...

  • Page 3: Copyright And Disclaimer

    This product is easy to install and is built with an internal GPS and GSM antenna. The MVT100 is both waterproof and dust proof, making it an exceptional GPS tracker for your car, motorcycle, yacht and boat.

  • Page 4: Specifications

    File Name: MEITRACK MVT100 User Guide Creator: Cavana Cheung Project: MVT100 Creation Date: 2010-09-09 Update Date: 2012-07-03 Sub Project: User Guide Page: - 4 - of 19 Revision: V2.4 Confidential: External Documentation Track by Time Interval  Track by Distance Interval ...

  • Page 5: Mvt100 And Accessories

    If you require the function of sending an SMS location report to the authorized phone number when it makes a call to the MVT100, please make sure the SIM installed supports displaying caller ID. Before installing the SIM card, turn off the power for MVT100.

  • Page 6: Charging

    Configuration and testing suggested prior to installation. Indications 7.3 LED Press and hold the Power On/Off button for 3~5 seconds to turn on/off MVT100. GPS LED (Blue) One button is pressed or input is active. Flashing ( every 0.1 second) Initializing or back-up battery power is low Flashing (0.1 second on and 2.9 seconds off)

  • Page 7: Track By Calling

    V2.4 Confidential: External Documentation 7.4 Track by Calling Make a call to MVT100 and it will report with one SMS. For example, Now,110727 02:48,V,16,23Km/h,61%,http://maps.google.com/maps?f=q&hl=en&q=22.540103,114.082329 &ie=UTF8&z=16&iwloc=addr&om=1 Click on the link then the location can be shown directly on Google Maps on your mobile phone.

  • Page 8: Multiple Phone Numbers- A71

    If no preset phone number, it is empty (default is empty). Send command “0000, A71” to delete all phone numbers. When the SOS button is pressed, MVT100 will make a call to phone number 1, 2 and 3. It will stop calling when one number answers.

  • Page 9: Sleep Mode - A73

    File Name: MEITRACK MVT100 User Guide Creator: Cavana Cheung Project: MVT100 Creation Date: 2010-09-09 Update Date: 2012-07-03 Sub Project: User Guide Page: - 9 - of 19 Revision: V2.4 Confidential: External Documentation Authorize a phone number to make a silent call to the tracker. The tracker will answer the call automatically and allows the caller to listen to what is happening around the tracker.

  • Page 10: Set Anti-Theft - B21

    This part shows you the basics in how to use the MEITRACK Parameter Editor. Note: Don’t connect MVT100 to external battery when configuring. Please refer to the MEITRACK Parameter Editor User Guide for more information regarding configuration and functions. Run ‘PL2303_Prolific_DriverInstaller’ to install the driver for the USB data cable.
  • Page 11 ‘Prolific USB-to-Serial Comm Port’ as the following picture shows. Note: Remember this Com number. It needs to be input into the MEITRACK Parameter Editor. It is COM3 in this example and it would be COM4 or COM5… in your computer.

  • Page 12: Sms Tracking

    Click ‘Read Settings’ button to show the default or previous settings of the tracker. Note: MEITRACK Parameter Editor is in the CD. The language will be automatically adjusted to be the same as your PC operation system’s language. Please use “Ctrl+L” to change the language.
  • Page 13 A phone number to receive selected event’s SMS reports. Event Selected event’s SMS reports will be sent to authorized phone number. For more details, please refer to MEITRACK GPRS/SMS Protocol. For description of events from SOS/Input 1 Active to Tow Alarm, please refer to tap II GPRS Tracking.

  • Page 14: Gprs Tracking

    External Power Off Alarm when external power supply if off or cut. No GPS Signal Report when MVT100 enters GPS blind area or no GPS signal. Get GPS Signal Report when MVT100 exits GPS blind area or get GPS signal.
  • Page 15 Interval = 0, stop tracking by time interval. Max time interval = 65535*10 seconds GPRS Report Times = 0, report without limit. = [1,65535], set report times, MVT100 will stop reporting when reaching the times. IP & Port Input server’s IP address and port number.
  • Page 16 External Power Off Alarm when external power supply if off or cut. No GPS Signal Report when MVT100 enters GPS blind area or no GPS signal. Get GPS Signal Report when MVT100 exits GPS blind area or get GPS signal.

  • Page 17: Installation

    File Name: MEITRACK MVT100 User Guide Creator: Cavana Cheung Project: MVT100 Creation Date: 2010-09-09 Update Date: 2012-07-03 Sub Project: User Guide Page: - 17 - of 19 Revision: V2.4 Confidential: External Documentation 8. Installation 8.1 Install I/O Cable The I/O cable is a 8-pin cable including power, analog input, negative input, output and USB port for configuration.

  • Page 18: Power/Gnd (Pin1, Pin2)

    File Name: MEITRACK MVT100 User Guide Creator: Cavana Cheung Project: MVT100 Creation Date: 2010-09-09 Update Date: 2012-07-03 Sub Project: User Guide Page: - 18 - of 19 Revision: V2.4 Confidential: External Documentation 8.1.1 Power/GND (PIN1, PIN2) Connect GND (-Black) and Power (+Red) wires to the battery of motorcycle/vehicle.

  • Page 19: Ad Input (Pin5)

    Percentage Left= = * 100% 1024 X 2 – AD value The value must be converted into decimal, for example, 0x0267 is 615 in decimal. 8.2 Mount the MVT100 unit Three mounting options: Option 1: Using 3M sticker Option 2:...
