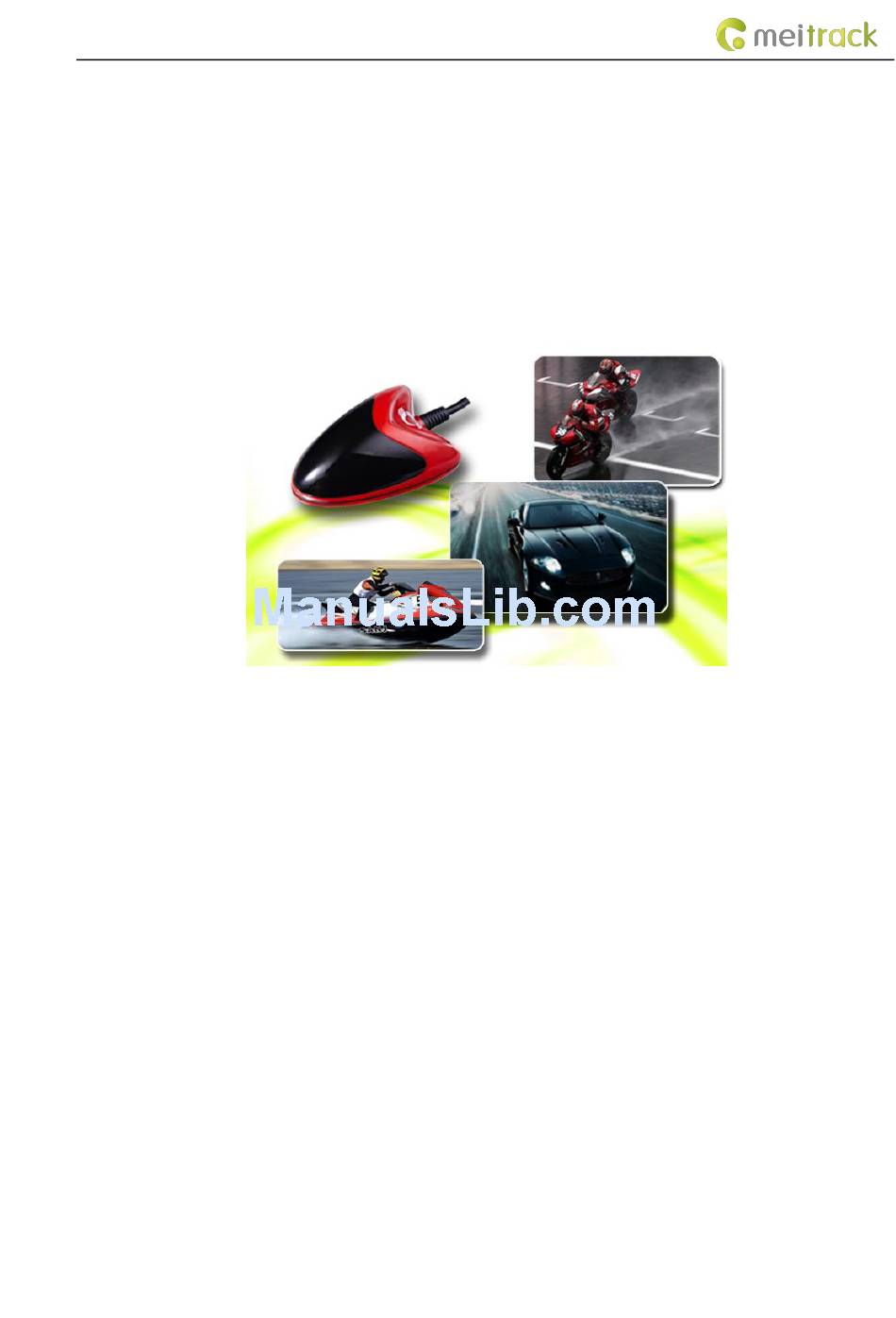

- Page 1 MEITRACK MVT100 User Guide MEITRACK MVT100 User Guide...
-
Page 2: Change History
Change History File Name MEITRACK MVT100 User Guide Created By Renny Lee Project MVT100 Creation Date 2010-08-30 Update Date 2015-01-07 Subproject User Guide Total Pages Version V5.2 Confidential External Documentation Copyright © 2015 Meitrack Group All rights reserved. - 2 -... -
Page 3: Table Of Contents
3.1.2 Anti-Theft .................................- 4 - 3.1.3 Other Functions ...............................- 4 - 3.2 Specifications ..................................- 5 - 4 MVT100 and Accessories ................................- 5 - 5 Appearance....................................- 6 - 6 First Use ......................................- 6 - 6.1 Installing the SIM Card ................................- 6 - 6.2 Charging ....................................- 6 -... -
Page 4: Copyright And Disclaimer
2 Product Overview The MVT100 is a vehicle tracker that can be used for cars, motorcycles, yachts, and boats. The MVT100’s unique design makes its appearance cool. The product is easy to install, waterproof (IP66), dustproof, and has built-in antenna. Once installed on a vehicle, the MVT100 is hard to be noticed. -
Page 5: Specifications
1 analog detection input 1 output 1 USB port 4 MVT100 and Accessories MVT100 and standard accessories: MVT100 with a battery, I/O 3M sticker Screws USB cable cable, and SOS button Copyright © 2015 Meitrack Group All rights reserved. - 5 -... -
Page 6: Appearance
6.2 Charging When you use the MVT100 for the first time, connect the MVT100 GND (-Black) and Power (+Red) wires to 12 V or 24 V external power supply for charging. Ensure that the MVT100 is charged at least three hours. Eight hours are recommended. -
Page 7: Indicator
MEITRACK MVT100 User Guide 6.3 Indicator To start the MVT100, press and hold down the power button for 3s to 5s, or connect the MVT100 to external power supply (11 V to 36 V). GPS Indicator (Blue) Steady on One button is pressed or one input is activated. -
Page 8: Location Tracking
6.5 Location Tracking 6.5.1 Tracking on a Mobile Phone Make a call to the MVT100 SIM card number. An SMS with a map link will be received. Click the SMS link. The location is displayed on Google Maps on your mobile phone. -
Page 9: Setting A Combined Function Phone Number - A71
If your mobile phone does not support HTTP, enter the latitude and longitude on Google Maps to query a location. More SMS commands You can configure the MVT100 on a mobile phone or on a computer by using Meitrack Manager. For details, see section 6.4 "Configured on a Computer."... -
Page 10: Setting The Smart Sleep Mode - A73
0000,A12,6,0 to the MVT100 SIM card number. Configured by Meitrack Manager: Connect the tracker to a PC, run Meitrack Manager to enter the main screen, and click the Tracking tab to set parameters. Visit ms02.trackingmate.com, and enter the user name and password. Contact us if you have no account or forget the password. -
Page 11: Installing The Mvt100
MEITRACK MVT100 User Guide Obtain the tracker IMEI number from the packing or Meitrack Manager, register a device, set the parameters shown in the following figure, and then click Save. Double-click a device in the panel on the right, and check whether data is updated in Status. -
Page 12: Installation/Connection Diagram
8.2 Installation/Connection Diagram 8.2.1 Power Cable/Ground Wire (PIN1, PIN2) Connect the power cable (red) and ground wire (black) to the positive and negative electrodes of the vehicle battery respectively. Copyright © 2015 Meitrack Group All rights reserved. - 12 -... -
Page 13: Digital Input 1 (Pin4, Negative Triggering/Sosbutton)
The AD analog input can connect to a sensor whose output voltage ranges from 0 V to 6.6 V. AD analog voltage = (AD1 x 3.3 x 2)/4096 8.3 Mounting the MVT100 Use any of the following methods to mount the MVT100: 3M sticker ... - Page 14 MEITRACK MVT100 User Guide Built-in super magnet If you have any questions, do not hesitate to email us at info@meitrack.com. Copyright © 2015 Meitrack Group All rights reserved. - 14 -...
