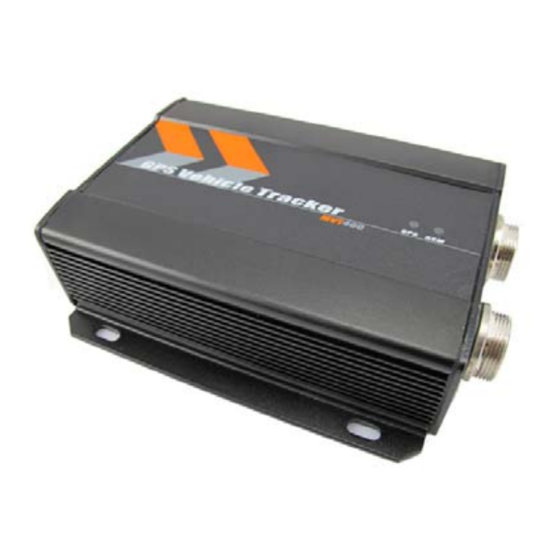

MVT400 USER MANUAL
GPS
Vehicle
Tracker
User Manual
V1.52
MVT400
Page 1 of 27

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MVT400 and is the answer not in the manual?

Questions and answers

Related Manuals for MeiTrack MVT400

Summary of Contents for MeiTrack MVT400

  • Page 1 MVT400 USER MANUAL Vehicle Tracker User Manual V1.52 MVT400 Page 1 of 27...

  • Page 2: Table Of Contents

    7.6 Track by GPRS (Our Protocol) between Server and Tracker........... 10 7.6.1 Configure MVT400 by Parameter Editor V1.39............10 7.6.2 Configure MVT400 by SMS ..................10 7.6.3 Add MVT400 to 800D web based tracking software ............. 12 8. Authorization ........................14 9. Application Examples for Inputs ....................14 9.1 SOS Button Connection ....................

  • Page 3: Product Overview

    MVT400 has inbuilt GPS module to obtain accurate position data and utilizes its GSM capability to send the position data to a specified mobile phone or server base for tracking and management. MVT400 is waterproof (IP66) and has 2 digital inputs, 7 analog inputs, 1 open circuit output and 1 relay output for different reports and applications.

  • Page 4: Mvt400 Characteristics

    Safe Driving Drivers should not operate this product while driving. Qualified Service Only qualified personnel can install or repair MVT400. Confidential Phone Number For safety reason, do not tell other people the mobile phone number of your MVT400 without taking precautions of security settings.

  • Page 5: Getting Started

    MVT400 USER MANUAL 4. Getting Started This section will describe how to set up your MVT400. 4.1 Hardware and Accessories MVT400 is supplied in a box which includes: MVT400 with GPS Antenna GSM Antenna Socket cables Battery 4.2 View Front View...
  • Page 6 MVT400 USER MANUAL Power On/Off Switch(Inside) Open or Close Unit. SOS Button SOS button is connected with the wires. Press it to send SOS alarm to the preauthorized phone number. Mini USB(Inside) Used for firmware update, configuration on PC. (USB-to-Serial Adaptor...

  • Page 7: Connecting And Installation

    -12V~+12V 4.4 Connecting and Installation Read this manual before using your MVT400 and check if all parts are included in the packaging box. 4.4.1 Ensure that your MVT400 has a working SIM installed. - Check that the SIM has not run out of credit (test the SIM in a phone to make sure it can send and...

  • Page 8: Time Zone

    MVT400 USER MANUAL Description: Change user’s password. Note: 1. ****** is user’s password and the default password is 000000. The tracker will only accept commands from a user with the correct password. Commands with wrong password will be ignored. 2. ###### is the new password. Password should be 6 digits.

  • Page 9: Track By Calling

    MVT400 USER MANUAL Example: W000000,100 7.2 Track by Calling Make a missed call to the tracker and it will report its longitude and latitude by SMS with format as follows:- Latitude = 22 32 36.63N Longitude = 114 04 57.37E, Speed = 2.6854Km/h, 2008-12-24,01:50 7.3 Track by Preset Interval...

  • Page 10: Track By 800E

    GPS Tracking Software - 800E Please refer to 800E User Guide for more information. 7.6 Track by 800d web based tracking software 7.6.1 Configure MVT400 by Parameter Editor V1.39 GPS Tracker Parameter Editor V1.39 Please refer to <GPS Tracker Parameter Editor> for more information 7.6.2 Configure MVT400 by SMS...
  • Page 11 Description: Send this command to set an ID for the tracker. Tracker ID must not over 14 digits. Example: W000000,010,00001 Notes: On the packing box of MVT400, you can find a white label writes “IMEI, Tracker ID, Terminal ID". Example: The “Tracker ID: 30403969”, and then you should send.

  • Page 12: Add Mvt400 To 800D Web Based Tracking Software

    In this example, the tracker will send every 30 seconds. Example: W000000,014,00003 The tracker will send every 30 seconds. MVT400 will reply “SET GPRS Timer OK/00003” 7.6.3 Add MVT400 to 800D web based tracking software Please go to http://119.146.223.203 Enter the user name and password we provided.
  • Page 13 Terminal Type: Choose” TE5” SIM card: the SIM card phone number you put in MVT400. Terminal ID: On the packing box of MVT400, you can find a white label writes “IMEI, Tracker ID, Terminal ID". Very Important Note: Please do not omit the minus if there's a minus before the terminal ID.

  • Page 14: Authorization

    MVT400 USER MANUAL 8. Authorization Command: W******,003,F,P,T Description: Authorize phone numbers for the SOS button (or inputs) for receiving location reports and SMS alarms. Note: F=0, to turn off this function; (default) F=1, Sends SMS to the authorized phone number;...

  • Page 15: Ignition Detection

    MVT400 USER MANUAL 9.2 Ignition Detection Input 2 (positive triggering) can be used for ignition detection. The detection alarm will be sent to the server via GPRS. Please refer to <GPRS Communication Protocol> Alarm Command 0x9999 for more information. Power for ignition...

  • Page 16: Movement/Geo-Fence

    MVT400 USER MANUAL Example: W000000,005,08 When the tracker’s speed is over 80km/h, an SMS alarm will be sent out. 12. Movement/Geo-fence 12.1 Movement Alarm Command: W******,006,XX Description: When the tracker moves out of a preset square scope, it will send an SMS alarm to the authorized phone number for SOS.

  • Page 17: Output Control

    Example: W000000,020,1,1 13.2 Output Control (Conditional) Command: W******,120,AB or W******,220,AB Description: Send this command to control the Output of MVT400. This command is only workable when the speed is below 10km/h(command 120) or 20km/h(command 220) and meantime GPS is available. Note: AB represents Out1, Out2.

  • Page 18: External Relay (Output2)

    MVT400 USER MANUAL Light power supply loop Light 13.3.2 External Relay (Output2) When bigger power is required, an external relay needs to be connected. Relay Connection: Connect a replay as below picture shows: Brow White MVT400 Relay PIN7 RLX (PIN7) linked with...

  • Page 19: Heartbeat

    MVT400 USER MANUAL 15. Heartbeat Command: W******,015,data Description: Set an interval for heartbeat. Note: data is the interval in unit of minute data=0, to turn off this function; data=1~65535, set interval for heartbeat. Example: W000000,015,10 In this example, the tracker will send heartbeat every 10 minutes.

  • Page 20: Password Initialization

    MVT400 USER MANUAL ### is the ending character and is required in the text message. Example: W000000,990,099### 19. Password Initialization Command: W888888,999,666 Description: This is to make the password back to factory default in case you forget your password. Note: Turn on the tracker, press the SOS button for five times continuously and the red LED will be on, and then send this SMS (within 120 seconds) to the tracker to make the password back to factory default (000000).
  • Page 21 MVT400 USER MANUAL Change Password W******,001,###### W000000,001,123456 Remarks: To change user’s password. ###### is the new password. Password should be 6 digits. Track by Interval W******,002,XXX W000000,002,030 Remarks: To set interval for automatic timed report. XXX is the interval in minute. If XXX=000 to turn off tracking by time.
  • Page 22 MVT400 USER MANUAL Geo-fence Alarm W******,017,X W000000,017,11404.0000,E,2232.0010,N,11505.12 W******,117,X 34,E,2333.5678,N W000000,117,11404.0000,E,2232.0010,N,11505.12 34,E,2333.5678,N Remarks: 017 is for alarm when tracker moves out the preset scope; 117 is for alarm when tracker moves in. When the tracker moves in or out, it will send an SMS alarm to the authorized phone number for SOS.
  • Page 23 MVT400 USER MANUAL Presetting by SMS for GPRS tracking (Ensure that your SIM card supports GPRS connection prior to setting) Set Tracker’s GPRS ID W******,010,ID W000000,010,00001 Remarks: to set a digital GPRS ID for the tracker. GPRS ID must not over 14 digits.
  • Page 24 MVT400 USER MANUAL back to the server by GPRS. degree=0, to turn off this function. degree=[1,360], to set degree of direction change. For more information regarding GPRS tracking please refer to <GPRS Communication Protocol> Output Control (Immediate) W******,020,P,F W000000,020,1,1 Remarks: P =1, Output1;...
  • Page 25 MVT400 USER MANUAL T=[1, 65535] to set time difference in minute to GMT. For those ahead of GMT, just input the time difference in minute directly. For example, GMT+8, W000000,032,480 ‘-‘is required for those behind GMT. For example, W000000,032,-120. Set SMS Initials...

  • Page 26: Annex 2. Troubleshooting

    GPRS function of MVT400 is turned off Turn on GPRS function of MVT400. Incorrect IP address or PORT Get the right IP address and PORT and reset to MVT400. GSM signal is weak Move the unit to a location with good GSM reception.

  • Page 27: Contacts

    MVT400 USER MANUAL Contacts If you encounter any problems when using our products, and cannot solve them by yourself, please contact our technical support team by writing an E-Mail to us. We will be pleased to help you. Page 27 of 27...
