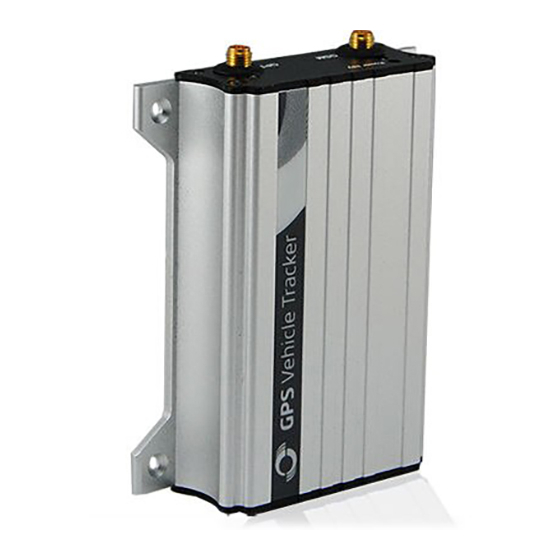

Anti-theft vehicle tracker
Hide thumbs Also See for MVT380:
Table of Contents

Advertisement

Quick Links

Download this manual
MEITRACK MVT380 User Guide
MEITRACK MVT380 User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MVT380 and is the answer not in the manual?

Questions and answers

Related Manuals for MeiTrack MVT380

Summary of Contents for MeiTrack MVT380

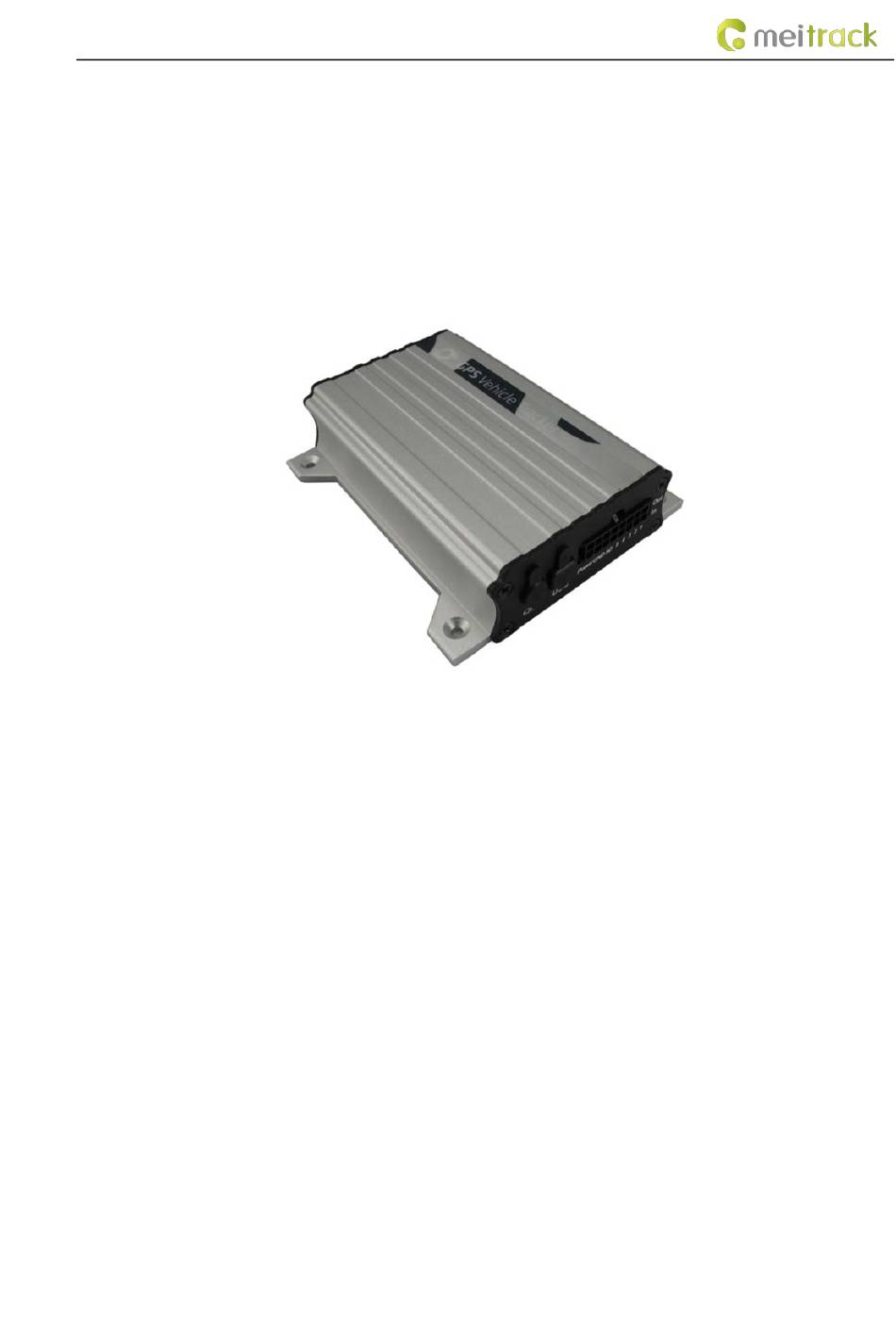

  • Page 1 MEITRACK MVT380 User Guide MEITRACK MVT380 User Guide...
  • Page 2 MEITRACK MVT380 User Guide Change History File Name MEITRACK MVT380 User Guide Project MVT380 Creation Date 2010-08-24 Update Date 2018-08-02 Subproject User Guide Total Pages Version V3.5 Confidential External Documentation Copyright © 2018 Meitrack Group All rights reserved. - 2 -...

  • Page 3: Table Of Contents

    6.1 Installing the SIM Card ................................- 6 - 6.2 Charging the Device ................................- 7 - 6.3 LED Indicator ..................................- 7 - 6.4 Configuring Device Parameters by Meitrack Manager .......................- 7 - 6.5 Tracking by Mobile Phone ..............................- 8 - 6.6 Common SMS Commands ..............................- 9 - 6.6.1 Setting Authorized Phone Numbers –...

  • Page 4: Copyright And Disclaimer

    The user manual may be changed without notice. Without prior written consent of Meitrack Group, this user manual, or any part thereof, may not be reproduced for any purpose whatsoever, or transmitted in any form, either electronically or mechanically, including photocopying and recording.

  • Page 5: Other Functions

    Frequency band GSM 850/900/1800/1900 MHz GPS sensitivity -161 dB Positioning accuracy 2.5m I/O port 5 digital inputs (3 negative inputs and 2 positive inputs) 2 analog detection inputs 5 outputs Copyright © 2018 Meitrack Group All rights reserved. - 5 -...

  • Page 6: Mvt380 And Accessories

    GSM antenna connector GPS antenna connector USB port Power/Input/Output Microphone/Speaker port 6 First Use 6.1 Installing the SIM Card Loosen the screws, and remove the front cover of the device. Copyright © 2018 Meitrack Group All rights reserved. - 6 -...

  • Page 7: Charging The Device

    Blink (1 second on and 2 seconds off) No GSM signal is received. 6.4 Configuring Device Parameters by Meitrack Manager This section describes how to use Meitrack Manager to configure the device on a computer. Procedure: Install the USB-to-serial cable driver and Meitrack Manager.

  • Page 8: Tracking By Mobile Phone

    MEITRACK MVT380 User Guide Run Meitrack Manager, then the following dialog box will appear: Turn on the device, then Meitrack Manager will detect the device model automatically and the parameter page will appear accordingly. For details about Meitrack Manager, see the MEITRACK Manager User Guide.

  • Page 9: Common Sms Commands

    When the SOS button is pressed, the tracker dials phone numbers 1, 2, and 3 in sequence. The tracker stops dialing when a phone number responds. Example: Sending: 0000,A71,13811111111,13822222222,13833333333 Reply: 353358017784062,A71,OK Copyright © 2018 Meitrack Group All rights reserved. - 9 -...

  • Page 10: Setting Listen-In Phone Numbers - A72

    Visit http://ms03.trackingmate.com, enter the user name and password, and log in to the MS03. (Purchase the login account from your provider.) For more information about how to add a tracker, see the MEITRACK GPS Tracking System MS03 User Guide (chapter 4 "Getting Started").

  • Page 11: Installing The Mvt380

     Send commands in batches.  Support OTA updates.  For details, see the MEITRACK GPS Tracking System MS03 User Guide. 8 Installing the MVT380 8.1 Installing GPS and GSM Antennas GSM antenna GPS antenna Connect the GSM antenna to the connector which is labeled "GSM". The GSM antenna is non-directional, so you can hide it in any place of a vehicle.
  • Page 12 Maximum voltage for output open drain (invalid): 45 V Maximum current for output low voltage (valid): 500 mA Connect to an external relay to remotely cut off the vehicle fuel cable or engine power supply. Copyright © 2018 Meitrack Group All rights reserved. - 12 -...

  • Page 13: Power Cable/Ground Wire (Pin 7/8)

    8.2.1 Power Cable/Ground Wire (Pin 7/8) Connect the power cable (red) and ground wire (black) to the positive and negative electrodes of the vehicle battery respectively. 8.2.2 Digital Input (Pin 1/2/3, Negative Trigger) Copyright © 2018 Meitrack Group All rights reserved. - 13 -...

  • Page 14: Digital Input (Pin 4/5, Positive Trigger)

    Note: The white line of the relay must be connected with the power V+, and the yellow line must be connected with the OUT line of the equipment. It cannot be connected backwards. If the connection is wrong, the equipment may burn out. Copyright © 2018 Meitrack Group All rights reserved. - 14 -...

  • Page 15: Voltage Formula For The Built-In Battery And Extenal Power Supply

    8.3 (Optional) Installing the Microphone and Speaker 8.4 Mounting the MVT380 Tighten the four screws shown in the following figure. If you have any questions, do not hesitate to email us at info@meitrack.com. Copyright © 2018 Meitrack Group All rights reserved. - 15 -...
