Summary of Contents for MeiTrack MVT340

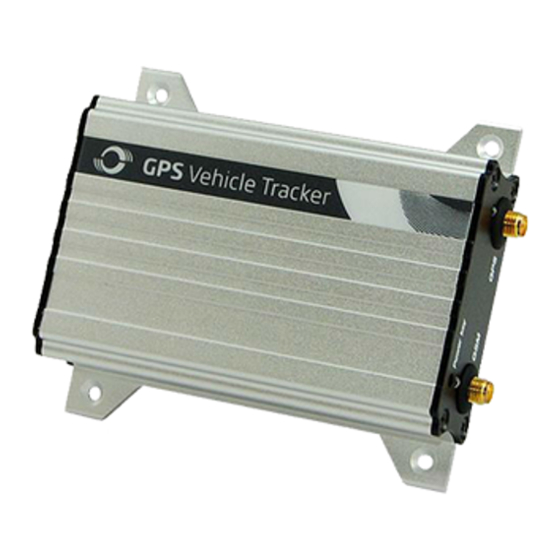

- Page 1 MEITRACK MVT100/MVT340/MVT380 GPRS Protocol MEITRACK MVT100/MVT340/MVT380 GPRS Protocol Applicable Model: MVT100/MVT340/MVT380...
-
Page 2: Change History
Change History File Name MEITRACK MVT100/MVT340/MVT380 Created By Kyle Lv GPRS Protocol Project MVT100/MVT340/MVT380 Creation Date 2017-01-20 Update Date Subproject GPRS Protocol Total Pages Version V1.0 Confidential Internal Documentation Copyright © 2017 Meitrack Group All rights reserved. - 2 -... -
Page 3: Table Of Contents
3.34 Restarting the GPS Module – F02 ...........................- 22 - 3.35 Setting the Mileage and Run Time – F08 ........................- 22 - 3.36 Deleting SMS/GPRS Cache Data – F09 ..........................- 23 - Copyright © 2017 Meitrack Group All rights reserved. - 3 -... - Page 4 MEITRACK MVT100/MVT340/MVT380 GPRS Protocol 3.37 Restoring Initial Settings – F11 ............................- 23 - Copyright © 2017 Meitrack Group All rights reserved. - 4 -...
-
Page 5: Command Format
For details, see section 1.3 "Event Code." Latitude Unit: degree 22.756325 (indicates (-)yy.dddddd Decimal 22.756325°N) When a minus (-) exists, the tracker is in the southern hemisphere. -23.256438 (indicates Copyright © 2017 Meitrack Group All rights reserved. - 5 -... - Page 6 When the accuracy value is 0, the signal is invalid. 0.5–1: Perfect 2–3: Wonderful 4–6: Good 7–8: Medium 9–20: Below average 21–99.9: Poor Altitude Unit: meter Decimal Mileage Unit: meter 564870 Copyright © 2017 Meitrack Group All rights reserved. - 6 -...
- Page 7 It is a hexadecimal character. Example: $$<Data identifier><Data length>,<IMEI>,<Command type>,<Command><*Checksum>\r\n \r\n 2 bytes. The parameter is an ending character. The type is ASCII. \r\n (Hexadecimal value: 0x0d 0x0a) Copyright © 2017 Meitrack Group All rights reserved. - 7 -...
-
Page 8: Event Code
Press Input 2 to Call Press Input 3 to Call Press Input 4 to Call Press Input 5 to Call Reject Incoming Call Get Location by Call Auto Answer Incoming Call Copyright © 2017 Meitrack Group All rights reserved. - 8 -... -
Page 9: Command List
Setting a GPRS Event Transmission Mode Reading Device's Firmware Version and SN Restarting the GSM Module Restarting the GPS Module Setting the Mileage and Run Time Deleting SMS/GPRS Cache Data Restoring Initial Settings Copyright © 2017 Meitrack Group All rights reserved. - 9 -... -
Page 10: Command Details
A12,OK Description Unit: x10 seconds Interval = 0: function disabled. The maximum time interval is 65535 x 10 seconds. 6 x 10 seconds are recommended. Example GPRS Sending @@V27,353358017784062,A12,6*D5\r\n Copyright © 2017 Meitrack Group All rights reserved. - 10 -... -
Page 11: Setting The Cornering Report Function - A13
@@D30,353358017784062,A14,1000*4A\r\n GPRS Reply $$D28,353358017784062,A14,OK*F2\r\n After the above command is run successfully, if the driving distance reaches 1000m, the tracker will send a data packet to the server. $$D131,353358017784062,AAA,33,22.547271,114.047405,080310080929,A,8,21,13,89 ,1,12,8525,561,0|0|10133|4110,0000,163|185|186|2712|939,*31\r\n Copyright © 2017 Meitrack Group All rights reserved. - 11 -... -
Page 12: Setting The Parking Scheduled Tracking Function - A15
(high level) vehicle tracker (MVT100/MVT340/MVT380) must connect to engine detection. Otherwise, the function is unavailable. When the activation status is 1, the parking scheduled tracking function is enabled. GPRS data is sent at the following interval: Interval of the A12 function when the engine is on ... -
Page 13: Setting The Dns Server Ip Address - A22
When the tracker fails to send data to the active server set by command A21, data is automatically sent to the standby server to prevent data loss. Example GPRS Sending @@S43,353358017784062,A23,67.203.13.26,8800*F0 GPRS Reply $$S28,353358017784062,A23,OK*01\r\n Copyright © 2017 Meitrack Group All rights reserved. - 13 -... -
Page 14: Reading All Authorized Phone Numbers - A70
16 digits. If no phone numbers are set, leave them blank. Phone numbers are empty by default. If no phone numbers are set and commas are remained, phone numbers set before will be deleted. Applicable Model MVT380 Example GPRS Sending @@V49,353358017784062,A72,13844444444,13855555555*55\r\n GPRS Reply $$V28,353358017784062,A72,OK*08\r\n Copyright © 2017 Meitrack Group All rights reserved. - 14 -... -
Page 15: Setting The Smart Sleep Mode - A73
GPRS Reply Use the AFF command to clear the existing data when the GPRS connection mode is UDP. AFF,Number of remaining cache,Command type, (-)Latitude,(-)Longitude,Data and time,Positioning status,Number of satellites,GSM signal Copyright © 2017 Meitrack Group All rights reserved. - 15 -... -
Page 16: Setting A Geo-Fence - B05
Geo-fence number: 1–8. Only one geo-fence can be deleted each time by SMS or GPRS command. Example GPRS Sending @@J27,353358017784062,B06,1*C8\r\n GPRS Reply $$J28,353358017784062,B06,OK*FA\r\n After the above command is run successfully, the first geo-fence will be deleted. Copyright © 2017 Meitrack Group All rights reserved. - 16 -... -
Page 17: Setting The Speeding Alarm Function - B07
SOS are activated. Status = 0: function disabled. No alarm is generated when the first negative input and first positive input of vehicle trackers excluding SOS are activated. Copyright © 2017 Meitrack Group All rights reserved. - 17 -... -
Page 18: Turning Off The Led Indicator - B31
Description Set the interval for recording data to device's memory when the GPS signal is valid. Recorded logs can only be read by GPSLog or Meitrack Manager software. Log interval = 0: function disabled (default). Log interval = [1…65535]: function enabled. Unit: second. -
Page 19: Setting The Gprs Time Zone - B36
@@R31,353358017784062,B91,1,SOS*F0\r\n GPRS Reply $$R28,353358017784062,B91,OK*06\r\n After you press the SOS button (input 1), the tracker will send an alarm SMS whose header is SOS to a preset authorized phone number. Copyright © 2017 Meitrack Group All rights reserved. - 19 -... -
Page 20: Setting Event Authorization - B99
When the driving speed is lower than the speed limit, the output control takes effect. A=0, close output (OUT1) - open drain A=1, open output (OUT1) - connect to GND A=2, remain previous status. B=0, close output (OUT2) - open drain Copyright © 2017 Meitrack Group All rights reserved. - 20 -... -
Page 21: Notifying The Tracker Of Sending An Sms - C02
X = 1: Before another event can be transmitted, existing event reports need to be confirmed and deleted on the server by the AFF command. Select this mode when GPRS uses UDP. Example GPRS Sending @@f27,353358017784062,C03,0*E1\r\n GPRS Reply $$f28,353358017784062,C03,OK*14\r\n Copyright © 2017 Meitrack Group All rights reserved. - 21 -... -
Page 22: Reading Device's Firmware Version And Sn - E91
If you do not want to set the parameter, leave it blank. Mileage: Value range: [0…4294967295] Decimal Unit: meter If you do not want to set the parameter, leave it blank. Example Copyright © 2017 Meitrack Group All rights reserved. - 22 -... -
Page 23: Deleting Sms/Gprs Cache Data - F09
F11,OK Description Restore initial settings except the SMS password. Example GPRS Sending @@[25,353358017784062,F11*7A\r\n GPRS Reply $$[28,353358017784062,F11,OK*0B\r\n If you have any questions, do not hesitate to email us at info@meitrack.com. Copyright © 2017 Meitrack Group All rights reserved. - 23 -...
