Technical Specifications - Altronix eBridge4CR Installation Manual

Reliable Earthing - Reliable earthing of rack-mounted equipment should be maintained. Particular attention should be
given to supply connections other than direct connections to the branch circuit (e.g. use of power strips).
1. Unit should be located in proximity to ethernet switch/network, NVR or video server.
2. Connect UL Listed 24VAC Class 2 plug-in transformer or 24VDC/56VDC (polarity not observed)
UL Listed Class 2 power supply to jack marked [Power Input] using two pin plug in connector (supplied)
(Fig. 1, pg. 2). Use 22AWG-16AWG wire for this connection.
3. Connect structured cable from ethernet switch/NVR (network video server) to RJ45 jack marked [10/100BaseT]
(Fig. 1, pg. 2).
4. Connect Coax cable to BNC connector marked [Data In] (Fig. 1, pg. 2).
5. For optional simultaneous Composite Video transmission, connect Coax cable to BNC connector marked
[Composite Video Out] (Fig. 2, pg. 3). Connect the other end of the Coax cable to the composite video input of the
NVR, monitor display, matrix switch or other headend equipment.
Note: The eBridge is designed to accommodate Megapixel, HD720, HD1080 and VGA (SD) cameras. It is important
to note that some high resolution and high frame rate cameras may demand faster headend processing ability, such as a
PC graphics card to present a quality image. If the headend processing equipment is insufficient in speed, the image may
show pixelation and latency. It is advisable to pretest system if unsure. Alternatively, frame rate and resolution may be
reduced to accommodate system equipment.
Parameter
Connections
Input power requirements
Indicators
Environmental Conditions
Regulatory Compliance
Weights (approx.)

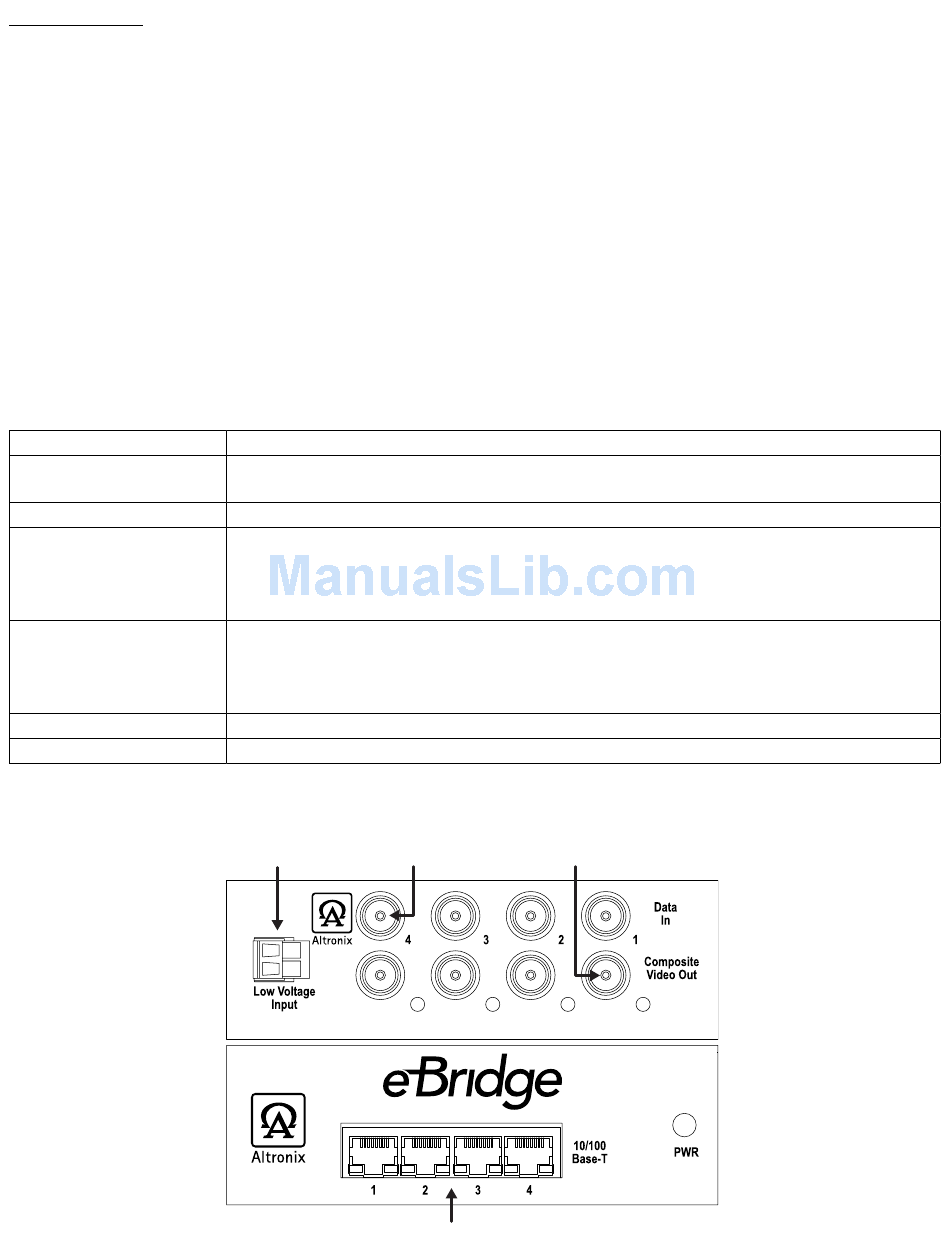

Fig. 1
Back of
Unit
Front
of Unit
- 2 -

Technical Specifications:

Description
BNC for Coax link. RJ45 for ethernet link.
Composite video connector for optional composite video service
24VDC/400mA, 56VDC/200mA, 24VAC/600mA.
Blue: Coax Link.
Yellow (RJ45 connector): On - Link, Off - No Link, Blinking - Activity.
Green (RJ45 connector): On - 100Base-TX, Off - 10Base-T.
Green: Power.
Operating Ambient Temperature: UL60950-1 14ºF to 122ºF (-10ºC to 50ºC).
Relative humidity: 85%, +/ ---5%
Storage Temperature: ---4º to 158ºF (---20º to 70ºC) Storage
Operating Altitude: --- 1000 to 6,561.679 ft. (---304.8 to 2000m).
UL/CUL Listed for Information Technology Equipment (UL 60950-1). CE approved
Product: 2.9 lbs. (1.32 kg), Shipping: 3.9 lbs. (1.77 kg)
Coax Cable from
24VDC/400mA,
56VDC/200mA, eBridge1CT or
24VAC/600mA Hybrid Camera/Device
Structured Cable from
Ethernet Switch/NVR
Optional Composite
Video Connector
to Monitor
eBridge4CR
