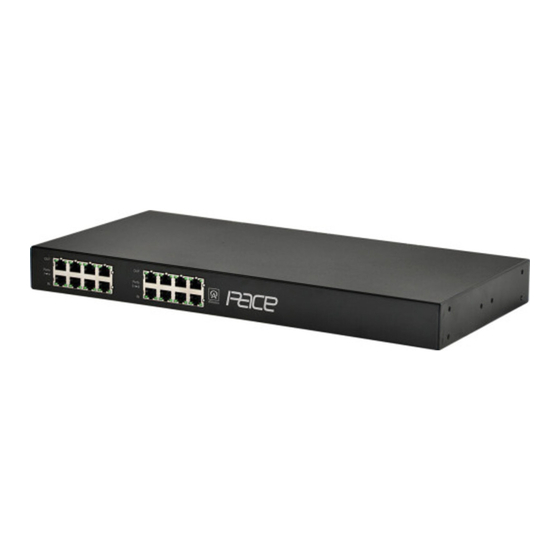

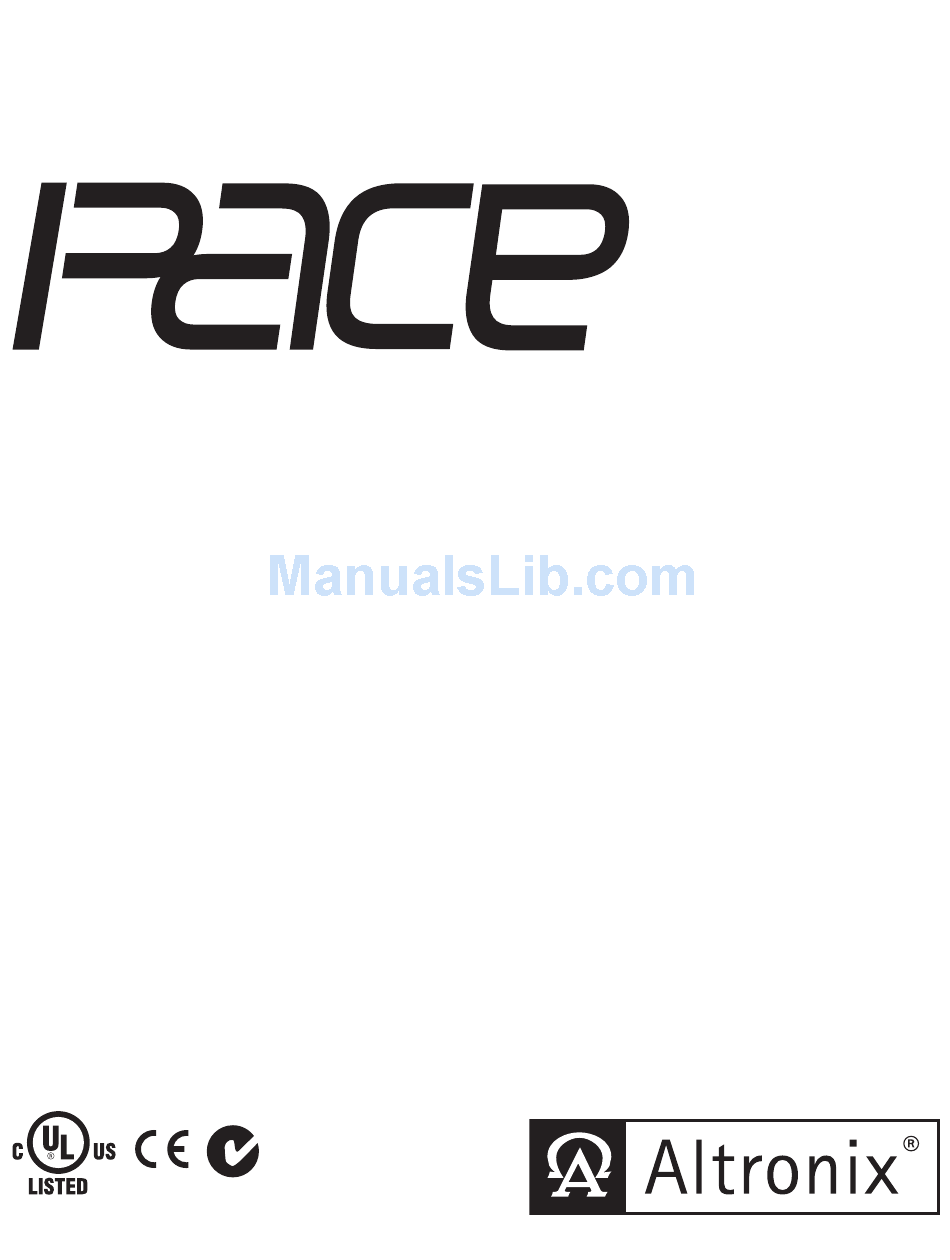

- Page 1 Long Distance Ethernet Solution Installation Guide Models Include: Pace4PRM - Four (4) Channel Receiver Pace8PRM - Eight (8) Channel Receiver Pace16PRM - Sixteen (16) Channel Receiver Z1409 I.T.E. 43KC More than just power.™ Rev. 072914...
-
Page 2: Installation Instructions
Pace4/8/16PRM are long range Ethernet receivers that transmit data at 100Mbps full duplex and power via CAT5e or higher cable in a PoE(+) compliant format. Pace4/8/16PRM receivers are powered via a PoE midspan, such as the Altronix Netway series, or by an endspan. The receiver passes the PoE(+) compliant power over the cable to the Pace1PTM trans- ceiver which in turn passes this power to an enabled IP camera/device. - Page 3 2. Pace1PTM/Pace1ST installation: a. Secure unit to desired mounting surface with a proper fastening device utilizing the case’s mounting hole. Unit should be mounted in proximity of camera/device. b. Connect structured cable from IP camera/device to RJ45 jack marked [PoE Out] (Fig. 2, pg. 3). c.
- Page 4 Multiple PoE Camera Connection: Pace8PRM shown. Pace16PRM is similar, with twice as many channels. Fig. 3 PoE compliant Pace1PTM 500m max. 100m max. PoE Camera PoE compliant Pace1PTM 500m max. 100m max. PoE Camera PoE compliant Pace1PTM 500m max. 100m) max. PoE Camera PoE compliant Pace1PTM...
-
Page 5: Technical Specifications
Operating Altitude: -- 304.8 to 2,000m. Regulatory UL/cUL Listed for Information Technology Equipment (UL 60950-1). Compliance CE approved. C-Tick compliant. Pace4PRM: Product: 1.35 lbs. (0.61 kg); Shipping: 1.7 lbs. (0.77 kg) Weights (approx.) Pace8PRM: Product: 5.8 lbs. (2.63 kg); Shipping: 7.8 lbs. (3.54 kg) Pace16PRM: Product: 7.2 lbs. -
Page 6: Rack Mount Installation
Mounting Options: Rack Mount Installation 1- Remove and discard factory installed screws from both sides of rack chassis (Fig. 4a). 2- Install mounting brackets (A) on the left and right side of rack chassis using the four (4) flat head screws (B) (included) (Fig. 4b). 3- Place unit into desired EIA 19”... -
Page 7: Enclosure Dimensions
Enclosure Dimensions (H x W x D approximate) 1.7” x 5.25” x 8.42” (43.8mm x 133.35mm x 213.9mm) Pace4PRM 5.25” 133.35mm 8.42” 213.9mm 1.7” Ports 43.8mm Pace4/8/16PRM - 7 -... - Page 8 8.5" 216mm Altronix is not responsible for any typographical errors. 140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056 website: www.altronix.com | e-mail: info@altronix.com | Lifetime Warranty | Made in U.S.A. MEMBER IIPace4/8/16PRM H08Q - 8 -...
