Summary of Contents for Altronix eBridge PLUS eBridge8PCRM

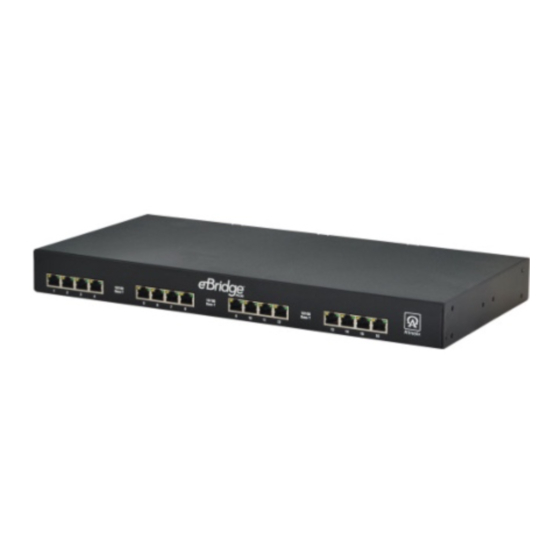

- Page 1 PLUS IP and PoE+ over Coax Solution Installation Guide Models Include: eBridge8PCRM - Eight (8) Channel Receiver eBridge16PCRM - Sixteen (16) Channel Receiver Z1409 I.T.E. 43KC More than just power. Rev. 072412...
- Page 2 Overview: Altronix eBridge8PCRM/16PCRM and eBridge1PCTX or eBridge1ST are CAT5 to Coax cable Ethernet adapters/Media converters that deliver data and power over the coax cable in a PoE+ compliant format. The paired set enables fast 10/100Base-T Ethernet digital communication to be transmitted over Coax cable.
-
Page 3: Installation Instructions
Installation Instructions: Wiring methods shall be in accordance with the National Electrical Code/NFPA 70/ANSI, and with all local codes and authorities having jurisdiction. Wiring should be UL Listed and/or Recognized wire suitable for the application. eBridge8PCRM/16PCRM is not intended to be connected to outside plant leads and should be installed indoors within the protected premises. - Page 4 - 4 - eBridge8PCRM/16PCRM...
-
Page 5: Technical Specifications
Fig. 2 eBridge1PCTX Green LED indicates Power Structured Cable from IP Camera/Device Blue LED Coax Cable from indicates Coax Connection eBridge8PCRM/16PCRM Fig. 2a eBridge1ST Front Rear Flying BNC Flying BNC Connector Connector Structured Cable from Green LED Blue LED Camera/Device indicates indicates PoE Out... - Page 6 Multiple PoE Camera Connection: eBridge8PCRM shown. eBridge16PCRM is similar, with twice as many channels. Fig. 3 Transceiver PoE compliant PoC (PoE+ over Coax) 100m max. 500m max. PoE Camera PoE compliant PoC (PoE+ over Coax) Transceiver 100m max. 500m max. PoE Camera PoE compliant Transceiver...
- Page 7 eBridge8PCRM/16PCRM - 7 -...
-
Page 8: Shelf Installation
Four (4) rubber pads. Altronix is not responsible for any typographical errors. 140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056 website: www.altronix.com | e-mail: info@altronix.com | Lifetime Warranty | Made in U.S.A. MEMBER IIeBridge8PCRM/16PCRM...
