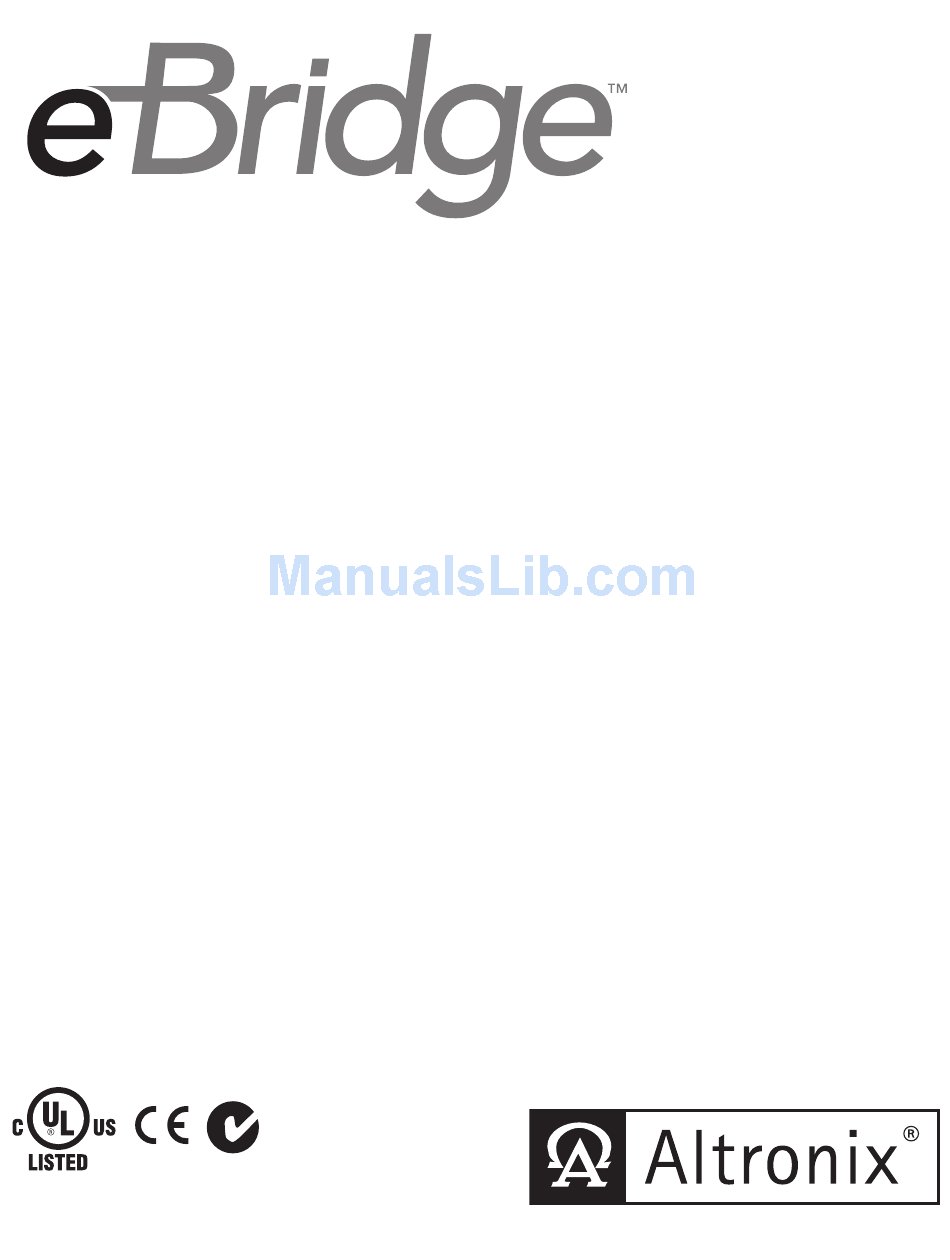

Page 1: Installation Guide

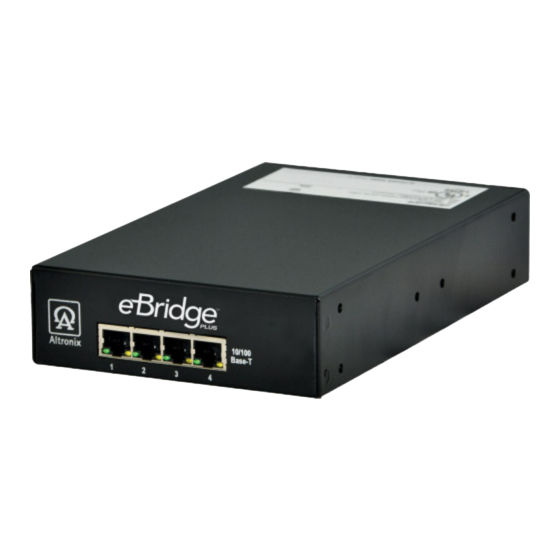

PLUS Ethernet over Coax Solutions Installation Guide Models Include: eBridge400PCRM - Four (4) Channel Receiver eBridge800PCRM - Eight (8) Channel Receiver eBridge1600PCRM - Sixteen (16) Channel Receiver Z1409 I.T.E. 43KC More than just power.™ Rev. 072914... -
Page 2: Installation Instructions
Megapixel, HD720, HD1080. Mechanical: • Connectivity: BNC, RG-59/U or similar. LED Indicators: • Dimensions (H x W x D approx.): eBridge400PCRM: • eBridge400/800/1600PCRM: 1.7” x 5.25” x 9.25” (43.8mm x 133.4mm x 235mm). Blue LED (near BNC) - Coax link connection. eBridge800/1600PCRM: Yellow and Green LED (RJ45) - IP Link status, 1.625”... - Page 3 1. eBridge400/800/1600PCRM Receivers installation: eBridge400PCRM - Affix rubber pads to eBridge400PCRM for shelf installation (Fig. 5, pg. 6). eBridge800/1600PCRM - Attach mounting brackets to the unit for rack installation (Fig. 4, pg. 6). Affix rubber pads to eBridge800/1600PCRM for shelf installation (Fig. 5, pg. 6).
-
Page 4: Typical Application
Fig. 2 eBridge100TM Yellow LED indicates PoE transmitted to Camera/Device Coax from Structured Cable to eBridge400/800/1600PCRM Camera/Device Yellow LED indicates PoE received from eBridge400/800/1600PCRM Fig. 2a eBridge100ST Flying BNC Flying BNC Connector Connector Structured Cable from Green LED Blue LED Camera/Device indicates indicates... -
Page 5: Technical Specifications
Regulatory UL/CUL Listed for Information Technology Equipment (UL 60950-1). Compliance CE approved. C-Tick compliant. eBridge400PCRM: Product: 1.35 lbs. (0.61 kg) | Shipping: 1.7 lbs. (0.77 kg). Weights (approx.) eBridge800PCRM: Product: 5.8 lbs. (2.63 kg) | Shipping: 7.8 lbs. (3.54 kg). - Page 6 Mounting Options: Rack Mount Installation 1- Remove and discard factory installed screws from both sides of rack chassis (Fig. 4a). 2- Install mounting brackets (A) on the left and right side of rack chassis using the four (4) flat head screws (B) (included) (Fig. 4b). 3- Place unit into desired EIA 19”...
- Page 7 Enclosure Dimensions (H x W x D approximate): 1.7” x 5.25” x 9.25” (43.8mm x 133.4mm x 235mm) 1.7” 43.8mm 5.25” 133.35mm 9.25” 235mm 8.42” 213.9mm eBridge400/800/1600PCRM - 7 -...
- Page 8 Data In 42mm Altronix is not responsible for any typographical errors. 140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056 website: www.altronix.com | e-mail: info@altronix.com | Lifetime Warranty | Made in U.S.A. MEMBER IIeBridge400/800/1600PCRM H14Q...
