Page 1: Installation Guide

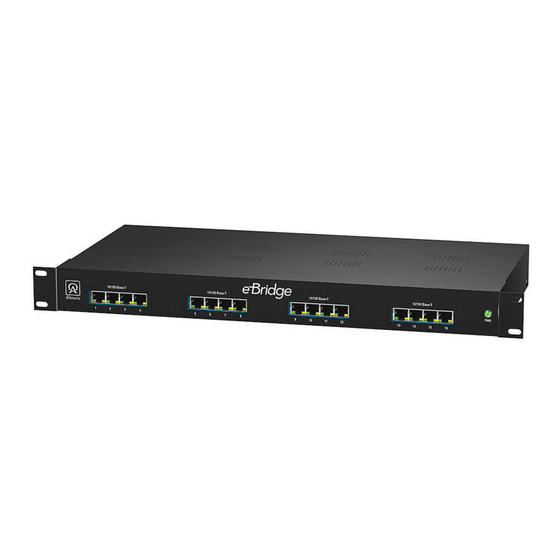

IP over Coax Receiver Installation Guide Models Include: eBridge16CR - Sixteen (16) Channel Receiver Z1409 I.T.E. 43KC More than just power.™ Rev. 072412... -
Page 2: Installation Instructions
At the same time the unit can combine Composite Video Signal with the Ethernet data enabling connection to an analog input on a monitor or matrix switch. The eBridge16CR is to be used with a compatible Hybrid cameras with “sloc”... -
Page 3: Technical Specifications
Product: 7.2 lbs. (3.27 kg), Shipping: 9.2 lbs. (4.17 kg) Fig. 1 Optional Composite 24VDC/1500mA, Video Connector 56VDC/700mA, to Monitor 24VAC/2200mA Coax Cable from eBridge1CT or Back of Unit Hybrid Camera/Device Front of Unit Structured Cable from Ethernet Switch/NVR eBridge16CR - 3 -... - Page 4 Up to 500m 500m 500m 500m Back of Unit Front of Unit Up to 100m NVR Network Up to Video Server Coax 100m Up to (Head End Structured Cable 100m Equipment) Up to 100m Ethernet Switch - 4 - eBridge16CR...
- Page 5 *Note: Multiple cameras require higher bandwidth and headend equipment processing speed. It is advised to test this configuration. eBridge is rated to pass 25mbps of data at distances up to 500m. With proper headend equipment multiple Megapixel cameras can be used. eBridge16CR - 5 -...
- Page 6 Rack Mount Chassis Mechanical Drawing & Dimensions: (H x W x D approx.) 1.625” x 19.125” x 8.5” (42mm x 486mm x 216mm) Fig. 6 19.125" .75" 17.625" 8.5" 1.625" - 6 - eBridge16CR...
-
Page 7: Rack Mount Installation
(Fig. 8). 2- Place unit in desired location. Fig. 8 Two (2) mounting brackets Left Side Six (6) flat head screws for mounting brackets. Four (4) rubber pads. Rubber Pad eBridge16CR - 7 -... - Page 8 Notes: Altronix is not responsible for any typographical errors. 140 58th Street, Brooklyn, New York 11220 USA, 718-567-8181, fax: 718-567-9056 website: www.altronix.com, e-mail: info@altronix.com, Lifetime Warranty, Made in U.S.A. MEMBER IIeBridge16CR H04N - 8 - eBridge16CR...
