Altronix eBridge1PCR Installation Manual

eBridge1PCRT - IP and PoE over Coax Solution

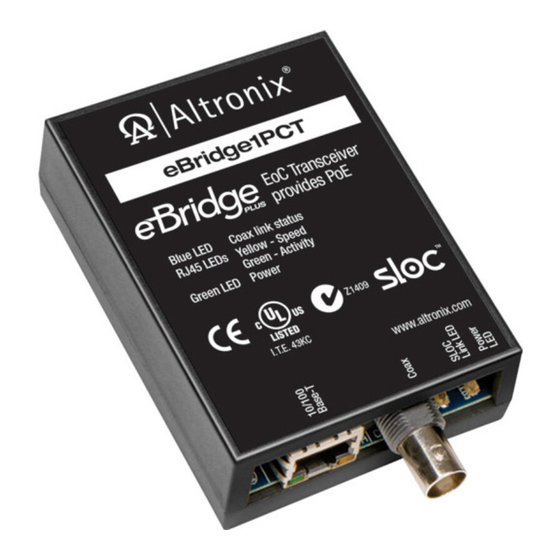

eBridge1PCR Receiver and eBridge1PCT Transceiver kit
The eBridge1PCR and eBridge1PCT are CAT5 to Coax cable Ethernet adapters that deliver data and power over the coax
cable in a PoE compliant format. The paired set enables fast 10/100Base-T Ethernet digital communication to be trans-
mitted over Coax cable. An eBridge1PCR receiver sends power over the coax to the eBridge1PCT transmitter under PoE
protocol. The eBridge1PCT in turn delivers that PoE compliant power to a PoE enabled camera or IP device. The eBridge-
1PCR will not deliver power to non compliant devices, thus avoiding damage to improperly connected analog cameras.
These plug and play units facilitate system upgrades from analog to IP cameras/devices utilizing existing legacy Coax and
eliminating the costs and labor associated with installing new network cabling. In addition, data transmission and power
over the Coax is possible up to1500 ft. in comparison to 100m (328 ft.) Ethernet maximum distance (see Maximum Length
of Coax Type vs. Camera Power/PoE Class, pg. 3). A maximum range from head end to the PoE camera/device is 610m
(2000 ft.) taking into consideration that up to 100m (328 ft.) of structured cable may be deployed at each end.
Agency Listings:
• UL/CUL Listed for Information
Technology Equipment (UL 60950-1).
• CE approved.
• C-Tick compliant.
Compliant:
• Incorporates *sloc (Security Link over Coax) technology.
TM
Input:
• 24VDC Class 2 power supply (polarity not observed)
or 24VAC Class 2 plug-in transformer.
Power Consumption (under maximum load):
• eBridge1PCR: 24VDC/1,000mA, 24VAC/900mA.
eBridge1PCT: Powered by eBridge1PCR.
Ethernet:
• Connectivity: RJ45, auto-crossover.
• Wire type: 4-pair CAT5 or better structured cable.
• Distance: up to 100m (328 ft.).
• Speed: 10/100BaseT, half/full duplex, auto negotiation.
PoE compliant to IEEE 802.3af (15W) Delivered to
camera by eBridge1PCT. Power provided by
eBridge1PCR to eBridge1PCT by PoE protocol.
• Throughput is rated to pass 25mbps of data at
distances up to 1500 ft. With proper headend
equipment, this supports Megapixel, HD720, HD1080.
Coax:
• Distance: up to 1,500 ft. (see Maximum Length of Coax
Type vs. Camera Power/PoE Class, pg. 4) for power
delivery of coax.
• Connectivity: BNC, RG-59/U or similar.
LED Indicators:
• eBridge1PCR:
Blue LED - Coax link connection (SLOC).
Green - PoE ON.
* sloc is a registered trademark of Intersil Corporation.
eBridge1PCR/PCT

Installation Guide

PLUS
Overview:
Features:
LED Indicators (cont'd):
• eBridge1PCR:
Green - Power ON.
Yellow and Green LED (RJ45) IP Link status,
10/100Base-T/active.
• eBridge1PCT:
Blue LED - Coax link connection (SLOC).
Green LED - PoE from eBridge1PCR.
Environmental:
• Operating Temperature:
eBridge1PCR: - -- 4ºF to 113ºF (---20ºC to +45ºC).
eBridge1PCT: --- 4ºF to 140ºF (---20ºC to +60ºC).
• Storage Temperature:
--22º to 158ºF (---30º to +70ºC) Storage.
• Humidity: 20 to 85%, non-condensing
Functions:
• Auto detection and protection of legacy
non-PoE cameras/devices.
Applications:
• Retrofit digital IP cameras in an analog CCTV
installation.
• Works with Megapixel, HD720, HD1080 and VGA
(SD) cameras (see note, pg. 2).
• Extend Network link distance in an industrial
environment over 610m (2000 ft.) (see note, pg. 2).
• Upgrade deployed CCTV Coax to a digital network
in Retail, Hospitality, Arenas, Casinos, Airports, Schools,
Hospitals, Transportation, etc.
Mechanical:
• Dimensions (W x L x H approx.):
eBridge1PCR:
3.5" (88.89mm) x 4.375" (111.125mm) x 1" (25.4mm)
eBridge1PCT:
2.5" (63.5mm) x 4.375" (111.125mm) x 1" (25.4mm)
Rev. 100512
I.T.E. 43KC
Z1409
- 1 -
