Page 1: Installation Guide

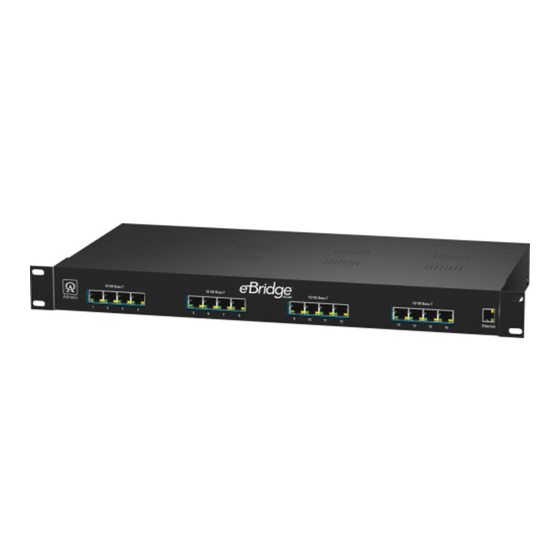

IP over Coax Receiver Installation Guide Models Include: eBridge16PCRX - Sixteen (16) Channel Receiver Z1409 I.T.E. 43KC More than just power.™ Rev. 072412... -
Page 2: Installation Instructions
15.4W (PoE) or eBridge1PCTX 30W (PoE+) transmitter under PoE protocol. The eBridge1PCT/PCTX in turn delivers that power to a PoE enabled camera or IP device. The eBridge16PCRX will not deliver power to non com- pliant devices, thus avoiding accidental power turn into improperly connected analog cameras. These plug and play units facilitate system upgrades from analog to IP cameras/devices utilizing existing legacy Coax and eliminating the costs and labor associated with installing new network cabling. -
Page 3: Technical Specifications
(e.g. use of power strips). 1. Attach mounting brackets to eBridge16PCRX unit for rack installation (Fig. 5, pg. 8). Affix rubber pads to eBridge16PCRX for shelf installation (Fig. 6, pg. 8). - Page 4 785’/457.20m+ 1,200’/457.20m+ 1,200’/457.20m+ eBridge16PCRX User Interface and Programming: Note: A constant PC connection is not required for proper operations and is used as a local programming/monitoring tool only. Step 1. Set Local Area Connection of your laptop to DHCP mode.
- Page 5 To specify IPv6 IP address settings, click Obtain an IPv6 address automatically, and then click OK. Step 2. Connect a laptop or PC to the Ethernet port of your eBridge16PCRX unit, or connect your eBridge16PCRX and laptop/PC to a DHCP router if eBridge16PCRX is in DHCP mode. The eBridge16PCRX unit should be powered up at this moment.
-
Page 6: Network Type
It is strongly recommended that you connect via host name when units configured as DHCP. Please do not set the DHCP address issued to the eBridge16PCRX by the router as its static IP address unless you take specific steps that program your router to prevent such address conflicts. -
Page 7: Reset Features
ISPs BLOCK traffic using port 80 from reaching the average site. If you only plan to monitor your eBridge16PCRX on a LAN, you can use port 80, and don’t have to concern yourself with routers. -
Page 8: Rack Mount Installation
Four (4) rubber pads. Rubber Pad Altronix is not responsible for any typographical errors. 140 58th Street, Brooklyn, New York 11220 USA, 718-567-8181, fax: 718-567-9056 website: www.altronix.com, e-mail: info@altronix.com, Lifetime Warranty, Made in U.S.A. MEMBER IIeBridge16PCRX F11N - 8 -...
