Altronix eBridge4CR Installation Manual page 4

Currently Matrix Switchers, DVRs and NVRs do not readily accommodate multi-picture (Matrix) monitor display
capability (typically 4X4 – 16 channel display) for some of the higher resolution cameras. In addition HD cameras use
a wide screen format (16:9 aspect ratio). This may not fit as well into the matrix display as the standard screen format
(4:3 aspect ratio). In addition high resolution multichannel recording can introduce unacceptable latency in the real-time
monitor display.
To achieve high resolution recording along with real-time multi-channel viewing: Record the high resolution IP video via
the NVR and the simultaneous composite video via the Matrix switcher to achieve proper display format (Fig. 4, pg. 4).

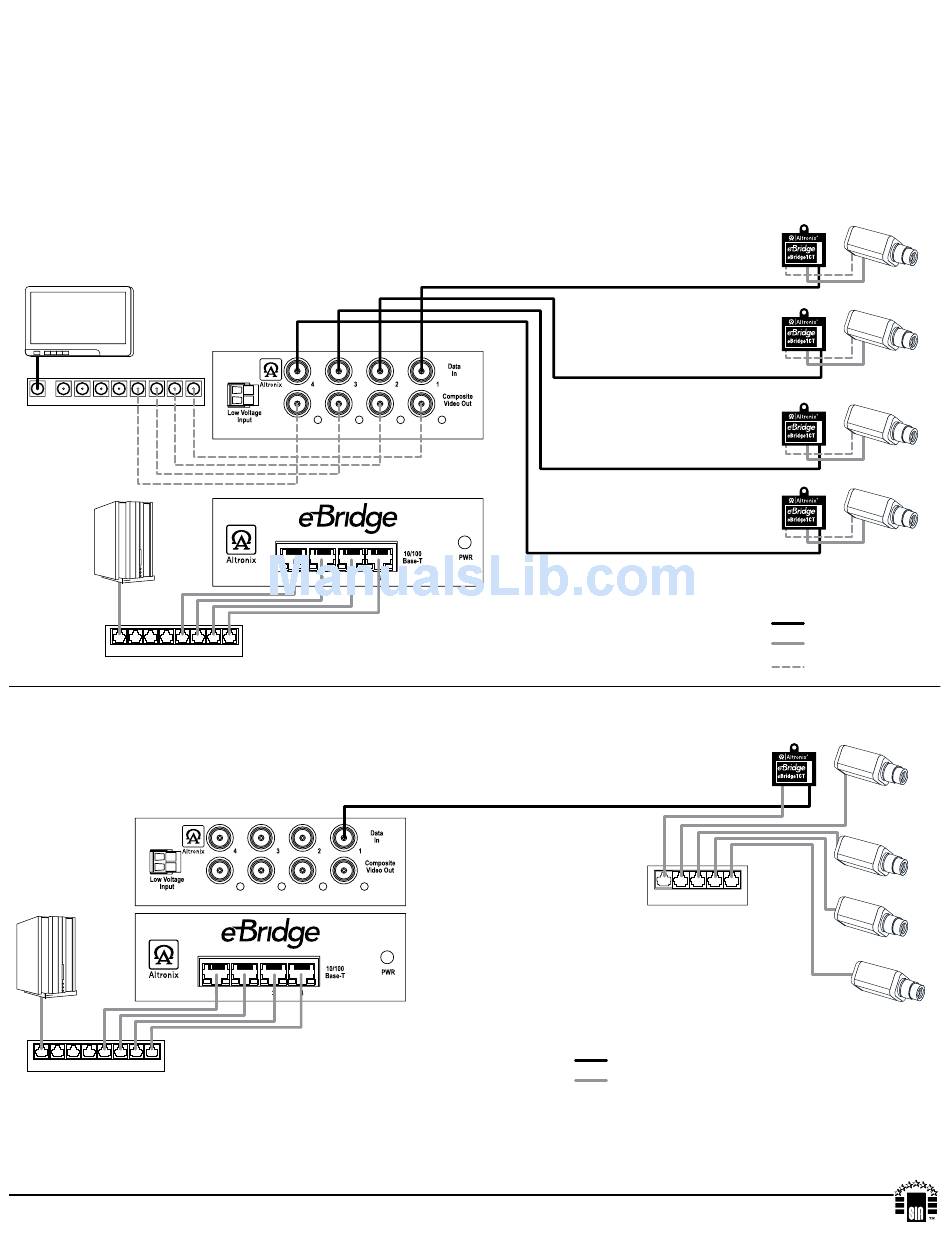

Multiple IP cameras shown with composite video option:
Fig. 4
Monitor
Matrix Switch
NVR Network
Video Server
(Head End
Equipment)
Ethernet Switch
Fig. 5
NVR Network
Video Server
(Head End
Equipment)
Ethernet Switch
*Note: Multiple cameras require higher bandwidth and headend equipment processing speed. It is advised to test this
configuration. eBridge is rated to pass 25mbps of data at distances up to 500m. With proper headend equipment
multiple Megapixel cameras can be used.
Altronix is not responsible for any typographical errors.
140 58th Street, Brooklyn, New York 11220 USA, 718-567-8181, fax: 718-567-9056
website: www.altronix.com, e-mail: info@altronix.com, Lifetime Warranty, Made in U.S.A.
IIeBridge4CR
- 4 -
Solutions and Installation Notes:
Multiple IP cameras over a single Coax:
Up to 500m
Up to 500m
Up to 500m
Up to 500m
Up to 500m
Ethernet Switch
Coax
Structured Cable
H01N
IP Camera*
IP Camera*
IP Camera*
IP Camera*
* External power
required for
cameras
Coax
Structured Cable
Composite Video Cable
IP Camera*
Up to
100m
IP Camera*
IP Camera*
IP Camera*
* External power
required for cameras
MEMBER
eBridge4CR
