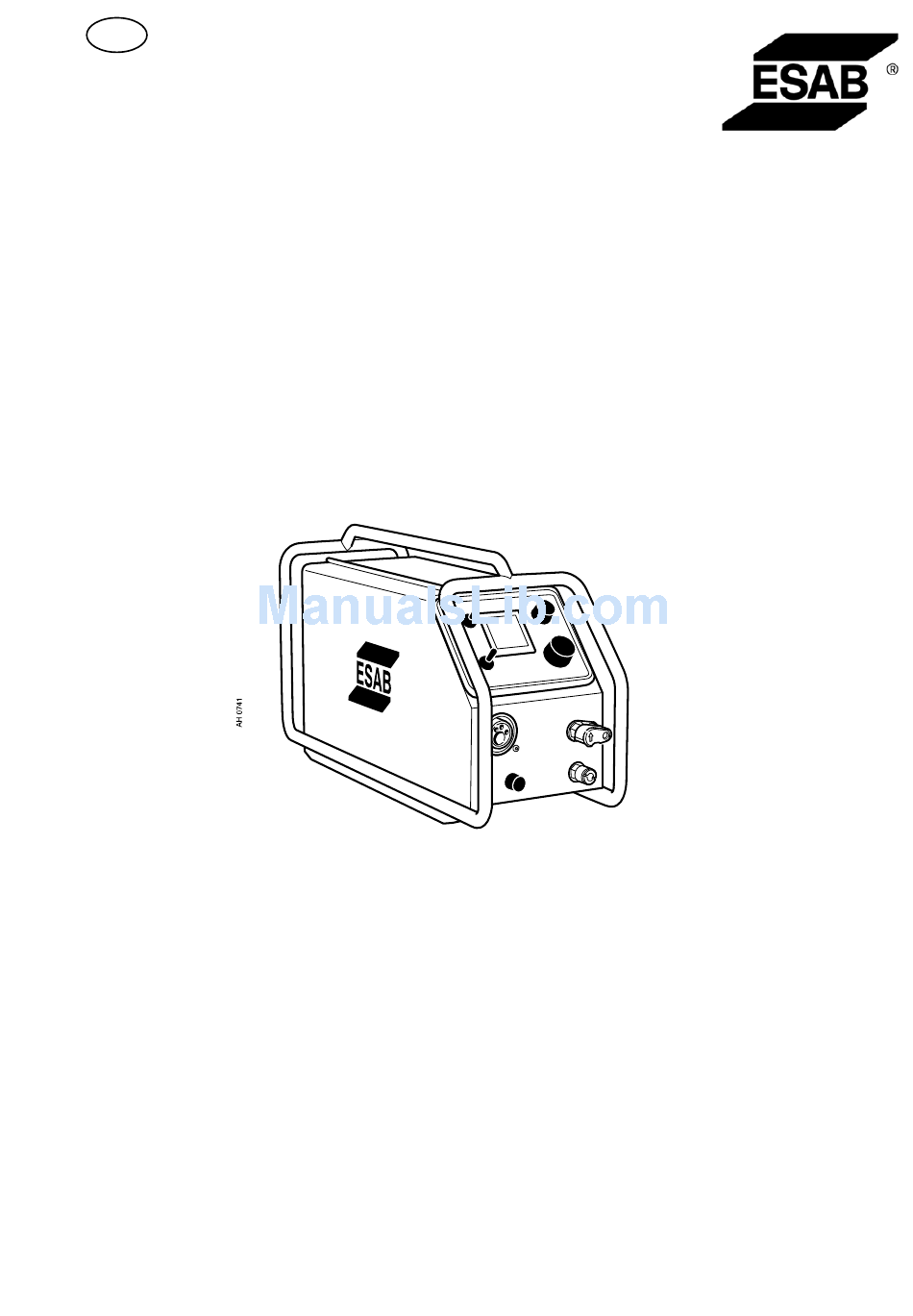

- Page 1 Origo™ M13y YardFeed 200 Instruction manual 0459 937 101 GB 20120621 Valid for serial no. 612-xxx-xxxx, 613-xxx-xxxx...
- Page 2 - 2 -...
-
Page 3: Table Of Contents
1 SAFETY ............2 INTRODUCTION . -
Page 4: Safety
SAFETY Users of ESAB equipment have the ultimate responsibility for ensuring that anyone who works on or near the equipment observes all the relevant safety precautions. Safety precautions must meet the requirements that apply to this type of equipment. The following recommendations should be ob... - Page 5 There may be potential difficulties in ensuring electromagnetic compatibility of class A equipment in those locations, due to conducted as well as radiated disturbances. - 5 - © ESAB AB 2005 bm47d1ea...
-
Page 6: Introduction
As the person responsible for the equipment, it is your responsibility to obtain information on approved collection stations. For further information contact the nearest ESAB dealer. ESAB can provide you with all necessary welding protection and accessories. INTRODUCTION The wire feed unit YardFeed 200 is intended for MIG/MAG welding together with stepped and thyristor-controlled welding power sources. -
Page 7: Technical Data
Enclosure class The IP code indicates the enclosure class, i. e. the degree of protection against penetration by solid objects or water. Equipment marked IP23 is designed for indoor and outdoor use. - 7 - © ESAB AB 2005 bm47d1ea... -
Page 8: Installation
WARNING Rotating parts can cause injury, take great care. WARNING Risk of crushing when replacing the wire bobbin! Do not use safety gloves when inserting the welding wire between the feed rollers. - 8 - © ESAB AB 2005 bm47d1ea... -
Page 9: Connections And Control Devices
Water connection The wire feed unit with water connection is equipped with a detection system ELP (ESAB Logic Pump) which checks that the water hoses are connected. When connecting a water-cooled welding gun, the water pump starts. Detection only works with power sources that are equipped with ELP. - Page 10 The welding process continues until the switch is pressed in again, the wire feed and burn back time (if selected) stops when the switch is released. - 10 - © ESAB AB 2005 bm47d1ea...
-
Page 11: Wire Feed Pressure
Make sure that the wire goes properly into the feed roller's track and into the outflow nozzle or wire guide. Secure the pressure sensor. Close the side panel. - 11 - © ESAB AB 2005 bm47d1ea... -
Page 12: Changing Feed Rollers
The brake hub The hub is adjusted when delivered. Adjust the brake hub so that wire is slightly slack when wire feed stops. - 12 - © ESAB AB 2005 bm47d1ea... -
Page 13: Ordering Spare Parts
Spare parts may be ordered through your nearest ESAB dealer, see the last page of this publication. - 13 - ©... -
Page 14: Diagram
1310 1366 13XP1 POWER SOURCE Arc Voltage 1335 1333 42VAC 1334 +15VB 1367 13RP2 1368 VOLTAGE 1369 1320 1321 Clock Display 1361 1362 12V Display 1363 Load Display 1364 Data Display 1365 - 14 - © ESAB AB 2005 bm47e... - Page 15 WIRE FEED 1353 13XS11 1348 13RP3 1349 BURNBACK TIME 1350 13XS7 1315 1314 1328 1327 13YV1 13S2 1373 1372 13XS4 13S1 1383 1382 WATER CONNECTION MONITORING 13R1 HEATING KIT 13AP02 Digital instrument 13XS12 - 15 - © ESAB AB 2005 bm47e...
-
Page 16: Order Number
Origot YardFeed 200 with water cooling, digital instrument and control panel M13Y 0459 839 005 Spare parts list Origot YardFeed 200 Instruction manuals and the spare parts list are available on the Internet at www.esab.com - 16 - © ESAB AB 2005 bm47o... - Page 17 - 17 -...
-
Page 18: Wear Parts
In order to weld with aluminium wire, proper rollers, nozzles and liners for aluminium wire MUST be used, It is recommended to use 3 m long welding gun for aluminium wire, equipped with appropriate wear parts. - 18 - © ESAB AB 2005 bm47vw... - Page 19 YardFeed 200 - 19 - © ESAB AB 2005 bm47vw...
-
Page 20: Accessories
Water kit ....... . 0460 006 880 - 20 - © ESAB AB 2005 bm47va... - Page 21 50 m ........0459 836 576 - 21 - © ESAB AB 2005 bm47va...
- Page 22 - 22 -...
- Page 23 - 23 -...
- Page 24 ESAB Romania Trading SRL ESAB VAMBERK s.r.o. SOUTH AFRICA ESAB Mexico S.A. Bucharest Vamberk ESAB Africa Welding & Cutting Ltd Monterrey Tel: +40 316 900 600 Tel: +420 2 819 40 885 Durbanvill 7570 - Cape Town Tel: +52 8 350 5959...
