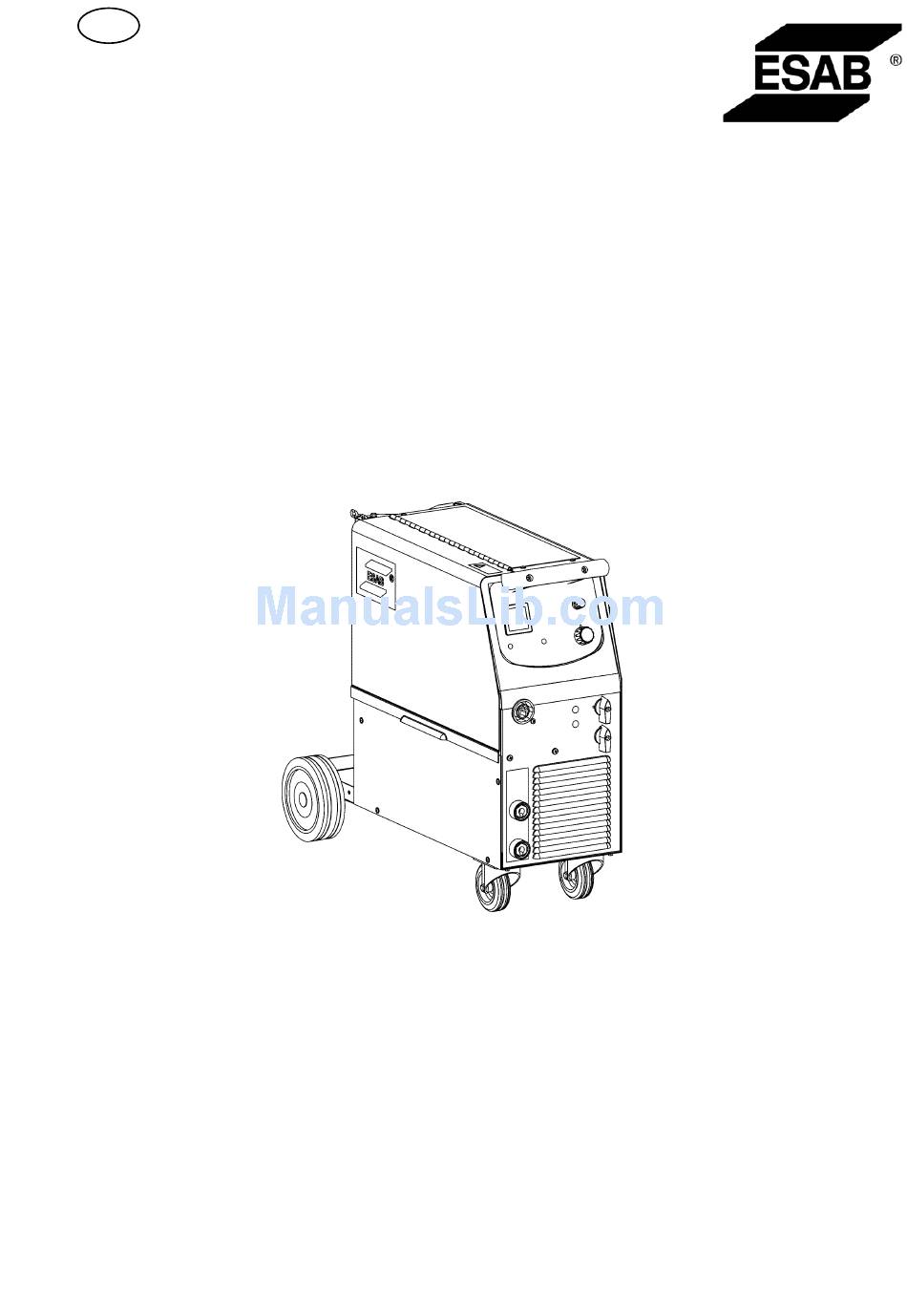

- Page 1 Origo™ Mig C170 Mig C200 Mig C250 Instruction manual 0463 344 001 GB 20120612 Valid for serial no. 626-xxx-xxxx...
- Page 2 - 2 -...
-
Page 3: Table Of Contents
1 SAFETY ............2 INTRODUCTION . -
Page 4: Safety
SAFETY Users of ESAB equipment have the ultimate responsibility for ensuring that anyone who works on or near the equipment observes all the relevant safety precautions. Safety precautions must meet the requirements that apply to this type of equipment. The following recommendations should be ob... - Page 5 WARNING Arc welding and cutting can be injurious to yourself and others. Take precautions when welding and cutting. Ask for your employer's safety practices which should be based on manufacturers' hazard data. ELECTRIC SHOCK - Can kill Install and earth the unit in accordance with applicable standards. Do not touch live electrical parts or electrodes with bare skin, wet gloves or wet clothing.
-
Page 6: Introduction
As the person responsible for the equipment, it is your responsibility to obtain information on approved collection stations. For further information contact the nearest ESAB dealer. ESAB can provide you with all necessary welding protection and accessories. INTRODUCTION Mig C170 3ph, Mig C200 3ph and Mig C250 3ph are step controlled power sources of a compact design, intended for welding with solid steel, stainless steel or aluminium wire as well as tubular wire with or without shielding gas. -
Page 7: Installation
Mig C170 3ph Mig C200 3ph Mig C250 3ph Spot welding 0.2-2.5s 0.2-2,5s 0.2-2.5s Welding gun connection EURO EURO EURO Wire dimension range 0.6-0.8(Fe, SS) 0.6-1.0(Fe, SS) 0.6-1.2(Fe, SS) 1.0(Al) 1.0(Al) 1.0-1.2(Al) 0.8(FCW) 0.8-1.0(FCW) 0.8-1.2(FCW) 0.8-1.0(CuSi) 0.8-1.0(CuSi) 0.8-1.0(CuSi) Max diameter / weight of 300mm/15kg 300mm/15kg 300mm/15kg... -
Page 8: Assembly Of Components
Assembly of components WARNING For packing and shipment of the machine the wheels are detached from the unit. Before use attach the wheels according to instruction. Electrical installation C200 3ph - 8 - ba46e... -
Page 9: Mains Power Supply
Mains power supply Check that the unit is connected to the correct mains power supply voltage, and that it is protected by the correct fuse size. A protective earth connection must be made, in accordance with regulations. Rating plate with supply connection data Recommended fuse sizes and minimum cable area Mig C170 3ph Mig C200 3ph... -
Page 10: Connection And Control Devices
WARNING Secure the equipment - particularly if the ground is uneven or sloping. Connection and control devices Mains supply switch Connection for return cable (-), low inductance Indicator lamp, power ON/OFF Knob for spot welding - ON/OFF and time setting Orange indicator lamp, overheating Knob for wire speed setting Welding voltage switch... -
Page 11: Welding Without Gas
Welding without gas Wire feed pressure Start by making sure that the wire moves smoothly through the wire guide. Then set the pressure of the wire feeder's pressure rollers. It is important that the pressure is not too great. Ï Ï Ï... -
Page 12: Overheating Protection
Straighten the new wire for 10-20 cm. File away burrs and sharp edges from the end of the wire before inserting it into the wire feed unit. Make sure that the wire goes properly into the feed roller track and into the outlet nozzle and the wire guide. -
Page 13: Fault Tracing
Spare parts may be ordered through your nearest ESAB dealer, see the last page of this publication. -
Page 14: Diagram
Diagram Mig C170 3ph, 400-415V - 14 - © ESAB AB 2012 ba46e... - Page 15 Mig C200 3ph, 400-415V - 15 - © ESAB AB 2012 ba46e...
- Page 16 Mig C250 3ph, 400-415V - 16 - © ESAB AB 2012 ba46e...
- Page 17 Mig C250 3ph, 230/400-415V - 17 - © ESAB AB 2012 ba46e...
-
Page 18: Order Number
0349 309 090 Power source OrigoTM Mig C250 3ph 230/400-415V 3~50/60Hz 0349 300 524 Spare parts list Mig C170 3ph, Mig C200 3ph, Mig C250 3ph Technical documentation is available on the Internet at www.esab.com - 18 - © ESAB AB 2012 ba46o... -
Page 19: Wear Parts
In order to weld with aluminium wires, proper rollers, nozzles and liners for aluminium wires MUST be used. It is recommended to use 3m long welding gun for aluminium wires, equipped with appropriate wear parts. - 19 - © ESAB AB 2012 ba46w... -
Page 20: Accessories
... 0349 302 250 Polarity change KIT ..... 0349 309 310 - 20 - © ESAB AB 2012 ba46a... - Page 21 - 21 - ba46hints...
- Page 22 - 22 - ba46hints...
- Page 23 - 23 - ba46hints...
- Page 24 ESAB Romania Trading SRL ESAB VAMBERK s.r.o. SOUTH AFRICA ESAB Mexico S.A. Bucharest Vamberk ESAB Africa Welding & Cutting Ltd Monterrey Tel: +40 316 900 600 Tel: +420 2 819 40 885 Durbanvill 7570 - Cape Town Tel: +52 8 350 5959...
