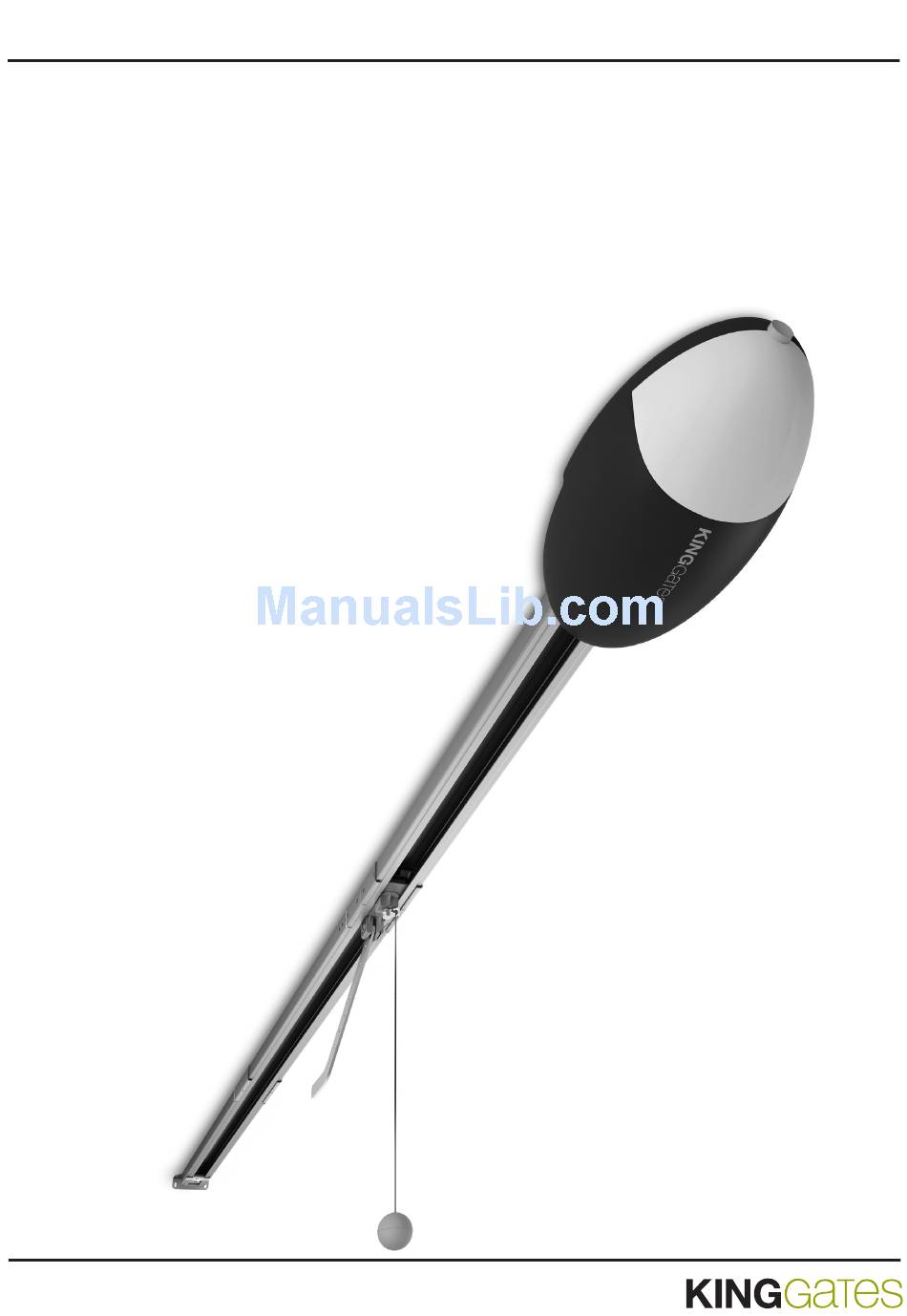

OVO
IT
Istruzioni ed avvertenze per l'installazione e l'uso
EN
Instructions and warnings for installation and use
FR
Consignes et avertissements pour l'installation et l'utilisation
ES
Instrucciones y advertencias para la instalación y el uso
Made in Italy

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OVO550 and is the answer not in the manual?

Questions and answers

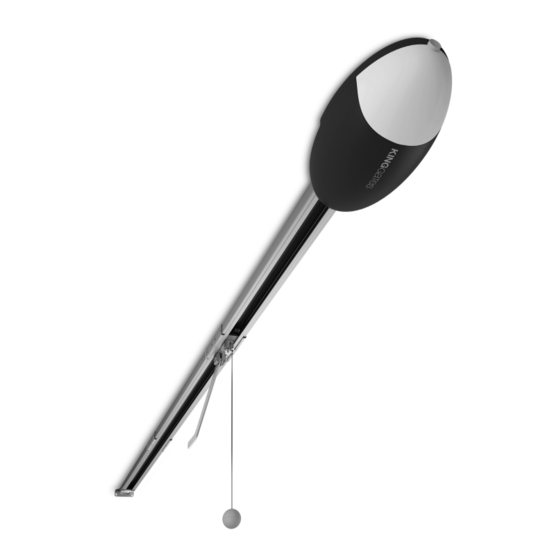

Summary of Contents for King gates OVO550

  • Page 1 Istruzioni ed avvertenze per l’installazione e l’uso Instructions and warnings for installation and use Consignes et avertissements pour l’installation et l’utilisation Instrucciones y advertencias para la instalación y el uso Made in Italy...
  • Page 2: Table Of Contents

    General warnings Contents 1. General warnings 1.1 - Safety warnings 1.1 - Safety warnings 1.2 - Installation warnings 2. Product description CAUTION! 2.1 - Operating limits - This manual contains important safety instructions and 2.2 - Typical system warnings. Incorrect installation could lead to serious injury. 2.3 - List of cables Before starting, please read all sections of the manual care- 3.
  • Page 3: Product Description

    SECTIONAL door Height: 2.4 m Width: 3.7 m OVO550 The measurements in table 2 are to be taken as a guideline and are for general estimate purposes only. The effective suitability of OVO for automating a specific door depends on the degree of door leaf balancing, guide friction and other aspects, including occasional phenomena such as wind pressure or the presence of ice, which could obstruct leaf movement.
  • Page 5: Installation

    Installation The installation of OVO must be carried out by qualified personnel in • Components must never be immersed in water or other liquids. compliance with current legislation, standards and regulations, and • Keep all OVO components away from heat sources and open the directions provided in this manual. flames; these could damage the components and cause malfunc- 3.1 - Preliminary checks tions, fire or dangerous situations.
  • Page 7: Fitting The Gearmotor To The Guide

    3.2.3 - Fitting the gearmotor to the guide 01. Fit the OVO gearmotor output shaft to the guide head [A] and secure using 4 M6.3x38 screws [G] (fig. 14). The gear motor rotates and can be positioned in three different ways (fig. 3). 3.2.4 - Mounting the gearmotor to the ceiling 01.
  • Page 8: Installation Of Other Devices

    3.4 - Electrical connections 01. Open the cover by loosening the screw (fig. 24) and pushing the button (fig. 25). 09. Then secure the leaf connecting bracket [N] with rivets or screws (fig. 21). Use screws or rivets suited to the leaf material, and ensure that they are able to withstand the maximum force required for leaf opening and closing.
  • Page 9: Description Of The Electrical Connections

    05. Once you have connected up all the cables, secure them using 06. To close the cover, push it back into place, making sure you hear cable clips. a "click". Reinsert and tighten the screw to finish. 3.5 - Description of the electrical connections The following is a brief description of the electrical connections (table 5); for further information, please read section 7.3 ("Adding or removing devices"). Table 5 Terminals Function Description 1 –...
  • Page 10: Connecting Ovo To The Mains

    3.6 - Connecting OVO to the mains During these manoeuvres, the control unit memorises the force re- quired for opening and closing. If the L2 and L3 LEDs flash at the conclusion of the recognition pro- CAUTION! cess, it means that an error has occurred; see section 8 ("Trouble- - Never cut or remove the cable supplied with OVO. shooting"). - If not already available, a power socket for connecting OVO Important! - It is important that these manoeuvres are not interrupt- to the mains must be made by qualified and experienced per- ed, e.g.
  • Page 11: Preset Functions

    door accelerates or decelerates sharply. Examples of Mode II memorisation: 3.7.3 - Preset functions 1st example of Mode II memorisation The OVO control unit has a number of programmable functions. T1 Key "Open" command Automation A These functions are set to a configuration which should satisfy most T2 Key "Close" command Automation A automations.
  • Page 12: Deleting The Radio Transmitters

    03. Press the key on the new radio transmitter once slowly. to assist the system for the reduction of the impact force, try to find the adjustment that gives the best results. At this point the new radio transmitter will be recognised by the re- 4.2 - Commissioning ceiver and will assume the characteristics of the previously memo- rised one.
  • Page 13: Maintenance

    Maintenance Additional information The automation must be subjected to maintenance work on a regular basis in order to guarantee it lasts. 7.1 - Programming keys CAUTION! - The maintenance operations must be per- formed in strict compliance with the safety directions provid- The OVO control unit is fitted with 3 keys which can be used both for ed in this manual and according to the applicable legislation the control of the unit during testing and the programming procedure:...
  • Page 14: Level 1 Programming (On-Off Functions)

    7.2.1 - Level 1 programming (ON-OFF functions) Table 9 - List of programmable functions in "Programming on power-up" mode N° Description Example Variable sensitivity This function enables the user to enable or disable the sensitivity with which obstacles are detected. The factory setting of sensitivity is variable (L1 LED off): greater sensitivity in the case of low motor force, and less sensitivity where the motor force increases.
  • Page 15: Level 2 Programming (Adjustable Parameters)

    7.2.3 - Level 2 programming (adjustable parameters) Table 11 - List of programmable functions in "Programming on power-up" mode Input Parameter Value Description LEDs (level) Variable High When variable sensitivity is enabled, it can be set to three different activation thresholds.
  • Page 16: Adding Or Removing Devices

    03. Press the P3 key to move the flashing LED to the "input LED" associated with the parameter to be modified. 04. Press and hold P2during steps 5 and 6. 05. Wait approx. 3s, after which the LED associated with the current level of the parameter to be modified will light up. 06. Press the P3 key to move the LED associated with the parameter value. 07. Release P2. 08. Wait 10s to exit the programming mode automatically after the maximum time interval. Points 3 to 7 can be repeated during the same programming phase to modify other parameters.
  • Page 17: Electric Lock

    7.4 - Special functions 7.4.1 - "Always open" function The "Always open" function is a control unit feature which enables the user to control an opening manoeuvre when the "Step-by-step" command lasts longer than 3 seconds. This is useful for connecting a timer contact to the "Step-by-step"...
  • Page 18: Troubleshooting

    Troubleshooting Table 13 contains instructions to help you solve malfunctions or errors that may occur during the installation stage or in case of failure. Table 13 - Troubleshooting Symptoms Probable cause and possible solution The radio transmitter does not control the door Check to see if the transmitter batteries are exhausted; if necessary, replace them.
  • Page 19: Control Unit Signals

    8.1.2 - Control unit signals On the OVO control unit, you can find the L1, L2 and, L3 LEDs (fig. 46). Each of these can give special indications, both during normal operation and in case of malfunctions. Table 15 - LEDs on the control unit terminals OK LED Cause Action Malfunction Make sure there is power supply; check to see if the fuses are blown; if...
  • Page 20: Technical Specifications

    Technical specifications Nice S.p.a., in order to improve its products, reserves the right to modify their technical specifications at any time without prior notice. In any case, the manufacturer guarantees their functionality and suitability for the intended purposes. All the technical characteristics refer to a room temperature of 20°C (±5°C). OVO technical specifications Type Electromechanical gearmotor for the automatic movement of garage doors for residential use, complete with electronic control unit Pinion 9.5 mm diameter, 28 teeth...
  • Page 21: Ce Declaration Of Conformity

    Address: Via Malignani, 42 - 33077 - Sacile (PN) Italy Type: Electromechanical gearmotor with incorporated control unit Rev.: 0. Model: OVO Language Manufacturer’s name: KING GATES S.r.l. DIRECTIVE 1999/5/EC OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL of 9 March 1999 on radio equipment and telecommunications terminal equipment and the mutual recognition of their conformity, in accordance with the following harmonised standards: - Health protection: EN 50371:2002 - Electrical safety: EN 60950-1:2006+A11:2009 - Electromagnetic compatibility EN 301 489-1 V1.8.1:2008, EN 301 489-3 V1.4.1:2002...
  • Page 22 Azienda / Company Timbro / Stamp Località / Address Provincia / Province Recapito telefonico / Tel. Referente / Contact person Dati del costruttore / Manufacturer's details King Gates S.r.l. Phone +39.0434.737082 Fax +39.0434.786031 info@king-gates.com www.king-gates.com...
