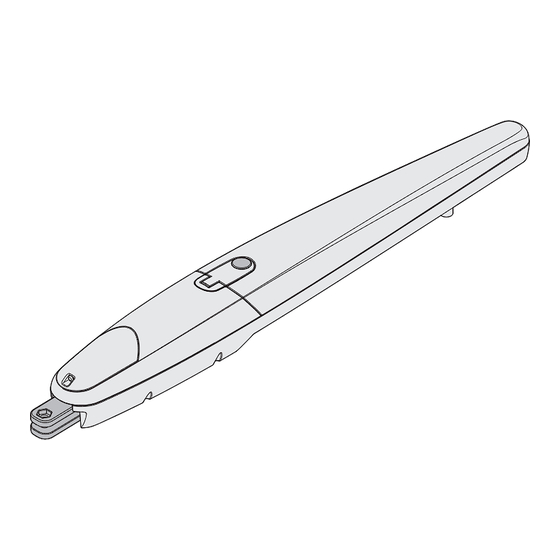

Electromechanical gearmotor for the automation of swing gates

Advertisement

JET XL
Electromechanical gearmotor for the automation of swing gates
Installation and use instructions and warnings
Made in Italy

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JET XL Series and is the answer not in the manual?

Questions and answers

Summary of Contents for King gates JET XL Series

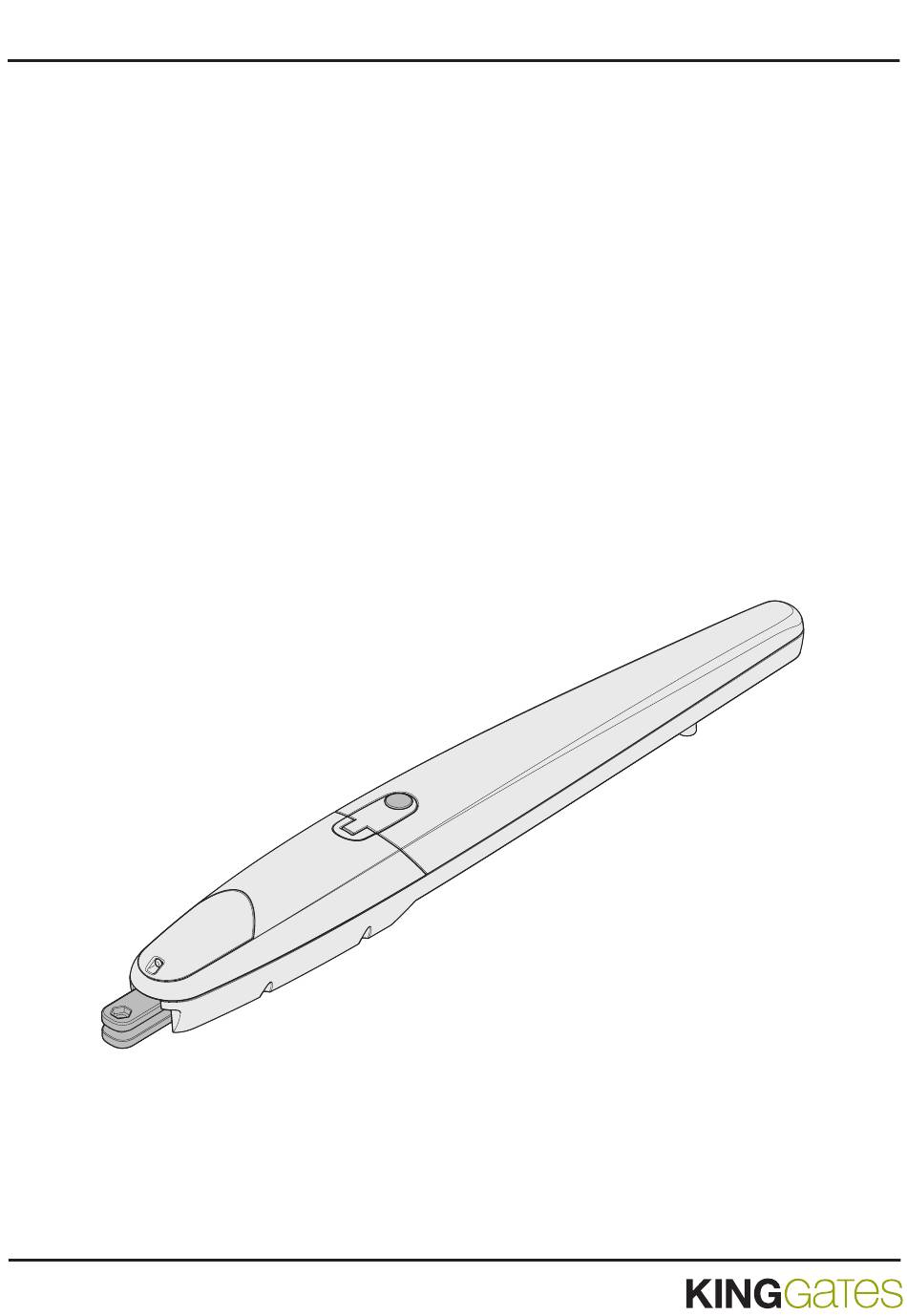

  • Page 1 JET XL Electromechanical gearmotor for the automation of swing gates Installation and use instructions and warnings Made in Italy...
  • Page 2: General Safety Warnings

    GENERAL SAFETY WARNINGS 1.1 - Safety warnings 1.3 - Warnings CAUTION! • The product should not be used by people (including children) with This manual contains important instructions and warnings for physical, sensory or mental disabilities, or lacking the necessary ex- personal safety.
  • Page 3: Description Of The Product

    Description of the product This product has been designed to automate gates or doors with leaf hand, unblocking the gear motor manually. opening, for residential or industrial use. Fig. 1 shows all the components provided in the package (according to the model chosen): CAUTION! [a] - electromechanical gear motor Any other use different to that described and in ambient conditions...
  • Page 4 Chart Recommended installation area Maximum installation area 90° 95° 90° 100° 95° 105° 100° 110° 105° 115° 110° 115° A (mm) A (mm) 3.3 - Use limitations WARNING! - Leaves exceeding 5 metres should not be panelled. Before installing the product, check that the sizes and the weight of the gate leaf are within the limits stated in chart 2.
  • Page 5 3.4 - Installation preparation works Useful components for a complete system: 1 - Electromechanical gearmotors In fig.1 is an example of an automation system using King-Gates 2 - Pair of photocells components. These components are positioned following a typical 3 - Pair of stops (open position) and standard setup.
  • Page 6 • Secure the gearmotor to the front bracket: 01. Secure the gearmotor to the bracket as shown in fig. 7, using the screw and the washer supplied; Fig. 4 04. Fix the bracket in place using suitable plugs, screws and washers (not supplied) 3.5.2 Installation of the front fixing...
  • Page 7 03. Manually move the gate leaf until the mechanical stop screw is 06. Now repeat the procedure by manually moving the gate leaf to visible; loosen the screw (fig. 10); the maximum closed position, to adjust the closing limit switch (fig. 12);...
  • Page 8: Electrical Connections

    Electrical connections CAUTION! 03. Connect the various wires and grounding cable, exactly as shown in the wiring diagram of fig. 15; – A wrong connection can cause faults or danger; therefore follow scrupulously the connections set out. – Perform the connection operations when the electricity is off. To connect the gear motor to the control unit, proceed as follows: 01.
  • Page 9: Product Maintenance

    Inspecting the automation This is the most important phase in realising the automation to gua- opening, closing and stopping tests of the gate and check it behaves rantee maximum safety. The inspection can be used also to periodi- as it should; cally check the devices which make up the automatism.
  • Page 10 Technical features of the product CAUTIONS: • The technical features set out refer to an ambient temperature of 20°C (± 5°C). • King-Gates reserves the right to make alterations to the product any time it deems it necessary, keeping the same functionality and desti- nation of use.
  • Page 11 Durability of the product Durability is the average economic life of the product. The value of 02. In Graph 3, from the value just found, trace a vertical line until you durability is strongly influenced by the demand index of the mano- intersect the curve;...
  • Page 12: Ce Declaration Of Conformity

    Declaration in accordance with the following Directives: 2004/108/EC (EMC); 2006/42/EC (MD) annex II, part B Declaration number: 30/JET XL Revision: 0 Language: EN Manufacturer’s Name: KING GATES S.R.L. Address: Via A. Malignani,42 - 33077 Sacile (PN) Italia Type of product: Electromechanical gear motor...
