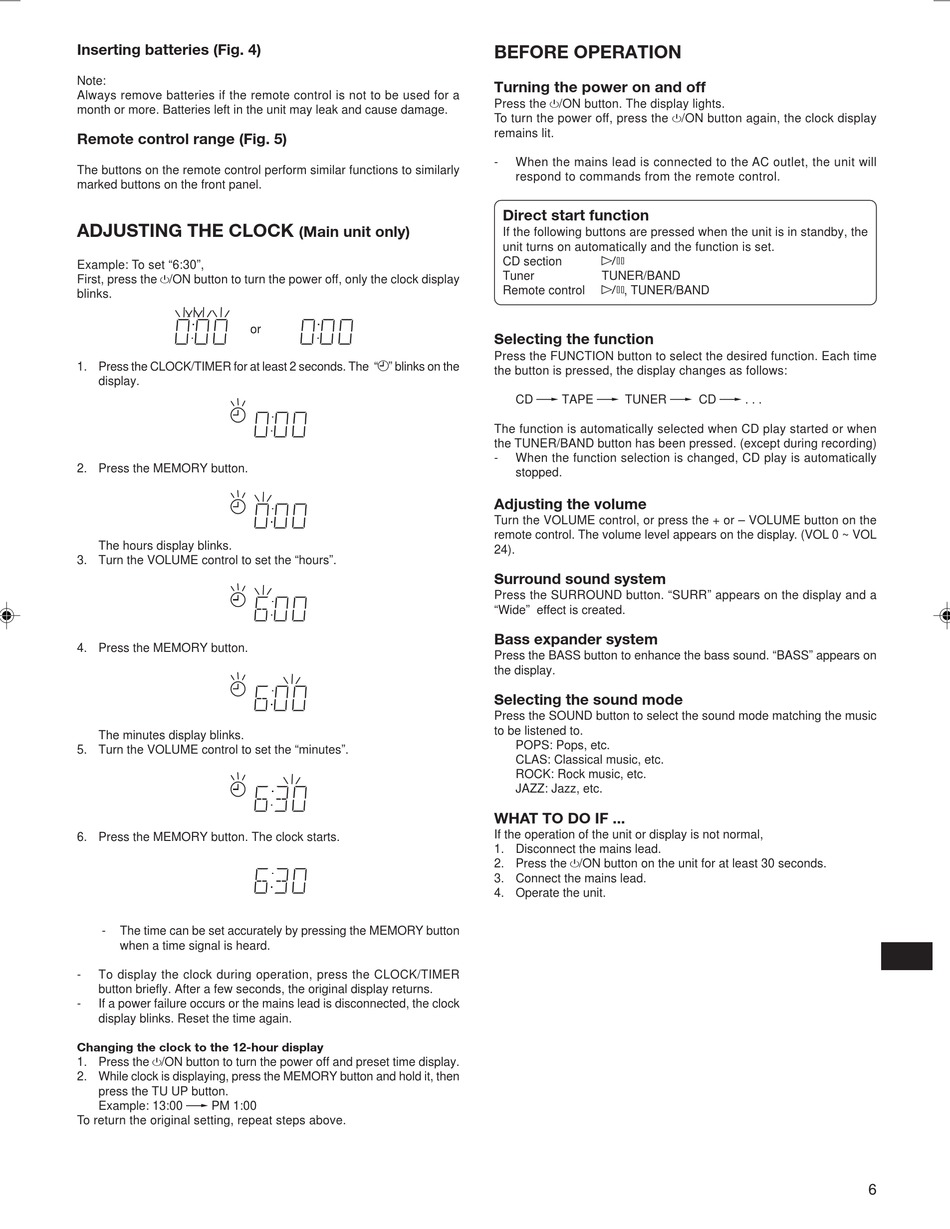

Inserting batteries (Fig. 4)
Always remove batteries if the remote control is not to be used for a
month or more. Batteries left in the unit may leak and cause damage.
Remote control range (Fig. 5)
The buttons on the remote control perform similar functions to similarly
marked buttons on the front panel.
ADJUSTING THE CLOCK
Example: To set "6:30",
First, press the z/ON button to turn the power off, only the clock display
1. Press the CLOCK/TIMER for at least 2 seconds. The "0" blinks on the
2. Press the MEMORY button.
The hours display blinks.
3. Turn the VOLUME control to set the "hours".
4. Press the MEMORY button.
The minutes display blinks.
5. Turn the VOLUME control to set the "minutes".
6. Press the MEMORY button. The clock starts.
The time can be set accurately by pressing the MEMORY button
when a time signal is heard.
To display the clock during operation, press the CLOCK/TIMER
button briefly. After a few seconds, the original display returns.
If a power failure occurs or the mains lead is disconnected, the clock
display blinks. Reset the time again.
Changing the clock to the 12-hour display
1. Press the z/ON button to turn the power off and preset time display.
2. While clock is displaying, press the MEMORY button and hold it, then
press the TU UP button.
Example: 13:00 v PM 1:00
To return the original setting, repeat steps above.
(Main unit only)
Turning the power on and off
Press the z/ON button. The display lights.
To turn the power off, press the z/ON button again, the clock display
When the mains lead is connected to the AC outlet, the unit will
respond to commands from the remote control.
Direct start function
If the following buttons are pressed when the unit is in standby, the
unit turns on automatically and the function is set.
Selecting the function
Press the FUNCTION button to select the desired function. Each time
the button is pressed, the display changes as follows:
CD v TAPE v TUNER v CD v . . .
The function is automatically selected when CD play started or when
the TUNER/BAND button has been pressed. (except during recording)
When the function selection is changed, CD play is automatically
Adjusting the volume
Turn the VOLUME control, or press the + or – VOLUME button on the
remote control. The volume level appears on the display. (VOL 0 ~ VOL
Surround sound system
Press the SURROUND button. "SURR" appears on the display and a
"Wide" effect is created.
Bass expander system
Press the BASS button to enhance the bass sound. "BASS" appears on
Selecting the sound mode
Press the SOUND button to select the sound mode matching the music
to be listened to.
POPS: Pops, etc.
CLAS: Classical music, etc.
ROCK: Rock music, etc.
JAZZ: Jazz, etc.
WHAT TO DO IF ...
If the operation of the unit or display is not normal,
1. Disconnect the mains lead.
2. Press the z/ON button on the unit for at least 30 seconds.
3. Connect the mains lead.
4. Operate the unit.
