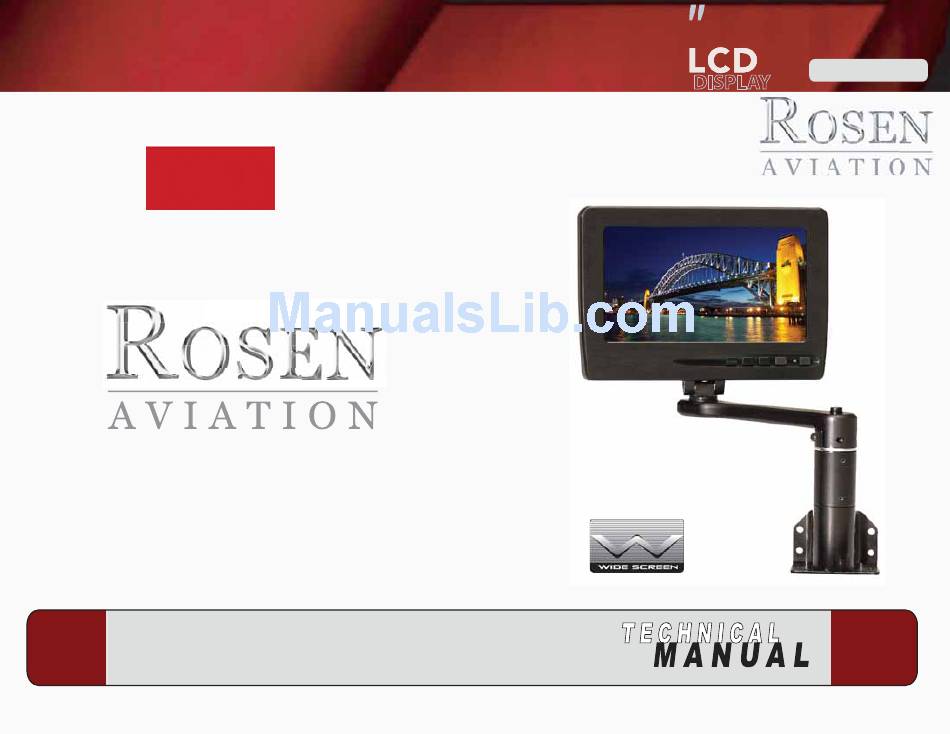

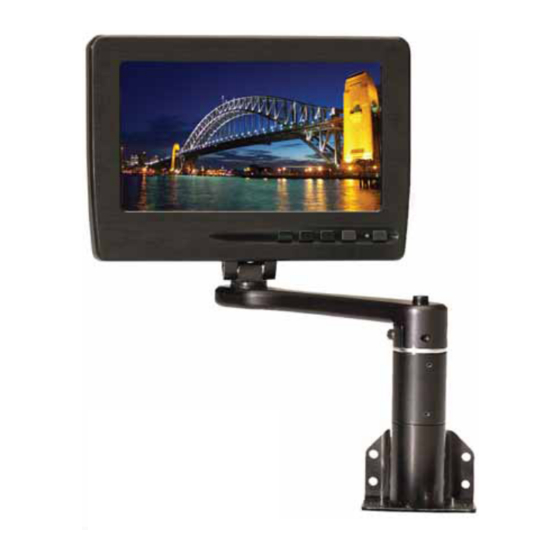

- Page 1 WideScreen Model Number 7000 DISPLAY E L E C T R O N I C R E V I S I O N C O N T R O L L E D 7000 CORPORATE OFFICE www. www. 1020 Owen Loop South rosenaviation Eugene, OR 97402 rosenaviation...
-
Page 2: Table Of Contents
E L E C T R O N I C R E V I S I O N C O N T R O L L E D Table of Contents Introduction ............3 Pinouts and Installation Guidelines ....4 Operation ..............5 Maintenance ............11 Troubleshooting ..........12 Specifi... - Page 3 1020 Owen Loop South Eugene, OR 97402 541-342-3802 www.rosenaviation.com...
-
Page 4: Introduction
Introduction Introduction Welcome to the 7000 series Technical Manual . This manual provides an overview of display details including: • Pinouts • Installation • Operation • Troubleshooting • Specifi cations The 7000 series model includes the following features: • 7” Diagonal Viewing Area •... -
Page 5: Pinouts And Installation Guidelines
Documentation, and then click on Technical Drawings & Pinouts. Search options include searching by model number or browsing by category. Drawings are provided to assist in the installation process. Pay close attention to dimensions and rotations when considering installation requirements. Rosen Aviation Page 4... -
Page 6: Operation
Operation Operation Slot Ensure that when plugging the arm into the base receptacle, the set screw in the base follows Screw the arm’s keyed slot and the connection is not forced. Installing/Removing SlimLine Arm Assemblies To install or remove a SlimLine arm assembly, press in the arm button all the way. - Page 7 Pressing the brightness up or down buttons will increase or decrease the backlight brightness in 16 steps. If the button is held down for more than one second the brightness will continue to step up or down in ¼ second intervals. Rosen Aviation Page 6...
- Page 8 Operation Operation Scaling: The Rosen 7” widescreen monitor has 4 scaling modes to allow adjustment of the picture expansion to most closely match the encoding of the source image. These modes, and how various source images will look, are described below. Normal Mode: Displays standard 4:3 aspect video without alteration.
- Page 9 (Fig. 3). If the source image is letterboxed, there will be black bars at the top and bottom of the image only. Widescreen 16:9 will be displayed full screen without distortion. Fig. 3 Rosen Aviation Page 8...
- Page 10 Operation Cinema Mode: Expands the source video in the vertical and horizontal dimensions to fi ll the display screen (Fig. 4). Letterbox format DVD disks will have little or no bars showing in this mode, while 4:3 & 16:9 aspect video sources will be expanded beyond the boundaries of the screen, appearing cropped.
- Page 11 With the hatch removed use a small fl at head screwdriver to make your adjustments. (see Fig. 6) Fig. 6 Fig. 6A BRT = Brightness CON = Contrast TNT = Tint CLR = Color Note: Fig. 6A represents factory default settings Rosen Aviation Page 10...
-
Page 12: Maintenance
Maintenance Maintenance: Tension adjustments TILT ADJUST Slimline Arm PIVOT ADJUST ROTATION ADJUST RNVAP Arm ROTATION ADJUST TILT ADJUST Gooseneck Arm TILT ADJUST PIVO ROTATION ADJUST 7” WideScreen LCD Page 11... -
Page 13: Troubleshooting
Distorted image Verify pinout is correct Verify signal is present and accurate Verify for pinched or damaged cables Verify NTSC input Check for damaged pins in base Monitor fl ashes Check voltage is correct (28V DC) Rosen Aviation Page 12... -
Page 14: Specifi Cations
Specifi cations Specifi cations LCD Performance Screen Resolution (pixels) 480 w x 234 h Display Viewing Area 6.06 x 3.42 In Viewing Angle ( At contrast ratio 10:1 ) Horizontal ±65 º Vertical ±65º Up ±50 º Down Contrast Ratio 200:1(typical) Backlight Lamp Life (hours) 10,000 hrs Screen Brightness... -
Page 15: 7" Do-160D Compliance Matrix
Emission of RF Energy Lightning Induced Trans Lightning Direct Effects Icing Electrostatic Discharge Note X = Not tested. Technical Support For fi eld support or to order parts, contact Rosen Aviation Displays at: 1-888-668-4955 or visit us at: www.rosenaviation.com Rosen Aviation Page 14... -
Page 16: Disclaimer
Disclaimer Disclaimer All information, including illustrations, is believed to be reliable. Users and/or installers, however, should independently evaluate the suitability of each product for their application. Rosen makes no warranties as to the accuracy or completeness of the information, and disclaims any liability regarding its use or installation.
