APPENDIX G – INTERFACE IF1200
In case the Interface IF1200 is sold alone, this appendix shows how it must be installed and
connected as well as how buttons LED indicators will work.
CON3
D3
F1
CON 1: Power supply connector. This connector is polarized to protect the interface against
inverse voltage. Please read "Notes about power supply" in the 2.2 Power Supply Section
before powering the interface.
The power supply male connector must be a:

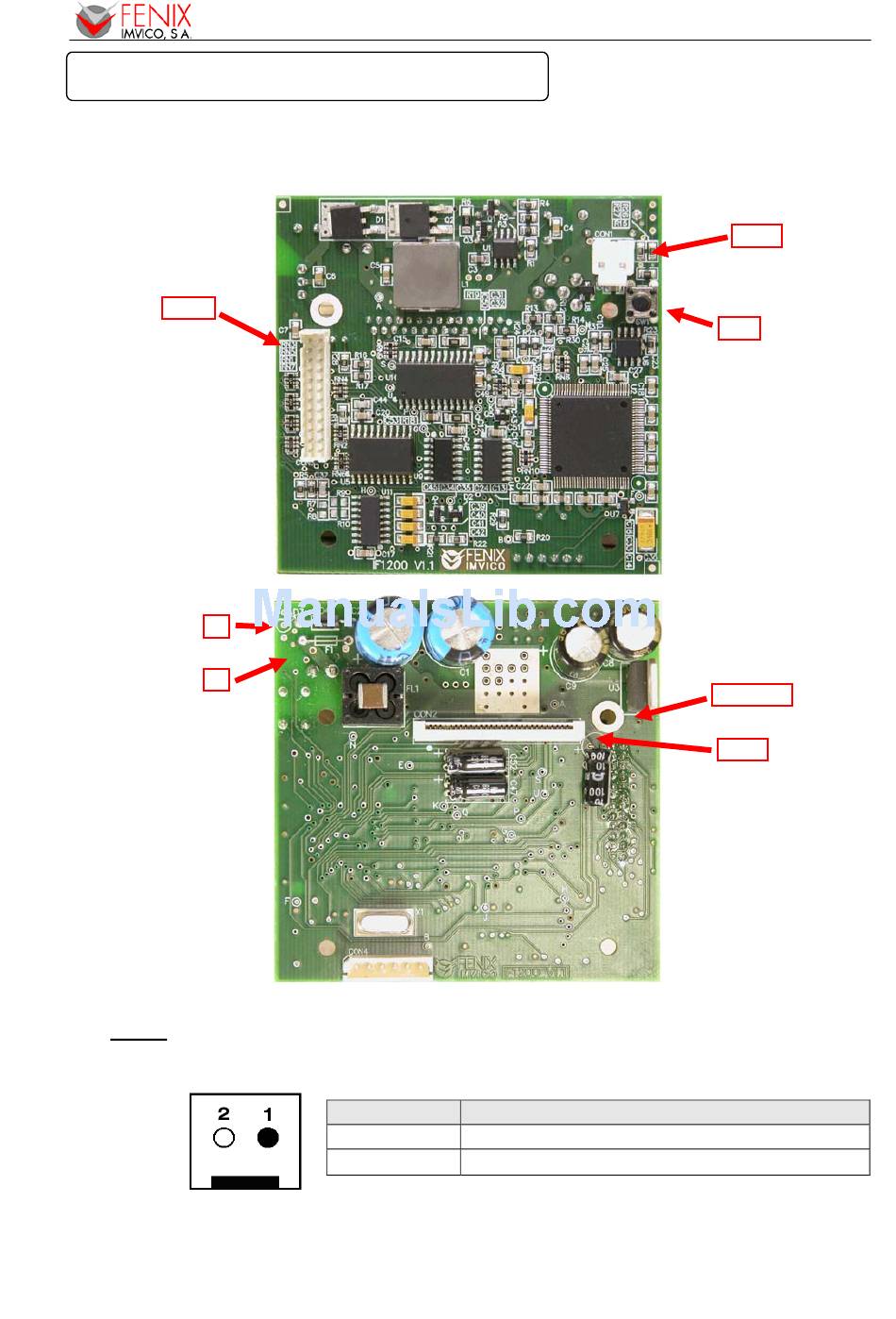

Fig. 25. – IF1200
Terminal nº Voltage
1 GNDP
2
VCC (5VDC-5%+10% or 12-24VDC±10%)
JST Ref. VH396-02 (housing)
JST Ref. VH396T-010 (terminal) or similar.
EPC1200 SERIES OPERATION MANUAL
CON1
SW1
SMD
Components
Side
GROUND
CON2
Through Hole
Components
Side
53/56
