Fs P Print Nv Bit Image - Fenix EPC1200 Operation Manual

0 ≤ xH ≤ 255 where 1 ≤ (xL + xH x 256) ≤ 128
0 ≤ yL ≤ 255
0 ≤ yH ≤ 8 where 1 ≤ (yL + yH x 256) ≤ 4095
0 ≤ d ≤ 255
k = (xL + xH x 256) x (yL + yH x 256) (k
[Description] Selects raster bit-image mode. The value of m selects the mode, as follows:
m
0
1
2
3
(dpi: dots per 25.4 mm {1"})
• xL, xH, select the number of data bytes (xL+xH x 256) in the horizontal direction for
the bit image.
• yL, yH, select the number of data bits (yL+yH x 256) in the vertical direction for the
bit image.
[Notes] This command is effective only when there is no data in the print buffer.
• Data outside the printing area is read in and discarded on a byte-by-byte basis.
• The position at which subsequent characters are to be printed for raster bit image is
specified by GS L (Set left margin).
• d indicates the bit-image data. Setting a bit to 1 prints a dot and setting it to 0 does
not print a dot.

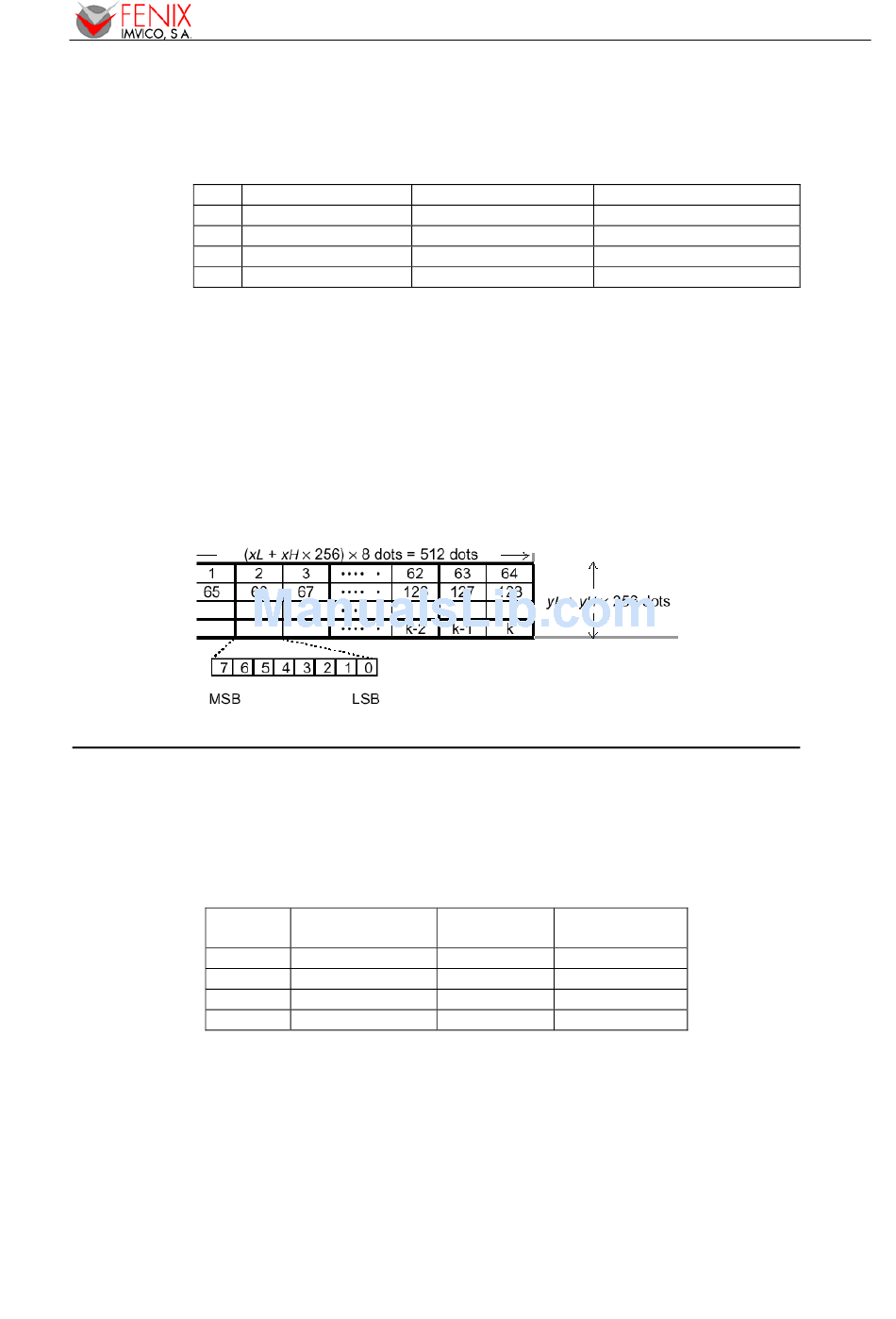

[Example] When xL + xH x 256 = 64
FS p n m
[Name] Print NV bit image
[Format] ASCII
Hex
Decimal
[Range] n = 1
48 ≤ m ≤ 51
[Description] Prints a NV bit image n using the mode specified by m.
m (Dec)
48
49
50
51
[dpi: dots per 25.4 mm]
• n is the number of the NV bit image (always 1).
• m specifies the bit image mode.
[Notes]
• NV bit image means a bit image which is defined in a non-volatile memory by FS q
and printed by FS p.
• This command is not effective when the specified NV bit image has not been
defined.
• This command is effective only when there is no data in the print buffer.
Mode
Normal
Double-width
Double-height
Quadruple
FS p
n
1C 70
n
28 112
n
Mode
Normal
Double-width
Double-height
Quadruple
EPC1200 SERIES OPERATION MANUAL
≠
0)
Vertical Dot Density
203.2 dpi
203.2 dpi
101.6 dpi
101.6 dpi
m
m
m
Vertical Dot Horizontal Dot
Density Density
203.2 dpi 203.2 dpi
203.2 dpi 101.6 dpi
101.6 dpi 203.2 dpi
101.6 dpi 101.6 dpi
Horizontal Dot Density
203.2 dpi
101.6 dpi
203.2 dpi
101.6 dpi
