EPC1200 SERIES OPERATION MANUAL
APPENDIX B – MECHANICAL DIMENSIONS
NOTES:
- All dimensions are in millimetres.
- For better viewing the PCB and the rear
cover are not drawn in all views.

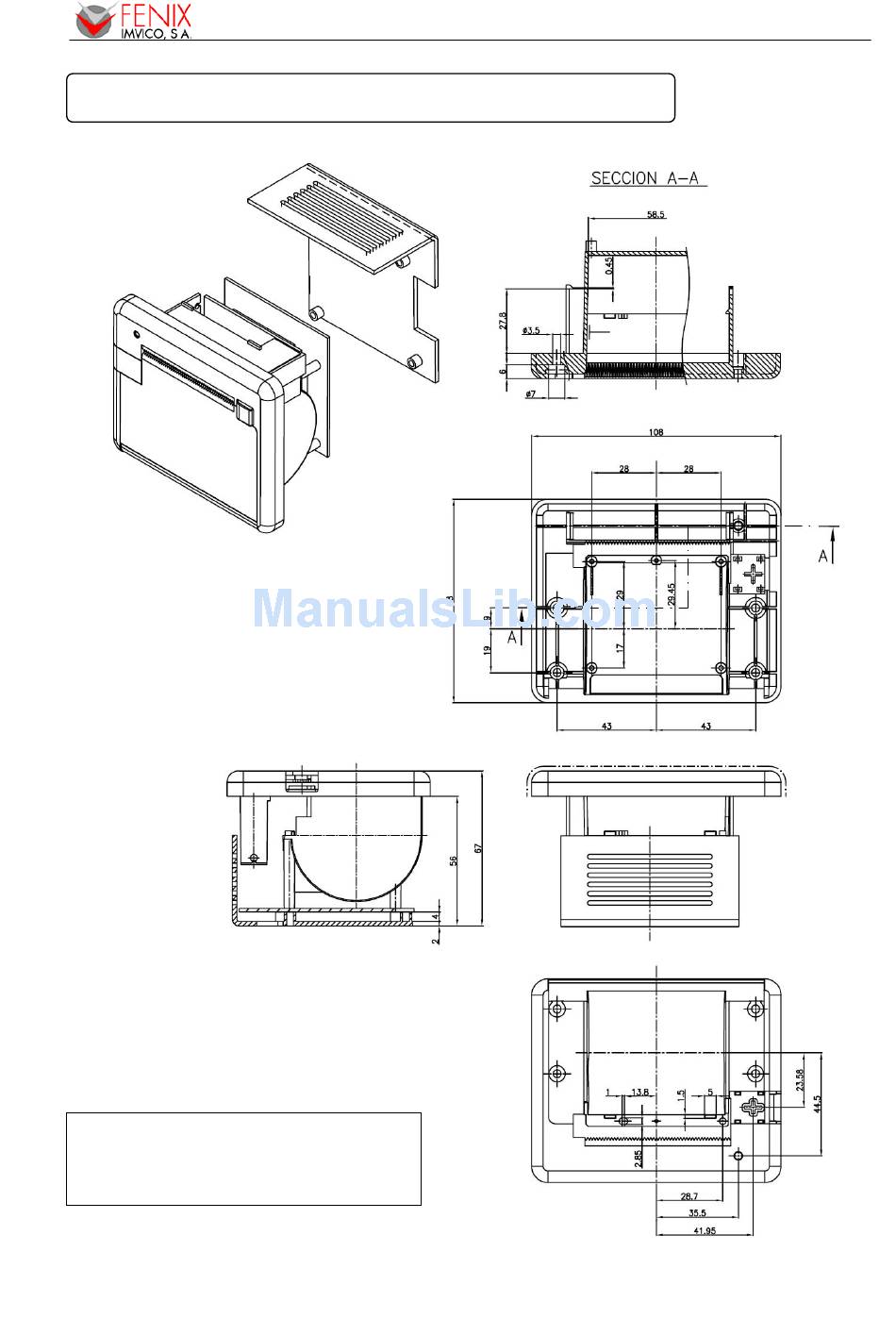

Fig. 23. – Mechanical dimensions
