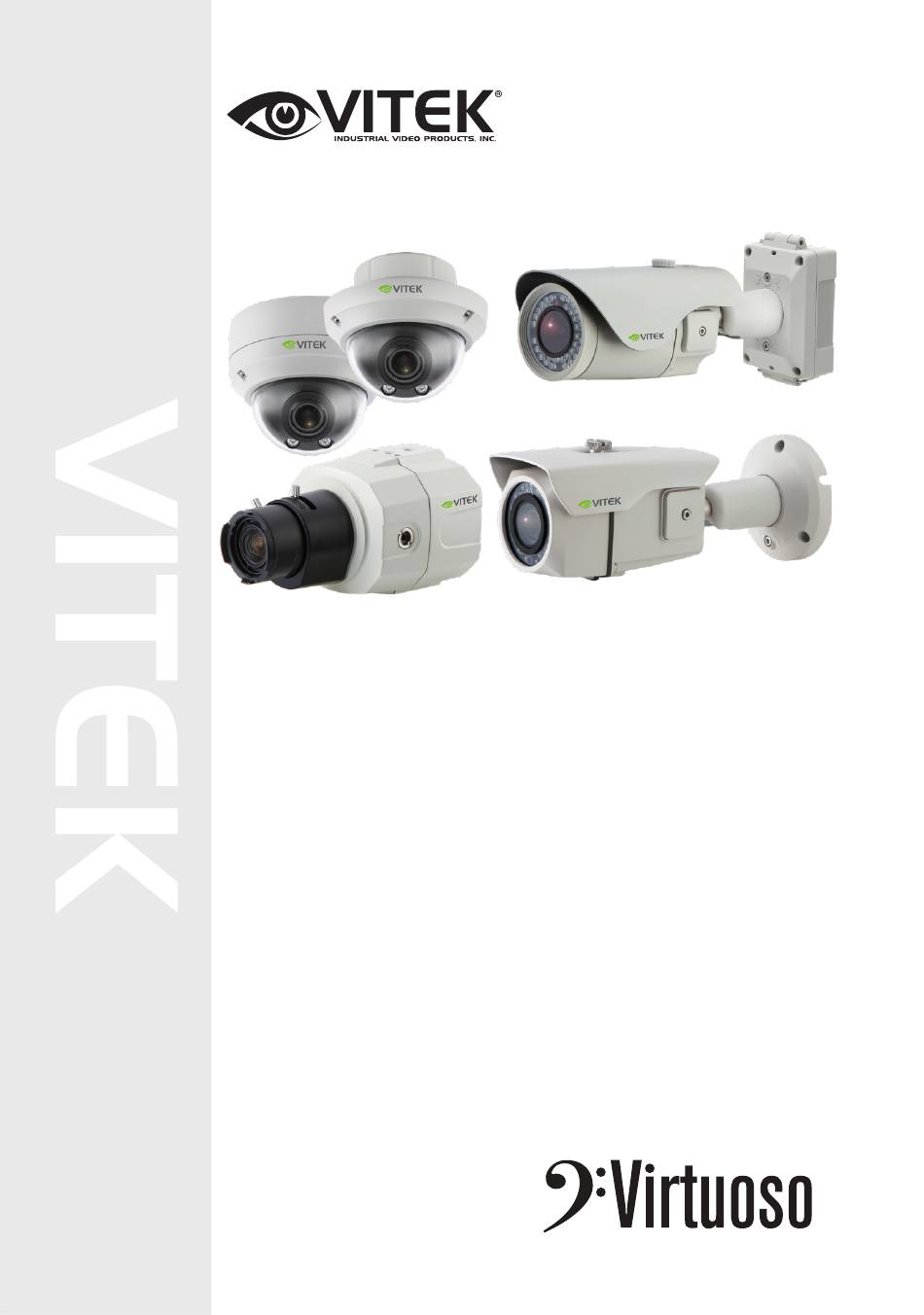

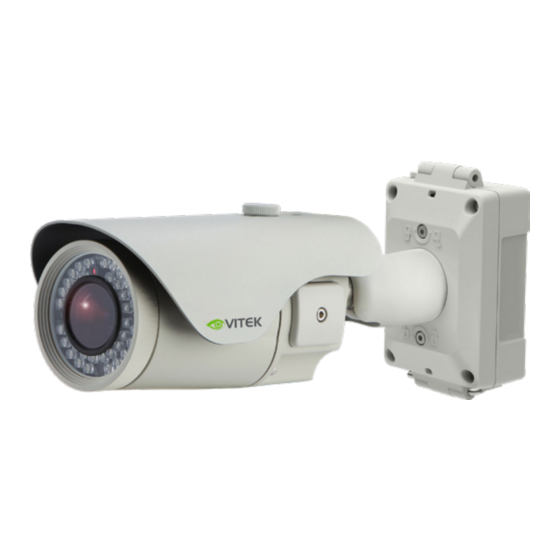

QUICK START GUIDE
VTD-MV8NZ311P
VTD-MV5NZ212P
VTC-CB5N
*Lens Sold Separately
FEATURES:
• 5 or 8 MegaPixel [4K] Network Camera (2592x1944px / 3840x2160px @ 30/25fps)
• 1/2.8" 5.69 / 8.29 MegaPixel Sony STARVIS CMOS® Sensor,
• ONVIF Compliant with Zero Configuration, ONVIF Event Mapping
• Cross Web Browsing (IE, Edge, Safari, Firefox, Chrome)
• Adaptive web-based resizing (Layout / Display Device Resolution Dependent)
• Quad Streaming: H.265, H.264 & MJPEG
• HTML5 Playback
• MicroSD Memory Card Slot Supporting Local Recording up to 128GB (H.264)
• ICR Dual Filter Switch
• CS mount supported (Option: C-mount adaptor)
• 120dB Dynamic Range with DOL (Digital Overlap) WDR @30/25fps
• Improved Noise Reduction with XD-DNR
• LDC (Lens Distortion Compensation)
• Smart Stream, RoI (Region of Interest)
- Enables Smart Processing of Video Data According to Users' Needs
- Enables High Quality Video on RoI and Lower Quality Video on non-RoI
- Lowers Overall Bandwidth and Reduces Storage Burden
• Motion Detection, Privacy Masking, Defog, D-Zoom (~10x), Mirror/Flip,
Sens-up (Slow shutter), Hue, Contrast, Brightness / Saturation, Sharpness
• IP68 (VTD-MV8NZ311P, VTD-MV5NZ212P, VTC-IR8NZ4311P),
IP67 (VTC-IR5NZ3212P)
• Circuit Protection Protects Against Faulty Connection in Power Polarity
• Isolated Power Supply Protects Against Ground Loop Problems
• 12VDC, 24VAC and PoE Operation (Power over Ethernet, EEE Std. 802.3af)
Virtuoso Series
Virtuoso Series 5 and 8
MegaPixel Network Cameras
VTC-IR8NZ4311P
VTC-IR5NZ3212P

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Virtuoso Series 5 and is the answer not in the manual?

Questions and answers

Related Manuals for Vitek Virtuoso Series 5

Summary of Contents for Vitek Virtuoso Series 5

  • Page 1 Virtuoso Series Virtuoso Series 5 and 8 MegaPixel Network Cameras QUICK START GUIDE VTD-MV8NZ311P VTD-MV5NZ212P VTC-IR8NZ4311P VTC-IR5NZ3212P VTC-CB5N *Lens Sold Separately FEATURES: • 5 or 8 MegaPixel [4K] Network Camera (2592x1944px / 3840x2160px @ 30/25fps) • 1/2.8” 5.69 / 8.29 MegaPixel Sony STARVIS CMOS® Sensor, •...

  • Page 2: Table Of Contents

    Table of Contents Safety Precautions..........Overview: VTC-IR5NZ3212P......Overview: VTC-IR8NZ4311P......10-18 Overview: ....19-26 VTD-MV5NZ212P, VTD-MV8NZ311P Overview: VTC-CB5N........27-29 OPERATING INSTRUCTIONS......30-38 Menu Table / Network Menu Setup..30-32 Live View..........Information..........Users............. Date and Time........36-37 Network..........Firmware Upgrade....... Detailed Specifications........40-44 Accessories............

  • Page 3: Safety Precautions

    Safety Precautions To prevent electric shocks and risk of fire hazards, do NOT expose this unit to rain or use other than with the specified power source. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE.
  • Page 4 Safety Precautions NOTICE • The images used in this instruction manual are processed to help comprehension and may differ from actual video of the camera. • Avoid installing in areas where there shock or vibration which results in problems. • Pay attention to safety when laying the connection cable and observe that the cable is not subjected to heavy loads, kinks or damage and no moisture can get in.

  • Page 5: Overview: Vtc-Ir5Nz3212P

    Composition - VTC-IR5NZ3212P Wiring Connector (1pc) Mounting Template Camera Plastic Anchor: 6 x 1.181” 30mm (3pcs) Quick Start Guide Mounting Screw: 4 x 1.58” 40mm (3pcs) Torque Wrench: .12” 3mm (1pc) Dimensions - VTC-IR5NZ3212P unit : inches / (mm) 3.17 (80.5) 9.72 (247) 9.29 (236) MEGA-PIXEL NETWORK CAMERA...
  • Page 6 Part Names - VTC-IR5NZ3212P SUNSHIELD BOLT SUNSHIELD POWER CABLE DUAL WINDOW BRACKET REAR CASE Cover Open FRONT CASE Micro SD Card Slot IP Reset Button CAUTION • Extreme care should be taken NOT to scratch the surface of window while installing or adjusting the camera.
  • Page 7 Installation Instructions 1. Position the mounting template at the installation location and drill the ceiling or wall if needed. 2. Route the cable and connect according to instructions below. 3. Place the camera bracket on the pre-drilled position and attach it using mounting screws (4x40mm).
  • Page 8 Installation Instructions 90° 90° • on the wall • on the ceiling 3) Inclination limit (Horizontal image alignment): Inclination limited to +/-90° max. ±90° Torque Lock/Unlock wrench Screw Adjustment of viewing angle with one-touch 3-Axis bracket Installation Instructions • Make sure the power is removed before installation. •...
  • Page 9 MEGA-PIXEL NETWORK CAMERA Installation Instructions Power Supply Connections This camera can work with either 24AC or 12VDC, dual voltage power and PoE (IEEE Std. 802.3af). Primary and secondary grounds are completely isolated to avoid possible ground loop problems. Ethernet AC(+) : AC24V/DC12V POWER AC(-) :...

  • Page 10: Overview: Vtc-Ir8Nz4311P

    Composition VTC-IR8NZ4311P Plastic Anchor: 6 x 1.18” (30mm) (4pcs) Mounting Screw: 4 x 1.18” (30mm) (4pcs) Cable tie (2pcs) Camera unit Torque Wrench: .12” (3mm) (1pc) Hinge pin (1pc) Grommet (2pcs) RJ45 Easy Cap Cable Plate Quick Mounting for Grommets with Screw Start Template...
  • Page 11 Part Names - VTC-IR8NZ4311P SUNSHIELD BOLT JUNCTION BOX TOP SUNSHIELD JUNCTION BOX BOTTOM BRACKET FRONT CASE DUAL WINDOW LOCK / UNLOCK SCREW COVER OPEN Micro LED Control Switch SD Card Slot IP Reset (Default) : pressing for 5~8 seconds resets all parameters to original factory settings.
  • Page 12 Installation Instructions CAUTION • Cover Opening Alarm and External Alarm Input : Cover Opening Alarm and External Alarm Input are electrically tied together internally. Alarm contact types, N.O or N.C are selectable by the Alarm Input Selection Jumper and the selection types should be matched with Alarm Type in setup menu.
  • Page 13 Installation Instructions • Using Grommet : Tear off the grommet caps and pull up the grommet so that the seal can wrap arund the cable properly as illustrated. If it doesn’t wrap properly, it could cause water leakage problems. • Using RJ45 Easy Cap for Network cable : •...
  • Page 14 Installation Instructions Install the mount onto a strong structure. Prepare the junction box base and the accessories for installation. Locate the mounting template at the installation position and drill the wall if needed. Route the Power/Ethernet cables through the grommets from the wall. Insert the grommets into the Junction box base.
  • Page 15 Installation Instructions Hook up the Power & I/O wires and Network cable to the connectors. Network cable can be connected to either RJ-45 connector or LSA connectors. TIA/EIA 568 A TIA/EIA 568 B 1. Green-White 1. Orange-White 2. Green 2. Orange 3.
  • Page 16 Installation Instructions Assemble the Junction box top to the Junction box base using a hinge pin. Hinge can be inserted at either side for convinience. Connect the Power/Ethernet cables from camera. Hinge pin Junction Box Top Set Alarm Input Selection Jumper. (Refer to ‘Cover Opening Alarm and External Alarm Input’...
  • Page 17 Installation Instructions Set the camera’s orientation and tighten the Lock/Unlock screws using hex wrench. Open the side cover to insert the Micro SD memory or control the Zoom / Focus using the joystick. After adjusting the settings, close the side cover and tighten it. Put the sunshield on the camera unit and tighten the sunshield bolt.
  • Page 18 Installation Instructions Pan & Tilt adjustments • Unlock the screw on the camera bracket using the hex wrench supplied. • Set the camera’s viewing angle then lock the screw on the bracket. 1) Pan limit: Pan is limited to +/- 90°. 2) Tilt limit: Tilt is limited to 0°(2°) min ~ 90°...

  • Page 19: Vtd-Mv5Nz212P, Vtd-Mv8Nz311P

    Composition - VTD-MV5NZ212P / VTD-MV8NZ311P Plastic Anchor: 6 x 1.18” (30mm) (4pcs) Mounting Screw: 4 x 1.18” (30mm) (4pcs) Dome Camera Assembly Screw: .16 x .55” (4 x 14mm) (3pcs) Connector Screw: .1” x .24” (2.6 x 6mm) (1pc) Torque Wrench: Surface mount .12”...
  • Page 20 Dimensions VTD-MV5NZ212P / VTD-MV8NZ311P unit: inches / mm Ø5.51 (140) Ø3.93 (100) PCD Ø4.72 (120) 3-Ø.17 (4.2) [ Flush mount ] [ Surface mount ] Ø4.02 (102) Ø5.51 (140)
  • Page 21 Part Names - VTD-MV5NZ212P / VTD-MV8NZ311P SURFACE MOUNT POWER CABLE FLUSH MOUNT JOY STICK for Zoom / Focus control 3-AXIS GIMBAL RTx Status Indicator Reset LENS Button SAFTY WIRE DOME COVER Micro SD Card Slot BUBBLE DOME [ BOTTOM VIEW ] ETHERNET &POWER CABLE Power Supply Connector...
  • Page 22 Installation Instructions 1. Position the mounting template at the installation location and drill the ceiling or wall if needed. 2. Open the dome cover by loosening screws (.16 x .47” / 4 x 12mm). Use the torque wrench supplied. A. Flush mount type: - Place the dome base unit on the pre-drilled position and attach it using mounting screws (16 x 1.18”...
  • Page 23 Installation Instructions • Tilted junction • Wall mount mount Sunshield • Pole mount • Wall mount adaptor • Tilted mount CAUTION • Extreme care should be taken NOT to scratch the bubble dome surface while installing or adjusting. • Care should be taken the cable is NOT damaged, kinked or exposed in a hazardous area.
  • Page 24 Installation Instructions Option 1. ■ Installation with Flush mount / Tilted Junction mount Cables are unattached on the Dome base. Disassemble coupler board for LAN cabling. Connect the ethernet and power cables to their respective connections. Option 2. ■ Installation with Surface mount / Tilted mount Cables are unattached on the Dome base.
  • Page 25 Installation Instructions Limit of pan & tilt 1) Pan limit: Pan is limited to +/- 173°. Do force turn the gimbal over the limit to prevent internal damage. 2) Tilt limit: Tilt is limited to 25° min ~ 90° max. with reference to the ceiling when the rotation of camera module is 0°, that is, the image is aligned horizontally.
  • Page 26 Installation Instructions a) Plug the network cable into the RJ-45 Ethernet Port. If PoE is the only power, there will be no need to connect the Power terminal. b) When DC12V or AC24V local power is necessary, connect the low voltage (DC12V or AC24V) first, then plug the AC adapter to AC outlets to avoid an improper reset from a power spike and damage from the voltage surge with no load.

  • Page 27: Overview: Vtc-Cb5N

    Composition - VTC-CB5N Dust Protection Cap (1pc) Network Box Camera Torque Wrench: Quick Start Guide .12” (3mm) (1pc) Dimensions - VTC-CB5N inches (mm) 2.99 (76) 2.99 (76) 3.50 (89)
  • Page 28 Part Names VTC-CB5N Mount Holes (Top / Bottom) Rear Case Front Case Dust Protection Cap Torque Wrench PIN 4 PIN 2 Lens Connector Back focus for Auto Iris lenses adjustment DC Iris Damp(-) Damp(+) Drive(+) PIN 3 PIN 1 REAR VIEW RESET SD MEMORY IP Reset Button...
  • Page 29 Installation Instructions Installation Instructions • Make sure the power is removed before the installation. When PoE and Local dual power are connected at the same time, Local power has priority. • Connect PoE(IEEE Std. 802.3af) or the power supply to the power terminal on the rear panel of camera first.

  • Page 30: Operating Instructions

    Operating Instructions Setup Menu table Category Menu Configuration Player Control Pause, Snapshot, Speaker, Microphone, Record Display (Window Fit, Full Screen, Custom) LIVE VIEW Video Stream Stream1, Stream2, Stream3 Protocol HTTPS, HTTP, TCP, UDP Zoom, Focus, Push AF PTZ Contol PLAYBACK Event Search, Timeline Search, Timeline Bar Information General, System Information, Open source Information...
  • Page 31 Operating Instructions Event Triggers Motion, VCA, Alarm In, System, Manual, Network, Timer, Day/Night Actions Record, Alarm Out, E-Mail, FTP, Video Boost, Notification Server Rules Event Processing, ONVIF Mapping Security User, HTTPS, IP Filter, ONVIF, Video Stream, System Export/Import Current Time, New Time, Time Zone, Date & Time Date &...
  • Page 32 Operating Instructions The default IP address of cameras are 192.168.1.10. If you want to change IP address, click right button of Mouse to access the control panel. Type the IP address to change and click OK button. Default Login Stop Discovery Refresh S/W Version Change all connected cameras’...

  • Page 33: Live View

    Operating Instructions 1. LIVE VIEW Enter the live view menu on the Web Viewer. Web Viewer description XXX-XXXXXXXXXX A) Menu button : Click the button to show or hide the setup menu bar. B) Model name : Show a camera model name connected. C) Select Language : Set the web viewer language English, Deutsch or French.

  • Page 34: Information

    Operating Instructions Window Fit : Resizes the live view display to fit along with the display window size. Full Screen: Resizes the live view display to fit to the monitor resolution. ESC key returns to the previous view. Custom : Selects the live view display scale, 0%~200%, by the control bar.

  • Page 35: Users

    Operating Instructions 1-2. Users Manages the user accounts by names, groups and authorities. > Mark ENABLE ANONYMOUS VIEWER LOGIN if anyone is permitted to login anonymously. Accessing SETUP menu with the anonymous login will exit and require ID/Password login. > USERS : Can be added, edited or deleted. 1-2-1.

  • Page 36: Date And Time

    MEGA-PIXEL NETWORK CAMERA Operating Instructions 2. Type a password and retype confirm password. (1 to 8 alphanumeric characters). • Passwords are case sensitive. 3. Select one of the groups you wish to assign to the user and authority for PTZ and Playback.
  • Page 37 MEGA-PIXEL NETWORK CAMERA Operating Instructions 1-3-3. Time Zone Select the time zone to be referenced to the NTP server where the camera is installed. Mark AUTOMATICALLY ADJUST FOR DAYLIGHT SAVING CHANGES check box to update the time automatically with daylight savings. 1-3-4.

  • Page 38: Network

    MEGA-PIXEL NETWORK CAMERA Operating Instructions 1-4. Network The DHCP (Dynamic Host Configuration Protocol) server has a feature that auto- matically assigns an IP address to the device if there is a device on the network. > IPv4 ADDRESS : • OBTAIN IP ADDRESS VIA DHCP : Gets the IP address assigned by the DHCP(Dynamic Host Configuration Protocol) server.

  • Page 39: Firmware Upgrade

    MEGA-PIXEL NETWORK CAMERA Troubleshooting MEGA-PIXEL NETWORK CAMERA Operating Instructions Upgrading the Firmware 1-4. Network The DHCP (Dynamic Host Configuration Protocol) server has a feature that auto- Firmware is software that determines the functionality of the network camera. matically assigns an IP address to the device if there is a device on the network. One of your first actions when troubleshooting a problem should be to check >...

  • Page 40: Detailed Specifications

    Detailed Specifications: VTC-IR5NZ3212P Imaging Sensor 1/2.8” Sony 5.69 MegaPixel Sony STARVIS® CMOS Progressive Scan Sensor* Effective Pixels 2592(H) x 1944(V) S/N Ratio 51dB IR LEDs / Range 30 850nm Dynamic Intensity IR LEDs / 100’ Lens F=2.7~12mm Motorized Zoom Lens Day/Night ICR by Auto, Day, Night, External, Color D/N Auto Exposure...
  • Page 41 Detailed Specifications: VTC-IR8NZ4311P Imaging Sensor 1/2.5” 8.29 MP [4K] RGB Bayer Array Sony CMOS STARVIS® Progressive Scan Sensor* Effective Pixels 3840(H) x 2160(V) Sensitivity Color : 0.2 Lux, B/W : 0.02 Lux (Sens-up OFF) S/N Ratio 51dB IR LEDs / Range 40 850nm Dynamic Intensity IR LEDs / 150’...
  • Page 42 Detailed Specifications: VTD-MV5NZ212P Imaging Sensor 1/2.8” 5.69 MegaPixel Sony STARVIS® CMOS Progressive Scan Sensor* Effective Pixels 2704(H) x 2104(V) Sensitivity Color : 0.2 Lux, B/W : 0.02 Lux (Sens-up OFF) S/N Ratio 51dB IR LEDs / Range 2 Hi Pwr 850nm IR LEDs / 100’ Lens F=2.7~12mm Motorized zoom lens Day/Night...
  • Page 43 Detailed Specifications: VTD-MV8NZ311P Imaging Sensor 1/2.5” 8.29 MP [4K] RGB Bayer Array CMOS Sony STARVIS® Progressive Scan Sensor* Effective Pixels 3840(H) x 2160(V) Sensitivity Color : 0.2 Lux, B/W : 0.02 Lux (Sens-up OFF) S/N Ratio 51dB IR LEDs / Range 2 Hi Pwr 850nm IR LEDs / 100’...
  • Page 44 Detailed Specifications: VTC-CB5N Imaging Sensor 1/2.8” 5.69 MegaPixel Sony STARVIS CMOS® Progressive Scan Sensor* Effective Pixels 2704(H) x 2104(V) S/N Ratio 51dB Lens CS Mount Lens Support (Option: C-mount adaptor) IR Input Day/Night ICR by Auto, Day, Night, External, Color D/N Auto Exposure Automatic (Priority: Frame Rate/Low Noise), Manual Shutter Speed Control...

  • Page 45: Accessories

    Optional Mounts and Accesories for Vitek Virtuoso Cameras VT-MV/PLMT VT-MV/WMT Pole Adapter for AFZ Dome Wall Mount for Select AFZ Cameras and Premium IRM Dome Cameras & IR Network AFZ Bullets -- Use with VT-MV/WMT in Dome Applications VT-MV/TB VT-MV/JMT...

  • Page 46: Warranty Information

    (3) years, or as otherwise stated above, from the date of purchase by the end user. This warranty is nontransferable and extends only to the original buyer or end user customer of a VITEK Authorized Reseller. The product must have been used only for its intended purpose, and not been subjected to damage by misuse, willful or accidental damage, caused by excessive voltage or lightning.
