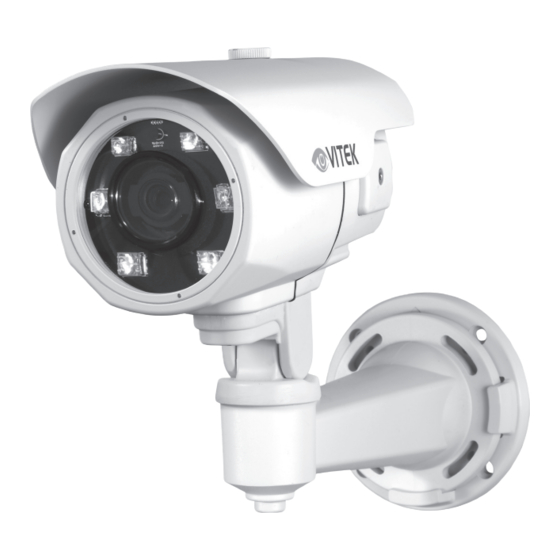

Vitek VTC-IR62NZ922 User Manual

Envi 2.1mp vandal resistant afz/wdr ir network bullet camera
Hide thumbs Also See for VTC-IR62NZ922:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Manual
• 1/2.9" Sony® CMOS
• 2.1 MegaPixel With full 1080p/720p Output
• Up to 30fps live view@ 1920x1080 (1080p)
• MegaPixel IR Corrected 9-22mm Varifocal Lens
• Mechanical IR Cut Filter (True Day/Night)
• H.264/MJPEG Dual Streaming
• 16:9 Video format
• On-board Intelligence (OBI Technology) delivers Auto-Focus-Zoom by tracking
motion, then optically zooming in to that area of the frame
• 6 High Power 850nm IR LEDs with up to 300' IR range
• Fully programmable advanced WDR
• Onvif Compliance
• Integrated Cooling Fan
• Standard SD memory card slot for Local recording
• Advanced OSD Functions: Motion Activated Pointing Zoom, Defog, Dynamic IR,
BLC/HLC, Motion Deblur, Pixel Defect Compensation, Title Set, Mirror, Flip
• Heavy Duty IP68 rated weather/vandal resistant aluminum construction
• 12VDC / 24VAC & PoE (Power over Ethernet) Operation
Specifications & installation procedure subject to change without notice.
Visit www.vitekcctv.com for the most current information available.

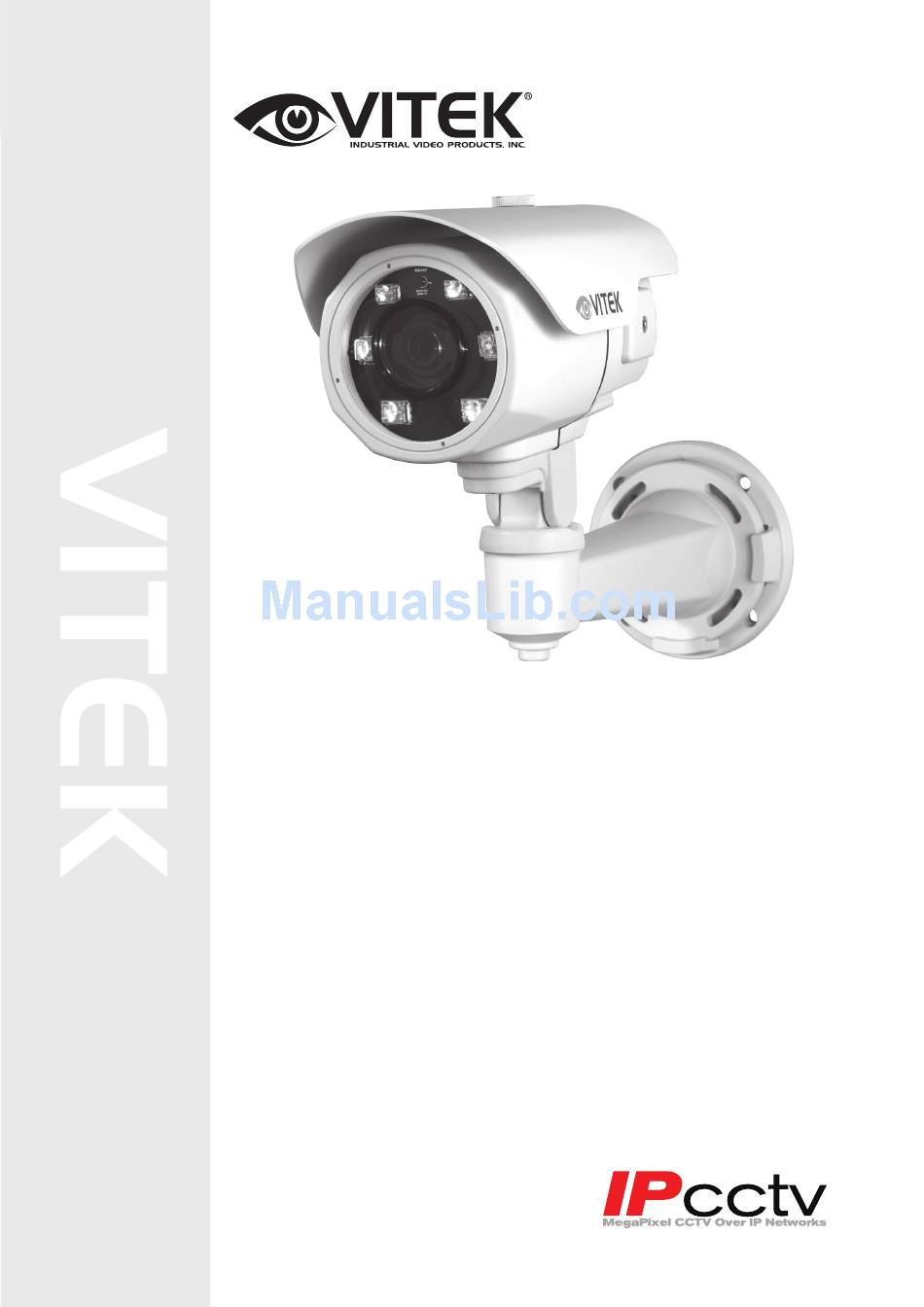

VTC-IR62NZ922
ENVI 2.1MP Vandal Resistant AFZ/
WDR IR Network Bullet Camera

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VTC-IR62NZ922 and is the answer not in the manual?

Questions and answers

Related Manuals for Vitek VTC-IR62NZ922

Summary of Contents for Vitek VTC-IR62NZ922

  • Page 1 VTC-IR62NZ922 ENVI 2.1MP Vandal Resistant AFZ/ WDR IR Network Bullet Camera • 1/2.9” Sony® CMOS • 2.1 MegaPixel With full 1080p/720p Output • Up to 30fps live view@ 1920x1080 (1080p) • MegaPixel IR Corrected 9-22mm Varifocal Lens • Mechanical IR Cut Filter (True Day/Night) •...

  • Page 2: Safety Precaution

    ENVI Series: VTC-IR62NZ922 1. Safety Precaution Safety Precaution To prevent fire or shock hazard, do not expose the unit to rain or moisture. To prevent electric shocks and risk of fire hazards, do NOT use other than specific power source.
  • Page 3 ENVI Series: VTC-IR62NZ922 Safety Precaution NOTICE The image used in this instruction manual are processed to help comprehension and may differ from actual video of the camera. Avoid installing in areas where shock or vibration may occur. Pay attention to safety when installing the connection cable and observe that the cable is not subjected to heavy loads, kinks or damage and no moisture can get in.

  • Page 4: Table Of Contents

    ENVI Series: VTC-IR62NZ922 2. Table of Contents Table of Contents     Safety Precaution ........................1     Table of Contents ........................3     General Description & Included Accessories ................8     3.1. VTC-IR622NZ922 Dimensions (Unit : mm / inches) ............9  ...
  • Page 5 ENVI Series: VTC-IR62NZ922     13.6. Finish ........................39     System Configuration Menu ....................39     14.1. Server Name Setup ....................39     14.2. Date & Time ......................40     14.3. Admin Password ......................41  ...
  • Page 6 ENVI Series: VTC-IR62NZ922     18.1. SD / MicroSD Card Configuration ................78     18.2. Recording Configuration with SD card ................. 81     Utilities ..........................83     19.1. System Log ....................... 84     19.2. Save Configuration ....................84  ...
  • Page 7 ENVI Series: VTC-IR62NZ922     27.1. EN-V-R Configurator ....................108     27.2. EN-V-R Service ......................108     27.3. EN-V-R Controller ....................108     27.4. EN-V-R System Tray Menu ..................109     Starting EN-V-R Configurator ..................... 109  ...
  • Page 8 ENVI Series: VTC-IR62NZ922     36.1. System, Network Configuration ................. 147     36.1.1. Configuring System name ................147     36.1.2. System, Network Configuration - Admin password ........... 148     36.1.3. System, Network Configuration - Access Control ..........148  ...

  • Page 9: General Description & Included Accessories

    ENVI Series: VTC-IR62NZ922 3. General Description & Included Accessories This camera realizes the natural and crisp image as you can see the scene in front of you by adopting Auto Focus Full HD (1920 x 1080) camera module. • With 2.4X Optical Zoom and 32X Digital Zoom, - Offers the flexible observation - Provides max.

  • Page 10: Vtc-Ir622Nz922 Dimensions (Unit : Mm / Inches)

    ENVI Series: VTC-IR62NZ922 VTC-IR62NZ922 Dimensions (Unit : mm / inches) 3.1.

  • Page 11: Vtc-Ir622Nz922 Layout

    ENVI Series: VTC-IR62NZ922 4. VTC-IR62NZ922 Layout 4.1. Part Names SUNSHIELD BOLT SUNSHIELD IR LED OSD Setup CONTROL COVER WINDOW BRACKET CAUTION • Extreme care should be taken NOT to scratch the window in front of lens while installing or adjusting the camera.

  • Page 12: Vtc-Ir622Nz922 Installation

    ENVI Series: VTC-IR62NZ922 5. VTC-IR62NZ922 Installation • Make sure power is not applied before installation. 5.1. Mounting The Camera Without using an Easy Bracket 1. Locate the mounting template at the installation position and drill the ceiling or wall if needed.

  • Page 13: Power Supply Connections

    ENVI Series: VTC-IR62NZ922 5.2. Power Supply Connections • Make sure the power is removed before installation. • After all connections are finished properly, follow the order for applying power. a) Plug the network cable into RJ-45 Ethernet Port. If PoE is the unique power, there will be no need to connect Power terminal.

  • Page 14: Operating Instructions

    ENVI Series: VTC-IR62NZ922 6. Operating Instructions 6.1. Using OSD controller Setup menu can be accessed and controlled by OSD control joy stick on the side of camera Ÿ unit. Five commands are available with the joy stick. Ÿ The design of OSD could be different according to the Model.

  • Page 15: Camera Software Installation

    ENVI Series: VTC-IR62NZ922 7. Camera Software Installation 1. Run IP Installer Software from the CD program on a computer that is on the same network as the IP camera. 2. Start IP Installer, by double clicking the icon “IP Installer”...
  • Page 16 ENVI Series: VTC-IR62NZ922 7. After the camera was configured by the program automatically, you will be able to get access a) Right click over the camera information, “ Go Product Homepage ” b) Click over the icon “ Connect Product Homepage ”...
  • Page 17 ENVI Series: VTC-IR62NZ922 On Live View you will be able to see live video from your camera. NOTE: For more information, refer to Section 12. ENVI Admin Menu on page 36 .

  • Page 18: Vtc-Ir622Nz922 Features

    • IP68 protection 9. IP Installer: Introduction IP Installer is a proprietary utility program for Vitek IP products. It enables users of Vitek products to search their network for any Vitek network camera, video server, or network video recorder no matter what IP address it has.

  • Page 19: Installing Ip Installer

    10.1. Installing IP Installer If the program is started from the CD supplied with Vitek products, insert the CD in to CD/DVD tray and check the installation file. If it is download or copied from the Internet or any other media, locate the file from the PC’s hard drive.
  • Page 20 ENVI Series: VTC-IR62NZ922 To continue the installation, click Next. The following window will be displayed for location to install. The default location for installation is C:\Program Files\IP Installer. It is recommended to install in this folder, if you want to change it to a different location, click the Browse button to choose...
  • Page 21 ENVI Series: VTC-IR62NZ922 When the files are done copying, the following window will be shown. Click the Finish button to complete the installation.

  • Page 22: Uninstalling Ip Installer

    ENVI Series: VTC-IR62NZ922 10.2. Uninstalling IP Installer If you want to remove the IP Installer program from your PC, click Start > All Programs > IP Installer > Uninstall. You may be prompt to continue running the uninstall program. Click on the Yes button, then the following window will be shown on the screen.
  • Page 23 ENVI Series: VTC-IR62NZ922 Click on the Uninstall button to start removing the IP Installer program from your computer. The following window will be displayed. Click on the Finish button to close the window...

  • Page 24: Using Ip Installer

    There are no network devices shown, as it is the first time running the program and nothing has been registered. Scan the network and shows the list of all the Vitek products that IP Search Product Installer program found.

  • Page 25: Search Product

    11.2. Search Product Make sure that your Vitek products are powered and connected to the network, and then click the Search Product button. A status window will pop up to show the progress of the search. Wait until it reaches 100%, or you may press the Cancel button to stop the search at any given time and proceed with the results made until that moment.
  • Page 26 ENVI Series: VTC-IR62NZ922 Manual Network Setup Configuring the network parameters of the devices in the list can be started either by highlighting and right clicking mouse button or by clicking Manual IP Setup button on the main Toolbar. When one IP device is selected, the following screen will appear MAC Address MAC address of the selected device is shown.
  • Page 27 Password for the IP device. (Admin Password) (Default password for Vitek products is “root” unless already changed) Select whether the configured contents is to be saved in the Camera memory or not. • Save Configuration: Changed values will be saved in the Camera memory of the device, which means the changes are permanent.

  • Page 28: Automatic Network Setup

    HTTP port number of the IP device for web access to homepage. Password Password for the IP device.(Default password for Vitek products is “root”) If you click Apply to all button after changing just a field of one IP device, the remaining IP devices will have the same value for that parameter.
  • Page 29 (IP Address, Netmask, Default Gateway, DNS1, DNS2) Authentication Password for the IP device. (Default password for Vitek products is “root”) (Admin Password) Select whether the configured contents is to be saved in the Camera memory or not.

  • Page 30: Using Dhcp Server

    ENVI Series: VTC-IR62NZ922 Note: If your network has more than one IP address Zone at the same time, the confirmation window will be displayed as below. You need to choose the one you are going to use for your IP devices.

  • Page 31: Using Pppoe

    ENVI Series: VTC-IR62NZ922 For setting up other fields on the setup window, refer to Section 0 Manual Network Setup on page 25. After filling the fields with appropriate values, click Set button to apply the changed values to IP device. If you don’t want it, click Cancel button to restore the previous values.
  • Page 32 Password for the IP device. (Admin Password) (Default password for Vitek products is “root” unless already changed) Select whether the configured contents is to be saved in the Camera memory or not. • Save Configuration: Changed values will be saved in the Camera memory of the device, which means the changes are permanent.

  • Page 33: Updating Firmware

    IP Installer window. In the above picture, the firmware version of this product is 4.14-01-ds while the latest firmware version available is 4.16-B0-ds-VI as you could see at Vitek’s homepage (http://www.vitekcctv.com/Downloads.asp). If you decide to update the firmware, first create a folder on your computer for the update firmware, than download the latest firmware to that folder.
  • Page 34 ENVI Series: VTC-IR62NZ922 After clicking OK the following window will be displayed. Note: Do not CLOSE window until completed, to avoid permanent damage to the camera. You can also select multiple IP devices at the same time, and have them start firmware updating in a single step.

  • Page 35: Filter Configuration

    Configuration button on the Toolbar, then the following window will show up on the screen. The first six HEX characters are already filled in with 1C:7C:45, which is the MAC prefix for Vitek products. Put a checkmark in MAC Address or IP Range to set the range for searching.

  • Page 36: Live View

    ENVI Series: VTC-IR62NZ922 To start searching with this condition now, click Search Product button on the toolbar. The program will start searching and show the result after a moment. 11.8. Live View Once searching and configuration on IP devices are done, you should make sure that the IP devices are accessible with the new settings.
  • Page 37 ENVI Series: VTC-IR62NZ922 Click Live View on the top right of the window, then ENVI Series Viewer ActiveX program will be started. If you have not installed the ENVI Series Viewer program before, it will ask for a confirmation to install it. Allow it and you will be able to find out whether the configuration by IP Installer program is properly done.

  • Page 38: Envi Admin Menu

    12. ENVI Admin Menu After connecting to a VITEK ENVI Series camera via web browser, you’ll find the web page as shown below. The upper rightmost item of the menu is Admin; this is where you can set up most of the features in the VITEK camera you’re connected to.

  • Page 39: Admin Menu Structure

    ENVI Series: VTC-IR62NZ922 12.2. Admin Menu Structure The following table shows the hierarchy of the Admin menu structure that we’re going to deal with in this manual. 13. Quick Configuration In Quick Configuration, you will be able to set up many of the essential parts of the configuration in a simple manner without going into details.

  • Page 40: Step 4: Ipcctvdns.com

    13.5. Step 5: Recording Configuration Vitek cameras with MicroSD card can be configured for recording options in this section. Refer to Section 18.1 SD / MicroSD Card Configuration on page 78 to see how to set up. 13.6.

  • Page 41: Date & Time

    ENVI Series: VTC-IR62NZ922 As an administrator, you can change the name of the camera/ server, but other values are not allowed to be changed. To change the camera/ server name, enter a new name in the Server Name field. You may use up to 21 alphanumeric or up to 10 Unicode characters. Tab or any other special characters are not allowed.

  • Page 42: Admin Password

    Apply button to put it into effect. Because you have replaced the password with a new one, the existing network connection made with old password to VITEK camera is lost now. You will have to reconnect to the VITEK camera using new password.
  • Page 43 Enable check boxes, other fields in that row are now enabled to select. • VS Module ID: VS Module is a network device that has been registered in the VITEK camera • Camera No.: Among the cameras of the VS Module select one to set up. (between all,1or2)

  • Page 44: Edit

    ENVI Series: VTC-IR62NZ922 • Audio Control: Determine if Audio Control is to be allowed. ( selected models) After finishing the registration process, click Apply button to add the user. 14.5.2. Edit To edit a user account, select Edit. In this part, you can modify the existing user’s name, password, and access permission.

  • Page 45: Network Configuration

    ENVI Series: VTC-IR62NZ922 15. Network Configuration Configuring the network is dependent on how an IP address is assigned in Ethernet-based environment, which is static IP, dynamic IP (DHCP), or PPPoE. 15.1. Static IP Configuration Select Network Configuration under Network configuration For static IP, select Static IP and input IP address, NetMask, Gateway, DNS1, DNS2 and click apply to save settings.

  • Page 46: Dhcp Client Configuration

    Network Configuration, click Apply. And all information needed will be filled in automatically 15.3. PPPoE Configuration PPPoE is used to connect VITEK products to a PPPoE modem provided by the ISP. Since PPPoE needs verification, ID and a password are necessary to access the network. Type in PPPoE user ID and password...

  • Page 47: Network Ports

    In this configuration, you set up the HTTP port for VITEK cameras to communicate with the Client PC. HTTP Port is the network port that is used when a Client PC connects to the VITEK camera Web page. It can be assigned between 80 and 65535.The default value is 80.

  • Page 48: View Network Status

    If Network Status Notify is set to Enable, VITEK cameras network status will be emailed to a specific person in case of the following events: • When it is set to Dynamic IP in the Network Configuration menu, and the VITEK camera has been given a new dynamic IP address and connects to the network.
  • Page 49 In Sender field, enter your email address or other meaningful words that will show the message was sent from the VITEK camera as a notification. Now enter the email addresses of the recipients in the Recipient fields, up to 3 addresses. In the User-Defined Message box, you may enter a message to explain why the message was sent.

  • Page 50: Ip-Cctv Dns Setup

    UPnP port forwarding is made up with finding an available network port, assigning it to a VITEK camera and reporting overall network configuration of a VITEK camera to IP-CCTV DNS server.

  • Page 51: Rtp/Rtsp Setup

    RTSP (Real-Time Streaming Protocol) is a protocol to transfer video and audio streams over the network. Any application supporting Standard RTSP can be used for VITEK cameras. Quick Time Player or VLC program can be used with this; it may not be supported in the environment within a firewall.

  • Page 52: Device Configuration

    ENVI Series: VTC-IR62NZ922 Enable: Start RTSP service Service Disable: Stop RTSP service In normal case, use default port number 554 to connect to RTSP service. If not using port 554, enter the port number you want to use. RTSP Port e.g.) port number 445==>rtsp:// network video server ip...
  • Page 53 ENVI Series: VTC-IR62NZ922 To Add a Privacy zone click New button, a Green-colored box will appear, click on the Green box and it will turn Red, at this point you can resize it by clicking and holding any corner and drag to desired size.
  • Page 54 ENVI Series: VTC-IR62NZ922 Users can add up to 8 Privacy Zones per screen by repeating above steps. If you add more than 8, an error message will display on the screen. To delete a privacy zone, click the zone and click Delete button followed by Apply button.

  • Page 55: Camera & Motion

    However, if network conditions are limited dropped frames in video data is possible, the video quality can be relatively low. With VITEK Cameras, you can set the number of P-frames in the video which is independent still images between I-frames.
  • Page 56 • Audio: (not available on all models) Select if Audio function is to be used (applies to Primary Stream only). VITEK Cameras provides 2-way audio streaming by combining microphone input with video data. Users can listen to the streamed audio through a PC and speakers.

  • Page 57: Camera Configuration

    ENVI Series: VTC-IR62NZ922 Video Format SXGA QCIF NTSC 704 x 480 352 x 240 160 x 112 704 x 576 352 x 288 160 x 144 640 x 480 320 x 240 160 x 112 1.3M Pixel 1280 x 1024...

  • Page 58: Rate Control Mode

    ENVI Series: VTC-IR62NZ922 16.3.1. Rate Control Mode Image Quality: one of 6 quality levels Rate Control Mode: VBR (Variable Bit Rate) (Low Compression / Highest /High Video frames are encoded with selected Normal / Low / Lowest) image quality and GOP. Encoded frames have GOP Structure: Distance between I- different data size from each other.

  • Page 59: Image Quality Setup

    ENVI Series: VTC-IR62NZ922 16.3.2. Image Quality Setup In Image Quality level setup, select “Low Compression” for higher image quality, but it requires higher network bandwidth. Selecting the “Lowest” requires lower network bandwidth, but gives decreased image quality. After configuration is finished, click Apply button to save the setting. If you click Default button, the entire configuration will be reset to the original values.

  • Page 60: Accessing The Camera Setup Menu

    ENVI Series: VTC-IR62NZ922 16.4. Accessing the camera setup menu Camera SETUP menu can be accessed in two ways via web viewer. Most frequent controls are available with the parameters directly in the below table. More complicated settings such as PRIVACY, POINTING ZOOM & SMART MOTION settings are available via ‘ADVANCED CAMERA MENU’...

  • Page 61: Direct Control Menu

    ENVI Series: VTC-IR62NZ922 16.5. Direct Control menu Lens Initializing is strongly recommended at the first stage of setup menu control. ADMIN > Device Configuration > Camera & Motion > Camera Control > Click “Lens Initialize”. SPECIAL Default Descriptions Selects HDTV standards for US(60HZ) or EU(50HZ).
  • Page 62 ENVI Series: VTC-IR62NZ922 SENS-UP is the maximum integration of frames by DSS(Digital Slow Shutter) in low light. SENS-UP AUTO AUTO – SENS-UP is enabled or disabled automatically by the scene brightness. OFF – Disables SENS-UP. Improves the visibility for bright area and dark area by double capture of image with LONG and SHORT exposures.
  • Page 63 ENVI Series: VTC-IR62NZ922 D<-->N Threshold is a threshold level and Gap to switch Day & Night from DAY to NIGHT. High Threshold Low makes camera enter NIGHT mode at lower light level. High makes camera exit NIGHT mode at higher light level.
  • Page 64 ENVI Series: VTC-IR62NZ922 Display Focus ON enables to display the Focus Indicator on Monitor. Indicator Display ID ON enables to display Camera ID on Monitor. Display Title ON enables to display Camera Title on Monitor. IR LED Control(AUTO/OFF) is available with IR LED model only.

  • Page 65: Advanced Camera Osd Menu

    ENVI Series: VTC-IR62NZ922 16.6. Advanced Camera OSD menu Click ‘ADVANCED CAMERA MENU’ bar in CAMERA CONTROL menu to activate the camera OSD menu. Click Up/Down/Left/Right bars to navigate or change the parameters. These options have been pre-configured at the factory for optimal performance.
  • Page 66 ENVI Series: VTC-IR62NZ922 Area to be zoomed in by SMART MOTION ZOOM can be set in MOTION> SMART MOTION ZOOM>ZOOM TARGET. Clicking Up/ Down/ Left/ Right or Enter bars for ZOOM TARGET varies the viewing angle to be zoomed when motion occurs.

  • Page 67: Smart Motion Zoom (Detail Function Description)

    ENVI Series: VTC-IR62NZ922 6. HLC LEVEL (default: 10) Cuts out the highlight area with black a mask and excludes it from compensation. Lower HLC LEVEL the more sensitive it is to bright light. 7. BLC POSITION (default: 10) Improves the visibility of dark objects caused by bright back light.

  • Page 68: Pointing Zoom (Detail Function Description)

    ENVI Series: VTC-IR62NZ922 • H-POINTER (10): Moves MOTION ZOOM area (Yellow window) horizontally. • V-POINTER (10): Moves MOTION ZOOM area (Yellow window) vertically. • O-ZOOM RATIO (OX2.0): Sets the area size to be Optically zoomed when motion occurs in the black window.

  • Page 69: Di (Sensor Input) / Do (Alarm Output)

    ENVI Series: VTC-IR62NZ922 EXAMPLE OF SMART MOTION & POINTING ZOOM 16.9. DI (Sensor Input) / DO (Alarm Output) Select DI/DO from Device Configuration menu to name and configure Sensor Input and Alarm Output. After configuring, select DI Status/DO Control on Device Configuration menu to manually control DO (Alarm Output) and check status of DI (Sensor Input).

  • Page 70: Advanced Configuration

    ENVI Series: VTC-IR62NZ922 17. Advanced Configuration There are two types of advanced service, one is Buffered Service and the other is Periodic Service. In Buffering Service, a series of images are continuously being stored in a buffer memory of the camera/server for a certain period of time. When the camera/server is triggered by an event or schedule, the images or alarm status just before and after the event/schedule are reported to you by email or buffered FTP services.

  • Page 71: Advanced Services

    ENVI Series: VTC-IR62NZ922 17.1. Advanced Services Pre-Alarm buffer size and buffering speed can be defined here. • Pre-Alarm Buffer Size: You can set the buffer size which will store the images before event. The unit is in frame, and each channel can be set with different values. The total number of frames for Pre-Alarm Buffer and Post-Alarm Buffer is limited to 10 frames.

  • Page 72: E-Mail Service Configuration

    ENVI Series: VTC-IR62NZ922 17.1.1. E-mail Service Configuration Email configuration is set up here for Alarm in case any event occurs. Item Description Camera 1~2 Select a channel to be configured for email notification Service Select Enable in order to use this service SMTP server address Enter SMTP server’s address for sending email.
  • Page 73 ENVI Series: VTC-IR62NZ922 E-mail Service Setup for Each Channel For each channel, the following items can be configured for email service: Condition, Post-Alarm Buffer Size, and Post-Alarm speed. The content of text message and display style of DI value can be configured as well.
  • Page 74 ENVI Series: VTC-IR62NZ922 After finishing setup, click Save button to apply. If you don’t want to change, click Back button. Condition, Schedule & Event Configuration If you click on a Condition link, the Advanced Service windows is displayed as shown below.

  • Page 75: Ftp (Buffered) Service Configuration

    ENVI Series: VTC-IR62NZ922 17.1.2. FTP (Buffered) Service Configuration Item Description Camera 1 - Camera Select which channel to set up for FTP (Buffered). Select Enable to use the FTP (Buffered) service. Otherwise select Service Disable. Server Address FTP Server Address.
  • Page 76 ENVI Series: VTC-IR62NZ922 User ID Enter a User ID to log in to FTP server. Password Enter the Password for the user ID to log in to FTP server FTP Control Port Port number for FTP server (Normally 21 is used)

  • Page 77: Ftp (Periodic) Service Configuration

    ENVI Series: VTC-IR62NZ922 Item Description Condition 1 ~ Select a condition for FTP (Buffered) service to be activated. Up to 3 Condition 3 conditions can be set. Pre-Alarm Buffer Size The Buffer size assigned for Pre-Alarm. Check Video buffer Click this link to go to Advanced Services for video buffer setup.
  • Page 78 ENVI Series: VTC-IR62NZ922 Item Description Camera 1 - Camera 2 Select which channel to set up for FTP (Periodic) service Select Enable to use the FTP (Periodic) service. Otherwise select Service Disable. Server Address FTP Server Address. The directory in FTP server where the data will be uploaded.

  • Page 79: Recording Configuration For Cameras With Sd Card

    Some versions of VITEK IP cameras will have a microSD or a full SD Card. Those models can record and playback video from the SD card if installed. Vitek IP cameras can Support cards up to a 32GB. (Only use quality class 10 SD cards) 18.1.
  • Page 80 ENVI Series: VTC-IR62NZ922 If entire SD information is showing “-NONE-” this means SD card is not formatted, in this case click Note: Be sure to turn off the device before installing a SD card. Otherwise, the SD card may become defective. Always check the recommended type of SD card because non-conforming SD cards can cause abnormal behavior of the system.
  • Page 81 ENVI Series: VTC-IR62NZ922 Note: if program is terminated during the “Format” process SD Card might be damaged After formatting is completed the following screen will be displayed Click OK and you will be brought back to the “SD Status & Format screen” click on “Reboot”...

  • Page 82: Recording Configuration With Sd Card

    ENVI Series: VTC-IR62NZ922 18.2. Recording Configuration with SD card Each camera has 2 streams (referred as Camera 1 / Camera 2 (see image below)) which can be configured for recording options in this section. Configuration items include motion detection recording, 24-hour continuous recording, event-driven recording, etc.
  • Page 83 ENVI Series: VTC-IR62NZ922 Select Condition 1and the following window will be display. Enable / Disable...

  • Page 84: Utilities

    ENVI Series: VTC-IR62NZ922 By clicking on Enable you will be able to select your mode (Always, Schedule only etc). in this example we will be selecting “Event Only”. Schedule Under Schedule you can select time and date for motion recording if left blank motion recording will be 24hrs, 7 days a week.

  • Page 85: System Log

    19.1. System Log System log file provides you the information about when and who access’ the contents of VITEK Cameras such as HTTP file or CGI programs. In each line, log data consists of date, time, category, IP address, user ID.

  • Page 86: Reboot

    ENVI Series: VTC-IR62NZ922 19.3. Reboot It is recommended to reboot the system after making changes to the configuration. To reboot, click Reboot on Utilities menu. A screen will display to confirm a system reboot, click ok to continue. Windows Internet Explorer will ask to close the webpage, click Yes.

  • Page 87: System Update

    ENVI Series: VTC-IR62NZ922 19.5. System Update ** Is Highly Recommended to Use the IP Installer Program for This Process ** Once IP devices are searched and shown on the screen as functioning successfully, you can update the firmware of them using the “IP Installer” program. To do that, first check the firmware version...
  • Page 88 ENVI Series: VTC-IR62NZ922 In the above picture, the firmware version of this product is 4.14-01-ds while the latest firmware version available is 4.16-B0-ds-VI as you can see at Vitek’s homepage (http://www.vitekcctv.com/Downloads.asp). If you decide to update the firmware, first create a folder on your computer for the update firmware, than download the latest firmware to that folder.
  • Page 89 ENVI Series: VTC-IR62NZ922 Note: Do not CLOSE window until completed, to avoid permanent damage to the camera.

  • Page 90: Envi Series Viewer

    TCP/IP network. ENVI Series Viewer works with EN-V-R network video software, Vitek Network Video Servers, Network Video Recorders, and Network Cameras to show real-time live video images and enables users to control audio, Relay Output, and PTZ functions.

  • Page 91: Installing And Uninstalling

    21.1. Installing ENVI Series Viewer Connect to the Vitek Camera/Server using Internet Explorer, and click Live View on the main page. Then ENVI Series Viewer will be automatically downloaded and installed. If an Internet connection is not available, it's possible to manually install the program file in advance (from supplied CD) and connect to the Vitek Camera / Server later.
  • Page 92 ENVI Series: VTC-IR62NZ922 Click the Install ActiveX Control, and the pop-up window will be displayed as above. Click the Install button. Click “YES” to allow program to run. After the installation is successfully completed, ENVI Series Viewer window will be displayed.

  • Page 93: Manual Installation

    ENVI Series: VTC-IR62NZ922 21.1.2. Manual Installation When an Internet connection is not available or having some difficulties, you can manually install from the supplied CD using ENVI Series Viewer program file. Execute the downloaded file, and you will see the ENVI Series Viewer Setup Wizard window as shown below.

  • Page 94: Uninstalling Envi Series Viewer

    ENVI Series: VTC-IR62NZ922 21.2. Uninstalling ENVI Series Viewer There are two ways to uninstall ENVI Series Viewer program from your computer. Before uninstalling, close all the Internet Explorer windows. 21.2.1. Uninstalling with Program Menu Click Uninstall and the following window will be shown. Click the Yes button.

  • Page 95: Uninstalling On Control Panel

    ENVI Series: VTC-IR62NZ922 21.2.2. Uninstalling on Control Panel Click Start button on the screen, then select the Control Panel. In the Control Panel window, double-click the Add or Remove Programs icon.
  • Page 96 ENVI Series: VTC-IR62NZ922 You will see the Currently installed programs list. Click ENVI Series / (Smart Viewer) button, You will see the Uninstall or change a program list. Click ENVI Series / (Smart Viewer) button, and then right click Uninstall /Change button. Then, it will start uninstalling the program.

  • Page 97: Starting Envi Series Viewer

    ENVI Series: VTC-IR62NZ922 22. Starting ENVI Series Viewer Once ENVI Series Viewer is installed in your computer, you can start it by connecting to the Vitek Camera / Server using Internet Explorer and select Live View on the main menu.

  • Page 98: Channel Control Bar

    ENVI Series: VTC-IR62NZ922 22.2. Channel Control Bar Displays or hides live view video from channel 1 Displays or hides live view video from channel 2 Displays or hides live view video from ALL channels No Display 22.3. OSD Channels Buttons 22.3.1.

  • Page 99: Saving As Video File

    ENVI Series: VTC-IR62NZ922 22.3.2. Saving as Video File In ENVI Series Viewer, Live video currently displayed can be captured and recorded as a video file in AVI format. Select a live view you want to save, and click RecAvi button on OSD Channel Buttons.

  • Page 100: Manual Recording

    ENVI Series: VTC-IR62NZ922 22.3.3. Manual Recording To manual record from network cameras with built-in local storage (SD Card), live video can be recorded to the SD Card by clicking this button. The recorded video can be viewed by Instant Playback feature of OSD Channel Buttons or by running ENVI Series Player program.

  • Page 101: Extended Features

    ENVI Series: VTC-IR62NZ922 Set the beginning of video data. Instant playback will scan 1 min after this. Se the playback speed. Begin searching data Playback Reverse playback. 1 frame playback 1 frame reverse playback Pause Stop 22.4. Extended Features When you click the right mouse button on the Live View Window, a pop-up menu will appear for extended features as shown below.

  • Page 102: Flip Control

    ENVI Series: VTC-IR62NZ922 22.4.3. Flip Control Flip Control: The horizontal view of the image can be changed using the (mirror) function. The vertical view of the image can be changed using the (flip) function. 23. EN-V-R: Introduction This User's manual explains how to set up EN-V-R software in your PC. EN-V-R is the integrated system software for video security applications, which runs on Microsoft’s Windows-based computers.

  • Page 103: Requirements For Installation

    ENVI Series: VTC-IR62NZ922 ENVI Viewer ENVI Player (HTTP port) ENVI Map Analog ENVI Alarm EN-V-R 24. Requirements for Installation 24.1. EN-V-R Versions EN-V-R is supplied to customers in different versions for each appropriate application. Users will need to choose the right versions for their needs.

  • Page 104: System Requirement For Pc

    ENVI Series: VTC-IR62NZ922 24.2. System Requirement for PC For best quality and performance, your computer needs to meet the minimum requirement as below. 24. Microsoft Windows XP Pro, Windows 7 Pro or higher, Video Card(256MB Ram, 1024x768 or higher) Compression...

  • Page 105: Installing En-V-R

    You will see the below window, then click Next button. The default location for installation is C:\Program Files\Vitek. It is recommended to install in this folder, but if you want to change it to another location, click Browse button to choose a proper path.
  • Page 106 ENVI Series: VTC-IR62NZ922 You will see the progress of copying install files to the hard drive as shown below, once is completed click on NEXT. Click Finish to complete the Installation. After installing EN-V-R program for the first time, it needs to be configured before use, so it automatically...
  • Page 107 ENVI Series: VTC-IR62NZ922 Enter the proper Admin Password. The default password is root. The following screen will be displayed, click OK to continue. Now you will see EN-V-R Configurator window on the screen. For more information about the EN-V-R Configurator program, refer to Section 28. Starting EN-V-R...

  • Page 108: Uninstalling En-V-R

    Then the EN-V-R icon disappears, and you know that EN-V-R is no longer running on your computer. Now you’re ready to start uninstalling. 26.2. Executing Uninstaller To start uninstalling, click Start >All Programs >Vitek>EN-V-R>Uninstall. When the following window appears, click YES button. The progress of uninstalling is displayed.

  • Page 109: Components Of En-V-R Program

    ENVI Series: VTC-IR62NZ922 After all the install files are deleted, the following window will be displayed. Click OK button on the following window to complete the uninstalling. 27. Components of EN-V-R Program EN-V-R consists of three programs, ( EN-V-R Service, EN-V-R Configurator, and EN-V-R Controller ).

  • Page 110: En-V-R System Tray Menu

    ENVI Series: VTC-IR62NZ922 27.4. EN-V-R System Tray Menu After you finish installing EN-V-R, you will find the EN-V-R icon on the system tray, which is located right, bottom part of the Windows desktop. Move the cursor over the icon, and right click. The following pop-up menu will show. You can open EN-V- R Configurator or EN-V-R Controller program from this menu, or you can go to the Home page of the EN- V-R program for live view or playback.
  • Page 111 ENVI Series: VTC-IR62NZ922 You may encounter the security window as below. Click Yes button to continue. Once EN-V-R program starts, a log-in window will be displayed as below. Type in the proper admin password and click the OK button. The default admin / password is root.

  • Page 112: Quick Start Guide

    ENVI Series: VTC-IR62NZ922 29. Quick Start Guide EN-V-R is full-functioning Network Video Recorder software that runs on your PC. When started for the first time after EN-V-R is installed, there is no IP devices connected. To add a camera to the EN-V-R you must register the camera first. Then EN-V-R knows what IP devices they are, how to connect to them, and how to use them.
  • Page 113 ENVI Series: VTC-IR62NZ922 Items Descriptions Main Toolbar Frequently-used menu items are shown on this toolbar. Configuration Menu tree Configurable categories are shown as a menu tree style. Configuration Menu Descriptions and usages of the selected category are displayed. Description Menu items for the selected category are shown.

  • Page 114: Searching For Ip Devices

    ENVI Series: VTC-IR62NZ922 29.2. Searching for IP Devices Click the first button on the Main Toolbar. You are now given a choice to register the IP devices by “search and register or manually”. To make it easy, choose Search and register IP-Device in this stage, and click Next button.

  • Page 115: Registering Ip Devices

    ENVI Series: VTC-IR62NZ922 The searching for IP devices is started. As the detected IP devices are being listed. Wait until searching is finished. If you click Cancel button in the middle of searching, the EN-V-R will retain only the IP devices found until that moment.
  • Page 116 ENVI Series: VTC-IR62NZ922 Click on Save after configuring IP device (camera) Click Apply after registering one or more IP devices (cameras).The image below represents the configurator with multiple IP devices registered.

  • Page 117: Viewing Live Video

    ENVI Series: VTC-IR62NZ922 After clicking Apply, the program will ask you to confirm it. Then click OK EN-V-R service is being stopped momentarily, and then it will start running again. 29.4. Viewing Live Video Once the network and cameras are set up, it is necessary to check if EN-V-R is functioning by viewing the live video from those devices.
  • Page 118 Click Live View on top right part of the window to see the live video from registered IP devices (cameras) If this is the first time you are using Vitek Live View feature, the web browser may ask you to allow installing of an ActiveX program.

  • Page 119: Recording Video

    ENVI Series: VTC-IR62NZ922 29.5. Recording Video The essential feature of EN-V-R is recording the video from IP devices. Before starting the recording, it is required to prepare the hard drive of your PC where EN-V-R program is running. Click Disk Quota on the Menu tree.
  • Page 120 ENVI Series: VTC-IR62NZ922 Set Quota (desired amount of HDD to be use for recording) To set up the recording feature, select an IP device from the Menu tree on the left pane. The device information will be shown on the right pane. Click the button for recording configuration on the sub-menu Toolbar as shown below.
  • Page 121 ENVI Series: VTC-IR62NZ922 The recording feature is already enabled and recording conditions are configured in default settings. In the example shown above, you can see that Camera 1 of Device 0 will record video only when motion is detected. Click OK to use this Recording Conditioned.
  • Page 122 Now that the configuration is done, you need to start the EN-V-R service program. Select Start > All Programs >Vitek>smart NVR>Smart NVR controller. You will find the EN-V-R icon on the system tray, which is located right, bottom part of the Windows desktop.

  • Page 123: Envi Smart Player

    ENVI Series: VTC-IR62NZ922 You can find out from this window that the service is running at that moment. If not, click Start Service button to run. Once EN-V-R service is started, the video sent from the configured camera will be recorded according to the recording condition.

  • Page 124: Installing And Uninstalling

    31.1. Installing Smart Player Connect to the Vitek Camera / Server / NVR on Internet Explorer, and click Player on the main page. If you're using Windows XP Service Pack 2 or later, it may asked you to install ActiveX click the massage bar than click on the Install ActiveX control…...
  • Page 125 ENVI Series: VTC-IR62NZ922 The following window will appear. Click Next. The following window will be displayed. Click Install After installation is successfully completed, the following window will be displayed. Click Finish.

  • Page 126: Uninstalling Smart Player

    Click Uninstall and the following window will be shown. Click the Yes button. Live View & Play Back To live view and play back your cameras, go to Start menu, All Programs, Vitek Folder, Click on Smart NVR Controller, as shown below.
  • Page 127 ENVI Series: VTC-IR62NZ922 Look for icon on right side of taskbar as shown below (windows XP and windows 8 might show it different). Right click icon. The following window will display. Click on Open Smart NVR Controller. Click on Start Service to run the program.
  • Page 128 ENVI Series: VTC-IR62NZ922 Click on Go Home to view Smart Player Home Page Click on Live View The following screen will be display were you can configure your live view. Server Control Bar Allows you to view cameras / servers that are registered in the system. Toggle On/Off...
  • Page 129 ENVI Series: VTC-IR62NZ922 Group Control Bar In order to view video, cameras must be assigned to a group, in this section you create groups with cameras you want to view. Create Group In order to create a group in Group Control Bar, right click on Group, another window will appear then...
  • Page 130 ENVI Series: VTC-IR62NZ922 The following window will be displayed. Type in the group name, check “Circulation” to allow sequencing, input dwell time for “Circulation” and click OK. A new group with the assigned name will be created as shown below.
  • Page 131 ENVI Series: VTC-IR62NZ922 Audio Control Bar Controls Speaker and Mic volume. When audio is available click on Connect and adjust speaker and mic levels, when done click Disconnect. Full/Normal Screen Select full screen as seen below, to return to normal press Esc on your keyboard.
  • Page 132 ENVI Series: VTC-IR62NZ922 Group Circulation Start sequencing between groups.
  • Page 133 ENVI Series: VTC-IR62NZ922 Layout settings You can change the screen layout between 1,2,4, etc. Image in Original Size This allows for digital zoom.
  • Page 134 ENVI Series: VTC-IR62NZ922 Draw Image by Maintaining Aspect Ratio Maintains the aspect ratio of the camera Draw Image by Filling the Screen...
  • Page 135 ENVI Series: VTC-IR62NZ922 Enhanced Draw Mode On/Off. Enhance image for a better reproduction.

  • Page 136: Configuring & Viewing Player

    ENVI Series: VTC-IR62NZ922 About Smart Viewer You can see the status of the Smart Viewer 32. Configuring & Viewing Player From the Home Screen click on Player...

  • Page 137: Main Window View

    ENVI Series: VTC-IR62NZ922 32.1. Main Window View Note: The appearance of Smart Player window may vary depending on version and type of Vitek device you’re using. This user’s manual is based on general display screen. Server Control Allows you to view cameras / servers that are registered in the system.

  • Page 138: Creating A Group

    ENVI Series: VTC-IR62NZ922 32.3. Creating a Group In order to generate a group in Group Control Bar, right click on Group, another window will appear then select New. The following window will be displayed. Type in the group name and click OK.

  • Page 139: Searching Video

    ENVI Series: VTC-IR62NZ922 A new group with the assigned name will be created as shown below. To add a camera to the new group, drag and drop from the server tree to the newly created group. 33. Searching Video Make sure you have recorded video on the calendar (recorded video shows in red).

  • Page 140: Daily Search

    ENVI Series: VTC-IR62NZ922 is executed on the basis of a single camera, the search will be performed only from that camera. For example, if you select a group and start searching; the search from that group will be displayed If you only select “Brian-Camera 1”, the searching will be performed only on the video from that.

  • Page 141: Condition Search Mode

    ENVI Series: VTC-IR62NZ922 33.3. Condition Search Mode In this mode, you can search for video on the basis of combination of 3 different conditions, which are Time, Motion, and Sensor. Initially only Time condition is available for searching, and you need to enter Advance Search mode to utilize Motion and Sensor state if necessary.
  • Page 142 ENVI Series: VTC-IR62NZ922 time), and then click Add Condition button to add to Search Condition. Now select Event checkbox, and choose Camera 1 from Motion, and then click Add Condition button to add to Search Condition. Next, select Event checkbox, choose Sensor 1, and then click Add Condition button to add the Sensor condition to Search Condition.

  • Page 143: Video Playback Controls

    ENVI Series: VTC-IR62NZ922 34. Video Playback Controls Play Reverse Play Forward Pause Stop Back to Previous Frame Go to Next Frame Playback Speed Control Player Path Control (only for condition search mode)

  • Page 144: Extra Features

    Record time is displayed as shown below. 35.3. Backup There are two backup formats IDX and AVI. .IDX Default video file format used by Vitek .AVI Video file format supported by Microsoft Windows When the Backup button is clicked, the following window is displayed as below.
  • Page 145 ENVI Series: VTC-IR62NZ922 Check the camera to backup. For AVI backup, only one camera is Select Camera permitted. For FJP, IDX, multiple backup is allowed. Select the time frame (Start date and time ~ End date and time) to Backup Period backup.

  • Page 146: Snapshot

    ENVI Series: VTC-IR62NZ922 Note: For AVI file backup, only one camera is allowed. For IDX backup, multiple cameras are allowed. 35.4. Snapshot Choose the camera currently being played or paused, click Snapshot button. Then a snapshot file will be saved in a designated path.

  • Page 147: Print

    ENVI Series: VTC-IR62NZ922 35.5. Print Choose the camera currently being played or paused, then click Print button. Then the image of the selected camera will be sent to your default printer. 35.6. Ratio Display You have three options to view videos, which are Original, Ratio, and Stretch.

  • Page 148: En-V-R Configuration

    ENVI Series: VTC-IR62NZ922 36. EN-V-R Configuration 36.1. System, Network Configuration General system and network properties of EN-V-R program can be set up in this section. To start, select System, Network Configuration from the menu list. Items Descriptions System Name Setting Enter the system's name.

  • Page 149: System, Network Configuration - Admin Password

    ENVI Series: VTC-IR62NZ922 Items Descriptions System name Type in a System name. Click this button to apply the entered System Name. Cancel Click this button to discard the configured System name. 36.1.2. System, Network Configuration - Admin password To assign Password for the admin, click System, Network Configuration on the menu tree. Click...

  • Page 150: System, Network Configuration - Http Port

    ENVI Series: VTC-IR62NZ922 Items Descriptions Set Full Access for the user. Anyone can connect to the EN-V-R without Full Access authentication, and be allowed live view, audio, PTZ, playback. Set Limited Access for the user. Only the users with proper permission to Limited Access the camera can access it.

  • Page 151: Ip-Cctv Dns Registration

    Items Descriptions Service Set to use IP CCT DNS or not. DNS Server IP Vitek IP CCTV DNS address already entered. Go Server Directs to Vitek IP CCTV DNS server MAC address of EN-V-R already entered Product Key Product Key of EN-V-R already entered External Port Enter an external HTTP Port to use for IP CCTV DNS service.
  • Page 152 ENVI Series: VTC-IR62NZ922 the NEXT button as shown below. Fill out the requested information as shown below and click on Apply. The following screen will confirm that your Membership has been completed successfully, that click OK. You will be brought back to the main page of the IPCCTVDNS website; in this case you need to Login...
  • Page 153 ENVI Series: VTC-IR62NZ922 with the information previously created. To register your first product, click on Product Registration as shown below. Enter the requested information (The name of your camera, the Mac Address and product Key) as shown below. Note that the Mac Address and the product Key will be available under the Network Configuration>>...
  • Page 154 ENVI Series: VTC-IR62NZ922 A window will pop up confirming that your product has been registered successfully, click on OK. You will be directed to the Product List page where you will be able to see your recent camera registration. By clicking the Detail Information tab you will be allow edit DDNS Host Name...
  • Page 155 ENVI Series: VTC-IR62NZ922 Type in desired host name than click Apply. A window will pop up asking if you really want to apply the new configurations, to continue click OK. A window will pop up confirming that the product information has been modified successfully, click OK.
  • Page 156 ENVI Series: VTC-IR62NZ922 Your camera with the new DDNS Host name will be displayed. Your camera is now registered and ready for use.

  • Page 157: Ip-Device Registration

    ENVI Series: VTC-IR62NZ922 38. IP-Device Registration You will see how to manage IP devices in this section, which includes registering, modifying, and deleting IP devices. To start managing IP devices, select IP-Device, Camera Management from the menu list. Items Descriptions IP-Device Manual Registration Register IP-Devices manually by users.
  • Page 158 ENVI Series: VTC-IR62NZ922 Item Description IP-Device ID Select the IP-Device ID to register. Select the Vendor name of the IP-Device to register. Click the pull-down list, and choose a proper vendor name from the list. Vendor Select the total number of channels (streams) the IP device has. Click the Model pull-down list, and choose proper one from the list.
  • Page 159 Check this box if the information from IP-Device needs to be acquired. from IP-Device Select the VS Module ID. Enter 0 for non-Vitek IP devices. Vitek products VS Module ID can be set to 0 to 15, and default is 0.

  • Page 160: Ip-Device Registration (Automatic)

    ENVI Series: VTC-IR62NZ922 38.2. IP-Device Registration (Automatic) To register an IP-Device by automatic scanning, click IP-Device, Camera Management on the menu tree. Then Click Scan available IP devices and register Items Descriptions This list shows the IP devices found during the scan process. If you need...

  • Page 161: Ip-Device Modification

    ENVI Series: VTC-IR62NZ922 Items Descriptions Descriptions of the image resolution modes in the IP-Device Resolution Description list.(R1, R2, R3, R4, R5, R6, R7, R8, R9, R10) Descriptions of the PTZ numbers in the IP-Device list. PTZ Install Description (P1, P2, P3, P4) IP-Device list IP-Device list to select from.
  • Page 162 (not allowed to modify) Getting Information from (not allowed to modify) IP-Device Select the VS Module ID. Enter 0 for non-Vitek IP devices. Vitek VS Module ID products can be set to 0 to 15, and default is 0. HTTP Port Enter the HTTP Port to use with the IP-Device.

  • Page 163: Ip-Device Deletion

    ENVI Series: VTC-IR62NZ922 Cancel Click this button to discard the changed values. 38.3. IP-Device Deletion To delete a registered IP-Device, click IP-Device, Camera Management on the menu tree in the left pane. Then select an IP device to be deleted from the list. Click Remove IP-Device registration 38.4.

  • Page 164: Configure Camera Name And Information

    ENVI Series: VTC-IR62NZ922 Items Descriptions Camera Information Configure Information of the selected camera. Resolution and Quality Choose the resolution and quality of cameras. Recording Conditions Set up recording conditions. Alarm and Map service settings Configure Alarm and Map service functions.
  • Page 165 ENVI Series: VTC-IR62NZ922 The below image will be display, enter name (F), then click Apply to camera (H), then OK. Items Descriptions A,B,C,D Camera Selection Select one or more cameras for name assignment by clicking buttons. Unselect All Clear the device list which shows the selected cameras.

  • Page 166: Camera Resolution, Quality

    ENVI Series: VTC-IR62NZ922 38.5.2. Camera Resolution, Quality To configure a camera's resolution and video quality, select a camera to configure and click Configure camera resolution and quality The below image will be display, adjust resolution (F), then click Apply to camera (H), then OK...

  • Page 167: Configure Camera Recording Condition

    ENVI Series: VTC-IR62NZ922 Go Home Go to the homepage of the product. Close Close and exit the window. 38.5.3. Configure Camera Recording Condition To configure recording conditions, select a camera to configure, then click Configure camera recording condition The below image is where you adjust the recording parameters.
  • Page 168 ENVI Series: VTC-IR62NZ922 Item Description A,B,C,D Camera Selection Select one or more cameras by clicking buttons. Unselect All Clear the device list which shows the selected cameras. Condition List Define the condition for recording to be started. Condition to use Decide whether to use the defined condition or not.

  • Page 169: Alarm, Event Configuration

    ENVI Series: VTC-IR62NZ922 Event : Here you can select Alarm or Motion (J) After completing your conditions selection click Apply to condition (K) After apply to condition click Apply to camera (L), and then click OK(R) When that screen closes click Apply 38.5.4.
  • Page 170 ENVI Series: VTC-IR62NZ922 Item Description A,B,C,D Camera Selection Select one or more cameras by clicking buttons. Unselect All Clear the device list which shows the selected cameras. Alarm Service Setup Put check marks on alarm types to use. Event Service Setup Put check marks on event types to use.

  • Page 171: User Management

    ENVI Series: VTC-IR62NZ922 38.6. User Management In this section, you will see how to manage user information. To start managing users, select User Management from the menu tree. Items Descriptions User Registration Register new users to the system. User Modification Change the information of existing users.

  • Page 172: User Registration

    ENVI Series: VTC-IR62NZ922 38.6.1. User Registration To register a new user, click the 1'st button on the tool bar in the sub-menu toolbar. Items Descriptions User ID Enter a new User ID to register. Password Enter the Password for the new user.

  • Page 173: User Modification

    ENVI Series: VTC-IR62NZ922 38.6.2. User Modification To modify a user's information, select the users name than click the second button on the submenu toolbar. The User Registration window will come up on the screen, make the necessary changes and click OK .

  • Page 174: Disk Quota Modification And Deletion

    ENVI Series: VTC-IR62NZ922 38.6.5. Disk Quota Modification and Deletion When EN-V-R program is installed, all local drives are assigned as recording devices. To modify the disk quota for recording, click Disk Quota on the menu list, and select the drive to be modified.

  • Page 175: Disk Mode Change

    ENVI Series: VTC-IR62NZ922 38.6.6. Disk Mode Change To modify the disk circulation style, click Disk Setup, and then Disk Mode on the menu tree. Items Descriptions Disk Circulation Setup Configure disk circulation type. Disk Usage Report Setup Configure email address for reporting.
  • Page 176 ENVI Series: VTC-IR62NZ922 Click the Disk Circulation in the list. The following window will be displayed. Item Description Use circulation Select this if disk circulation will be used. Not use circulation Select this if disk circulation will not be used.

  • Page 177: Utilities

    ENVI Series: VTC-IR62NZ922 38.7. Utilities Select Utilities from the menu tree. You can perform two functions in Utilities, one is Email Account Configuration and the other is About Program. Items Descriptions Email Account Configure email account. About Program Display the information of EN-V-R program.

  • Page 178: Email Account Configuration

    ENVI Series: VTC-IR62NZ922 38.7.1. Email account Configuration Once an email account is registered here, you can receive email notification from the EN-V-R program upon certain events. To configure an email accounts, click Utilities on the menu tree. Click Configure email account for mail service...

  • Page 179: About Program

    Click this button to close the Window. 39. Using EN-V-R Controller To open EN-V-R controller, click Start >All Programs>Vitek>SMART NVR Controller. Smart NRV controller will be on the lower right part of the system tray. Then right click the icon a sub-...

  • Page 180: Connecting To En-V-R

    ENVI Series: VTC-IR62NZ922 The following window will open Items Descriptions Current Service State Shows whether EN-V-R Service is running or stopped. Start Service Click this button to start EN-V-R Service when it’s stopped. Stop Service Click this button to stop EN-V-R Service when it’s running.
  • Page 181 ENVI Series: VTC-IR62NZ922 37. In Internet Explorer, enter the IP address of the computer that EN-V-R is running on. 38. In case that the HTTP port for EN-V-R is not 80 (default), the port number should be entered together with the IP address. (the example below assumes HTTP port of 7777) After you successfully connecting to the EN-V-R homepage, you will see the following window.

  • Page 182: Pc Without En-V-R

    ENVI Series: VTC-IR62NZ922 40.2. PC without EN-V-R 39. If your PC doesn’t have EN-V-R program installed, type in the IP address of the PC where EN-V-R is running. Note: Refer to Section 20 ENVI Series Viewer on page 89 for details on how to use ENVI Viewer program.

  • Page 183: Specifications

    Detailed Specifications VTC-IR62NZ922 1/2.9” Sony® CMOS Sensor 2.1 MegaPixel (1080p / 720p) Resolution H.264 / MJPEG Dual Streaming Video Encoding Ethernet (RJ45) Male & CVBS (BNC) Video Output 30fps max Frame Rate More than 50 dB (AGC Off) 6 High Power 850nm IR LEDs IR Illuminators 300’...

  • Page 184: Limited Product Warranty

    VITEK products carry a three (3) year limited warranty. VITEK warrants to the purchaser that products manufactured by VITEK are free of any rightful claim of infringement or the like, and when used in the manner intended, will be free of defects in materials and workmanship for a period of three (3) years, or as otherwise stated above, from the date of purchase by the end user.
  • Page 185 Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. 28492 Constellation Road ValenCia, Ca 91355 WWW.ViteKCCtV.CoM | 888-ViteK-70 Version 1.0 Sept 2014...

This manual is also suitable for:

Vtc-mv2nz

Table of Contents
