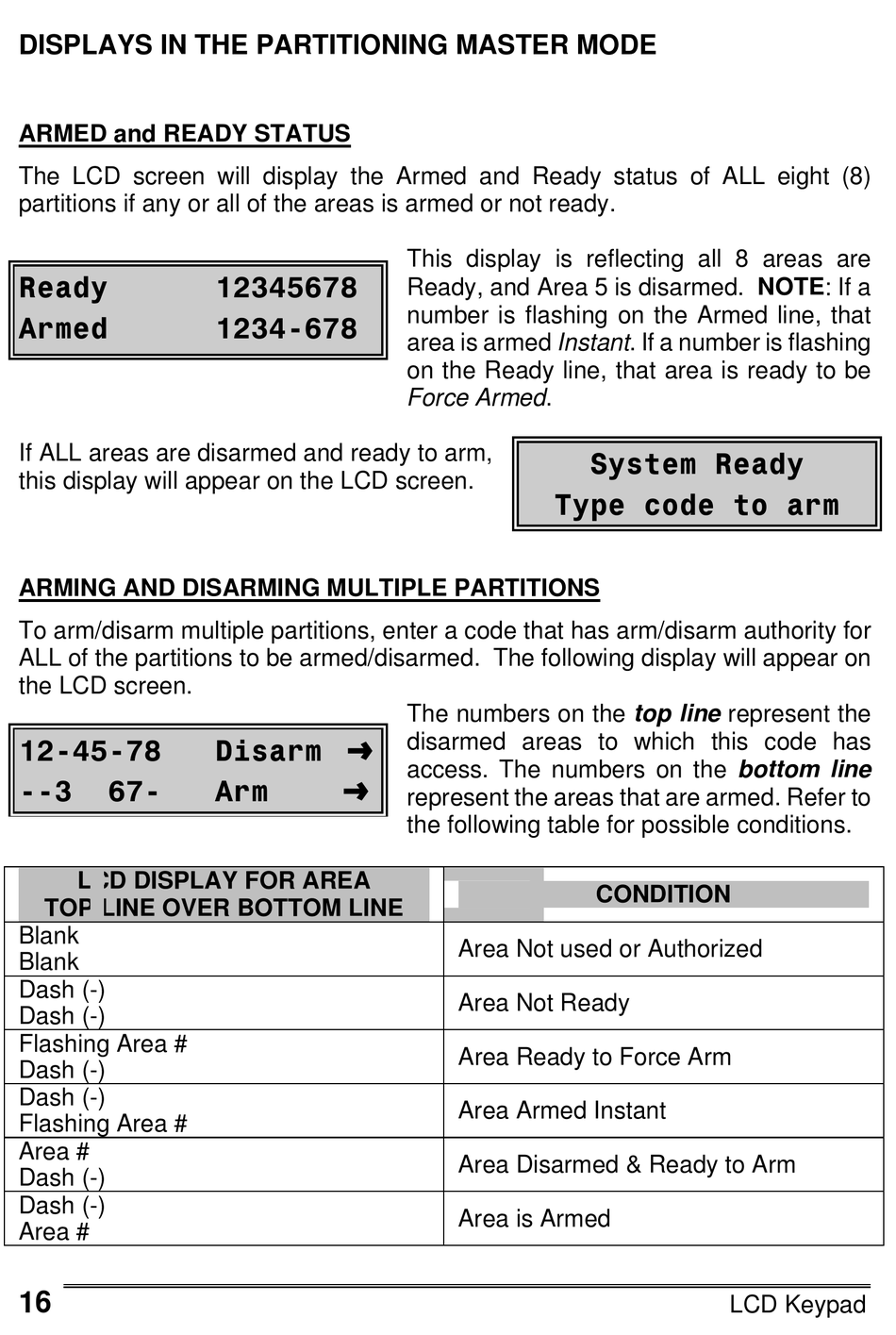

DISPLAYS IN THE PARTITIONING MASTER MODE

ARMED and READY STATUS
The LCD screen will display the Armed and Ready status of ALL eight (8)
partitions if any or all of the areas is armed or not ready.
Ready
Armed
If ALL areas are disarmed and ready to arm,
this display will appear on the LCD screen.
ARMING AND DISARMING MULTIPLE PARTITIONS
To arm/disarm multiple partitions, enter a code that has arm/disarm authority for
ALL of the partitions to be armed/disarmed. The following display will appear on
the LCD screen.
12-45-78
--3 67-
LCD DISPLAY FOR AREA
TOP LINE OVER BOTTOM LINE
Blank
Blank
Dash (-)
Dash (-)
Flashing Area #
Dash (-)
Dash (-)
Flashing Area #
Area #
Dash (-)
Dash (-)
Area #
16
12345678
1234-678
Disarm º
º
Arm
This display is reflecting all 8 areas are
Ready, and Area 5 is disarmed. NOTE: If a
number is flashing on the Armed line, that
area is armed Instant. If a number is flashing
on the Ready line, that area is ready to be
Force Armed.
Type code to arm
The numbers on the top line represent the
disarmed areas to which this code has
access. The numbers on the bottom line
represent the areas that are armed. Refer to
the following table for possible conditions.
Area Not used or Authorized
Area Not Ready
Area Ready to Force Arm
Area Armed Instant
Area Disarmed & Ready to Arm
Area is Armed
System Ready
CONDITION
