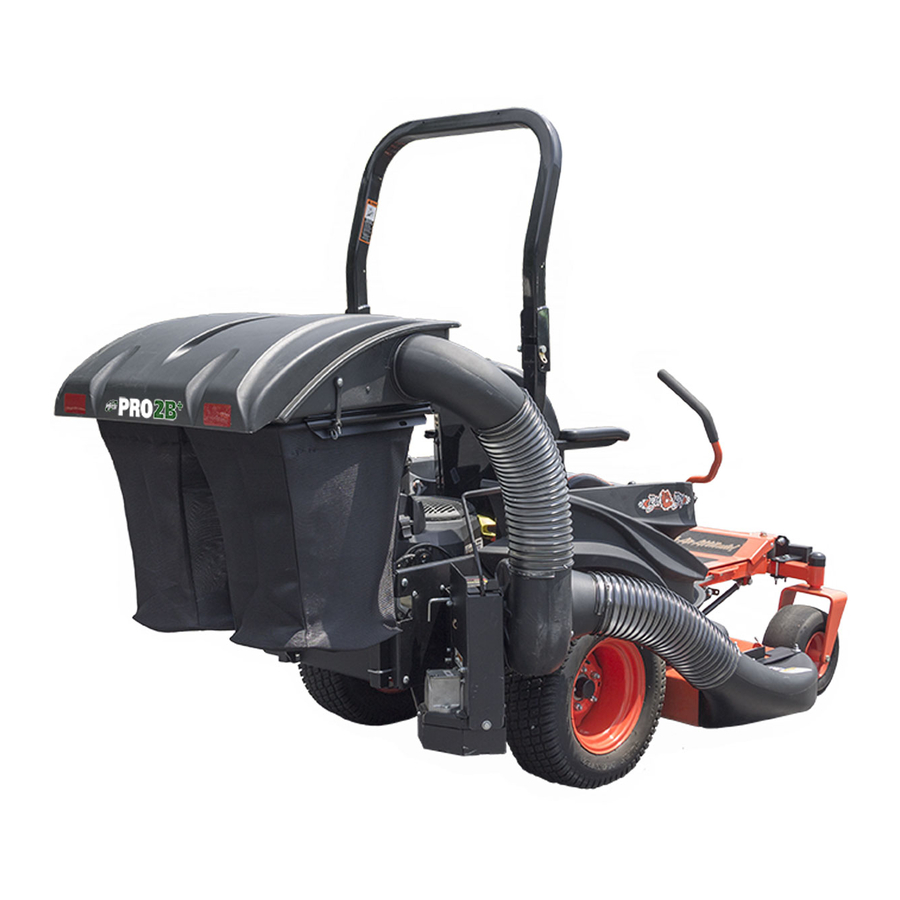

Peco Pro2B+ 37120906 Operator's Manual

Commercial pto - grass collection system
Hide thumbs Also See for Pro2B+ 37120906:
Table of Contents

Advertisement

Quick Links

P P P P P P
P P
P
P P
PECO
PECO
PECO
PECO
PECO
Freedom Z
48" & 52" DECKS
MODEL YEAR:
2010-NEWER
MANUAL PART#: Q0531
Commercial PTO - GRASS
R
R R
COLLECTION SYSTEM
Model# 37120905 & 37120906
OPERATOR'S MANUAL
ASSEMBLY
OPERATION
MAINTENANCE
Rev: 1.0 - June 2018

Advertisement

Table of Contents
loading

Related Manuals for Peco Pro2B+ 37120906

Summary of Contents for Peco Pro2B+ 37120906

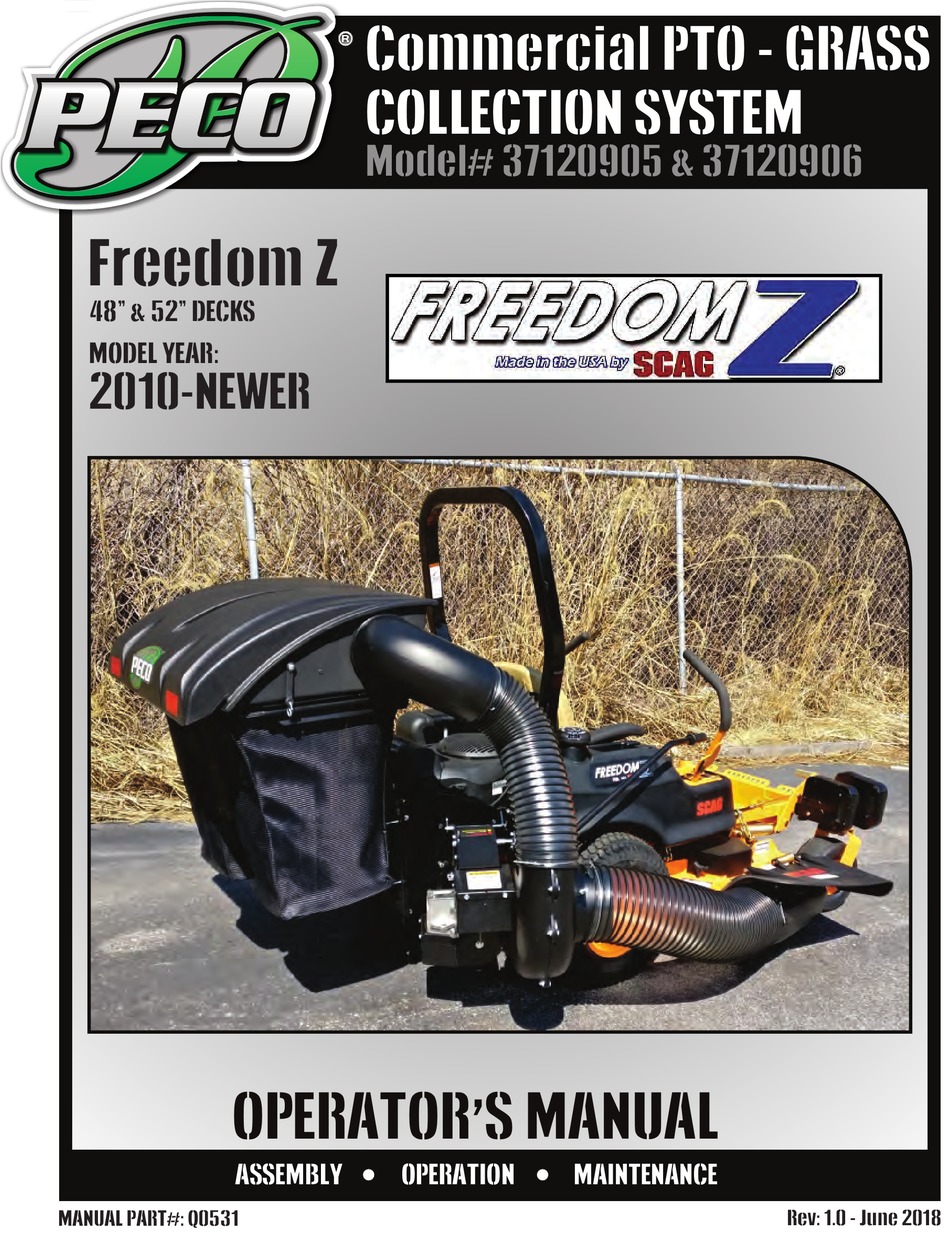

  • Page 1 P P P P P P Commercial PTO - GRASS PECO PECO PECO PECO PECO COLLECTION SYSTEM Model# 37120905 & 37120906 Freedom Z 48” & 52” DECKS MODEL YEAR: 2010-NEWER OPERATOR’S MANUAL ASSEMBLY OPERATION MAINTENANCE Rev: 1.0 - June 2018...

  • Page 2: Table Of Contents

    GRASS COLLECTION SYSTEM TABLE OF CONTENTS SECTION PAGE SECTION PAGE Safety - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2 Blower Cone Installation - - - - - - - - - - - - - - - - - - - 15 Safety Alert Symbols - - - - - - - - - - - - - - - - - - - - - - 3 Boot Kit Installation - - - - - - - - - - - - - - - - - - - - - - - -16...

  • Page 3: Safety Alert Symbols

    SAFETY WARNING! NEVER operate the mower unless the discharge guard and either the deflector assembly or the vacuum collector adapter are fastened securely in place. WARNING! Do not work around the mower deck boot or the blower area until you are certain that the mower blades and the blower impeller have stopped rotating.

  • Page 4: Warranty

    1. NO SERVICE CENTER WARRANTY The selling Service Center makes no warranty on his own on any item warranted by New PECO, Inc. unless he delivers to purchaser a separate written warranty certificate specifically warranting the item. The dealer has no authority to make any representation or promise on behalf of PECO or to modify the terms of this warranty in any way.

  • Page 5: Introduction And Description

    Section I - INTRODUCTION AND DESCRIPTION Introduction Description We are pleased to have you as a PECO customer. Your The grass collection system is designed for turf collection system has been designed to give you a low maintenance where there is a need to collect the grass maintenance, simple, and effective way to collect the clippings as the mower cuts the turf.

  • Page 6: Preparation Of Mower

    Section II - INSTALLATION FOR USE The engine pulley assembly must be installed using an Preparation Of Mower arbor press or equivalent. During installation, opposite bearing inner race must be supported or bearing NOTE: The mower deck PTO belt must be removed damage may occur.

  • Page 7: Right & Left Lower Frame Plate Installation

    Right and Left Lower Frame Plate Rear Lower Frame Plate Installation Installation Fasten the top portion of the Rear Lower Frame Plate P#(B0728) to the Left and Right Lower Frame Plate Fasten the Right Lower Frame Plate P#(B0730) to the using (2) 3/8”-16 x 1”...

  • Page 8: Lower Mount Tube Installation

    Lower Mount Tube Installation Secure the (2) Lower Mount Tubes P#(B0752) to the Rear Lower Frame plate using (2) 5/16”-18 U-Bolts P#(K1098) and (4) 5/16”-18 Nylon Flange Lock Nuts P#(K2516) PER TUBE. Refer to Figure A. Figure A Lower Mount Tube 5/16”-18 Lock Nut...

  • Page 9: Hinge Kit Assy Installation

    Hinge Kit Assembly Installation PTO Mount Plate Component Installation Assemble the Hinge Kit using (1) Latch Plate P#(B0884), (1) 5/16”-18 x 1-1/4” HHCS P#(K1156), (1) 5/16”-18 Ny- Secure the left PTO mount plate P#(B0734) to the Right Flange Lock Nut P#(K2516), (3) 5/16” Flat Washers Lower Frame Plate using (2) 3/8”-16 x 1”...
  • Page 10 PTO Mount Plate Component Installation Continued... Secure the PTO Stop Plate P#(B0736) to the Left and Right PTO Mount Plates using (4) 1/4”-20 x 3/4” HHCS P#(K1222) and (4) 1/4”-20 Nylon Flange Lock Nuts P#(K2014). With the stop plate secured, tighten all PTO mount plate component hardware at this time.

  • Page 11: Pto Assy & Handle Assy Installation

    PTO Assembly & Handle Assembly Installation To mount the PTO Assembly, insert the Pivot Rod on the PTO Assembly P#(A0623) into the mounting slots located on the Left & Right PTO Mount Plates (Figure A). Tilt the PTO Assembly upward and insert the PTO Mount Pin P#(B0274) through the hole in the top of the Right PTO Mount Plate Assembly.

  • Page 12: Belt Installation & Adjustment

    Figure D Belt Installation and Adjustment Loosen The Adjustment Bolt Remove (3) 1/4”-20 x 1/2” HHSTS P#(K0353) from the gearbox pulley guard located on the bottom of the PTO assembly (Refer to Figure A). Figure A Slide Gear Box Towards The Engine Pulley Connect the belt A55K P#(M0248) from the engine pulley to the lower gear box pulley (Figure E).

  • Page 13: Top Assy To Upper Frame Assy Installation

    Top Assembly To Upper Frame Assembly Installation Align the Top Assembly Pivot Holes to the Upper Frame Assembly. See Figure A below. Before fastening, pull Rubber Dust Guard outward to seal against Upper Frame Assembly (towards the mower’s operator seat). Fasten the Top Assembly to the Upper Frame Assembly using (2) 5/16”-18 x 2-1/2”...

  • Page 14: Bag Assembly

    Bag Assembly First, take one of the Bag Ring Split Ends and insert it through the Bag Seam Opening. Next, rotate the Bag around the Bag Ring (1) full turn (360 degrees) until the Bag Ring Split Ends and the Bag Seam Opening are positioned on the same side.

  • Page 15: Blower Cone Installation

    Blower Cone Installation Once the (2) bolts are tight, tighten the Jam Nuts against Thread (1) 5/16”-18 Jam Nut P#(K0120) onto each end the threaded boss as shown in Figure C. of (2) 5/16”-18 x 2-1/2” HHCS P#(K0125) as shown in Figure A.

  • Page 16: Boot Kit Installation

    Boot Kit Installation Secure the Boot Plate (Item#2) to the Aluminum Boot (Item#1) using (2) Spacer Bushings (Item#3), (2) 3/8”-16 x 1- 1/4” Carriage Bolts (Item#4) and (2) 3/8”-16 Ny-Flange Locknuts (Item#5). Insert the bolts from the inside so that the threads are on top of the boot.

  • Page 17: Length Of Hose Adjustment

    Length Of Hose Adjustment Lower Hose To Blower Cone Installation The hoses in the following steps must be cut to fit your machine. Do not cut the hoses until you have tried to fit Slide a Hose Clamp P#(J0060) over both ends of the them on your machine.

  • Page 18: Impeller Blade Removal/Replacement

    Impeller Blade Removal/Replacement To Remove: First remove the 5/16”-24 x 1” HHCS P#(K0428) (#1), Taper Lock Bushing Washer P#(K0284) (#3), (2) 5/16 Flat Wahers P#(K0042) and Spacer Bushing P#(S0159) (#4) from the Taper-Lock Bushing P#(S0157) (#5). Next remove the (2) 1/4”-20 x 1” HHCS (#2) and place them into the threaded holes of the Taper-Lock Bushing (#5).

  • Page 19: Weight Kit Installation

    Dual Weight Kit Installation / Single Caster To Install Weight Bracket Step 1 - Position (#2) Base Under Caster Tubing w/ Opening Towards Caster Fork. Step 2 - Place (#5) Clamp Insert On Top Of Caster Tubing Above (#2) Base Step 3 - Position (#3) Clamp On Top Of (#5) Clamp Insert w/ Opening Towards Caster Fork.

  • Page 20: Weight Kit Installation

    Weight Kit Installation / Left Caster To Install Weight Bracket Step 1 - Position (#2) Base Under Caster Tubing w/ Opening Towards Caster Fork. Step 2 - Place (#5) Clamp Insert On Top Of Caster Tubing Above (#2) Base Step 3 - Position (#3) Clamp On Top Of (#5) Clamp Insert w/ Opening Towards Caster Fork.
  • Page 21 A1841_01 PTO Arm Assembly...
  • Page 22 A1941_01 PTO Base Assembly Exploded Parts View...
  • Page 23 A1941_01 PTO Base Assembly Exploded Parts List...
  • Page 24 A0623 PTO Assembly w/ Small Pulley Guard Exploded Parts View...

  • Page 25: Exploded View & Parts List

    A2101 Top Assembly Exploded Parts View Item # Part # Desc. Qty. V2000 Pro 2 Bagger Top / Gen. 2 V2001 Screen J4009 Short Rubber Strap w/ S-Hook K1030 1/4"-20 x 1-1/4" Carriage Bolt K0037 Flat Washer / 1/4" (.75 OD x .312 ID x .060 T) K1128 1/4"-20 Nyloc Nut K0062 Fender Washer / .230 ID x 1.500 OD / Zinc K0114 Black Plastic Rivet...

  • Page 28: Safety Decals

    SAFETY DECALS To promote safe operation, New PECO, Inc. supplies safety decals on all products manufactured. Damage can occur to safety decals either through shipment, use or reconditioning. Contact your local Service Center for replacement decals. P P P Part# R0022...

  • Page 29: Operating Instructions

    SECTION III OPERATING INSTRUCTIONS General Safety Disengagement Of The PTO Assembly Only qualified people familiar with this operator’s manual A. To disengage the PTO assembly, move Bagger PTO and the mower’s operator’s manual should operate this switch to the off position. machine.

  • Page 30: Lubrication

    If for any reason your Service Center 4. Check belt for proper tension. is unable to service your collection system or supply replacement parts, contact New PECO, Inc. and include the following information on the chart below. DOCUMENT THE FOLLOWING INFORMATION FOR FUTURE REFERENCE...

  • Page 32: Troubleshooting

    Troubleshooting 2017 (v1.0) Collection System Performance Problem Possible Cause Corrective Action — Cutting blades are bent or — Install new cutting blade unbalanced — Loose blower pulley or pulley Abnormal Vibration — Tighten the pulley assembly — Contact dealer to replace —...

  • Page 33: Notes

    Notes...
  • Page 34 P P P PECO PECO PECO PECO PECO New PECO, Inc. 10 Walden Dr | Arden, North Carolina 28704 Phone: 1-800-438-5823 | 828-684-1234 Fax: 828-684-0858 Email: peco@lawnvac.com Website: www.lawnvac.com...
