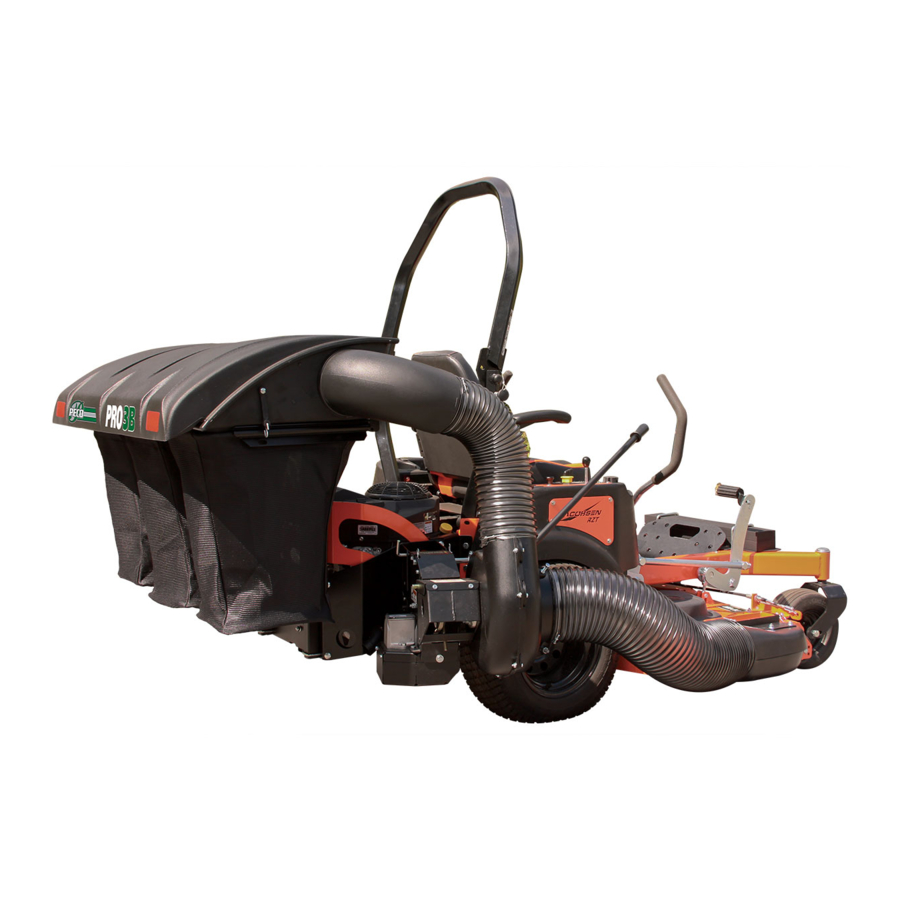

- Page 1 P P P PRO 3 BAGGER PECO PECO PECO PECO PECO DECK DRIVE GRASS COLLECTION SYSTEM DESIGNED FOR EXMARK LAZER Z 48” AND 52” DECKS MODEL: 35031503 - 48” DECK MODEL: 35031504 - 52” DECK OPERATOR’S MANUAL ASSEMBLY OPERATION MAINTENANCE MANUAL #: Q0400 $10.00...
-
Page 2: Table Of Contents
PECO GRASS COLLECTION SYSTEM TABLE OF CONTENTS SECTION PAGE SECTION PAGE Safety - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2... -
Page 3: Safety Alert Symbols
SAFETY WARNING! NEVER operate the unit unless the discharge guard and either the deflector assembly or the vacuum collector adapter are fastened securely in place. WARNING! Do not work around the mower deck boot or the blower area until you are certain that the mower blades and the blower impeller have stopped rotating. -
Page 4: Warranty
PECO elects, without charge if the defect appears within 90 days from the date of installation of such part or before the expiration of the original warranty period, whichever is later. -
Page 5: Introduction And Description
INTRODUCTION AND DESCRIPTION 1-1 Introduction Rotating The Donaldson Air Cleaner We are pleased to have you as a PECO customer. Your Note: If equipped with a Donaldson air cleaner, unit collection system has been designed to give you a low... -
Page 6: Lower Main Frame Leg Installation
2-2 Lower Main Frame Leg Installation 2-3 Outer Engine Mount Tube Cont... Assembly Installation Remove the lower 4 existing bolts from the rear heat From the rear of the mower, align each lower main frame guard as shown in Figure 2-3a. Align the holes of the leg, P#(B0528 Right) and P#(B0529 Left), to the lower outer engine mount tube assembly P#(A0605) to the ROPS mounting holes and to the rear bumper slot holes. -
Page 7: Exhaust Diverter Installation
2-4 Lower Mount Clamp Bracket 2-6 Exhaust Deflector Plate Installation Cont... Installation Inside View Figure 2-4a An exhaust deflector plate is required to prevent exhaust diverter from touching the collection bags. Fasten the exhaust deflector plate P#(C0061) to the bumper on the left rear side of the mower using the existing hex bolt (step 2-2a, page 5) used to mount lower main frame leg. -
Page 8: Top Assy To Upper Frame Assy Installation
Top Assembly 2-7 Exhaust Deflector Plate Figure 2-8a Installation Cont... Figure 2-7b Upper Frame Assembly Upper Frame Pivot Point Assembly Figure 2-8b. Outer Engine Mount Tube Top Assembly Here Assembly (1) 5/16”-18 x 3/4” HHCS (1) 5/16”-18 Nyloc Nut (1) Fender Washer Figure 2-7c Per Side Clevis Pin... -
Page 9: Deck Drive Assembly Installation
The deck drive assembly P#(A1055) will mount to the 2-9 Deck Pulley Installation Cont... flanges on the discharge side of the mower deck where Figure 2-9a the grass deflector was removed in Section 2-9. The mounting brackets on the deck drive assembly slide down onto the existing brackets that held the grass deflector on the mower deck. -
Page 10: Belt Installation
2-10 Deck Drive Assembly Installation 2-11 Belt Installation Cont... NOTE: 48” DECK USES BELT P#(M0251) PTO Deck Drive Bracket NOTE: 52” DECK USES BELT P#(M0306) Figure 2-10c Wrap the belt around the top deck pulley (A1057) previously installed in Section 2-10. Wrap the other end of the belt around the deck drive pulley P#(A1055) installed in Section 2-9. -
Page 11: Pulley Guard Installation
2-11 Belt Installation Cont... Pulley Guard Tab Figure 2-12a Proper Tension: 1” Of Deflection for 10-10lbs of Pressure Applied To Center of belt Figure 2-11c Deck Drive Assembly Slot Pulley Guard Flange Figure 2-12b Figure 2-11d Mower Deck U-bolt Tension Adjustment Knob Engine Pulley Guard Figure 2-12c 2-12 Pulley Guard Installation... -
Page 12: Inlet And Hose Installation
Installed Pulley Guard 2-12 Pulley Guard Installation Cont... Figure 2-11g Figure 2-12d Pulley Guard Clamp Pulley Guard Clamp 2-13 Inlet and Hose Installation Figure 2-12e With the top assembly P#(A0551) in the upright position, insert the inlet P#(V1054) into the right hand hole in the top assembly as shown in Figure 2-13a. -
Page 13: Installation/Removal Of Collection Bags
2-14 Installation/Removal Of Figure 2-14b Plastic Top Collection Bags To install the bag onto the bag ring, first make sure the bag ring end caps are fastened to the bag ring. Place the seam openings of the bag onto the bag ring openings and turn the bag until the slot bracket in the bag ring is protruding from the opening in the bag (Figure 2-14a). -
Page 14: Front Weight Assembly Installation
2-15 Front Weight Assembly Installation Place (1) weight bracket P#(B0026) over each front caster. Fasten each weight bracket to the front caster loosely, by using (1) 3/8”-16 x 4” U-bolt P#(K1419) and (2) 3/8”-16 nyloc nuts P#(K1216) per bracket. When installing the weight you should have another person help position the weight. -
Page 15: Exploded Parts Views And Assemblies
Exploded View Of The A0551 - Bagger Assembly (2) K1144 - 5/16”-18 x 1” CARRIAGE BOLT (6) K1142 - 5/16”-18 x 3/4” CARRIAGE BOLT (4) K1010 - 1/4”-20 x 5/8” CARRIAGE BOLT (1) V0002 - PLASTIC TOP (2) K1126 - 1/4”-20 (1 LEFT, 1 RIGHT) FLANGE NUT B0237 - PIVOT... - Page 21 MODEL#: 35031503 MOWER NAME: EXMARK MOWER MODEL: NEW GENERATION LAZER Z MOWER DECK SIZE: 48” VAC NAME: 15 CUBIC FOOT PRO BAGGER FOR YEAR: 2010 DECK DRIVE REVISED: MANUAL: #Q0400 A1753 UNIT ASSEMBLY J1000 HB0406 HOSE CLAMPS HARDWARE 7” x 45” V1054 6”...
- Page 22 MODEL#: 35031504 MOWER NAME: EXMARK MOWER MODEL: NEW GENERATION LAZER Z MOWER DECK SIZE: 52” VAC NAME: 15 CUBIC FOOT PRO BAGGER FOR YEAR: 2010 DECK DRIVE REVISED: MANUAL: #Q0400 A1754 UNIT ASSEMBLY J1000 HB0406 HOSE CLAMPS HARDWARE 7” x 45” V1054 6”...
-
Page 23: Operating Instructions
* Remember that horsepower requirements will vary with PECO parts. the mowing conditions such as type and height of turf grass, moisture content, amount of leaves, whether the After Each Use: terrain is flat or sloped, etc. -
Page 24: Parts And Service
SECTION V PARTS AND SERVICE 5-1 Parts And Service Information PeCo collection system owners should record the name and telephone number of their Service Center. Your Service Center will be happy to supply replacement parts, accessories, and do any service or repairs to your collection system. -
Page 25: Safety Decals
SAFETY DECALS To promote safe operation, PECO supplies safety decals on all products manufactured. Damage can occur to safety decals either through shipment, use or reconditioning. Contact your local Service Center for replacement decals. P P P PECO PECO PECO... -
Page 27: Notes
NOTES... - Page 28 P P P PECO PECO PECO PECO PECO 100 AIRPORT ROAD ARDEN, NORTH CAROLINA 28704 (800) 438-5823 OR (828) 684-1234 FAX: (828) 684-0858 EMAIL: peco@lawnvac.com WEBSITE: www.lawnvac.com...
