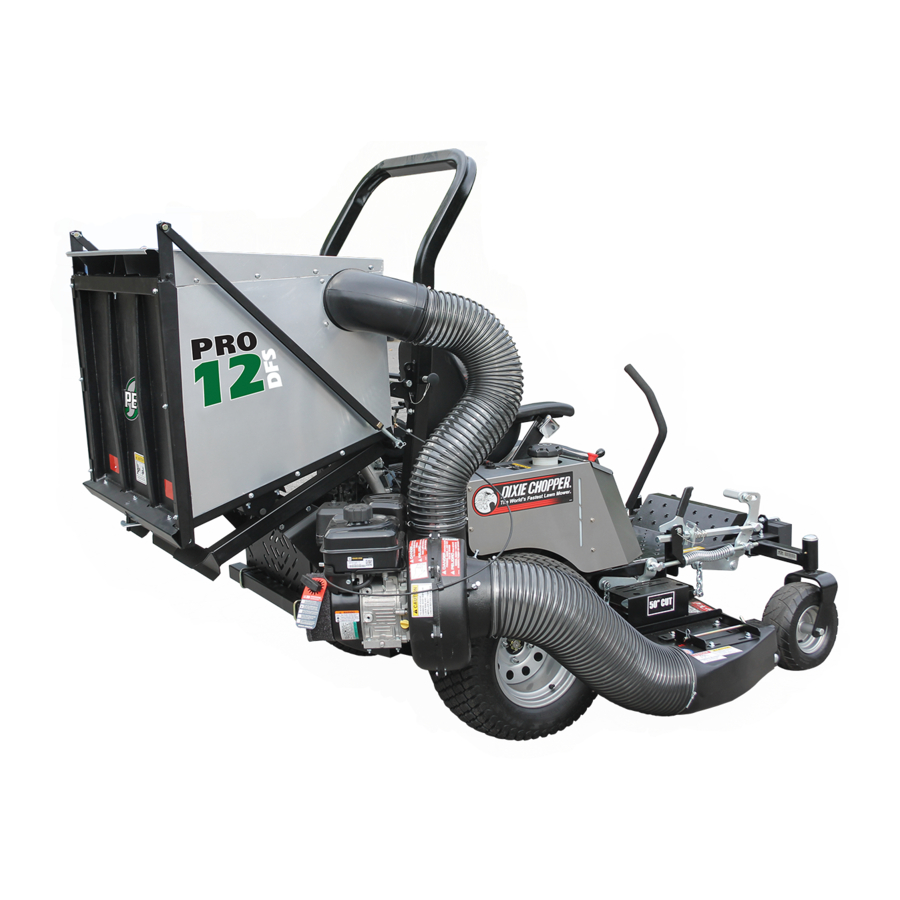

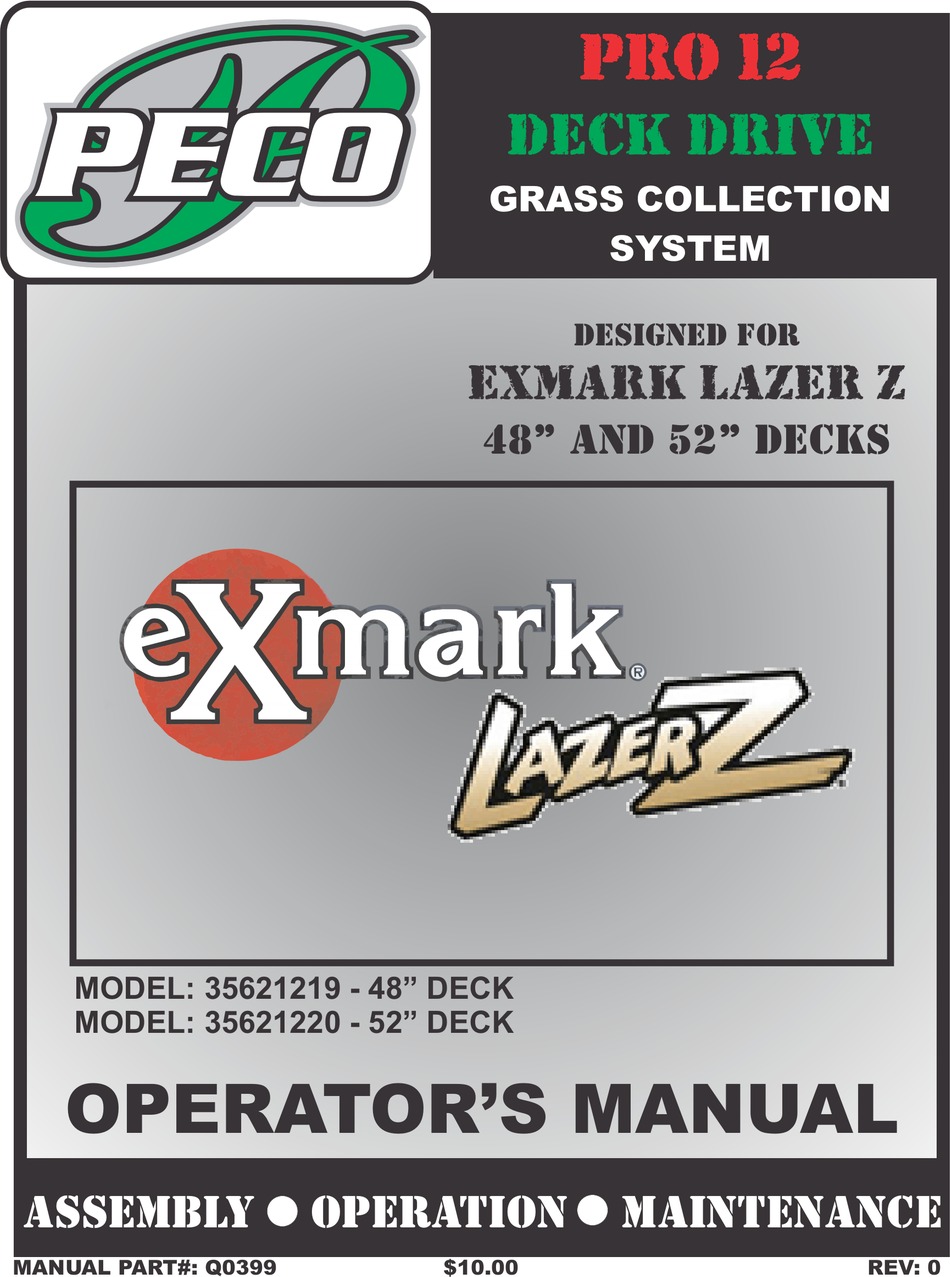

- Page 1 P P P PRO 12 PECO PECO PECO PECO PECO DECK DRIVE GRASS COLLECTION SYSTEM DESIGNED FOR EXMARK LAZER Z 48” AND 52” DECKS MODEL: 35621219 - 48” DECK MODEL: 35621220 - 52” DECK OPERATOR’S MANUAL ASSEMBLY OPERATION MAINTENANCE MANUAL PART#: Q0399 $10.00...
-
Page 2: Table Of Contents
PECO GRASS COLLECTION SYSTEM TABLE OF CONTENTS SECTION PAGE SECTION PAGE Safety - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2... -
Page 3: Safety Alert Symbols
SAFETY WARNING! NEVER operate the unit unless the discharge guard and either the deflector assembly or the vacuum collector adapter are fastened securely in place. WARNING! Do not work around the mower deck boot or the blower area until you are certain that the mower blades and the blower impeller have stopped rotating. -
Page 4: Warranty
PECO elects, without charge if the defect appears within 90 days from the date of installation of such part or before the expiration of the original warranty period, whichever is later. -
Page 5: Introduction And Description
INTRODUCTION AND DESCRIPTION 1-1 Introduction Rotating The Donaldson Air Cleaner We are pleased to have you as a PECO customer. Your Note: If equipped with a Donaldson air cleaner, unit collection system has been designed to give you a low... -
Page 6: Lower Main Frame Leg Installation
2-2 Lower Main Frame Leg Installation 2-3 Main Frame Assembly Installation Cont... Note: It is recommended that someone assist during this step. From the rear of the mower, align each lower main frame Position the main frame assembly P#(A0601) over each leg, P#(B0528 Right) and P#(B0529 Left), to the lower ROPS mounting holes and to the rear bumper slot holes. -
Page 7: Lift Handle Installation
2-4 Lift Handle Installation The various parts of the handle assembly P#(A0273) Figure 2-5a must be attached to the container frame. PAGE 13 shows the orientation and location of the components. Slide the lift handle into the slot in the handle mount Insert Pins Insert Pins bracket P#(B1730) on the grass container. -
Page 8: Dump Mechanism Adjustment
2-8 Deck Pulley Installation Figure 2-6a Remove the grass deflector shield from the grass dishcarge on the mowers deck. Remove the existing spindle cover and hardware from the deck pulley. Figure 2-8a. Inlet Figure 2-8a 2-7 Dump Mechanism Adjustment The linkage may be adjusted in two places, at the Remove the bolt and hardware from the existing pulley adjusting screw P#(K1435) and the latch assembly and place the pulley assembly P#(A1057) on top of the... -
Page 9: Deck Drive Assembly Installation
Deck Drive Assembly 2-9 Deck Drive Assembly Installation Figure 2-9b WARNING Stop unit, shut off deck attachment, set parking brake, shut off mower engine and remove spark plug wire before installing PTO Deck Drive Assembly. Do not work around the mower deck, PTO deck drive or the blower area until you are certain that the mower blades and the blower impeller have stopped rotating. -
Page 10: Belt Installation
Figure 2-9e Deck Drive Assembly Note: The belt tension may need to be adjusted to properly install the belt to both pulleys. To tension the drive belt, turn the tension adjustment knob clockwise until there is 1” of deflection with 10-11lbs of pressure between the deck pulley assembly and the deck drive idler pulley. - Page 11 2-11 Pulley Guard Installation Cont... Figure 2-11d Pulley Guard Tab Figure 2-11a Pulley Guard Clamp Pulley Guard Clamp Figure 2-11e Deck Drive Assembly Slot Pulley Guard Flange Figure 2-11b Mower Deck U-bolt Secure pulley guard clamp with (1) 5/16”-18 star knob Mower Deck U-bolt P#(J0256).
-
Page 12: Hose Installation
Figure 2-12b Installed Pulley Guard Figure 2-11g PTO Outlet w/ Hose and Clamp 2-13 Front Weight Assembly 2-12 Hose Installation Slide (1) upper hose clamp P#(J1000) onto both ends of Place (1) weight bracket P#(B0026) over each front the 7” hose. Slide one end of the 7” hose onto the inlet. caster. -
Page 13: Exploded Parts Views And Assemblies
Lift Handle Assembly Aluminum Grass Container Assembly Inlet Aluminum Grass Container With Handle Attached Latch Hook Mechanism Assembly MAIN FRAME... - Page 20 MODEL#: 35621219 MOWER NAME: EXMARK MOWER MODEL: LAZER Z NEXT GENERATION MOWER DECK SIZE: 48” VAC NAME: 12 CUBIC FOOT BOX FOR YEAR: 2010 PTO DECK DRIVE REVISED: MANUAL: Q0399 A1748 - UNIT ASSEMBLY A0794 12 CU. FT. BOX ASSEMBLY 7”...
- Page 21 MODEL#: 35621220 MOWER NAME: EXMARK MOWER MODEL: LAZER Z NEXT GENERATION MOWER DECK SIZE: 52” VAC NAME: 12 CUBIC FOOT BOX FOR YEAR: 2010 PTO DECK DRIVE REVISED: MANUAL: Q0399 A1752 - UNIT ASSEMBLY A0794 12 CU. FT. BOX ASSEMBLY 7”...
-
Page 22: Operating Instructions
* Remember that horsepower requirements will vary with PECO parts. the mowing conditions such as type and height of turf grass, moisture content, amount of leaves, whether the After Each Use: terrain is flat or sloped, etc. -
Page 23: Parts And Service
SECTION V PARTS AND SERVICE 5-1 Parts And Service Information PeCo collection system owners should record the name and telephone number of their Service Center. Your Service Center will be happy to supply replacement parts, accessories, and do any service or repairs to your collection system. -
Page 24: Safety Decals
SAFETY DECALS To promote safe operation, PECO supplies safety decals on all products manufactured. Damage can occur to safety decals either through shipment, use or reconditioning. Contact your local Service Center for replacement decals. Part #: R1055 Part #: R2007... - Page 26 P P P PECO PECO PECO PECO PECO 100 AIRPORT ROAD ARDEN, NORTH CAROLINA 28704 (800) 438-5823 OR (828) 684-1234 FAX: (828) 684-0858 EMAIL: peco@lawnvac.com WEBSITE: www.lawnvac.com...
