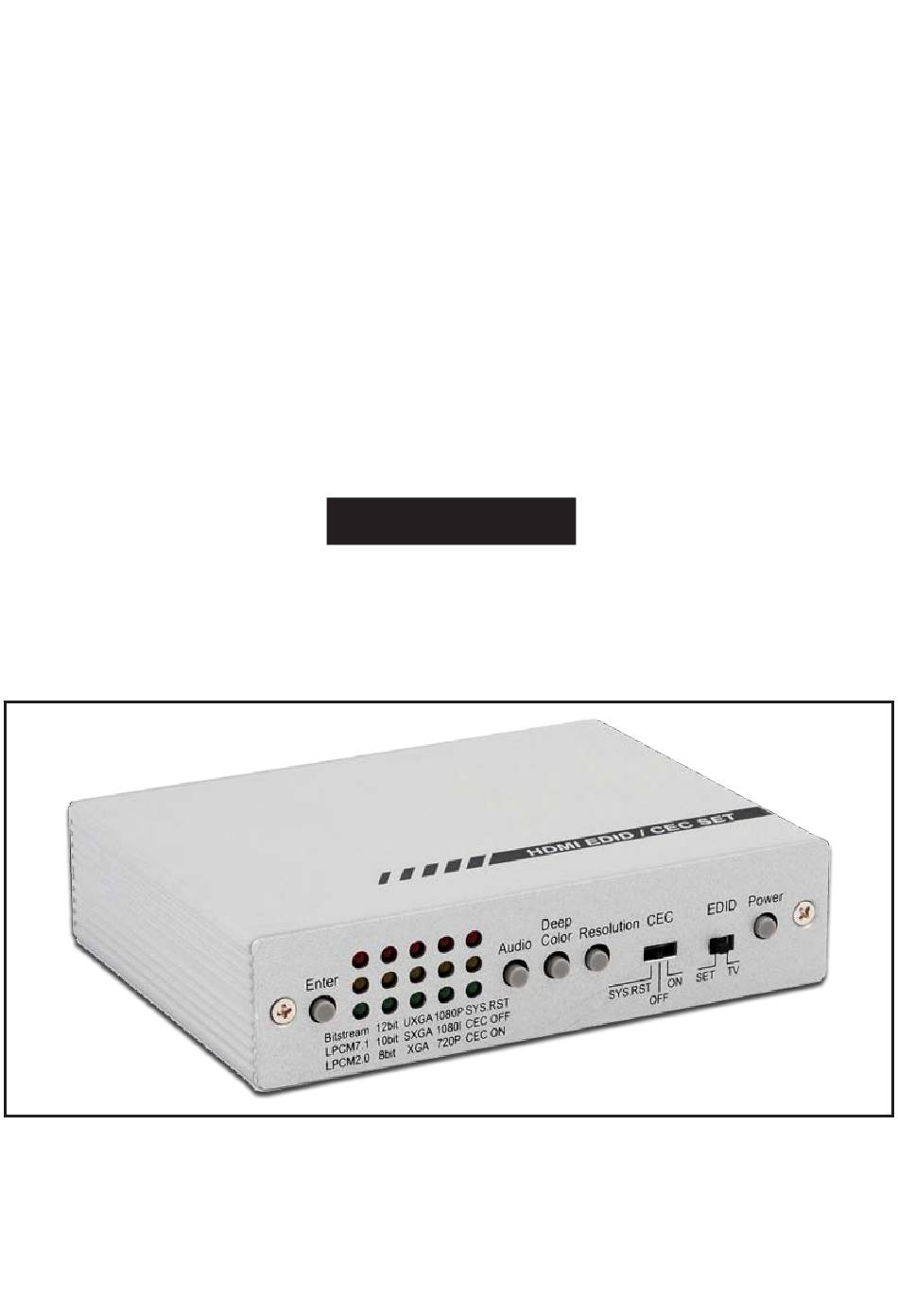

- Page 1 CED-S11 EDID / CEC Selector Operation Manual CED-S11...
- Page 2 Revision History Version No Date Summary of Change 20090304 Preliminary Release Precaution Failure to follow the precautions described below may cause damage to EDID/CEC Selector and void the warranty. DO NOT open the case. Doing so will void the warranty. If you find ...
- Page 3 Table of Contents Introduction…………………………………………………..………. Application…………………………………………………....…. Contents………………………………………………......… System Require…………………………………….…………..……. Features……………………………………………..……..……… Operation Controls and Functions……………………………………. Front Panel ................Rear Panel …………………………………………..….….… Connection and Installation……………………………..……..… Specifications……………………………………………...………..
- Page 4 1. Introduction This high performance HDMI v1.3 switcher allows user to set a firm EDID and CEC between the source and the display. Instead of waiting for signal configuration with synchronization for displaying this HDMI v1.3 switcher save time on it and displaying instantly with your desire setting. It also easy user with configuration choices by push buttoms, power selection of internal/ external, and EDID setting auto/set these useful functions make the unit in whole to support and satisfy each and every user ’...
- Page 5 5. Features Compliant with HDMI 1.3 and DVI 1.0 standards. Serial data rate at up to 2.25Gbps, capable of supporting the following digital video formats in Deep Color Mode at up to 36 bits (12 bits/color): ■ DTV resolutions: 480i/p, 576i/p, 720p, 1080i/p ■...
- Page 6 6. Operation Controls and Functions 6.1 Front Panel Deep Enter Audio Color Resolution EDID Power Bitstream 12bit UXGA 1080P SYS.RST SYS.RST LPCM7.1 10bit SXGA 1080I CEC OFF LPCM2.0 8bit 720P CEC ON ① Enter key – Press the button after each selection. ②...
- Page 7 ② HDMI INPUT – Plug with HDMI cable with input source equipment ③ HDMI OUTPUT – Plug with HDMI cable with output display equipment 7. Connection and Installation LCD TV CED-S11 DVD / Blue Ray 8. Specifications Frequency bandwidth 2.25Gbps (single link)
- Page 8 CYPRESS TECHNOLOGY CO., LTD. Home page: http://www.cypress.com.tw 20090306 MPM-CEDS11...
