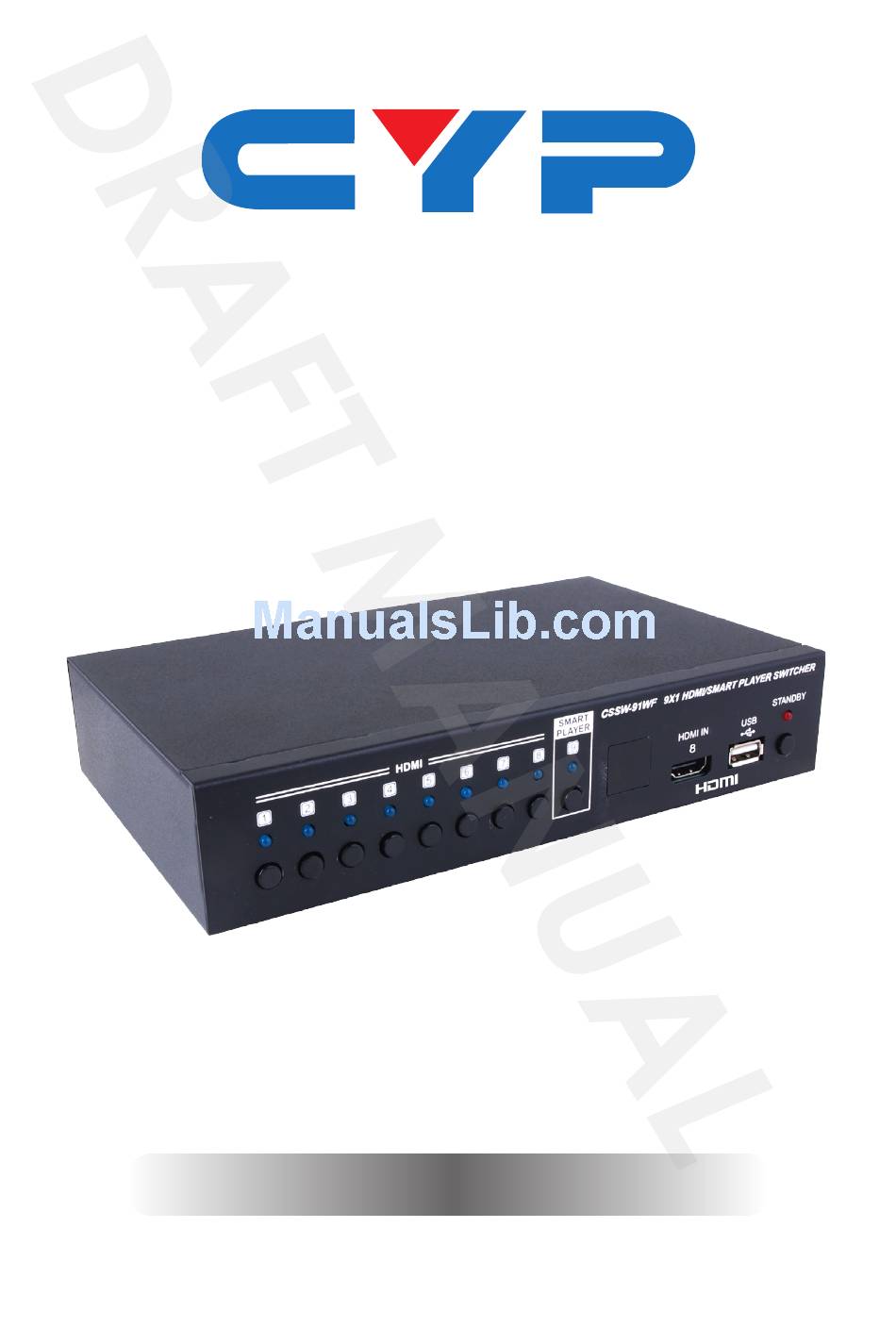

- Page 1 CSSW-91WF 9 x 1 HDMI/Smart Player Switcher Operation Manual Operation Manual...
-
Page 3: Copyright Notice
DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document. -
Page 4: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 5: Table Of Contents
CONTENTS 1. Introduction ............1 2. Applications ............1 3. Package Contents ..........1 4. System Requirements ..........1 5. Features ..............2 6. Operation Controls and Functions .......4 6.1 Front Panel ............4 6.2 Rear Panel ............5 6.3 Remote Control ..........6 6.4 USB Dongle (Optional Accessory) ....6 6.5 RS-232 Commands .......... -
Page 6: Introduction
1. INTRODUCTION The 9 x 1 HDMI/Smart Player Switcher, allows 8 different HDMI sources to be selected for one HDMI output display and the 9th selection is with USB inputs for user to connect with USB Wi-Fi dongle to become a smart player through “PC to TV”... -
Page 7: Features
• Chipset: Intel 965 series chipset or better • Memory: DDR2-800, 2GB or better • Graphic Card: NVIDIA GeForce 8400GS/ATI Radeon X300 or better • Network: 802.11 g/n Wi-Fi and/or 100/1000 Mbps Ethernet Notebook/Laptop PC: • CPU: Intel Core 2 Duo 2.0G or better •... - Page 8 • Supports PC to TV and Smart Phone to TV • Can be a Wi-Fi AP (Access Point) • Wi-Fi Smart Player is a device that designed as a DLNA DMR (Digital Media Render) device • Display various picture, audio and video contents through network streaming •...
-
Page 9: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel CSSW-91WF 9X1 HDMI/SMART PLAYER SWITCHER SMART HDMI PLAYER HDMI IN STANDBY HDMI input buttons and LEDs Press the number buttons to select input source from 1~9, LED will illuminate accordingly with the selection. -
Page 10: Rear Panel
6.2 Rear Panel RS232 ETHERNET HDMI IN HDMI OUT DC 5V USB Ports These slots are to connect with USB devices such as keyboard and mouse for aside control at the display side. ETHERNET Connect this port to an active Ethernet connection for a wire connection of Smart Player function. -
Page 11: Remote Control
6.3 Remote Control Power SMART PLAYER Press this button to switch on or set the device to standby mode. SMART PLAYER 9 Press this button to switch input source from USB dongle for Wi-Fi or Ethernet for wire function of Smart Player. Press these keys to switch in between the source inputs from 1~8 ports. -
Page 12: Rs-232 Commands
6.5 RS-232 Commands RS232 Commands Description INP001~INP009 Input switch from IN1~IN9 INP999 Input status PWR000 Power Standby PWR001 Power ON PWR999 Power status VER999 F/W Version Baud Rate: 19200 bps Data bit: 8 bit Parity: None Stop bit: 1 bit Flow Control: None Note: 1. - Page 13 • InstallShield Wizard will install PC2TV on your input source device and click “Next” to continue. • Add program icons to the program folder. You may type a new folder name or select one from the existing folders list and click “Next”...
- Page 14 • Press “Analysis” to evaluate your computer system. • The Benchmark Information will show whether or not your computer system is matching with the product requirement.
-
Page 15: Uninstall The Computer Software
• After the setup is complete click on Finish and restart your source device. 7.2 Uninstall the Computer Software Follow the steps below to uninstall the PC2TV Software • Step 1: Open the Control Panel: Start a Control Panel a Uninstall a program. -
Page 16: Configuring Your Application To Use The Receiver
• Step 3: Click on Finish to complete the uninstall process. 8. CONFIGURING YOUR APPLICATION TO USE THE RECEIVER Configure your PC or Smart Phone with Ethernet connection, or becoming the internet access point. Keep in mind, however, that the number, thickness and location of walls, ceilings or other objects that the wireless signals must pass through, may limit the range. -
Page 17: Smart Phone Easy Connection
RF(radio frequency) noise in your usage area. • Step 1: Go to Start > Settings > Control Panel. Double-click the System and Network and Internet Options Icon. From the Options Icon, click the button to connect to the Internet and select Wireless Option to use a wireless network and then choose “PC2TV_PRO_ AccessPoint”... -
Page 18: Access Point Application
• From the Home screen, sweep your finger downward to display the Notification Panel. • Touch Wi-Fi to turn Wi-Fi ON. • When your phone completes a scan, touch a Wi-Fi network to • Select the PC2TV(DMR) for display system - For non-DLNA Smart Phone, users may download and execute softwares like “Twonky”... -
Page 19: Connection And Installation
9. CONNECTION AND INSTALLATION Internet Modem or Hub/Router PC/NB WI-FI HDMI Smart Phone CSSW-91WF 9X1 HDMI/SMART PLAYER SWITCHER SMART HDMI PLAYER HDMI IN STANDBY ETHERNET HDMI IN HDMI OUT DC 5V RS232 HDMI HDMI x 8 CAT5e/6 Mouse Keyboard Blu-ray x 8... -
Page 20: Specifications
10. SPECIFICATIONS Video Bandwidth 225MHz / 6.75Gbps Input Port 8 x HDMI, 1 x Ethernet Host Interface 1 x 802.11n Wi-Fi and 100/1000Mbps Ethernet Output port 1 x HDMI Extender Port 3 x USB (Keyboard and Mouse only) Video Supports (DLNA DMR) WMV, AVI, MPEG-1/2/4, 3GP &... -
Page 21: Acronyms
11. ACRONYMS ACRONYM COMPLETE TERM... - Page 24 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw 20120709 MPM-CSSW91WF...
