System Connection

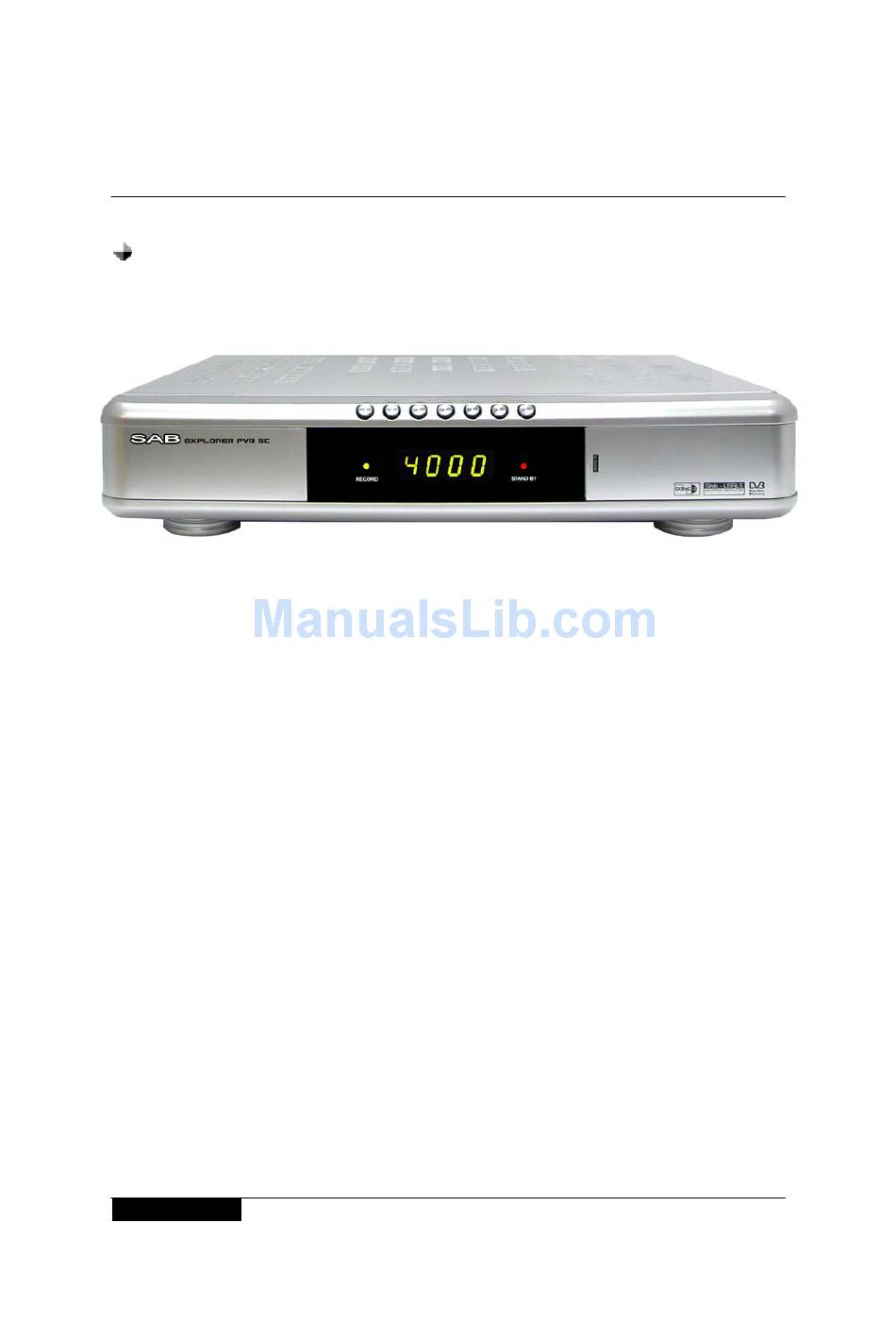

Front Panel

◈ 2 LED Display
- Stand by LED : It shows Red LED when the power is off.
- REC by LED : It shows GREEN LED when a program being recorded.
◈ Normal Display : It shows 4 digits of Channel number when the power is on. But it
shows current time in Standby mode.
On : "run" is displayed on the LED Display panel and shows the current channel
number.
Standby : You can see the clock works.
◈ Tact switch : Standby, CH UP/DOWN , VOL UP/DOWN . MENU , OK
◈ Common Interface slot
NOTICE :
1. Current time is based on the TDT(Time and Date Table) at the stream of the
current service. If the TDT information is not correct, current time might be
incorrect.
2. Please do not insert metal or alien substance into the slot for the modules
and Smartcards. In doing so can cause damage to the STB and reduce its life
span.
7
