Brickcom WCB-100A User Manual page 34

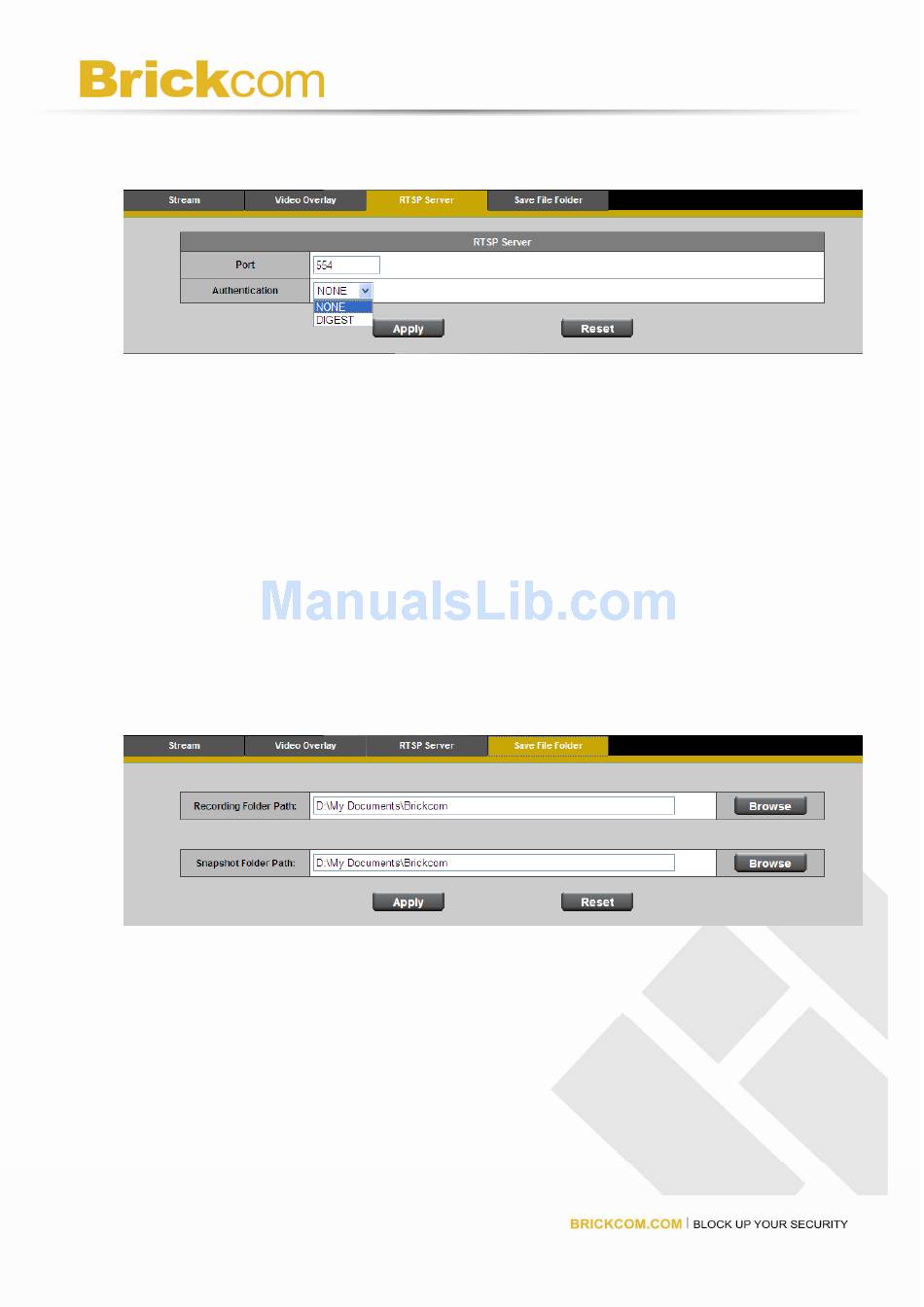

RTSP Server
To utilize RTSP authentication, make sure that you have set a password for the Network
Camera first.
RTSP (Real-Time Streaming Protocol) controls the delivery of streaming media. By default the
port number is set to 554.
Authentication - Depending on your network security requirements, the Network Camera
provides two types of security settings for streaming via RTSP protocol: NONE and DIGEST.
If DIGEST authentication is selected, user credentials are encrypted using MD5 algorithm, thus
providing better protection against unauthorized access.
Save file folder
Recording folder path - The destination for saving the recording video files. Click browse
to specify the saving path.
Snapshot folder path - The destination for saving the snapshot files. Click browse to
specify the saving path.
Click Apply or Reset to take effect.
- 25 -
