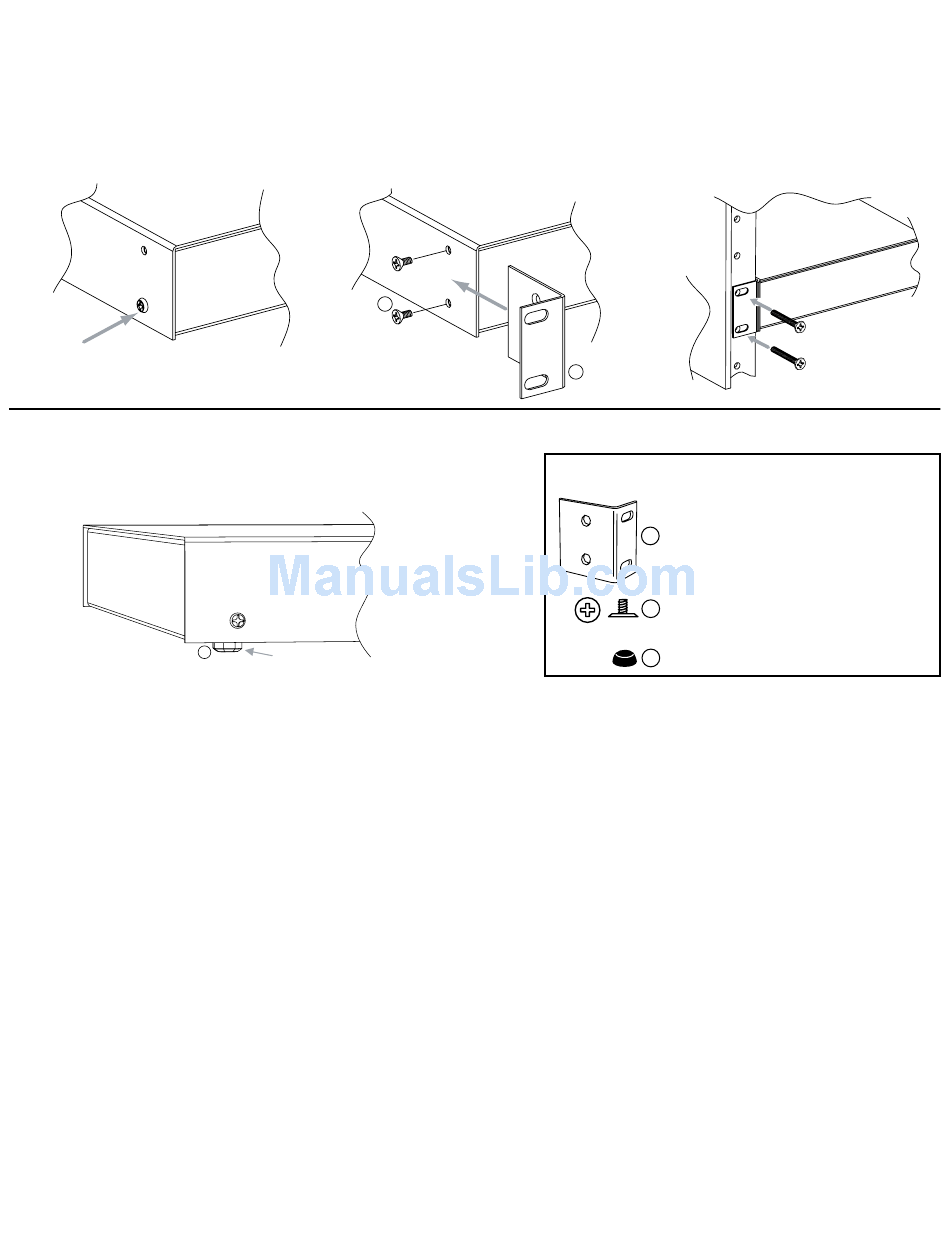

Rack Mount Installation

1- Remove and discard factory installed screws from both sides of rack chassis (Fig. 7a).
2- Install mounting brackets (A) on the left and right side of rack chassis using the
four (4) flat head screws (B) (included) (Fig. 7b).
3- Place unit into desired EIA 19" rack position and secure with mounting screws (not included) (Fig. 7c).
Fig. 7
Fig. 7a
Top
Remove

Shelf Installation

1- Position and affix rubber pads (C) (included) at each
corner on the bottom of the unit (Fig. 8).
2- Place unit in desired location.
Fig. 8
eBridge16CR

Mounting Options:

Fig. 7b
Front
Left
Left Side
C
Rubber Pad
Top
Front
Left
B
Fig. 7c
A
Mounting Hardware
Two (2) mounting brackets
A
Six (6) flat head screws
B
for mounting brackets.
Four (4) rubber pads.
C
Top
Front Left
(Included):
- 7 -
