Rack Mount Installation

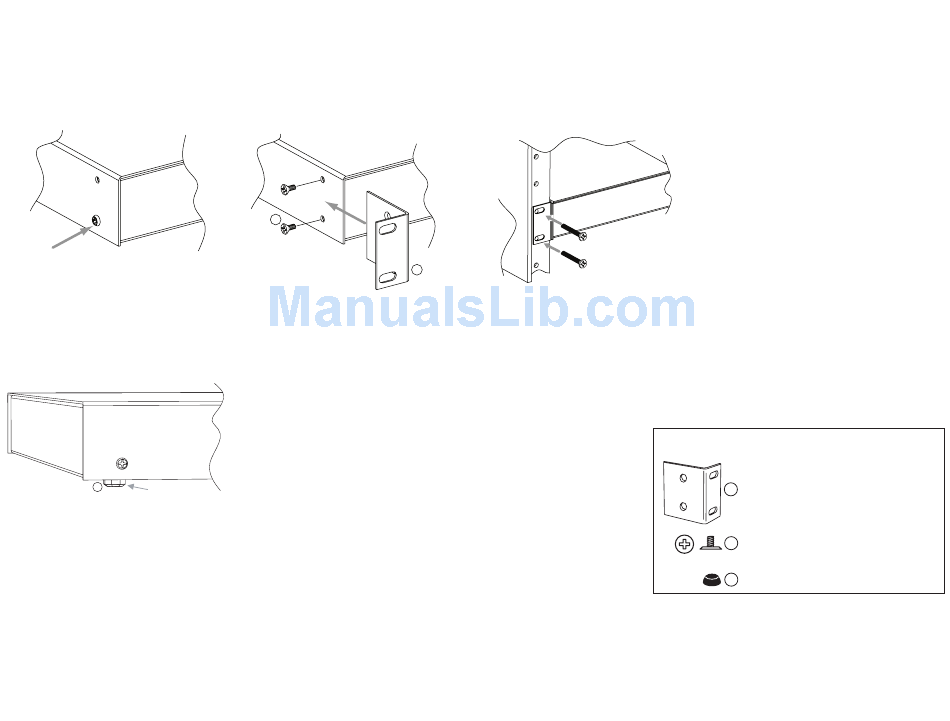

1- Remove and discard factory installed screws from both sides of rack chassis (Fig. 6a).
2- Install mounting brackets (A) on the left and right side of rack chassis using the four (4) flat head screws (B) (included) (Fig. 6b).
3- Place unit into desired EIA 19" rack position and secure with mounting screws (not included) (Fig. 6c).
Fig. 6
Fig. 6a
Top
Front
Left
Remove

Shelf Installation

1- Position and affix rubber pads (C) (included) at each corner on the bottom of the unit (Fig. 7).
2- Place unit in desired location.
Fig. 7
Left Side
C
Rubber Pad
www.altronix.com

Mounting Options:

Fig. 6b
Top
Front
Left
B
A
Fig. 6c
Top
Front Left
- 10 -

Mounting Hardware

(Included):
Two (2) mounting brackets
A
Six (6) flat head screws
B
for mounting brackets.
Four (4) rubber pads.
C
eBridge8E
