Installation Guide
XX248-50-01

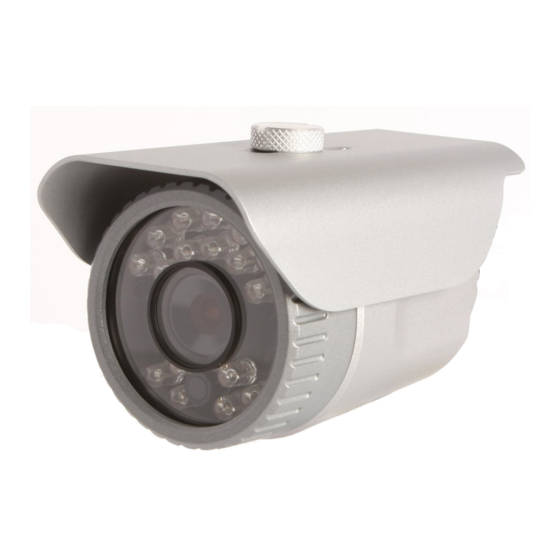

V992B-IR4 Network

Bullet Camera

Vicon Industries Inc., 89 Arkay Drive, Hauppauge, New York 11788
Tel: 631-952-2288 Fax: 631-951-2288 Toll Free: 800-645-9116
24-Hour Technical Support: 800-34-VICON (800-348-4266) UK: 44/(0) 1489-566300
Vicon Industries Inc. does not warrant that the functions contained in this equipment will meet your requirements or that the
operation will be entirely error free or perform precisely as described in the documentation. This system has not been designed
to be used in life-critical situations and must not be used for this purpose.
www.vicon-security.com
Document Number: 8009-8248-50-01
Issued: 512
Product specifications subject to change without notice.
Copyright © 2012 Vicon Industries Inc. All rights reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the V992B-IR4 and is the answer not in the manual?

Questions and answers

Related Manuals for Vicon V992B-IR4

Summary of Contents for Vicon V992B-IR4

  • Page 1: Bullet Camera

    24-Hour Technical Support: 800-34-VICON (800-348-4266) UK: 44/(0) 1489-566300 Vicon Industries Inc. does not warrant that the functions contained in this equipment will meet your requirements or that the operation will be entirely error free or perform precisely as described in the documentation. This system has not been designed to be used in life-critical situations and must not be used for this purpose.

  • Page 2: Table Of Contents

    4.6.3 E-mail ............................ 22   .............................. 22 4.7 S YSTEM   4.7.1 User ............................... 23   4.7.2 Date / Time  .......................... 23   4.7.3 Maintenance .......................... 24   4.7.4 Information ............................ 26     DIMENSIONS ........................... 27   SHIPPING INSTRUCTIONS ........................ 30   VICON STANDARD EQUIPMENT WARRANTY ................... 31   : 8006-9010-03-10 0412................ 31 ICON UMBER...

  • Page 3: Product Features

    1. Product Features The V992B is a high performance H.264 network bullet V992B, designed for demanding security installations. It delivers crisp, clear images, disclosing every detail, thanks to its top quality 3.0 Megapixel progressive CMOS sensor and advanced image processing. Supported by the industry’s largest base of video management software, the V992B provides the perfect solution for securing bank offices, airports and other facilities, and for traffic surveillance, over IP based networks.

  • Page 4: Installation

    2. Installation 2.1 Installation Preparation Assembly the sun visor and V992B. Connect the V992B to the network using a shielded network cable. Adjust position of camera on target. PORTS AND BUTTONS DESCRIPTION 1. Control button 2. Network port 3. BNC (Analog video out) Mounting to a ceiling / wall 1) IN CEILING MOUNT...
  • Page 5 SURFACE MOUNT...

  • Page 6: Assign Ip Address

    2.2 Assign IP address The default setting of the V992B is set “DHCP” to ON. If you have a DHCP server on your network and UPnP function enabled on your PC you can find the network V992B in “My network”. If a DHCP server is not available on your network, assign IP address by the following process: Execute Multi-Upgrade Tool (from the Installation CD).

  • Page 7: Access From A Browser

    2.3 Access from a browser 1. Start a browser (i.e., Internet Explorer) 2. Enter the IP address or host name of the V992B in the Location/Address field of your browser. Press Enter. 3. Login dialog will appear when the V992B is accessed for the first time. 4.

  • Page 8: Accessing The V992B From The Internet

    NOTE: The layout of the live view page in the V992B may have been customized to meet specific requirements. Consequently, some of the examples and functions featured here may differ from those displayed on your own Live View page. 2.4 Accessing the V992B from the Internet Once installed, the V992B is accessible on the local network (LAN).

  • Page 9: Live View

    3. Live View Digital Zoom Snap Shot Full Screen Video Stream change: First stream  Second stream Play: Click this button by manually to start the stream Stop: Click this button by manually to stop streaming NOTE: It is possible that not all the buttons described below will be visible unless the Live View page has been customized to display them.

  • Page 10: How To Stream H.264

    (intranets), as each user needs an uninterrupted data flow and should not rely on network routers. (Note that multicasting may not be available with the firmware you received; check the Vicon website for updated firmware.) 3.2 How to Stream H.264...

  • Page 11: Setup

    4. Setup The V992D-N4 is configured from the Setup link, which is available on the top left hand side in the web interface. This configuration could be done by: • Administrators, who have unrestricted access to all settings under the Setup tab. Accessing the Setup link from a browser 1.

  • Page 12: Video

    4.2 Video The following descriptions show examples of some of the features available with V992D-N4. 4.2.1 Codec This section allows you to choose the compression codec for each of the video streams. Codec H.264 This is a video compression standard that makes good use of bandwidth and could provide high-quality video streams.
  • Page 13 V992B to this boosted level for the duration of the motion. Boost Quality can be set ON or OFF. (Note that multicasting may not be available with the firmware you received; check the Vicon website for updated firmware.) Quality 1 ~ 100 This parameter is only available in M-JPEG mode.

  • Page 14: V992B

    < Output resolution and Frame rate table for > ( V992B Unit: fps) First Second Stream Stream 1920x1080 704x480 640x480 640x360 640x352 352x288 352x240 320x240 1280x1024 704x480 640x480 640x360 352x288 352x240 320x240 1024x768 704x480 640x480 640x360 352x288 352x240 320x240 1280x720 1280x720 704x576 704x480...
  • Page 15 AUTO: Use this setting for automatic exposure control. MANUAL: Use this setting to control V992B exposure manually. To compensate for poor lighting conditions, you can adjust the Color level, Brightness, Sharpness, Contrast and Exposure control. NOTE: When AE is enabled, some of the submenus (AGC Gain, e-Shutter Speed) will be disabled.

  • Page 16: Live

    4.3 Live V992D-N4 can support up to 10 simultaneous users via unicast. 4.3.1 Viewer Setup Live View Protocol RTP Unicast (UDP) / RTP over RTSP (TCP) Buffering Time (frame based) Determines (0 ~ 90) x 1/30 sec (0 ~ 3sec) Viewer OSD Setup Date: Determines whether the date is displayed.
  • Page 17 Select the Area and Color for the mask and use the mouse to drag the cursor to fill the area to be set as a Privacy Mask. Click Save and then click the Live tab on the top to confirm the Privacy Mask satisfies preferences and/or requirements.

  • Page 18: Ftp

    4.4.FTP 4.4.1 Config Server Configuration Allows transmission of still images to remote sites using the FTP server. Set the information for FTP transmission by inserting the IP address, Port, Username and Password of the remote FTP Server. 4.4.2 Event Event FTP Sending You can configure the V992B to upload still images to FTP server based on event such as Motion detection.

  • Page 19: Periodical

    Directory The name of the directory where the still images will be stored when an Event occurs. File Prefix You may add a file name prefix to the stored image file name. Example: If the file prefix is ‘MVD’, the still image would be saved as MVD_date_time.jpg. FTP Send Mapping Choose which types of events will be recorded to the FTP server by checking the desired event.

  • Page 20: Event

    Interval It allows for saving still images based on frequency (1 image every 10 sec, for example). Use the drop-down control to set from 10 seconds to 1 hour. Effective Period This parameter lets you decide whether to save still images at all hours of the day, or during specific times of the day.

  • Page 21: Mapping

    NOTE: Using the motion detection feature will consume more of the V992Bs resources, and this could decrease the V992B’s overall performance, depending on your settings. 4.5.2 Mapping Event Mapping It is possible to define conditions that would cause the V992B to respond with certain actions.
  • Page 22 NOTE: IP address assignment via DHCP may lead to the situation where the IP address changes and you lose contact with the V992B. If your DHCP server can update a DNS server, you can access the V992D-N4 by a static host name, regardless of having a dynamic IP address.

  • Page 23: Service Port

    3) Select the “Change IP Address” button. The message “Do you want to change IP address?” will display; select “Yes” from the pop-up window. 4) Check the Type as Static or DHCP from the list. When you double-click the V992B within the list, the default web browser (Internet Explorer or compatible equivalent) will open and automatically connect to the V992B.

  • Page 24: E-Mail

    4.6.3 E-mail You must turn Notification to ‘On’ and then enter the host names or addresses for your mail servers in the fields provided to enable the sending of event and error email messages from the V992B to predefined addresses via SMTP. NOTE 1) Frequency: Mail server may register the sender to SPAM list if frequency is set to “1 Min”.

  • Page 25: User

    4.7.1 User When you access the V992B, the Configure Root Password dialog box appears. Enter the default user name ADMIN and password 1234 to log in. To change the password or add a user, go to Setup > System > User. Fill in the User ID, Password and E-mail address.

  • Page 26: Maintenance

    4.7.3 Maintenance System Name Choose a system name to identify the V992B when using e-mail notifications. System Reboot Reboots the V992B. Factory Default To reset the V992B back to the original factory default settings. Firmware Update From time to time, CBC will release firmware updated for the PixelPro Series V992B, which will contain feature additions and other improvements.
  • Page 27 4. If you suspect the firmware upgrade for the V992B has failed, always wait at least 5-10 minutes before restarting the upgrade process. 5. Vicon reserves the right to charge for any V992B repair which can be attributed to faulty upgrading by the user. Always read the upgrade instructions and firmware release notes before updating the firmware.

  • Page 28: Information

    4.7.4 Information System Information Confirm the system information of the V992B: S/W version/Model Name/MAC address/IP address settings.

  • Page 29: Dimensions

    Dimensions...

  • Page 32: Shipping Instructions

    Shipping Instructions Use the following procedure when returning a unit to the factory: 1. Call or write Vicon for a Return Authorization (R.A.) at one of the locations listed below. Record the name of the Vicon employee who issued the R.A.

  • Page 33: Vicon Standard Equipment Warranty

    “autopan” or “tour” modes of operation. Such continuous operation is outside the scope of this warranty. Any product sold as “special” or not listed in Vicon’s commercial price list: One year from date of original retail purchase.
