Quick Guide
XX284-20-00

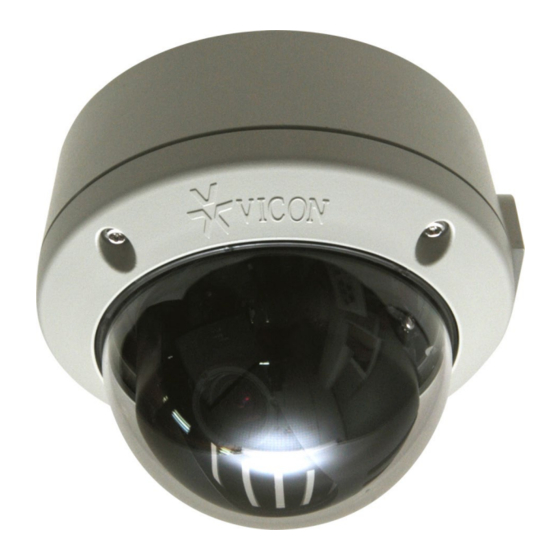

Roughneck® V922D and V923D
Series Camera Domes
Vicon Industries Inc.
Tel: 631-952-2288 Fax: 631-951-2288 Toll Free: 800-645-9116
24-Hour Technical Support: 800-34-VICON (800-348-4266) UK: 44/(0) 1489-566300
Vicon Industries Inc. does not warrant that the functions contained in this equipment will meet your requirements or that the
operation will be entirely error free or perform precisely as described in the documentation. This system has not been designed
to be used in life-critical situations and must not be used for this purpose.
www.vicon-security.com
Document Number: 8009-8284-20-00
Issued: 716
Product specifications subject to change without notice.
Copyright © 2016 Vicon Industries Inc. All rights reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Roughnec V922D Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vicon Roughnec V922D Series

Summary of Contents for Vicon Roughnec V922D Series

  • Page 1 24-Hour Technical Support: 800-34-VICON (800-348-4266) UK: 44/(0) 1489-566300 Vicon Industries Inc. does not warrant that the functions contained in this equipment will meet your requirements or that the operation will be entirely error free or perform precisely as described in the documentation. This system has not been designed to be used in life-critical situations and must not be used for this purpose.

  • Page 2: Explanation Of Graphical Symbols

    WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT INSERT ANY METALLIC OBJECT THROUGH THE VENTILATION GRILLS OR OTHER OPENINGS ON THE EQUIPMENT. CAUTION EXPLANATION OF GRAPHICAL SYMBOLS The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage"...

  • Page 3: Fcc Compliance Statement

    FCC COMPLIANCE STATEMENT INFORMATION TO THE USER : THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS FOR A CLASS A DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES. THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST HARMFUL INTERFERENCE WHEN THE EQUIPMENT IS OPERATED IN A COMMERCIAL ENVIRONMENT.

  • Page 4: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 8.
  • Page 5 Camera Domes. These units should only be installed by a qualified technician using approved materials in conformance with federal, state, and local codes. Read these instructions thoroughly before beginning an installation. Always refer to Vicon’s website to assure you have the most up-to-date manual, www.vicon- security.com.

  • Page 6: Installation

    2. Installation For the network camera to operate, it is necessary to connect a network cable for data transmission and power connection from supplied power adapter. Depending on operation methods, it is possible to also connect an alarm cable. 2.1 Overview Parts and Description ...

  • Page 7: Accessory Kit

    Note: Failure to thoroughly coat threads will result in moisture entering the housing and eventual failure of the unit. Note: For outdoor installations, Vicon recommends that the vent plug should only be used if fogging conditions exist. Additionally, if the side cable access hole is used, the base must be mounted so the hole is pointed directly downward.
  • Page 8 2.1 Connections Connection Description  <V922D-A> Set to NTSC by default <V923D-A> Connector Name Description Micro-SD memory slot Micro-SD Slot Service Monitor Port Service Monitor & OSD Controller Communication Port, Stereo Jack (V922D-A only) Audio In & Out Port Audio Input and Output ,Stereo Jack Alarm Input and Output, 4pin terminal.
  • Page 9 Micro SD memory slot on the Board  Card Slot for Micro SD memory: Socket J2 • Connecting to the RJ-45 Connect a standard RJ-45 cable to the network port of the network camera. Generally a cross-over cable is used for directly connection to PC, while a direct cable is used for connection to a hub.
  • Page 10 • Connecting Service Monitor Port (V922D-A only) The Service Monitor output port (J8) is located on the board of the dome camera and is used for easy OSD setup. ▶ ID & IP assignment To make changes in the OSD menu, the optional OSD controller (V920D-OSD) can be used to set Camera Title and IP Address.

  • Page 11: Network Connection And Ip Assignment

    2.3 Network Connection and IP assignment The network camera is designed for use on an Ethernet network and requires an IP address for access. Most networks today have a DHCP server that automatically assigns IP addresses to connected devices. By the factory default, your camera is set to obtain the IP address automatically via DHCP server.

  • Page 12: Operation

    3. Operation The network camera can be used with Windows® operating system and browsers. The recommended browsers are Internet Explorer® , Safari® , Firefox® , Opera® and Google® Chrome® with Windows. Note: To view streaming video in Microsoft® Internet Explorer, set your browser to allow ActiveX controls. Note: Some screens may appear different (i.e., color scheme) depending on the firmware version, but the functionality is the same or similar.

  • Page 13: Access From The Internet

    3.2. Access from the Internet Once connected, the network camera is accessible on your local network (LAN). To access the network camera from the Internet you must configure your broadband router to allow incoming data traffic to the network camera. To do this, enable the NAT-traversal feature, which will attempt to automatically configure the router to allow access to the network camera.

  • Page 14: Control Toolbar

    2) Control toolbar The live viewer toolbar is available on the web browser page only. It displays the following buttons: The Stop button stops the video stream being played. Pressing the key again toggles the start and stop. The Start button connects to the network camera or start playing a video stream.

  • Page 15: Network Camera Setup

    • Adjusting Zoom: Click “<” button to zoom out and click “>” button to zoom in. The focus is moved slightly after adjusting zoom; adjust the focus again, as necessary. • Adjusting Focus: Click “>” button for far focus and click “<” button to near focus. •...

  • Page 16: Resetting To The Factory Default Settings

    3.6 Resetting to the Factory Default Settings To reset the network camera to the original factory settings, go to the Setup > System > Maintenance web page (described in “System > Maintenance” of User’s Manual) or use the Reset button on the network camera, as described below: •...
