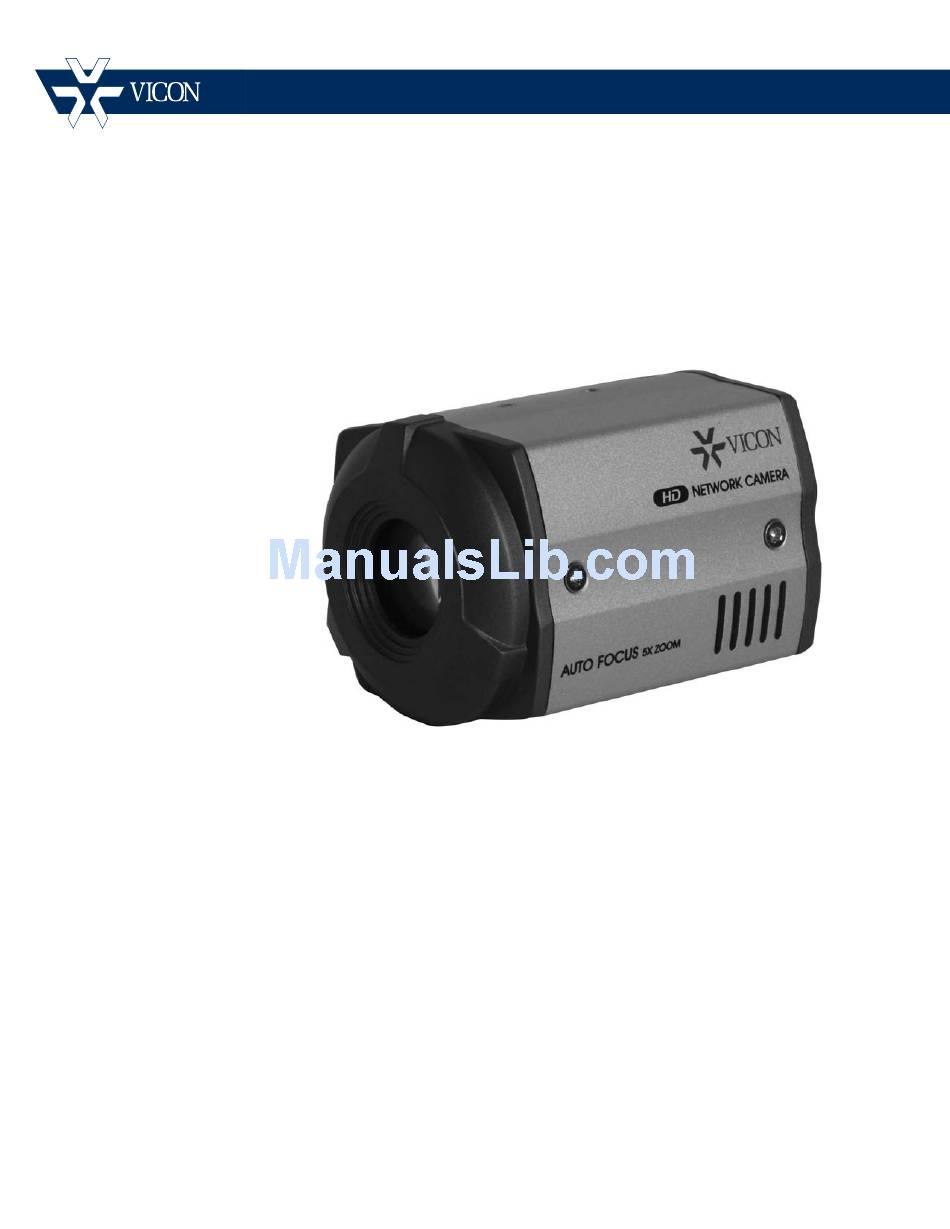

Installation Guide
XX248-00-00
V992-N Network
Camera
Vicon Industries Inc., 89 Arkay Drive, Hauppauge, New York 11788
Tel: 631-952-2288 Fax: 631-951-2288 Toll Free: 800-645-9116
24-Hour Technical Support: 800-34-VICON (800-348-4266) UK: 44/(0) 1489-566300
Vicon Industries Inc. does not warrant that the functions contained in this equipment will meet your requirements or that the
operation will be entirely error free or perform precisely as described in the documentation. This system has not been designed
to be used in life-critical situations and must not be used for this purpose.
www.vicon-security.com
Document Number: 8009-8248-00-00
Issued: 512
Product specifications subject to change without notice.
Copyright © 2011 Vicon Industries Inc. All rights reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the V992-N and is the answer not in the manual?

Questions and answers

Related Manuals for Vicon V992-N

Summary of Contents for Vicon V992-N

  • Page 1 24-Hour Technical Support: 800-34-VICON (800-348-4266) UK: 44/(0) 1489-566300 Vicon Industries Inc. does not warrant that the functions contained in this equipment will meet your requirements or that the operation will be entirely error free or perform precisely as described in the documentation. This system has not been designed to be used in life-critical situations and must not be used for this purpose.

  • Page 2: Table Of Contents

    4.6.3 E-mail ..............................19 ..............................20 4.7 S YSTEM 4.7.1 User ..............................20 4.7.2 Date/Time ............................20 4.7.3 Maintenance ............................ 21 4.7.4 Information ............................23 5. DIMENSIONS ............................24 SHIPPING INSTRUCTIONS ........................27 VICON STANDARD EQUIPMENT WARRANTY ..................28 _Toc323127690...

  • Page 3: Product Features

    (10BaseT/100BaseTX Ethernet). This socket must be used to power the V992-N via Power over Ethernet (PoE). The camera auto-senses the correct power level when using a PoE (Class 2) switch, router or injector.

  • Page 4: Install Camera

    2. Installation 2.1 Install camera 1) Assemble the mounting tripod (supplied), used when mounting the camera to a wall bracket, onto camera with supplied screws. 2) Install the wall bracket at the installation location according to the instructions supplied with the wall bracket. 3) Install the camera onto the wall bracket.

  • Page 5: Access From A Browser

    When you double click the camera within the list, the default web browser (Internet Explorer or compatible equivalent) will open and automatically connect to the camera. The V992-N can be accessed with most standard operating systems and browsers. The recommended browser is Internet Explorer® 7 and above for Windows®.

  • Page 6: Accessing The Camera From The Internet

    When you first access the camera you will be asked to download and install an Active X control from the camera to display a Live image. NOTE: The layout of the live view page in the camera may have been customized to meet specific requirements.

  • Page 7: Live View

    With Web Browser 1. Open the Live View page in your web browser. - Select the Setup tab, and open the Video -> Camera page. - Click ‘Lens Adjustment’. 2. Set the desired Zoom position. 3. Click ‘One Push Focus’ button to adjust focus automatically or set focus manually. 3.

  • Page 8: Video Stream Types

    (intranets), as each user needs an uninterrupted data flow and should not rely on network routers. (Note that multicasting may not be available with the firmware you received; check the Vicon website for updated firmware.) 3.2 How to Stream H.264...

  • Page 9: Setup

    RTSP traffic. 4. Setup The V992-N is configured from the Setup link, which is available on the top left hand side in the web interface. This configuration could be done by: • Administrators, who have unrestricted access to all settings under the Setup tab.

  • Page 10: Installation Setup

    VMS, including ViconNet; the VMS forces the Installation Mode to OFF. 4.2 Video The following descriptions show examples of some of the features available with V992-N. 4.2.1 Codec This section allows you to choose the compression codec for each of the video streams.
  • Page 11 Boost Quality can be set ON or OFF. (Note that multicasting may not be available with the firmware you received; check the Vicon website for updated firmware.) Quality 1 ~ 100 This parameter is only available in M-JPEG mode.

  • Page 12: Camera

    < Output resolution and Frame rate table for V992-N > ( Unit: fps) Second Stream 720p 4CIF 4CIF* VGA 4:3 VGA 16:9 VGA* 16:9 QVGA RESOLUTION Table 1280x720 704x480 704x576 640x480 640x360 640x352 352x240/288 352x240 1080p 1920x1080 25/30 25/30 25/30...
  • Page 13 The V992-N camera can be set to automatically identify the light source and compensate for its color temperature. If necessary, the type of light source could be set manually.

  • Page 14: Live

    4.3 Live V992-N can support up to 10 simultaneous users via unicast. 4.3.1 Viewer Setup Live View Protocol RTP Unicast (UDP)/RTP over RTSP (TCP) Buffering Time (frame based) Determines (0 ~ 90) x 1/30 sec (0 ~ 3sec) Viewer OSD Setup Select On or Off for these displays: Date: Determines whether the date is displayed.

  • Page 15: Ftp

    4.4.FTP 4.4.1 Config Server Configuration Allows transmission of still images to remote sites using the FTP server. Set the information for FTP transmission by inserting the IP address, Port, Username and Password of the remote FTP Server. 4.4.2 Event Event FTP Sending You can configure the camera to upload still images to FTP server based on event such as Motion detection.

  • Page 16: Periodical

    File Prefix You may add a file name prefix to the stored image file name. Example: If the file prefix is ‘MVD’, the still image would be saved as MVD_date_time.jpg. FTP Send Mapping Choose which types of events will be recorded to the FTP server by checking the desired event.

  • Page 17: Event

    Effective Period This parameter lets you decide whether to save still images at all hours of the day, or during specific times of the day. 4.5.Event 4.5.1 Motion Motion Detection Motion detection is used to generate an alarm whenever movement occurs within the video image.

  • Page 18: Mapping

    If your DHCP server can update a DNS server, you can access the V992-N by a static host name, regardless of having a dynamic IP address. Configure the options for notification of IP address change (under Services) to receive notification from the camera when the IP address changes.
  • Page 19 DNS Configuration DNS (Domain Name Server) provides the translation of host names to IP addresses on your network. Primary DNS server Enter the IP address of the Primary DNS server for your network. Secondary DNS server Enter the IP of the Secondary DNS, which is used if the Primary DNS server is unavailable.

  • Page 20: Service Port

    4.6.2 Service Port Service Port TTP port The default HTTP port number (80) could be changed to any port within the valid port range (1-65535). This is useful for simple port mapping. RTSP port The RTSP protocol allows a connecting client to start an H.264 stream. Enter the RTSP port number to use.

  • Page 21: E-Mail

    4.6.3 E-mail You must turn Notification to ‘On’ and then enter the host names or addresses for your mail servers in the fields provided to enable the sending of event and error email messages from the camera to predefined addresses via SMTP. NOTE 1) Frequency: Mail server may register the sender to SPAM list if frequency is set to “1 Min”.

  • Page 22: System

    4.7 System 4.7.1 User When you access the camera, the Configure Root Password dialog box appears. Enter the default user name ADMIN and password 1234 to log in. To change the password or add a user, go to Setup > System > User. Fill in the User ID, Password and E-mail address.

  • Page 23: Maintenance

    NTP Server Synchronize the time from an NTP server every 60 minutes. Specify the IP address or host name of the NTP server you are using. Local Time / PC Sync/SAVE Specify Local time manually or Synchronize to PC time automatically. Time Zone Setup You may select your time zone from the drop-down list.
  • Page 24 4. If you suspect the firmware upgrade for the camera has failed, always wait at least 5-10 minutes before restarting the upgrade process. 5. Vicon reserves the right to charge for any camera repair which can be attributed to faulty upgrading by the user. Always read the upgrade instructions and firmware release notes before updating the firmware.

  • Page 25: Information

    4.7.4 Information System Information Confirm the system information of the camera: S/W version/Model Name/MAC address/IP address settings.

  • Page 26: Dimensions

    5. Dimensions...

  • Page 29: Shipping Instructions

    Shipping Instructions Use the following procedure when returning a unit to the factory: 1. Call or write Vicon for a Return Authorization (R.A.) at one of the locations listed below. Record the name of the Vicon employee who issued the R.A.

  • Page 30: Vicon Standard Equipment Warranty

    “autopan” or “tour” modes of operation. Such continuous operation is outside the scope of this warranty. Any product sold as “special” or not listed in Vicon’s commercial price list: One year from date of original retail purchase.
  • Page 31 Vicon Industries Inc. Corporate Headquarters 89 Arkay Drive Hauppauge, New York 11788 631-952-2288 800-645-9116 Fax: 631-951-2288 Vicon Europe Headquarters Brunel Way Fareham, PO15 5TX United Kingdom +44 (0) 1489 566300 Fax: +44 (0) 1489 566322 Vicon Germany Kornstieg 3 D-24537 Neumuenster...
