Vicon V9360W-E Installation Manual

Network hemispheric camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Installation Guide
XX263-40-00

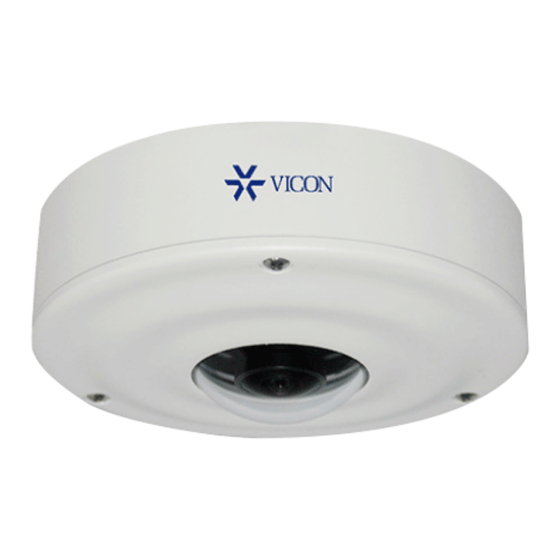

V9360W-E
Network Hemispheric Camera
Vicon Industries Inc.
Tel: 631-952-2288 Fax: 631-951-2288 Toll Free: 800-645-9116
24-Hour Technical Support: 800-34-VICON (800-348-4266) UK: 44/(0) 1489-566300
Vicon Industries Inc. does not warrant that the functions contained in this equipment will meet your requirements or that the
operation will be entirely error free or perform precisely as described in the documentation. This system has not been designed
to be used in life-critical situations and must not be used for this purpose.
www.vicon-security.com
Document Number: 8009-8263-40-00
Issued: 516
Product specifications subject to change without notice.
Copyright © 2016 Vicon Industries Inc. All rights reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the V9360W-E and is the answer not in the manual?

Questions and answers

Related Manuals for Vicon V9360W-E

Summary of Contents for Vicon V9360W-E

  • Page 1 24-Hour Technical Support: 800-34-VICON (800-348-4266) UK: 44/(0) 1489-566300 Vicon Industries Inc. does not warrant that the functions contained in this equipment will meet your requirements or that the operation will be entirely error free or perform precisely as described in the documentation. This system has not been designed to be used in life-critical situations and must not be used for this purpose.

  • Page 2: Table Of Contents

    Hardware Manual Table of Contents Precautions Safety Instructions ................6 Introduction The List of Models ................7 Package Contents ................8 Physical Description ................ 9 Mounting Solutions ................ 10 Installing the Camera on a Surface Step 1: Drill the Holes ..............11 Step 2: Open the Camera Cover ............
  • Page 3 Hardware Manual Accessing the Camera Configure the IP Addresses ............30 Access the Camera ................. 34...

  • Page 4: Precautions

    Hardware Manual Precautions Read these instructions Read all the safety and operating instructions before using this product. Heed all warnings Adhere to all the warnings on the product and in the instruction manual. Failure to follow the safety instructions given may directly endanger people, cause damage to the system or to other equipment.
  • Page 5 Hardware Manual Federal Communications Commission Statement This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 6: Safety Instructions

    Hardware Manual Safety Instructions Cleaning Disconnect this product from the power supply before cleaning. Accessories and Repair Parts Use only the accessories and repair parts recommended by the manufacturer. Using other attachments not recommended by the manufacturer may cause hazards. Installation Install other devices (such as PoE injector, alarm, etc.) that will be used with the camera in a dry place protected from weather.

  • Page 7: Introduction

    Hardware Manual Introduction The V9360W-E Model 6MP Outdoor Hemispheric Dome with Day/Night, Advanced WDR, ELLS, Fixed lens...

  • Page 8: Package Contents

    Hardware Manual Package Contents Check if the camera package comes with the following items. Camera Cable Gland Conduit Gland Hexagon Screwdriver Screw Plugs Screws for Surface Mount Terminal Block Terminal Block Terminal Block (for Power) (for DI/DO) (for Audio In/Out) Quick Installation Guide Drill Template Drill Template...

  • Page 9: Physical Description

    Hardware Manual Physical Description Item Description Reset Button Restores the factory default settings of the camera. To reset the camera, while the power is on, press and hold the Reset Button for at least 5 seconds or until the Power LED lights up. Audio Input / Output Connects to audio input and output devices, such as microphones and speakers.

  • Page 10: Mounting Solutions

    Hardware Manual Mounting Solutions There are several mounting options that you can use to install the camera. Select the most suitable solution for your installation environment. Mount Types Accessories Surface Mount Suitable when mounting the camera on flat and smooth surface, like ceilings or walls.

  • Page 11: Installing The Camera On A Surface

    Hardware Manual Installing the Camera on a Surface This section describes the procedures in directly mounting the camera on a flat surface, such as a hard or dropped ceiling and straight or tilted walls. NOTE: • The following camera images may vary from the actual camera but will be similar. •...
  • Page 12 Hardware Manual 3. Detach the drill template from the surface and insert the plastic plugs into the screw holes. a. Drill the cable hole and the three (3) screw holes on the surface. b. Remove the cap covering the bottom hole of the camera and attach the cap to the side hole to close it.

  • Page 13: Step 2: Open The Camera Cover

    Hardware Manual Step 2: Open the Camera Cover NOTE: • To avoid scratches or leaving fingerprints on the dome cover, it is recommended to retain the plastic covering the dome cover until the camera is completely installed. However, the plastic has been removed on some of the pictures in this documentation to show clarity of the procedures being described.

  • Page 14: Step 3: Prepare To Waterproof And Connect The Cable

    Hardware Manual NOTE: Do not forcefully lift the cover; it is attached to the camera body with a safety strap. 4. If necessary, insert a memory card, with the metallic contacts facing down, into the card slot of the camera. See How to Insert the Memory Card on page 29.

  • Page 15: Waterproof Solution With Naked Cable

    Hardware Manual Waterproof Solution with Naked Cable This section describes the procedures to waterproof the cabling connections using an exterior- grade Ethernet cable. 1. Disassemble the cable gland as shown below: Sealing Insert Body Clamping with Claw (with Washer) 2. Insert the clamping nut into the Ethernet cable. 3.
  • Page 16 Hardware Manual 4. Attach the cable gland body to the hole of the camera. Attach to Camera Side Hole Attach to Camera Bottom Hole NOTE: The following images are taken using the side hole of the camera; the same procedures apply when using the bottom side hole.

  • Page 17: Waterproof Solution With Conduit

    Hardware Manual Waterproof Solution with Conduit This section describes the procedures to waterproof the cabling connections using a flexible conduit with 1/2” trade size (not supplied). This is the recommended solution when connecting an external power adapter, audio in/out, or digital input/output (DI/DO) devices to the camera. 1.
  • Page 18 Hardware Manual 3. Insert the clamping nut through the flex conduit. 4. Insert the sealing rubber and attach it at the end of the flex conduit. 5. Attach the conduit gland body to the hole of the camera. Attach to Camera Side Hole Attach to Camera Bottom Hole NOTE: The following images are taken using the side hole of the camera;...
  • Page 19 Hardware Manual 7. Insert the Ethernet cable and other cables (if any) through the conduit gland body. Ethernet Cable Only Ethernet and External Power Adapter Cable 8. Connect the Ethernet cable to the Ethernet port of the camera. If connecting other cables, such as an external power adapter, audio in/out or DI/DO devices, connect the terminal blocks at this point and connect them to the corresponding connectors of the camera (see Other Connections...

  • Page 20: Step 4: Install The Camera To The Surface

    Hardware Manual Step 4: Install the Camera to the Surface Attach the camera to the surface using the three (3) supplied screws. It is recommended to install the camera to the surface with the cable hole facing down to avoid water leaking concerns.

  • Page 21: Step 6: Access The Camera Live View

    Hardware Manual Step 6: Access the Camera Live View Accessing the Camera on page 30 for more information. Based on the live view, adjust the viewing angle orientation as needed. See How to Rotate the Viewing Orientation on page 28. Step 7: Close the Cover After all adjustments have been made, tighten the three (3) screws to secure the cover.

  • Page 22: Other Connections

    Hardware Manual Other Connections This section describes the procedures in preparing the external devices that you can connect to the camera. The camera supports 12 VDC power input, Digital Input and Output (DI/DO) and Audio Input and Output devices using the bundled terminal blocks. The use of these devices, however, is optional.
  • Page 23 Hardware Manual 3. Connect the wire with the white stripe to the 12V pin and the other to the GND pin. 4. Tighten the screws of the 12V pin and the GND pins to secure the wire connection. 5. Set the prepared power adapter for connection later. Below is an example of a power adapter with an attached terminal block.

  • Page 24: Connecting Di/Do Devices (Optional)

    Hardware Manual Connecting DI/DO Devices (Optional) Depending on your surveillance needs, you may connect digital input or output devices to your camera to trigger events or notifications. Digital Input (DI) devices can be used to notify the camera about an activity in the camera site. DI can be triggers of events.
  • Page 25 Hardware Manual To connect output devices (DO), map the pins to one of the pin combinations below: Device Mapping Instructions Connect the wires of the first output device to 12V and Digital Output 1 (DO1) DO1. Connect the wires of the second output device to 12V Digital Output 2 (DO2) and DO2.
  • Page 26 Hardware Manual High Voltage DO Device Connection Even though the camera provides 12V power, this may not be enough for some high voltage DO devices, such as a ceiling light or a motor that opens or closes a gate. In this case, there is a need to connect an external relay.

  • Page 27: Connecting Audio In/Out Devices (Optional)

    Hardware Manual Connecting Audio In/Out Devices (Optional) Depending on your surveillance needs, you may connect audio input or output device, such as an active microphone or speaker, to your camera. In this case, you need to connect the audio input/output device to the supplied audio terminal block. To connect audio input / output devices, map the pins to one of the pin combinations below: Device Mapping Instructions...

  • Page 28: Other Adjustments And Accessories

    Hardware Manual Other Adjustments and Accessories How to Rotate the Viewing Orientation The viewing orientation of the camera is indicated by the arrow as shown below. To change the orientation, do the following steps: 1. Slightly loosen the three (3) screws securing the lens module. 2.

  • Page 29: How To Install/Remove The Memory Card

    Hardware Manual How to Install/Remove the Memory Card The camera supports local video recording to a memory card (not supplied). NOTE: Camera supports microSDHC and microSDXC cards. How to Insert the Memory Card 1. Open the dome cover. 2. Insert the memory card with the metal contacts facing down the camera. 3.
  • Page 30 Hardware Manual Accessing the Camera Configure the IP Addresses In order to be able to communicate with the camera from your PC, both the camera and the PC have to be within the same network segment. In most cases, it means that they both should have very similar IP addresses, where only the last number of the IP address is different from each other.
  • Page 31 Hardware Manual launched and the IP address of the target camera is already filled in the address bar of the browser. There is even a better way to discover the cameras in the network – by using IP Utility. The IP Utility is a light software tool that can not only discover the cameras, but also list lots of valuable information, such as IP and MAC addresses, serial numbers, firmware versions, etc., and allows quick configuration of multiple devices at the same time.
  • Page 32 Hardware Manual Use the default IP address of the camera If there is no DHCP server in the given network, the user may have to manually assign the IP addresses to both the PC and the camera to make sure they are in the same network segment. When the camera is plugged into the network and it does not detect any DHCP services, it will automatically assign itself a default IP: 192.168.0.100...
  • Page 33 Hardware Manual Manually adjust the IP addresses of multiple cameras If there are more than one camera to be used in the same local area network and there is no DHCP server to assign unique IP addresses to each of them, all of the cameras would then have the initial IP address of 192.168.0.100, which is not a proper situation for network devices –...
  • Page 34 Disclaimer Notice: Vicon does not guarantee the compatibility of its cameras with VLC player or QuickTime, since these are third party softwares. The third party has the right to modify their utility any time, which might affect the compatibility. In such cases, please use Internet Explorer browser.
  • Page 35 Hardware Manual The examples in this manual are based on Internet Explorer browser in order to cover all functions of the camera. Assuming that the camera’s IP address is 192.168.0.100, you can access it by opening the Web browser and typing the following address into Web browser’s address bar: http://192.168.0.100 Upon successful connection to the camera, the user interface called Web Configurator would appear together with the login page.
  • Page 36 Shipping Instructions Use the following procedure when returning a unit to the factory: 1. Call or write Vicon for a Return Authorization (R.A.) at one of the locations listed below. Record the name of the Vicon employee who issued the R.A.
  • Page 37 “autopan” or “tour” modes of operation. Such continuous operation is outside the scope of this warranty. 11. Any product sold as “special” or not listed in Vicon’s commercial price list: One year from date of original retail purchase.
  • Page 38 The warranty does not apply (a) to faulty and improper installation, maintenance, service, repair and/or alteration in any way that is not contemplated in the documentation for the product or carried out with Vicon consent in writing, operation adjustments covered in the operating manual for the product or normal...
  • Page 39 THE TERMS OF THIS WARRANTY APPLY ONLY TO SALES MADE WHILE THIS WARRANTY IS IN EFFECT. THIS WARRANTY SHALL BE OF NO EFFECT IF AT THE TIME OF SALE A DIFFERENT WARRANTY IS POSTED ON THE COMPANY’S WEBSITE, WWW.VICON-SECURITY.COM. IN THAT EVENT, THE TERMS OF THE POSTED WARRANTY SHALL APPLY EXCLUSIVELY.
  • Page 40 Hardware Manual Vicon Industries Inc. For office locations, visit the website: www.vicon-security.com...
