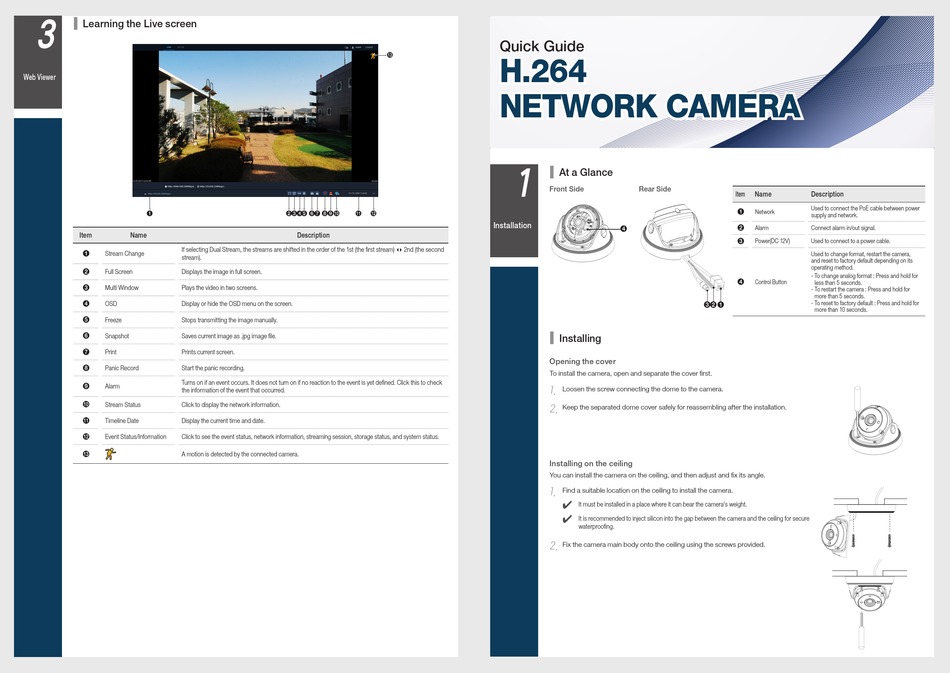

Vicon V992E Quick Manual

Learning the Live screen
3
\ \
Web Viewer
a
Item Name
If selecting Dual Stream, the streams are shifted in the order of the 1st (the first stream)
Stream Change
a
stream).
Full Screen Displays the image in full screen.
b
Multi Window Plays the video in two screens.
c
OSD Display or hide the OSD menu on the screen.
d
Freeze Stops transmitting the image manually.
e
Snapshot Saves current image as .jpg image file.
f
Print Prints current screen.
g
Panic Record Start the panic recording.
h
Turns on if an event occurs. It does not turn on if no reaction to the event is yet defined. Click this to check
Alarm
i the information of the event that occurred.
Stream Status Click to display the network information.
j
Timeline Date Display the current time and date.
k
Event Status/Information Click to see the event status, network information, streaming session, storage status, and system status.
l
A motion is detected by the connected camera.
m
m
b c d e fg hij k l
Description
2nd (the second
<
Quick Guide
H.264
NETWORK CAMERA
At a Glance
1
\ \
Front Side Rear Side
Installation
d
Installing
\ \
Opening the cover
To install the camera, open and separate the cover first.
Loosen the screw connecting the dome to the camera.
1.
Keep the separated dome cover safely for reassembling after the installation.
2.
Installing on the ceiling
You can install the camera on the ceiling, and then adjust and fix its angle.
Find a suitable location on the ceiling to install the camera.
1.
It must be installed in a place where it can bear the camera's weight.

It is recommended to inject silicon into the gap between the camera and the ceiling for secure

waterproofing.
Fix the camera main body onto the ceiling using the screws provided.
2.
Item Name Description
Used to connect the PoE cable between power
Network
a supply and network.
Alarm Connect alarm in/out signal.
b
Power(DC 12V) Used to connect to a power cable.
c
Used to change format, restart the camera,
and reset to factory default depending on its
operating method.
- To change analog format : Press and hold for
Control Button
less than 5 seconds.
d
- To restart the camera : Press and hold for
more than 5 seconds.
- To reset to factory default : Press and hold for
cba
more than 10 seconds.
