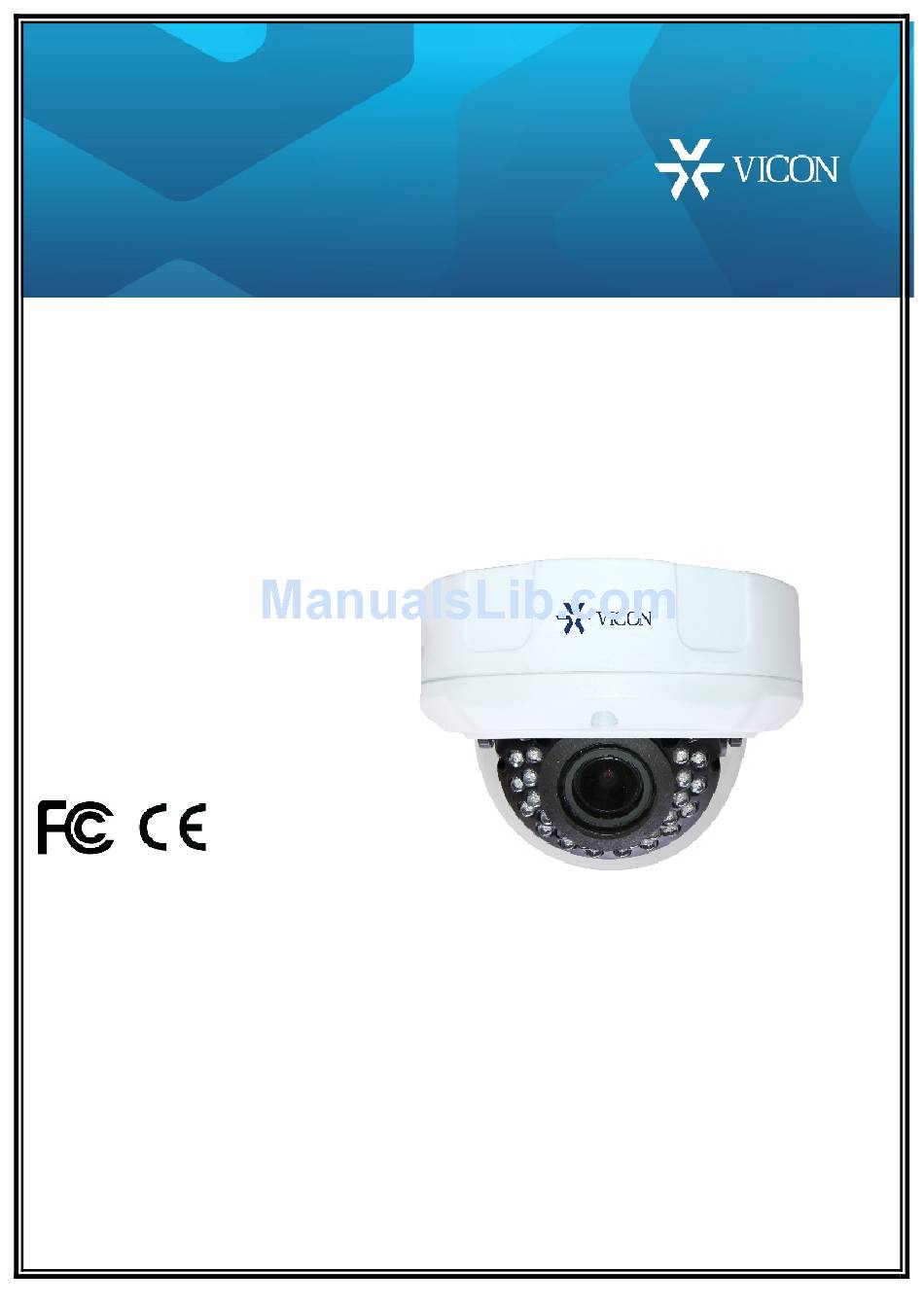

Installation Guide
V940D Network Dome Cameras
Installation Guide
XX292-00
Vicon Industries Inc. does not warrant that the functions contained in this
equipment will meet your requirements or that the operation will be entirely error
free or perform precisely as described in the documentation. This system has not
been designed to be used in life-critical situations and must not be used for this
purpose.
Document Number: 8009-8292-00-00
Vicon Industries Inc.
Tel: 631-952-2288) Fax: 631-951-2288
Product specifications subject to change without notice.
Toll Free: 800-645-9116
24-Hour Technical Support: 800-34-VICON
(800-348-4266) UK: 44/(0) 1489-566300
Issued: 7/17 Copyright © 2017 Vicon Industries Inc. All rights reserved.
www.vicon-security.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the V942D-W312MIR and is the answer not in the manual?

Questions and answers

Related Manuals for Vicon V942D-W312MIR

Summary of Contents for Vicon V942D-W312MIR

  • Page 1 Installation Guide XX292-00 Vicon Industries Inc. does not warrant that the functions contained in this equipment will meet your requirements or that the operation will be entirely error free or perform precisely as described in the documentation. This system has not been designed to be used in life-critical situations and must not be used for this purpose.
  • Page 2 Vicon Industries. Vicon Industries reserves the right to change this manual and the specifications without prior notice. The most recent product specifications and user documentation for all Vicon Industries products are available on our web site www.vicon-security.com.
  • Page 3 Read this manual carefully before installation. This manual should be saved for future use. Important Safety Instructions and Warnings: Electronic devices must be kept away from water, fire or high magnetic  radiation. Clean with a dry cloth.  Provide adequate ventilation. ...

  • Page 4: Table Of Contents

    CONTENTS Chapter I System Introduction ..............1 1.1 Product Description................1 1.2 Product Model ..................2 1.3 Product Features..................2 1.4 System Requirement ................4 1.5 Specifications ..................4 1.6 Notes ..................... 8 Chapter II Installation ................9 2.1 Installation Precautions ................. 9 2.2 Dimensions ...................
  • Page 5 4.3.9 DDNS Settings..................35 4.3.10 UPnP Settings ..................36 4.3.11 NAS Settings..................37 4.3.12 RTSP ....................38 4.3.13 IP Filter ....................38 4.3.14 Monitor Connect ................40 4.4 Camera Settings .................. 41 4.4.1 Basic Settings ..................41 4.4.2 Exposure Settings ................42 4.4.3 Effect Settings ..................43 4.4.4 White Balance ..................45 4.4.5 Focus Settings ..................46 4.4.6 IR Set ....................48 4.4.7 Reset ....................48...
  • Page 6 4.9 User Settings ..................69 4.10 System Log ..................72 Appendix I Questions & Solutions ............73...

  • Page 7: Chapter I System Introduction

    CHAPTER I SYSTEM INTRODUCTION 1.1 Product Description The information in this manual provides installation and setup procedures for the V940D series network cameras. The V940D Series Dome Camera uses a progressive scan CMOS sensor with an internal HD motorized zoom lens. The camera has an internal Smart IR technology that provides 98 ft/30m IR distance.

  • Page 8: Product Model

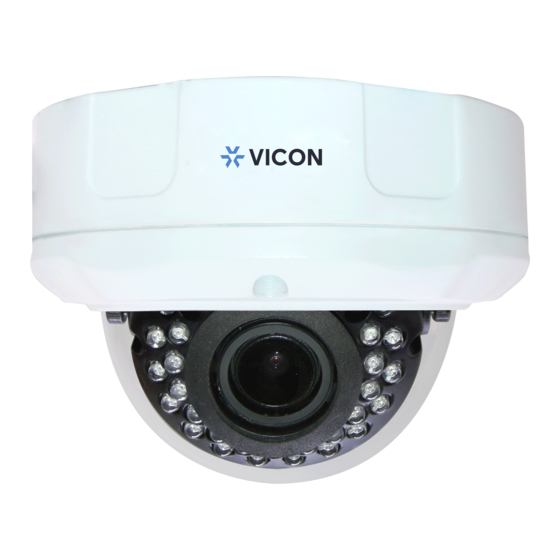

    1.2 Product Model This manual is for the following models: V942D-W312MIR HD Megapixel IR IP Dome Camera, WDR, Intelligence, 2.0MP, 1/3"CMOS, day/night, H.265/H.264/M-JPEG, with audio/alarm, 2.7~12mm motorized zoom lens, 98ft/30m IR distance, IP67, PoE/12VDC/24VAC V944D-W312MIR HD Megapixel IR IP Dome Camera, WDR, Intelligence, 4MP, 1/3"CMOS, day/night,...
