Setup Manual
Installation Guide
XX263-20-01

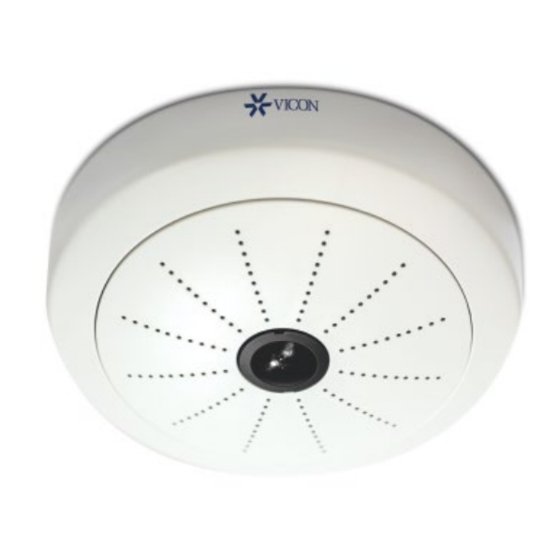

V9360 Indoor
Network Hemispheric Camera
Vicon Industries Inc., 89 Arkay Drive, Hauppauge, New York 11788
Tel: 631-952-2288 Fax: 631-951-2288 Toll Free: 800-645-9116
24-Hour Technical Support: 800-34-VICON (800-348-4266) UK: 44/(0) 1489-566300
Vicon Industries Inc. does not warrant that the functions contained in this equipment will meet your requirements or that the
operation will be entirely error free or perform precisely as described in the documentation. This system has not been designed
to be used in life-critical situations and must not be used for this purpose.
www.vicon-security.com
Document Number: 8009-8263-20-01
Issued: 613
Product specifications subject to change without notice.
Copyright © 2013 Vicon Industries Inc. All rights reserved.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Vicon V9360
Summary of Contents for Vicon V9360
- Page 1 24-Hour Technical Support: 800-34-VICON (800-348-4266) UK: 44/(0) 1489-566300 Vicon Industries Inc. does not warrant that the functions contained in this equipment will meet your requirements or that the operation will be entirely error free or perform precisely as described in the documentation. This system has not been designed to be used in life-critical situations and must not be used for this purpose.
-
Page 2: Table Of Contents
V9360 Hemispheric Camera with Advanced WDR Hardware User’s Manual Table of Contents Precautions Introduction Package Contents ................6 Features and Benefits ......Error! Bookmark not defined. Safety Instructions ....... Error! Bookmark not defined. Physical Description ................ 7 Accessing Camera If you have DHCP server router in your network: ......11... - Page 3 V9360 Hemispheric Camera with Advanced WDR Hardware User’s Manual Precautions Read these instructions Read all the safety and operating instructions before using this product. Heed all warnings Adhere to all the warnings on the product and in the instruction manual. Failure to follow the safety instruction given may directly endanger people, cause damage to the system or to other equipment.
- Page 4 V9360 Hemispheric Camera with Advanced WDR Hardware User’s Manual Safety Instructions Don’t use the power supply with other voltages This device is likely to be damaged or damage other equipments/personnel, if you use a power supply with different voltage than the one included with this device. All warranty of this product will be voided if this occurs.
- Page 5 (Please note that this is a NORMAL CONDITION for this model since the base is used as a heat sink and all the camera functions will work normally!) Caution: Do NOT install this camera directly onto any surface (wall, ceiling). One of the mounting accessories must be used, V9360-WM wall mount or V9360-FMK in-ceiling flush mount.
-
Page 6: Introduction
V9360 Hemispheric Camera with Advanced WDR Hardware User’s Manual 1. Introduction Package Contents V9360 H.264 4-Megapixel IP D/N Hemispheric Camera with Advanced WDR Terminal Blocks for Power, DI/O Network Cable Audio Accessories Drill Template... -
Page 7: Physical Description
V9360 Hemispheric Camera with Advanced WDR Hardware User’s Manual Physical Description Ethernet Port Reset Button Micro SDHC Card Slot Digital Input/Output Power LED 12 VDC Power Input Audio Input/Output 1) Reset Button Step 1: Switch off IP device by disconnecting the power cable. - Page 8 V9360 Hemispheric Camera with Advanced WDR Hardware User’s Manual 2) Micro SDHC Card Slot* Insert a Micro SDHC card (*customer supplied) for local recording on camera. 3) Power LED This LED light will indicate current camera status. 4) Audio Input/Output (Indoor unit only)
- Page 9 V9360 Hemispheric Camera with Advanced WDR Hardware User’s Manual Ground. Connect with Pin 3 for DI control loop. Pin 1 Provides power to external devices with a Voltage: 12 VDC, Pin 2 12 V maximum current of 100 mA. Max: 1.2 W...
- Page 10 Using the Mounting Options V9360-WM Wall Mount If it is required to mount the V9360 to a wall, use the V9360-WM. Typical mounting hardware is provided; be sure to use mounting hardware appropriate for the mounting surface. 1. A mounting template is provided with the wall mount. Mark the mounting holes on the surface and drill mounting holes.
-
Page 11: Accessing Camera
V9360 Hemispheric Camera with Advanced WDR Hardware User’s Manual 2. Accessing Camera If you have DHCP server router in your network: Many network server/routers are able to automatically provide IP addresses through DHCP. If you have DHCP on the network, just plug in your computer and IP Hemispheric Camera into the network and your IP device will acquire a network address by itself. - Page 12 V9360 Hemispheric Camera with Advanced WDR Hardware User’s Manual 5. When the login window displays, input default user and password: Default User: Admin Password: 123456 6. After logging in, the Live View will display. To go to the main menu, click the ”Setup”...
- Page 13 V9360 Hemispheric Camera with Advanced WDR Hardware User’s Manual 7. From the Setup Page, select IP Settings -> Connection Type. 8. Change the IP mode to Static. 9. Change the IP to 192.168.0.102 or any other unused IPs. Do NOT use the PC’s IP address or 192.168.0.100.
-
Page 14: Shipping Instructions
Vicon Industries Inc. 89 Arkay Drive Hauppauge, NY 11788 Phone: 631-952-2288; Toll-Free: 1-800-645-9116; Fax: 631-951-2288 For service or returns from countries in Europe, contact: Vicon Industries (U.K.) Ltd Brunel Way Fareham, PO15 5TX United Kingdom Phone: +44 (0)1489/566300; Fax: +44 (0)1489/566322... -
Page 15: Vicon Standard Equipment Warranty
Vicon Standard Equipment Warranty Vicon Industries Inc. (the “Company”) warrants your equipment to be free from defects in material and workmanship under Normal Use from the date of original retail purchase for a period of three years, with the following exceptions: Monitors, all models: One year from date of original retail purchase. - Page 16 Vicon Industries Inc. Corporate Headquarters 89 Arkay Drive Hauppauge, New York 11788 631-952-2288 800-645-9116 Fax: 631-951-2288 Vicon Europe Headquarters Brunel Way Fareham, PO15 5TX United Kingdom +44 (0) 1489 566300 Fax: +44 (0) 1489 566322 Vicon Germany Kornstieg 3 D-24537 Neumuenster...
